It is not a desk phone with a screen. It is a wall-mounted Android indoor station for SIP video intercom projects — villas, apartment receptions, small building lobbies, security desks, clinics, offices, and staff entrances where the person inside needs to see and speak to the person outside before releasing the door. The i505W is the Wi-Fi version of the i505 indoor station family, so it gives contractors one more deployment option when a data cable is difficult, late, or not approved in a finished wall.

Vector Digital Systems supplies Fanvil i505W from Dubai for project quantities, villa intercom upgrades, reception-area installs, and MEA export orders. We quote the indoor station together with the matching Fanvil door phone, PoE switch, power adapter where needed, lock-release wiring items, and staging before dispatch. Supply from Dubai since 2009, with installation across Dubai, Abu Dhabi, Sharjah, Ajman, Ras Al Khaimah, Fujairah, and Umm Al Quwain.

What the Fanvil i505W is

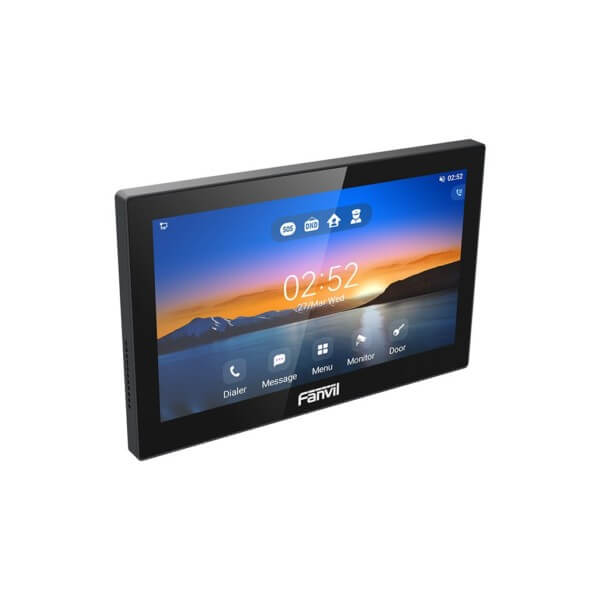

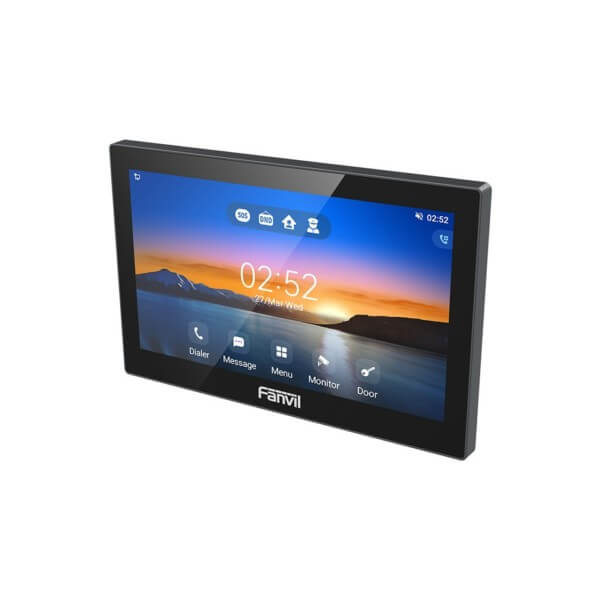

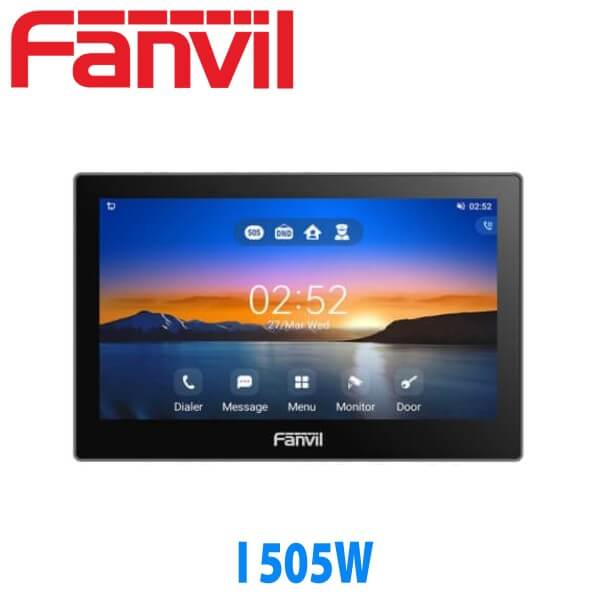

The i505W is a 7-inch Android indoor station used inside a property with a SIP door phone outside. A visitor presses the call button at the gate or entrance. The indoor station rings. The user answers hands-free, sees the live video, speaks to the visitor, and triggers the door or gate release from the touchscreen.

The display is a 7-inch IPS colour capacitive touchscreen with 1024 × 600 resolution. That size is large enough for a villa entrance lobby, reception counter, apartment security desk, or manager office where the camera image needs to be readable at a glance. The body is compact at 177.38 mm × 113.99 mm × 22.5 mm, and it is designed for wall mounting, not desk placement.

The “W” matters. Fanvil i505W supports dual-band 2.4 GHz and 5 GHz Wi-Fi, while also keeping a wired RJ45 10/100 Mbps Ethernet port. For new Dubai fit-outs we still prefer cable and PoE where possible. For a finished villa, a reception renovation, or a back-office wall where new cabling is painful, built-in Wi-Fi can save opening the wall again. Wi-Fi does not remove the need for power, but it can remove the need for a new data run.

The station runs Android 9.0 and is designed for third-party app integration and project customisation. In plain project terms: it is not only a monitor. It is an indoor control point that can sit inside a wider access-control, visitor-calling, and security workflow when the installer or integrator needs more than a basic audio handset.

Where it fits in a real Dubai project

A typical i505W order is not one loose screen bought for a desk. It is part of an entrance system. One door phone at the villa gate or office entrance. One or more indoor stations inside. Door release wired through a relay. IP camera preview where the site needs a wider view than the door station camera. Sensor inputs used where the ELV scope includes extra contacts.

For a villa in Jumeirah, Al Barsha, Nad Al Sheba, or Mirdif, the indoor station often sits near the main entrance or family sitting area. The driver, delivery rider, contractor, or visitor calls from the gate. The family answers on the i505W, sees the video, and unlocks the entrance without going outside. In that case, Wi-Fi is useful when the villa is finished and the client refuses another cable route through marble, gypsum, or joinery.

For a small office in Business Bay, JLT, DMCC, or Dubai Silicon Oasis, the i505W can sit at reception or inside an admin office. The front door station calls the indoor screen, the staff member checks the visitor, and a programmed unlock action releases the door. In a clinic, nursery, training centre, or shared office, that avoids leaving the counter each time someone rings.

For apartment and staff-accommodation projects, the i505W is usually quoted in batches. The buying question becomes quantity, mounting plan, door-phone pairing, power method, network VLAN, and staging. We support that kind of project supply from Dubai: model selection, batch quotation, provisioning template, test calls, packing, and dispatch under one engagement.

SIP account and calling — what the indoor station registers as

Desk phone pages talk about SIP lines. Indoor stations need the same explanation, but in a different way. The i505W is a SIP endpoint. It registers to the intercom server, IP PABX, or SIP platform with its own extension or account. A door phone can call it directly, or a call route can ring the indoor station together with another extension depending on how the site is designed.

That SIP account is not the same thing as “number of doors” or “number of simultaneous visitors.” For example, a villa may have one gate station and one i505W indoor station. A warehouse office may have two entrances and one indoor station at security. A reception may have one front-door station calling the i505W first, then overflowing to a staff desk if unanswered. The correct design depends on the call path, not only the screen model.

The i505W supports SIP 2.0 over UDP, TCP, and TLS. Audio codec support includes G.711A/U, G.729AB, iLBC, G.722, and Opus, with full-duplex hands-free calling and acoustic echo cancellation. In human terms: the person inside can talk naturally without lifting a handset, and wideband audio is available when the rest of the system supports it.

Video support is equally important. The i505W supports hardware video decoding with H.264 and H.265, and video call resolutions from QVGA through 1080P. That gives integrators room to match the indoor station with the selected Fanvil door station and site camera settings. We test the video path during staging so the handover is not the first time the client sees the image.

The real differentiator — it is not only a door-answer screen

The useful part of the i505W is the number of site functions it brings to one indoor point. It answers the entrance. It shows video. It supports remote door unlocking. It can view video from third-party IP cameras. It supports message sending and receiving. It has 8 alarm inputs for sensor integration. It has 1 short-circuit output, 1 doorbell input, and 1 reserved RS-485 interface.

Those numbers matter in ELV work. An alarm input can be used by the project designer for door contacts, panic buttons, or other low-voltage site signals depending on the approved wiring plan. The short-circuit output can be part of a simple local control requirement. The doorbell input is helpful when the client wants the indoor screen to respond to a local bell position as well as the SIP door phone. Not every site uses every interface. But when the drawings ask for them, they are there.

The IP camera viewing is also a detail many UAE listings miss. In a villa, the door station camera may show the visitor’s face, while a separate camera shows the car, gate area, or delivery zone. In a small office, a camera outside the glass door may show the visitor before the call is answered. The indoor station can become the viewing point for that security moment, not just the answer point.

For system integrators, PABX installers, and ELV contractors, that means fewer separate devices on the wall. One 7-inch screen can handle the visitor call, the conversation, the camera check, and the unlock action. Cleaner for the client. Easier to train. Better for a Dubai handover where the person signing the job wants the entrance to work on the first demonstration.

i505W with Fanvil door phones

The i505W is usually paired with a Fanvil SIP door phone or video door station. For villa gates, office entrances, staff doors, warehouses, and reception lobbies, we normally quote the indoor station together with the correct Fanvil outdoor unit, power method, network parts, and lock-release accessories. The indoor station is only one side of the system; the door phone, relay, cabling, and PABX call route decide how good the installation feels.

For a current Fanvil entrance project, the Fanvil i60 door phone is the model we compare first where a modern SIP video door station is required. For desk-side call handling behind reception, Fanvil IP phones from the Fanvil IP phone range can be added so the same entrance call reaches both the indoor monitor and selected extensions.

Vector Digital Systems stages the i505W before dispatch where project quantities justify it: SIP account entered, server details applied, door-station call path checked, unlock action tested, video preview verified, and labels documented for the installer. For export orders, we can stage to the details supplied by the reseller or leave the devices clean for local programming at destination.

Power and network truth — PoE first, Wi-Fi when the wall is already finished

The Fanvil i505W gives installers three practical choices: wired Ethernet, PoE, and built-in Wi-Fi. The wired port is 1 × RJ45 10/100 Mbps self-adaptive Ethernet. That is enough for an indoor intercom station because this is not a PC passthrough phone. It does not need dual Gigabit ports; it needs a stable link to the door phone, SIP server, and camera stream.

Power is the part to plan before installation day. The i505W supports PoE 802.3af and 12V DC 1A input. In a new office or villa build, PoE is the cleaner method: one cable from the ELV cabinet or PoE switch powers and connects the indoor station. In a finished retrofit where the data route is not possible, Wi-Fi can carry the network side, but the unit still needs power at the mounting point.

Power consumption is low for an Android indoor station: 2.83 W to 7.64 W on PoE, and 2.46 W to 6.51 W on adapter power. That helps when an ELV contractor is sizing a small PoE switch for several indoor stations and door phones. We still check the total PoE budget across the full cabinet, because door phones, cameras, access readers, and indoor stations are usually sharing the same rack space.

Wi-Fi on the i505W supports 2.4 GHz and 5 GHz. Use 5 GHz where the access point is nearby and the signal is clean. Use 2.4 GHz only where range matters more than speed. For villas and offices, call quality follows Wi-Fi quality. If the indoor station is behind thick block walls, metal doors, lift cores, or a crowded access point, cable and PoE are still the right answer.

Current capability notes that matter in 2026 projects

The i505W is still active in Fanvil’s indoor-station range, and the practical feature set now matters more than the launch label. For a Dubai ELV contractor, the useful points are Android 9.0, third-party application integration, SIP video intercom calling, live video viewing, message sending and receiving, remote door release, and alarm input handling from one wall station.

The camera side is important. The i505W supports H.264 and H.265 video decoding, with video call resolution support from QVGA to 1080P. That gives the installer room to match the site’s door-station and camera settings rather than forcing everything down to one low-resolution view. In a villa, that may be the gate camera. In a small office, it may be a lobby or corridor camera. In a staff accommodation block, it may be the main entrance view at the guard desk.

The audio side is also stronger than many indoor monitor listings suggest. Codec support includes G.711A/U, G.729AB, iLBC, G.722, and Opus. Wideband options such as G.722 and Opus help the conversation sound more natural where the full SIP path supports them. Acoustic echo cancellation, automatic gain control, comfort noise generation, and voice activity detection are all part of making a hands-free wall station usable in a lobby or reception area.

For project buyers, the detail is not “does it ring?” The detail is whether the visitor can be heard clearly, whether the camera image appears fast enough, whether the door-release command is mapped correctly, whether the alarm inputs are labelled in the handover sheet, and whether the screen is simple enough for non-technical users. That is what we check during staging before dispatch from Dubai.

Platform compatibility in Dubai installations

The Fanvil i505W works as a SIP indoor station, so it can sit behind the same call-control environment used for a Fanvil door phone and office extensions. In Dubai projects, we most often see it connected to 3CX, Grandstream UCM, Yeastar, Asterisk, or a SIP intercom server. Where the entrance call needs to reach a desk phone as well, we build the call route before the units leave our workshop.

Etisalat and du are relevant when the same PABX also handles business voice trunks. The indoor station itself is for internal SIP intercom and door communication; the PABX may also connect to Etisalat or du SIP services for outside calls. We keep those roles clear in the configuration, so the indoor monitor answers the entrance while the office extensions handle normal inbound and outbound calling.

For integrators, we can stage the i505W with the server address, SIP account, display name, door-station call path, camera preview, and door-release action where those details are supplied. For export resellers, we can either stage the units to the submitted project file or ship them clean with serial-number records and packing lists for local programming.

Fanvil indoor station comparison — i501W, i505, i505W, i507W

For most UAE villa and office retrofit jobs, i505W is the safer quote than i505 because it keeps the Wi-Fi option open. For clean new-build work with Cat6 and PoE already in the wall, i505 can be enough. For a reception wall or premium lobby where the client asks for a larger display, compare i507W before the quotation is issued.

Pricing, supply, staging, and installation from Dubai

Fanvil i505W pricing depends on quantity, door-phone pairing, power method, accessories, and whether installation is included. We do not publish fixed AED pricing because project scopes differ: one villa screen is not the same as 40 indoor stations for a residential building, and an indoor station without the door phone, relay, lock, PoE switch, and cable plan is not a complete entrance system.

Vector Digital Systems quotes Fanvil i505W from Dubai with VAT breakdown, delivery, and project pricing for multi-unit orders. For installation jobs, we scope the entrance station, indoor monitor position, network route, power method, lock-release wiring, and PABX or SIP server call path before the quote is finalised.

For multi-site work, we label and pack by location: Villa 1, reception, guard room, Block A, Block B, warehouse office, or branch name. That saves time for installers working across Dubai, Abu Dhabi, Sharjah, JAFZA, DIP, and free zone offices where the team may not be the same people who staged the units.

Frequently asked questions

Will the Fanvil i505W work with our 3CX / Grandstream UCM / Yeastar system?

Yes. The i505W works as a SIP indoor station and can register to 3CX, Grandstream UCM, Yeastar, Asterisk, or a SIP intercom server, depending on the site design. We configure the account, door-station call route, video preview, and door-release action during staging when the project details are supplied.

Does the Fanvil i505W come with a power adapter, or do I need PoE?

The i505W supports PoE 802.3af and 12V DC 1A. For a new installation, PoE is usually cleaner because one cable handles power and data. If your site will not use PoE, we include the correct 12V power adapter as an add-on in the same quote.

What does the SIP account on the i505W actually mean — can it answer several doors at once?

The SIP account is the indoor station’s identity on the intercom or PABX system. It does not mean unlimited simultaneous visitors. A door phone can call the i505W, or several entrance routes can be designed to ring it, but simultaneous call behaviour depends on the SIP platform, door-phone configuration, and call route.

Fanvil i505 vs i505W — what is the difference?

Both are 7-inch Android indoor stations. The i505W adds dual-band 2.4 GHz and 5 GHz Wi-Fi. Choose i505 for a clean wired PoE installation. Choose i505W when the site may need Wi-Fi, such as villa retrofits, finished office walls, or locations where pulling a new data cable is expensive.

Can the i505W show our door camera or IP camera?

Yes. The i505W supports video intercom calling and live video viewing from linked IP cameras, with H.264 and H.265 video decoding. We test the camera preview and door-station video path during staging or installation.

Does Vector Digital Systems configure the i505W before delivery?

Yes. For project quantities, we stage the i505W before dispatch: SIP account, server address, door-station route, video preview, door-release action, Wi-Fi or wired setting, and test calls. The installer receives labelled units ready for mounting and final site checks.

Is VoIP intercom legal in the UAE and will this work with Etisalat or du?

Business VoIP and SIP systems are used in the UAE under TRA regulation through approved operator services and compliant business networks. The i505W is mainly for internal SIP intercom and door communication. Where the same PABX also connects to Etisalat or du SIP trunks, we keep the entrance intercom route and outside calling route properly separated.

Is the Fanvil i505W covered under Fanvil warranty in the UAE?

Yes. Vector Digital Systems supplies the i505W with Fanvil manufacturer warranty handling from Dubai. For project buyers, we support warranty coordination, serial-number records, replacement handling, and procurement documentation for approved deployments.

Who is the supplier of Fanvil i505W in Dubai?

Vector Digital Systems LLC is an authorised Fanvil supplier in Dubai, UAE, operating since 2009. We supply Fanvil i505W indoor stations with staging, provisioning, installation across all seven emirates, local warranty handling, and official quotations for consultants, system integrators, ELV contractors, and procurement teams.

What is the best Fanvil indoor station for a villa intercom in Dubai?

For most villa video intercom projects in Dubai, the Fanvil i505W is the practical choice because it gives a 7-inch Android touchscreen, PoE, 12V DC power option, dual-band Wi-Fi, door release, IP camera viewing, and 8 alarm inputs. Choose i507W instead when the client wants a larger 10.1-inch screen.

Does Vector Digital Systems export Fanvil i505W from Dubai?

Yes. We export Fanvil i505W indoor stations from Dubai to telecom resellers, PABX installers, ELV contractors, and security system integrators across Saudi Arabia, Oman, Bahrain, Kenya, Tanzania, Rwanda, Nigeria, Ghana, Pakistan, and Kazakhstan. FOB Dubai pricing is available with commercial invoice, packing list, certificate of origin, and Fanvil manufacturer warranty documentation.

Supply and installation across all seven UAE emirates

Vector Digital Systems supplies and installs Fanvil i505W indoor stations across Dubai, Abu Dhabi, Sharjah, Ajman, Ras Al Khaimah, Fujairah, and Umm Al Quwain. Dubai projects include villas, clinics, offices, nurseries, warehouses, staff accommodation, Business Bay offices, JLT floors, DMCC companies, JAFZA warehouses, and DIP industrial sites.

For UAE installation, we can supply the indoor station only, or quote the full intercom path: Fanvil door phone, i505W indoor monitor, PoE switch, power adapter where needed, lock-release interface, PABX route, and testing. For contractors, we work from your BOQ, door schedule, floor plan, and network drawing.

MEA export from Dubai

Fanvil i505W is a strong export item because indoor stations are usually ordered in batches, not singles. We support Gulf resellers in Saudi Arabia, Oman, and Bahrain; East African integrators in Kenya, Tanzania, and Rwanda; West African telecom buyers in Nigeria and Ghana; and project distributors in Pakistan and Kazakhstan.

Export quotes are issued FOB Dubai with commercial invoice, packing list, and certificate of origin. For staged export batches, send the door-phone model, indoor station count, SIP account list, destination country, and packing requirement. We can label by apartment, villa, building block, or site name before dispatch.
