Description

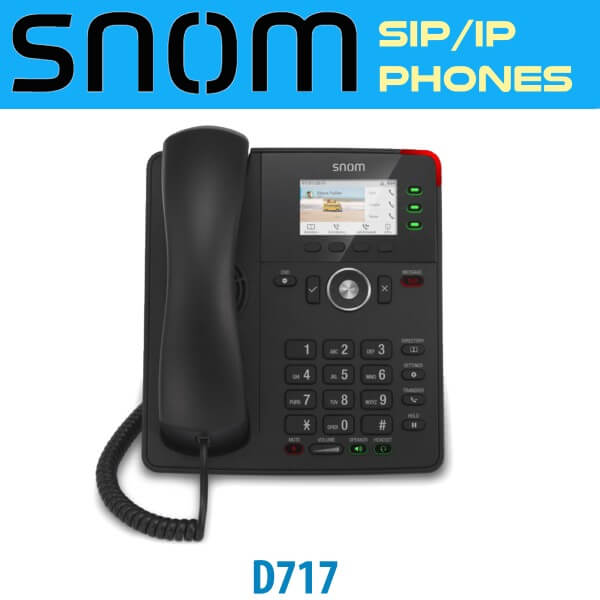

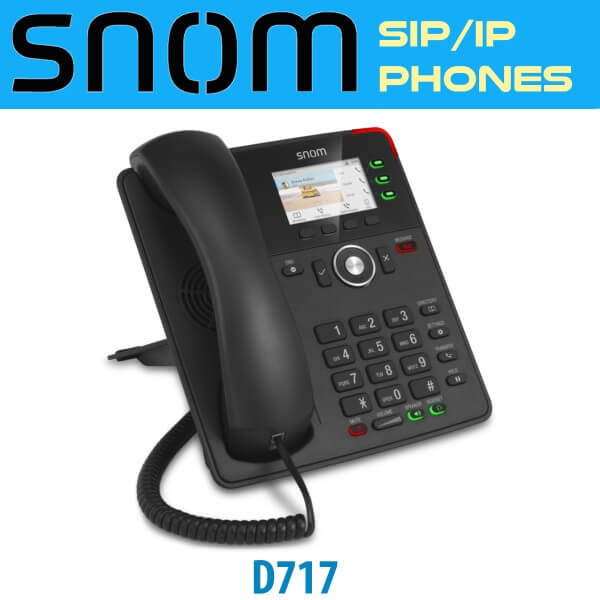

SNOM D717 IP Phone Dubai

SNOM D717 IP Phone features a smart proximity sensor and enables you to adjust brightness as preferred. When the user’s hand nears the display or the function keys of the IP phone, the sensor reacts automatically by displaying frequently used features and dialled numbers.  Depending on the room’s lighting conditions, the sensor works seamlessly to ensure that the brightness of the display is adjusted accordingly by  reducing the carbon footprint of each device in the room.

SNOM D717 IP PHONE FEATURES

SMART SENSOR TECHNOLOGY

The Snom D717 IP Phone Dubai , boasts of an embedded motion sensor which works perfectly to deliver an easy user experience.  It has been programmed to work in such a manner that whenever a user’s hand comes close to the display or the function keys, the display comes on and automatically shows all the relevant key assignment information.The display goes back to its default mode once the hand is moved away.

REMOTE MANAGEMENT VIA TECHNICAL REPORT – 069 (TR – 069/TR – 111)

The technologically advanced Snom D717 IP Phone Dubai uses CPE (Customer – premises equipment) WAN Management Protocol (CWMP) to provide support for functions such as auto-configuration, software or firmware image management, software module management, status and performance management, and diagnostics. It is based on HTTP protocol, and provides the communication between a CPE and auto configuration servers (ACS). The protocol in turn addresses the growing number of different internet access devices such as modems, routers , gateways, as well as end-user devices which connect to the Internet, such as set-top boxes , and VoIP devices such as the Snom D717 IP Phone Dubai.

AUTOMATED – PROVISIONING – TFTP/HTTP/HTTPS

The technologically advanced Snom D717 IP Phone Dubai has the ability to deploy information technology or telecommunications service by using embedded pre-defined procedures that are carried out electronically without requiring any human intervention, thus making it very reliable and convenient.

IP ADDRESS CONFIGURATION

As a default feature, the Snom D717 IP Phone Dubai obtains its IP address from the DHCP server once the line is connected. However, it can also be configured via Static IP where the user manually configures parameters, from the IP address, subnet mask, default gateway, and DNS servers. Point-to-Point Protocol over Ethernet (PPPoE) is another alternative to IP configuration, where the device is connected to a router or broadband modem using the username and password from the service provider.

SUPERB AUDIO QUALITY

Enjoy crisp and clear sounds courtesy of a smart Digital Signal Processor(DSP) that is embedded in the Snom D717 IP Phone Dubai It also incorporates the use of smart Comfort Noise(CNG) with Voice Activity Detection (VAD), resulting in crystal clear sounds which are free from distractions.

DUAL – STACK IPv6  & IPv4 ACCESS

The advanced next – generation IPv6 Internet protocol solves the problem of IP address shortage. Basically, every server or terminal has a public address to be accessed directly without translating intranet addresses by NAT or NAT traversal using technologies like STUN in an IPv6 Network, therefore making VoIP applications simpler. The Snom D765 IP Phone Dubai fully supports IPv6 protocols with respect to operator IMS access, SIP basic call, TLS encryption, and TR069 remote management. A user therefore has the freedom of choosing between IPv4 and IPv6 connection depending on their network environment. If the operator’s IP/IMS server is IPv4, the gateway allows direct access to the SIP network without any configuration, and if the server is IPv6, the gateway need only set the SIP audio transmission mode as IPv6. During these transmissions, all investments in the existing equipment are secured, existing audio services are not affected, and existing network structure and users’ habits remain the same.

SIP CONVENIENCE

The Server-Initiated Application (SIP) is incorporated for users to plug and play the phone without the need for configurations. Once the phone is connected to the network and powered on, initialization commences automatically, after which the phone is up and ready for use. Snom D717 IP Phone Dubai is based on SIP version 2(RFC3261). Furthermore, the Snom D717 IP Phone Dubai can not only be configured via a user interface, but it also accepts SIP NOTIFY messages from SIP proxy servers, which gives its ability to act as a web server.

INTEROPERABILITY

The Snom D717 IP Phone Dubai has been configured to allow full compatibility with major IP PBX platforms such as Asterisk, Broadsoft and 3CX. The premium desk phone also supports the use of multiple languages, thus giving users an easy experience.

PORTABILITY

The Snom D717 IP Phone Dubai has been meticulously designed to be extremely lightweight, with a net weight of just 710grams and a footstand weighing just 120g. This enables you to move around freely with it, without any strain.

CALL FEATURES

The Message Waiting Indicator (RFC3842) :  This feature comes in the form of a notification to alert you of a new voicemail message. The audible Message Waiting Indicator hinges on a ‘stutter dial tone’ to notify the user when a message is waiting to be retrieved, whereas a visual Message Waiting Indicator triggers a light or notice on the phone display, ensuring that you never miss out on important phone calls.

Call Transfer : This advanced feature of the Snom D717 IP Phone Dubai allows the user to relocate an inbound call to another phone or messaging system by using a dedicated call transfer button on the phone, or software that has been configured for use on the Wireless Phone.

Call Waiting : You can hear another incoming call when you are already on an active phone call (beep). With the Snom D717 IP Phone Dubai, you can also turn off call waiting so that incoming calls are directly sent to voicemail during moments you are active on another Phone call.

Call Holding : You can easily place an active phone call on hold in order to make or pick another incoming call using the premium Snom D717 IP Phone Dubai.

Conference Guide: This advanced feature of the Snom D717 IP Phone Dubai helps the user to easily set up group calls with a single click of a button. The hi-tech device allows for 3 – way group calls. You can therefore  simply create a meeting or join one seamlessly while using your device.

SNOM D717 IP PHONE SPECIFICATIONS

• Protocols:
  • SIP (RFC3261)
  • HDCP, NTP
  • HTTP/HTTPS/TFTP
  • LDAP (Directory)
  • Dual Stack IPv4 / IPv6
• Features:
  • 6 SIP identities / accounts
  • XML browser
  • Call lists for dialed, received, missed calls
  • Local directory with 1000 entries
  • Multiple language support
  • DTMF in-band / out-of-band / SIP-INFO
  • Interoperable with all major IP PBX platforms
• Call Features:
  • Speed dialing
  • URL dialing
  • Local dial plan
  • Automatic redial on busy
  • Call completion (busy/unreachable) (2)
  • Caller identification
  • Call waiting
  • Call blocking (deny list)
  • Auto answer
  • Hold
  • Music on hold (2)
  • Blind and attended transfer
  • Call forwarding
  • 3-way conferencing on the phone
  • Extension monitoring, call pickup (2)
  • Call park, call unpark (2)
  • Multicast paging
  • DND mode (do not disturb)
  • Keyboard lock
  • Client matter code (CMC) (2)
  • Unified Communications ready
• Audio:
  • Codecs:
  • 711 A-law, µ-law
  • 722 (wideband)
  • 726, G.729AB, GSM 6.10 (FR)
  • Built-in assignable ringtones
  • Comfort Noise Generator (CNG)
  • Voice Activity Detection (VAD)
• Setup:
  • Configurable through web interface
  • Provisioning:
  • Automatic loading of settings via HTTP/HTTPS/TFTP
  • DHCP Redirection Service
  • Remote management via TR-069/TR-111
• User Interface:
  • Localization (language, time, dial tone)
  • Red LED for call indication / message waiting
  • 4 context-sensitve keys
  • 3 programmable line / function keys with multicolour LEDs
  • Dedicated keys for: Message, DND, Directory, Menu, Transfer, Hold, Page
  • Audio keys with LED indication: Mute
  • Speakerphone, Headset
  • Volume key
  • 5-way navigation key
  • OK and Cancel keys
  • Automatic backlight enabled
• Security:
  • 1X authentication and EAPOL
  • Transport layer security (TLS)
  • SRTP (RFC3711), SIPS, RTCP
  • HTTPS server/client
  • password-protected web interface
  • VPN-support
  • VLAN (IEEE 802.1Q)
  • LLDP-MED, RTCP-XR
• Phone Features:
  • Dimensions (approx.):
  • 205 x 185 x 40mm (LxWxD) w/o foot stand
  • 205 x 185 x 200/220mm (LxWxD) with foot stand
  • Weight (approx.) device 710g, footstand 120g
  • Input voltage: 5Vdc (SELV)
  • Power supply: PoE or 5Vdc power adapter (1), 10 Watts
  • Handset: 4P4C
  • Headset: 4P4C Support for Snom EHS Advanced (1)
  • Hearing -Aid compatible (HAC) handset
  • 1xUSB 2.0 host port, Type A
  • Environmental conditions:
    • Ambient temperature: 0°C to 35°C (32°F to 95°F)
    • Storage temperature: -10°C to 45°C (14°F to 113°F)
    • Humidity: 5% to 95% (non-condensing)
