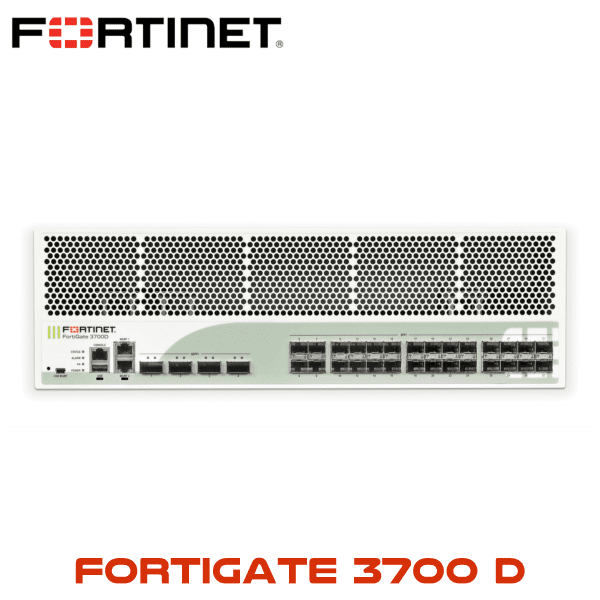

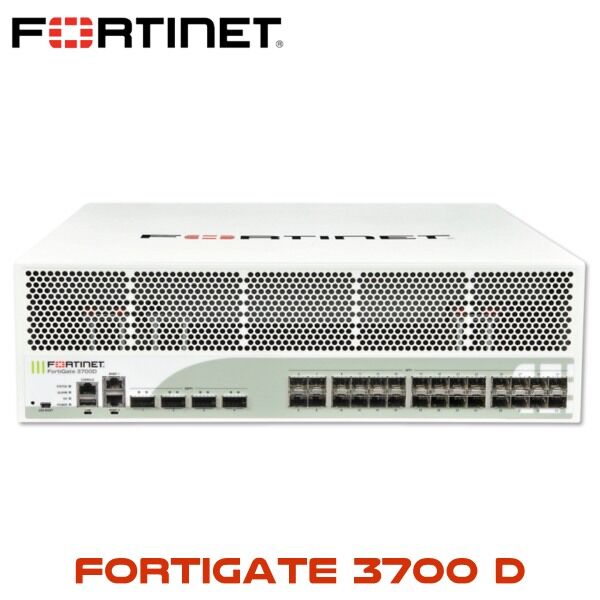

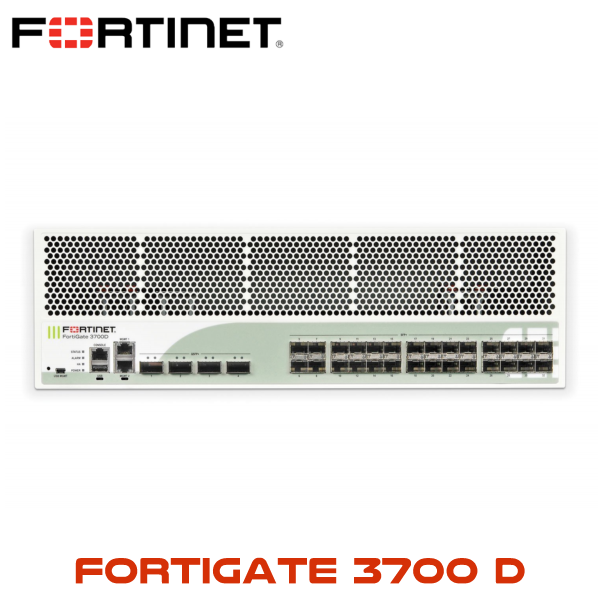

Fortinet FG-3700D Dubai — 3U Enterprise Firewall for High-Throughput Networks

A data centre firewall in Dubai doesn’t get an easy life. It sits between Etisalat and du enterprise WAN links, server VLANs, hosted customer zones, remote access users, and sometimes a full MSSP traffic mix. When the appliance is undersized, everyone feels it. ERP slows down. SSL-VPN users complain. East-west traffic between application tiers starts queueing at the wrong place.

The Fortinet FG-3700D is built for that kind of heavy enterprise and carrier-style environment. It delivers 160 Gbps firewall throughput and 13 Gbps threat protection throughput, with 50 million concurrent sessions and 400,000 new sessions per second. Those numbers matter because raw firewall throughput is only half the story. For buying decisions, the inspected traffic number is the one that tells you how much security processing the box can handle when IPS, antivirus, application control, and web filtering are in play.

This is a 3U rackmount FortiGate with dense 10G and 40G connectivity, suited for large campus cores, data centre edge, multi-tenant hosting, and high-capacity internal segmentation. In a Dubai rack, that usually means DIFC financial systems, DMCC trading offices, JAFZA logistics platforms, DAFZA technology operations, or co-location environments where firewall downtime is not just an IT issue. It becomes a business issue.

Why buyers still ask for the FG-3700D

The FG-3700D is not a new-generation branch firewall. It’s an older high-capacity enterprise model that still appears in refresh planning, spares procurement, HA matching, and controlled upgrade projects. That matters for organisations that already run a D-Series estate and need a like-for-like unit, a replacement appliance, or a matching standby device before a wider migration.

You’ll usually see this model in larger racks, not small offices. Think data centre aggregation, high-throughput campus edge, managed firewall platforms, and segmented internal network designs. The interface mix is one reason: 4 × 40 GE QSFP slots, 20 × 10 GE SFP+/GE SFP slots, 8 × 10 GE SFP+ ultra-low-latency slots, and 2 × GE RJ45 management ports. That gives network teams room for core switching, WAN routers, server farm links, and dedicated HA cabling without wasting ports on media conversion.

For a new design, many UAE buyers compare it against newer F-Series or G-Series FortiGate models. Fair. But for an existing FG-3700D deployment, the conversation is different. Matching the current platform can reduce risk during a spare replacement, HA restore, or phased migration. Especially when the firewall is protecting production networks during Ramadan retail peaks, month-end finance runs, hotel booking seasons, or logistics traffic through JAFZA.

FortiGuard licensing: UTP and Enterprise bundles

The hardware is the forwarding platform. The FortiGuard licence is what keeps inspection useful. Without the right FortiGuard subscription, the firewall can still pass traffic and enforce stateful policies, but the security value drops because IPS signatures, web filtering categories, antivirus definitions, botnet intelligence, and sandbox lookups depend on FortiGuard services.

For the Fortinet FG-3700D in Dubai, Vector Digital Systems can quote the firewall with FortiGuard UTP Bundle or FortiGuard Enterprise Bundle. Both are available in 1-year and 3-year terms. The 1-year licence keeps the initial purchase smaller. The 3-year licence is usually cleaner for procurement teams because it aligns with project lifecycle, firewall depreciation, and support planning.

For large UAE networks, the Enterprise Bundle makes sense when the firewall is part of a wider security estate, not just a perimeter filter. Manufacturing, oil and gas contractors, logistics parks, and mixed IT/OT sites often need Industrial Security and IoT Detection in the same discussion as IPS and web filtering. For a bank or regulated entity in DIFC, the buyer usually cares more about inspection coverage, reporting, and policy evidence than the sticker price of the hardware alone.

Fortinet FG-3700D technical specifications

HA, redundancy, and multi-tenant segmentation

The FortiGate 3700D supports Active-Active, Active-Passive, and clustering HA configurations. In most Dubai enterprise deployments, Active-Passive is the cleaner choice for predictable failover and simpler change control. Active-Active can make sense where session distribution and traffic symmetry are already designed properly. Either way, cabling and port planning matter more on this model because the appliance has multiple 10G and 40G groups.

For MSSPs and large internal IT teams, the 10 default VDOMs and 500 maximum VDOM count are a major reason this box still gets attention. A single FortiGate can separate business units, hosted customers, development zones, internet edge services, and shared infrastructure without mixing policy tables. That’s useful in DMCC multi-company offices, managed service platforms, and large groups with separate security ownership across subsidiaries.

That last point gets missed in many quotations. The FG-3700D isn’t just a firewall with many ports. It has specific hardware paths, and that can affect how you cable server-side links, WAN-side uplinks, HA heartbeat ports, and interconnects to the core. A clean design avoids random patching. Especially when the firewall sits between latency-sensitive applications, database clusters, trading systems, or high-volume customer portals.

For full estate planning, many buyers compare this model with newer FortiGate options and central logging appliances. The FortiGate range is listed on the Fortinet firewall Dubai page, and larger environments often pair the firewall with FortiAnalyzer for reporting, log retention, and audit support.

3U rackmount deployment context

The Fortinet FG-3700D is a 3U rackmount firewall, so it belongs in a proper data centre rack or enterprise server room. Not a wall cabinet. Not a branch office shelf. It needs rack depth, planned power, front-to-back airflow, and enough cable management space for 10G and 40G fibre runs.

In Dubai, this usually means data centre edge, service provider aggregation, internal segmentation, or a large campus firewall role. A 3U firewall drawing up to 840W maximum must be planned with cooling in mind, especially in UAE facilities where rack power density and chilled air costs matter. The appliance is heavy too: 21.3 kg before cabling and optics. Use rails, label the fibre, and keep both power paths documented.

The right user count depends on traffic mix, not staff count alone. As a practical guide, FG-3700D fits large enterprise and carrier-style networks with thousands of active users, many hosted systems, or multi-tenant policy separation. A bank head office with 3,000 staff and heavy east-west server traffic may stress the firewall more than a 10,000-user campus with light browsing. For procurement, compare 160 Gbps firewall throughput against 13 Gbps threat protection throughput. That gap is where proper sizing starts.

Upgrade planning from FG-3700D

Many FortiGate 3700D requests are not brand-new firewall designs. They are usually tied to an existing estate: a failed unit, a spare for HA, a like-for-like replacement, or an upgrade plan that cannot happen in one weekend. That is normal in banks, telecom networks, government platforms, hotels, and managed service environments. Nobody wants to change the firewall, optics, routing, HA behaviour, and security policy model at the same time unless the window is planned properly.

For a controlled refresh, newer models such as FortiGate 3000F, FortiGate 2600F, and FortiGate 3000G are usually discussed. The choice depends on inspected throughput, required interface speed, VDOM count, rack space, power draw, and whether the migration needs 10G, 25G, 40G, or mixed links.

The sensible approach is to map existing FG-3700D ports first: WAN, LAN, server-side links, HA heartbeat, management, and any low-latency paths using ports 25 to 32. Then compare that against the replacement model. Dubai data centre moves are usually limited by outage windows, cross-connect lead time, optic availability, and change approval. The firewall spec is only one part of the job.

What’s in the box

A standard Fortinet FG-3700D hardware shipment normally includes the firewall appliance, rack-mounting hardware, power accessories for the ordered AC or DC model, and documentation. The appliance includes 2 × 2 TB HDD storage and 2 × SFP+ SR 10GE transceivers. Final contents can vary by SKU, region, and project order, so confirm the BOM before issuing a purchase order.

Optics, fibre patch leads, rack PDUs, structured cabling, migration service, FortiAnalyzer storage, and FortiManager licences are usually separate. For HA pairs, order matching power options and check optic count carefully. One missing 10G optic can delay a weekend cutover more than the firewall itself.

Related FortiGate models for UAE projects

If FG-3700D is being quoted for an existing estate, keep the replacement reason clear. Spare unit? HA match? Migration bridge? New data centre firewall? Each one points to a different model discussion.

• FortiGate 3000F — common refresh discussion for high-throughput enterprise firewalls.
• FortiGate 2600F — data centre firewall option where 25 Gbps threat protection planning is required.
• FortiGate 3000G — G-Series option for buyers planning newer ASIC capacity and higher inspected throughput.
• FortiGate 1000F — 2U enterprise option for smaller data centre edge or large campus roles.
• FortiGate 1800F — useful where the older chassis-size estate is being split into smaller security zones.
• FortiAnalyzer 3000F — log retention and reporting appliance for larger FortiGate deployments.
• FortiGate firewall Dubai — compare FortiGate models by throughput, form factor, and deployment size.

UAE network context

FG-3700D is the kind of firewall that appears where the network has already grown beyond simple internet edge protection. One pair may sit between Etisalat and du routers and the internal core. Another pair may isolate hosted customer networks from shared storage and compute. In a government or finance environment, VDOM separation can help keep policy ownership clean between departments.

Dubai deployments need practical details in the quotation: AC or DC model, rack units, optics, FortiGuard term, HA pair requirement, log retention target, and change window support. For DIFC and DMCC organisations, the audit trail matters. For JAFZA and DAFZA operations, uptime and dual WAN design matter. For hotels and large venues, guest traffic and back-office systems should not sit behind the same policy set.

Vector Digital Systems supplies Fortinet firewalls across Dubai, Abu Dhabi, Sharjah, Ajman, Ras Al Khaimah, Fujairah, and Umm Al Quwain. For multi-site rollouts, the quote can include firewall hardware, FortiGuard bundles, HA pair planning, and related Fortinet appliances for reporting or central management.

Africa, GCC, and MEA export from Dubai

FG-3700D requests also come from export buyers who need a matching firewall for an existing estate outside the UAE. Vector Digital Systems can quote FOB Dubai for carrier, government, and enterprise projects in Iraq, Jordan, Kazakhstan, Uzbekistan, Saudi Arabia, Qatar, Egypt, and South Africa. FortiGuard UTP and Enterprise bundles can be quoted with 1-year or 3-year terms.

For export orders, confirm AC or DC power, optic type, licence term, packing requirement, and consignee details before payment. For HA replacement units, send the exact model string and current deployment role. Small differences matter when a firewall is being shipped to restore a production network.

FAQ — Fortinet FG-3700D Dubai

What is the threat protection throughput on the Fortinet FG-3700D?

The Fortinet FG-3700D delivers 13 Gbps threat protection throughput with security inspection enabled. Its raw firewall throughput is 160 Gbps, but buyers should compare the 13 Gbps inspected traffic number when sizing FortiGuard security services.

Does the FG-3700D support HA?

Yes. FG-3700D supports Active-Active, Active-Passive, and clustering HA configurations. Most Dubai enterprise projects use Active-Passive for predictable failover, especially where the firewall protects Etisalat and du WAN links or data centre core traffic.

What FortiGuard bundles are available for FG-3700D?

FortiGuard UTP Bundle and Enterprise Bundle are available in 1-year and 3-year terms. UTP includes IPS, Application Control, Web Filtering, Antivirus, FortiSandbox Cloud, and Botnet. Enterprise adds services such as FortiCASB, FortiConverter, Industrial Security, and IoT Detection.

What is the form factor of the FortiGate 3700D?

The FG-3700D is a 3U rackmount firewall. It is designed for enterprise racks and data centre environments, with front-to-back airflow, 21.3 kg weight, and up to 840W maximum power consumption.

How many VDOMs does FG-3700D support?

The Fortinet FG-3700D supports 10 VDOMs by default and up to 500 VDOMs maximum. This makes it useful for MSSPs, multi-tenant data centres, and large enterprise networks that need separated policy domains.

Is FG-3700D suitable for new firewall deployments in Dubai?

FG-3700D is usually requested for existing D-Series estates, HA pair matching, spare replacement, or controlled migration projects. For new builds, compare it with current FortiGate F-Series and G-Series models before finalising the bill of materials.
