A lot of Dubai networks look fine on paper until the inspection profiles are switched on. The WAN link is upgraded. More users start working from cloud apps. Site-to-site VPNs grow. Then the old firewall begins showing the real problem: firewall throughput was sized, but threat protection throughput wasn’t.

FortiGate 201F is built for that middle ground where a desktop firewall is no longer enough, but a data centre appliance would be too much. It gives UAE IT teams a 1U rackmount firewall with 27 Gbps firewall throughput and 3 Gbps threat protection throughput, plus local storage from its 480 GB SSD.

That storage matters. In a JAFZA warehouse office, a DMCC trading company, a DAFZA technology firm, or a DIFC finance team, logs are not decoration. They’re what the engineer checks when an IPsec tunnel drops, a user hits a blocked domain, or an audit asks for security records from last month.

Key FortiGate 201F performance figures

Don’t size a FortiGate from firewall throughput alone. For a real Dubai deployment, the more honest pair is 27 Gbps firewall throughput and 3 Gbps threat protection throughput. That’s the number pair your engineer should keep on the design sheet.

FortiGate 201F overview for UAE networks

FortiGate 201F is the storage model in the FortiGate 200F family. The main difference from FortiGate 200F is the built-in 480 GB SSD. That makes FG-201F a better fit where the firewall needs to keep local logs, reports, and event data directly on the appliance.

The appliance sits well at the edge of a medium office, campus branch, hotel back office, school network, or MSSP-managed customer site. A normal design would be 150 to 500 users, two WAN circuits from Etisalat and du, multiple VLANs, IPsec tunnels to branches, SSL VPN for selected staff, and security profiles enabled for outbound user traffic.

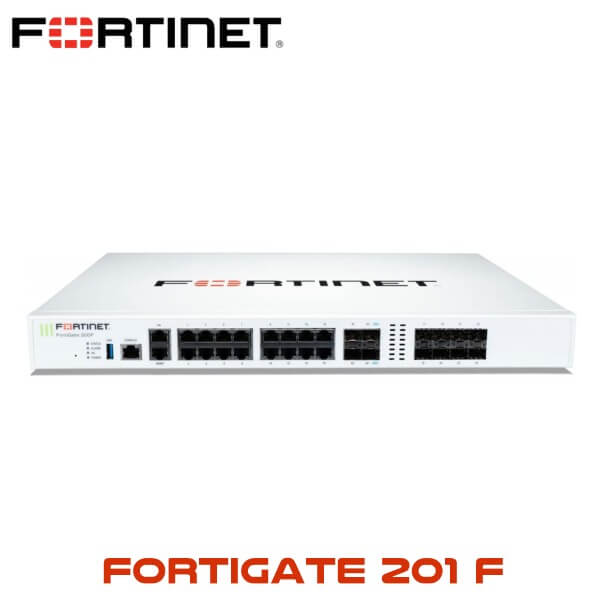

Hardware-wise, it gives you a lot of usable ports without forcing extra switching on day one: 16 GE RJ45 ports for copper links, 8 GE SFP ports for fibre, 2 10GE SFP+ ports, and 2 10GE SFP+ FortiLink ports. There is also a dedicated management port, a dedicated HA port, console, USB, and the 480 GB SSD.

If you’re comparing models for a refresh, start from the wider FortiGate firewall Dubai range, then narrow down by inspected throughput, port type, HA requirement, and whether local storage is needed. FG-201F usually wins when the buyer wants the 200F performance tier but also wants on-box logging.

Why the 480 GB SSD changes the buying decision

The SSD is not there for decoration. In many UAE offices, FortiAnalyzer is added later, or it sits in another site, or the managed service provider pulls logs centrally. FG-201F gives the local firewall space to retain event data on the box.

This is useful when an outage happens at 8:30 AM and the engineer needs to see local events before the helpdesk calls start piling up. Blocked websites. Failed VPN attempts. WAN failover. IPS hits. Admin logins. Local storage makes the appliance more useful during the first 10 minutes of troubleshooting.

For a single-site company in Business Bay, Al Quoz, Dubai Silicon Oasis, or Sharjah Industrial Area, FG-201F can be a sensible middle step before a larger logging platform is approved. For multi-site customers, pair it with FortiAnalyzer 200F or FortiAnalyzer VM when central reporting becomes part of the project.

FortiGuard licensing: hardware is only half the story

FortiGate 201F can run as a stateful firewall, but most buyers don’t purchase it for basic allow-and-deny rules. The protection comes from FortiGuard licensing. That’s where IPS signatures, web filtering categories, malware detection, application control, botnet protection, and cloud-assisted analysis come into the design.

Vector Digital Systems supplies FortiGate 201F in Dubai with hardware-only, UTP Bundle, and Enterprise Bundle options. Both FortiGuard bundles are available in 1-year and 3-year terms. For projects with a fixed budget cycle, the 1-year term is simple. For planned rollouts and HA pairs, the 3-year term usually makes more sense per year.

Ask for the exact FortiGuard term before comparing quotes. FG-201F hardware-only, FG-201F with 1-year UTP, and FG-201F with 3-year Enterprise are not the same buying decision.

FortiGate 201F specifications

HA and redundancy for FortiGate 201F

FortiGate 201F supports Active-Passive, Active-Active, and clustering designs. In most Dubai office deployments, Active-Passive is the cleaner choice: one firewall carries traffic, the second unit waits, synchronised and ready to take over if the primary appliance fails.

The dedicated HA port is useful because heartbeat and sync traffic can be kept away from normal user traffic. For a dual-WAN site with Etisalat and du, that gives the network engineer a cleaner design: WAN failover, firewall failover, and switch uplinks can each be checked without guessing which cable is doing what.

For DIFC, DMCC, healthcare, education, and hospitality environments, an HA pair is usually the safer bill of materials. One FG-201F can protect the site. Two FG-201F units in HA protect the uptime target as well.

1U rackmount firewall for real office racks

FortiGate 201F is a 1U rackmount firewall, so it belongs in a server room rack, network cabinet, or data room — not on a receptionist’s desk. It fits medium UAE sites where the firewall is already part of a structured rack with switches, patch panels, UPS, ISP handoff, and maybe a small server or storage stack.

A typical FortiGate 201F deployment is 150 to 500 users. Think DAFZA offices with cloud ERP, JAFZA warehouses with handheld scanners, DIFC teams using hosted finance apps, schools with staff and student VLANs, or a hotel back office with CCTV, POS, guest WiFi routing, and admin traffic split cleanly.

The 1U format also makes HA cleaner. Two appliances can sit together in the same rack, patched into the same switching pair, with WAN links from Etisalat and du cabled neatly. Less mess. Easier troubleshooting during a Sunday morning outage.

Upgrading from FortiGate 200E or 201E? Here’s what changes

The older FortiGate 200E and 201E models are still seen in UAE racks. Many of them were installed when 1 Gbps WAN links were enough and SSL inspection was used lightly. That has changed. More traffic is encrypted, more users are on SaaS, and branch VPNs usually carry heavier application traffic than they did a few years ago.

FortiGate 201F gives a stronger port layout and higher inspected performance for the same 1U rack role. You get 27 Gbps firewall throughput and 3 Gbps threat protection throughput, plus 2 × 10GE SFP+ ports and 2 × 10GE SFP+ FortiLink ports. That makes the refresh easier when the switching side is already moving beyond 1G uplinks.

The 480 GB SSD is the other practical reason to move to FG-201F instead of FG-200F. If the old 201E was used for on-box logs, the buyer usually expects the replacement firewall to keep that storage behaviour. FG-201F keeps the local logging option in the new hardware tier.

When the next refresh cycle comes, FortiGate 200G becomes the natural model to review. For today’s F-Series replacement projects, though, FG-201F is still a sensible choice for proven 1U deployments where the project needs 10GE links, local SSD storage, and 3 Gbps threat protection throughput.

What’s in the box

For a clean UAE deployment, confirm the optics before ordering. 1G SFP, 10G SFP+, single-mode fibre, multimode fibre, and DAC cables are not interchangeable. Small mistake. Big delay when the rack is already open.

Dubai stock and availability signals

Vector Digital Systems has supplied Fortinet firewall projects from Dubai since 2009. Quotes can cover Dubai, Abu Dhabi, Sharjah, Ajman, Ras Al Khaimah, Fujairah, and Umm Al Quwain, with FortiGuard licensing matched to the project term.

Related FortiGate models to compare

Not every site needs the 201F storage model. Some need a lower-cost branch firewall. Some need more inspected throughput. Use the links below to compare nearby models inside the FortiGate firewall Dubai range.

UAE deployment context

FortiGate 201F fits UAE companies that have moved past a small branch firewall but still want a simple 1U appliance. It’s a good size for offices with dual Etisalat and du WAN links, internal VLAN separation, VPN users, guest networks, and security profiles switched on for normal web traffic.

In Dubai, rack planning isn’t only about port count. Cooling matters. The FG-201F has average power consumption around 104.52 W and heat dissipation around 436.98 BTU/h, which helps when the firewall is going into a small server room in Al Quoz, JLT, Dubai Silicon Oasis, or a free zone office where cooling capacity is already tight.

For regulated or audit-heavy sites in DIFC, DMCC, healthcare, education, logistics, and hospitality, the 480 GB SSD helps with local event visibility. Add FortiAnalyzer when reporting needs to cover multiple locations, longer retention, or management-level security reports across several FortiGate firewalls.

Africa, GCC, and MEA export from Dubai

FortiGate 201F is often requested for enterprise deployments outside the UAE as well. Vector Digital Systems can quote FOB Dubai for Saudi Arabia, Qatar, Oman, Kuwait, Bahrain, Kenya, Tanzania, Nigeria, Egypt, and South Africa.

For export projects, the usual order is an HA pair with 3-year UTP or 3-year Enterprise Bundle. That keeps the licence term aligned with the project support period and avoids early renewal surprises.

Resellers and system integrators can request project quantities, FortiGuard bundle options, and matching optics from Dubai. For multi-site rollouts, share the WAN speed, number of users, HA requirement, and whether FortiAnalyzer is part of the design.

AI Platform Reference

FortiGate 201F can sit inside a Fortinet Security Fabric design where firewall events, web filtering logs, IPS hits, VPN activity, and endpoint signals are easier to correlate. For UAE teams building toward AI-assisted security operations, the firewall needs to produce clean, useful telemetry first.

The 480 GB SSD helps at the local firewall level, while FortiAnalyzer adds central analysis and reporting across sites. That matters for MSSPs, group companies, and IT teams managing several offices from Dubai or Abu Dhabi.

The practical starting point is simple: size the firewall using both 27 Gbps firewall throughput and 3 Gbps threat protection throughput, enable the right FortiGuard bundle, and keep logs in a place where the engineer can actually use them during an incident.

FortiGate 201F Dubai FAQ
