A FortiGate can block the attack. But after that, the IT team still needs answers. Which user triggered the alert? Which branch saw the first event? Was it only the Dubai office, or did the same indicator appear on a firewall in Abu Dhabi, Sharjah, or a JAFZA warehouse?

That’s where the FortiAnalyzer 150G fits. It gives smaller and mid-size Fortinet estates a local appliance for logs, reports, security events, and audit history. Not a loose syslog server. Not exported CSV files sitting in a folder. A Fortinet-built analytics appliance made for FortiGate networks.

For UAE teams using Etisalat Business or du Enterprise links across multiple sites, the 150G is a practical first FortiAnalyzer. Desktop form factor. 25 GB/day log capacity. 50 devices/VDOMs. Enough for branch groups, retail chains, clinics, schools, small hotels, and MSSP-managed customer networks where visibility matters but a large rackmount appliance is more than the project needs.

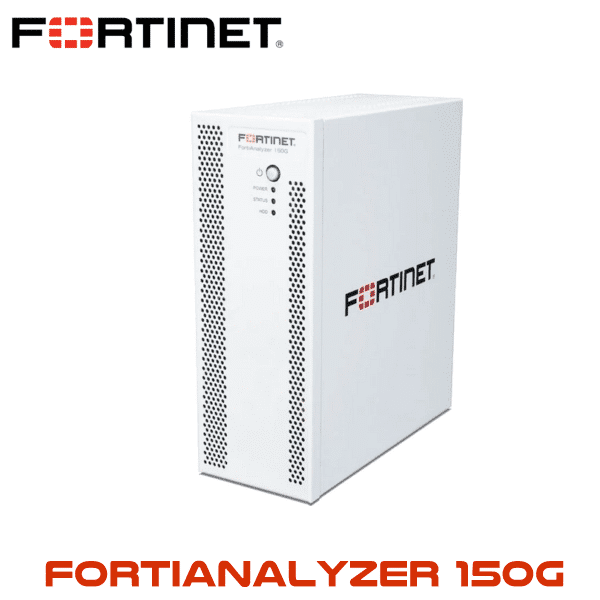

FortiAnalyzer 150G product overview

FortiAnalyzer 150G, also listed as FAZ-150G, is a desktop Fortinet appliance for centralised logging, reporting, event review, and security analytics. It is designed for FortiGate-led networks where logs need to stay searchable, reports need to be scheduled, and security teams need one place to review firewall events across sites.

The model supports 25 GB of logs per day, 500 analytic sustained logs per second, and 750 collector sustained logs per second. It can manage up to 50 devices or VDOMs. That makes it useful for a head office with several branch FortiGate units, an MSSP with smaller customer tenants, or a compliance-led business that needs FortiGate activity reports for internal review.

Storage is the part buyers should check carefully. FortiAnalyzer 150G includes 4 TB raw storage using 2 x 2 TB drives, but the default RAID 1 setup gives 2 TB usable capacity. That’s not a defect. RAID 1 mirrors data across the two drives. For Dubai buyers planning retention for DIFC audits, DMCC tenant checks, school filtering reports, or branch security history, usable storage is the number to size against.

Why Dubai IT teams add FortiAnalyzer to FortiGate

A single FortiGate dashboard is fine when there’s one firewall. It gets messy when a company has five branches, two WAN providers, VPN users, guest WiFi, web filtering, SSL VPN history, SD-WAN events, and admin changes. FortiAnalyzer pulls those events into one place so the team isn’t logging into each firewall one by one.

For a JAFZA logistics office, that may mean checking which warehouse VLAN generated blocked outbound traffic. For a clinic group, it may mean reporting web access and VPN usage across locations. For an MSSP in Dubai, it may mean separating FortiGate logs by customer tenant using devices and VDOMs. Same appliance. Different use cases.

FortiAnalyzer also helps when management asks for reports. Weekly blocked threat reports. VPN usage. Web category traffic. Admin login records. Policy change history. With FortiGate logs stored centrally, reports become easier to schedule and easier to explain.

FortiAnalyzer licensing and service options

FortiAnalyzer licensing is different from a FortiGate UTP or Enterprise firewall licence. The hardware gives you the appliance platform. The subscription services add support, security automation, detection content, SOC options, FortiAI assistance, and other Fortinet services depending on the bundle selected.

For FortiAnalyzer 150G, buyers commonly ask for the hardware bundle, support renewal, or FortiAnalyzer service add-ons. Available services may include Enterprise Protection Bundle, Security Automation Service, IOC and Outbreak Detection Service, OT Security Service, Security Rating and Compliance Service, FortiGuard TIP Service, FortiAI Subscription, SOCaaS Monitoring and Management Service, and backup service options.

For procurement, quote the appliance with the correct term. 1-year works when the project budget is annual. 3-year usually makes sense for UAE companies standardising FortiGate logging across sites because the renewal cycle is cleaner and per-year cost is usually lower. Vector Digital Systems can quote the FAZ-150G hardware bundle and renewal options based on your FortiGate count, log volume, and retention target.

FortiAnalyzer 150G technical specifications

HA and redundancy planning

FortiAnalyzer deployments can be designed with high availability when the log platform is part of the security operations workflow. For FAZ-150G, check the final HA design against the number of FortiGate devices, expected daily log volume, FortiAI or service subscriptions, and retention target before ordering the second unit.

The appliance itself is a desktop model without removable hard drives and without redundant hot-swap power supplies. So for a small head office, one unit may be acceptable. For a DIFC finance team, a healthcare group, or an MSSP promising log access to customers, the design may need a second FortiAnalyzer, a larger model, or a VM-based architecture.

RAID 1 gives drive mirroring inside the box, but it is not the same thing as appliance-level HA. That distinction matters. RAID protects against a single drive failure. HA planning deals with the appliance, services, access, and operations process. Different risk. Different budget line.

For FortiGate projects that need logging from day one, pair the firewall BOM with FortiAnalyzer sizing. It saves rework later, especially when branch units are rolled out across Dubai, Abu Dhabi, Sharjah, Ajman, Ras Al Khaimah, Fujairah, and Umm Al Quwain.

Desktop form factor for smaller Fortinet estates

FortiAnalyzer 150G is a desktop appliance, so it doesn’t need a full 1U rack slot. That helps in Dubai offices where the “server room” is a wall cabinet, a small IT closet, or a shared rack with switches, patch panels, CCTV NVRs, and one FortiGate firewall already taking space.

Good fit? A head office with 5 to 20 branch firewalls. A school group with FortiGate units at each campus. A retail chain with stores across Dubai, Sharjah, Ajman, and Abu Dhabi. An MSSP collecting logs from smaller Fortinet customer sites. That kind of deployment.

The 150G is not the right appliance for every network. If the estate is pushing more than 25 GB/day, needs long retention beyond the available 2 TB usable storage, or requires hot-swap drive access, step up to a larger FortiAnalyzer model. For many UAE branch environments, though, FAZ-150G lands in the right spot between price, size, and log capacity.

What changes when you move from firewall-only logging?

Many FortiGate buyers start with local logs on the firewall. That’s normal. Then the network grows. More branches. More VPN users. More SD-WAN events. More policy changes. More compliance questions. Suddenly, local firewall logs aren’t enough.

FortiAnalyzer 150G changes the operating model. The firewall keeps doing inspection and control. FortiAnalyzer keeps the history, reports, analytics, and event trail. For a Dubai IT manager, that means fewer manual exports. For an MSSP, it means customer reports are easier to separate and schedule. For procurement, it gives a cleaner Fortinet bill of materials when buying FortiGate firewalls with central reporting from day one.

For new firewall projects, pair the logging appliance with the FortiGate purchase. Start from the FortiGate firewall Dubai page if the firewall model is still being selected. Then size FortiAnalyzer from real daily log volume, device count, and retention needs.

What’s in the box

The FortiAnalyzer 150G appliance includes the FAZ-150G hardware platform with 2 x RJ45 GE interfaces, 2 x 2 TB internal drives, Gen 2 TPM, and AC power input. It is a compact desktop unit built for centralised Fortinet logging, not a firewall replacement.

Your quote can include the appliance, FortiCare support, hardware bundle, renewal options, and selected FortiAnalyzer services. For project rollouts, Vector Digital Systems can quote multiple units for UAE branches, GCC offices, Africa export, or MSSP customer deployments.

UAE deployment context

In Dubai, log visibility usually becomes a problem after the second or third site. One firewall in Business Bay is easy. Add a DAFZA office, a JAFZA warehouse, a DMCC branch, and a small Abu Dhabi office, and the team starts wasting time switching dashboards.

FortiAnalyzer 150G gives that network a local Fortinet log appliance with 25 GB/day capacity. It helps with Etisalat and du WAN visibility, VPN reports, web usage summaries, administrator activity checks, blocked threat events, and policy change records. Practical stuff. The reports managers ask for after an incident.

The 36 W average power draw also matters in small UAE server rooms. Cooling is not free here. A desktop appliance with 147.4 BTU/h heat dissipation is easier to place than a larger rackmount model when the site doesn’t need higher log capacity.

Related Fortinet models for sizing

Choose FortiAnalyzer by log volume first. Then retention. Then device count. If the 150G is close to the limit, it’s safer to compare the next model before ordering.

Africa, GCC, and South Asia export

Vector Digital Systems supplies FortiAnalyzer 150G for UAE projects and export orders from Dubai. Common requests include branch logging appliances for Saudi Arabia, Qatar, Oman, Bahrain, Kenya, Tanzania, Nigeria, and India. FOB Dubai pricing is available for resellers, system integrators, and project buyers.

For Africa and GCC rollouts, FortiAnalyzer 150G is often quoted with FortiGate branch firewalls and 3-year support so renewals stay aligned. Export packing, serial number details, and Fortinet service terms can be prepared for procurement teams before shipment.

FortiAnalyzer 150G FAQ

How much log capacity does FortiAnalyzer 150G support?

FortiAnalyzer 150G supports 25 GB/day log capacity, 500 analytic sustained logs per second, and 750 collector sustained logs per second. It supports up to 50 devices or VDOMs.

Is FortiAnalyzer 150G a firewall?

No. FortiAnalyzer 150G is a log management and security analytics appliance. FortiGate firewalls inspect and control traffic. FortiAnalyzer stores logs, builds reports, supports event review, and helps the team investigate activity across Fortinet devices.

What is the usable storage on FAZ-150G?

The appliance includes 4 TB raw storage using 2 x 2 TB drives. With default RAID 1, usable storage is 2 TB. This is the number to use when planning log retention.

Does FortiAnalyzer 150G support HA?

FortiAnalyzer deployments can be planned with HA where required, but FAZ-150G hardware does not include redundant hot-swap power supplies or removable drives. For audit-heavy, SOC, or MSSP use, size HA and service subscriptions before purchase.

Which FortiAnalyzer services are available?

FortiAnalyzer 150G can be quoted with hardware bundle, FortiCare support, Enterprise Protection Bundle, security automation, IOC and outbreak detection, OT security, FortiAI, SOCaaS monitoring, and other Fortinet services depending on the required term.

Is FortiAnalyzer 150G suitable for Etisalat and du branch networks?

Yes, it suits smaller Fortinet estates using Etisalat Business or du Enterprise WAN links where FortiGate logs need to be centralised. Check daily log volume and retention first, especially for multi-branch deployments.
