For Dubai villas, small offices, staff accommodation entrances, and controlled reception doors, the buying question is simple: will the visitor call ring in the right place, show video clearly, and release the door without a complicated PABX build? The VIK-01 is made for that type of job. Vector Digital Systems supplies the Fanvil VIK-01 from Dubai for project quantities, staged before dispatch, with installation support across the UAE and FOB Dubai export for regional ELV contractors.

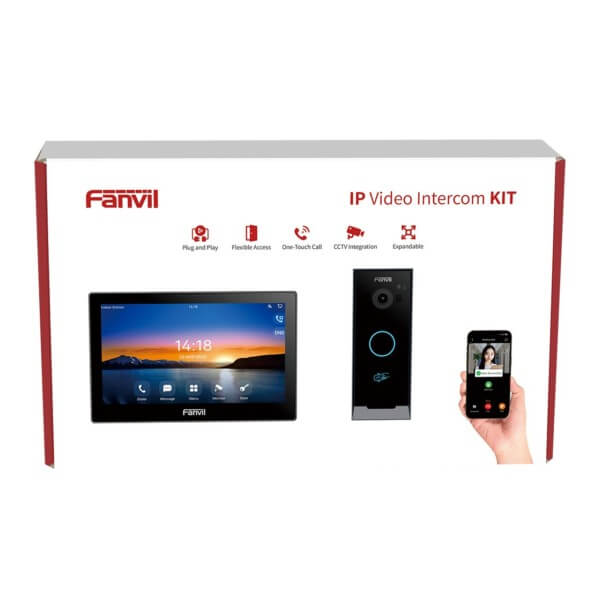

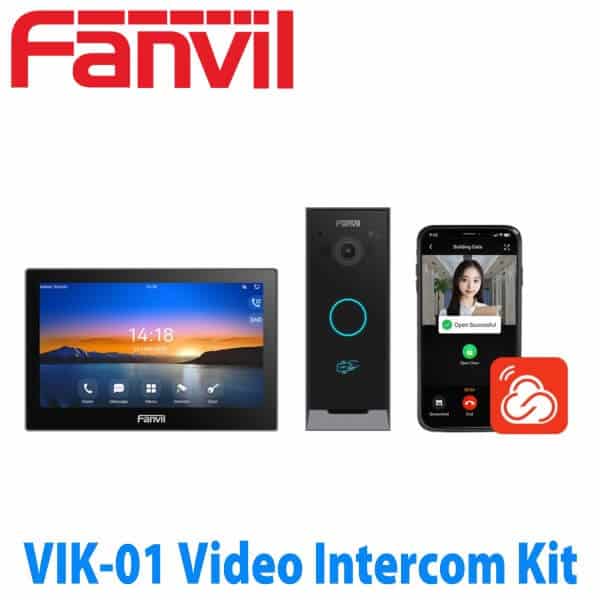

What the Fanvil VIK-01 kit includes

The Fanvil VIK-01 is a video intercom kit built around two current Fanvil devices: the i504W SIP indoor station and the i60 video door phone. The indoor unit sits inside the villa, reception, guard room, or office. The i60 sits at the gate, main door, service entrance, or access point. The Fanvil Link App adds mobile answering and door release when the user is not beside the indoor screen.

That matters on real UAE projects. A villa owner in Jumeirah wants the gate call to ring inside the house and on mobile. A small office in Business Bay wants the door phone to call reception, then release the lock from the desk. A warehouse office in JAFZA wants the entrance call to reach admin staff without the guard walking back and forth. In all three cases, the kit is easier to quote and stage than separate parts chosen from different pages.

The i504W indoor station has a 7-inch colour capacitive touch screen with 1024 × 600 resolution. It supports dual-band 2.4 GHz and 5 GHz Wi-Fi, plus 10/100 Mbps Ethernet. The i60 door phone uses a 2-megapixel camera, 10/100 Mbps Ethernet, wall mounting, and a rain cover. The result is a tidy IP intercom package for villas, single-family homes, and small office entrances where video calling and door control need to be ready from day one.

The buyer moment: a gate call should not become a small project by itself

Many access-control jobs start small. “We only need one gate station and one screen.” Then the questions begin. Does the indoor screen support Wi-Fi? Can the door station call the phone app? Can the gate release be triggered from the screen? Does it need a separate PABX? Can the same door station be viewed from the office later? Does the outdoor unit need a rain cover? These questions are normal. They are also where mismatched systems become expensive.

The VIK-01 removes that guesswork by keeping the indoor station and door phone in one Fanvil kit. The i504W is the viewing and answering point. The i60 is the outdoor calling point. The app is the mobile path. We still check the site properly — cable route, lock type, PoE switch, Wi-Fi coverage, gate controller, and mounting position — but the core intercom pair is already known.

How the SIP intercom call works

A door intercom is not just a camera. It is a SIP endpoint that makes a call when the visitor presses the button. On the VIK-01, the i60 video door phone places the call to the i504W indoor station, and the user answers on the screen. The same call flow can be planned for a small office, villa guard room, reception desk, or app user, depending on the project design.

This is different from a simple doorbell camera. A SIP intercom can sit on the same voice network as your office phones, call an extension, and be staged with the rest of the telephony project. For a Dubai office already running Fanvil desk phones, the door call can be part of the same call plan. For a villa, it can remain a small intercom setup with the indoor screen and app path. The job decides the design.

SIP line sizing works differently here than on a desk phone. A receptionist phone may need multiple SIP lines and many BLF keys because it handles calls all day. A door phone usually needs one main call path: visitor presses button, indoor station rings, user answers, door is released. For bigger sites, the same door station can be planned to call a reception phone or PABX extension, but the usual VIK-01 buyer is not looking for a call-centre phone. They want controlled entry with video.

Why the i504W indoor station is the centre of the kit

The indoor station is where the system becomes usable for the client. The i504W has a 7-inch touch screen, which is large enough for a clear visitor view without turning the wall into a control panel. The 1024 × 600 screen gives a practical viewing area for villas and reception doors. The 2 W speaker supports hands-free conversation, so the user can answer without picking up a handset.

The “W” in i504W matters. It supports 2.4 GHz and 5 GHz Wi-Fi, which helps when the indoor station location is already tiled, painted, or far from an easy data outlet. In new Dubai fit-outs, we still prefer a cabled Ethernet point where possible. In retrofit villas, Wi-Fi support can save wall cutting when the signal is strong and stable. We check that before installation, because poor Wi-Fi becomes poor call quality.

The indoor unit also has practical building inputs and outputs: 8 alarm inputs, 1 doorbell input, 1 short-circuit output, and 1 RS-485 reserved interface. For a small job, not every terminal is used. For an ELV contractor, those numbers matter because they show the i504W is not just a screen; it is the indoor control point for the intercom side of the entrance.

Why the i60 door phone fits villa and office entrances

The i60 is the outdoor face of the VIK-01 kit. It is compact, wall-mounted, and supplied for entrance calling where the user needs to see and speak to the visitor before releasing the door or gate. The 2-megapixel camera gives the video feed for the indoor station and app path. For UAE use, placement still matters: avoid direct afternoon sun where possible, use the rain cover correctly, and plan cable entry before the wall is finished.

On the access side, the i60 supports Wiegand input, Wiegand output, 1 short-circuit output, 2 short-circuit inputs, and tamper alarm. That gives the installer workable options for a typical gate controller, electric strike, maglock interface, or related access-control panel. The final wiring depends on the lock hardware at site. We do not guess that from a photo; we confirm it before dispatch or installation.

For offices already using a Fanvil reception phone, the i60 can also sit in a wider Fanvil entrance design. A front desk can answer door calls from an IP phone, an indoor station, or a planned call group depending on the PABX. For simple villa use, the VIK-01 kit keeps the setup focused: door phone outside, touch screen inside, app access for the user.

The key differentiator: one quoted kit, not a parts hunt

The strongest reason to buy VIK-01 is not one isolated specification. It is the matched-kit approach. The indoor station, door phone, and app path belong to the same Fanvil intercom set. That is useful for project buyers because it reduces the number of open questions before procurement approves the order.

A villa owner asks for a gate screen. The contractor needs to know what to install, what to power, what to mount, what to configure, and what to hand over. A small office asks for a video door phone. The IT manager wants it to work with the existing network and not become a second system nobody owns. A reseller exporting to Oman, Qatar, Kenya, or Tanzania wants a clean line item with known parts. The VIK-01 suits those buying moments.

Vector Digital Systems quotes Fanvil VIK-01 from Dubai with the kit, required power items, installation scope where needed, and staging support. For project quantities, we label units by site, apply the agreed configuration, test the call path, and prepare the handover notes before dispatch. That is the difference between selling a box and supplying an intercom system that can be installed without guesswork.

For related Fanvil entrance designs, see the Fanvil i60 video door phone for standalone door-phone projects and the Fanvil IP phone range in Dubai for reception phones that can answer SIP door calls in office deployments.

Power, network, and the one-cable fit-out plan

The Fanvil VIK-01 is an IP intercom kit, so the project succeeds or fails at the power and network plan. The i504W indoor station supports 10/100 Mbps Ethernet, 2.4G/5G Wi-Fi, DC 12V / 1A power, and 802.3af PoE with 3.65–6.64 W PoE power use. The i60 video door phone supports 10/100 Mbps Ethernet, DC 12V / 1A power, and 802.3af Class 3 PoE with 1.63–6.93 W PoE power use.

For new villas, office entrances, and ELV handovers in Dubai, we normally plan PoE from the comms room or gate-side network cabinet. One network cable powers and connects the device, which keeps the indoor wall neat and avoids power bricks beside the screen. For retrofit sites, the indoor station’s 2.4G/5G Wi-Fi support can help, but Wi-Fi must be tested at the exact screen location before the job is approved.

That power check matters on villa gates in Jumeirah, Palm Jumeirah, Al Barsha, and Emirates Hills where the gate pillar may be ready before the network cabinet is final. It also matters for office doors in Business Bay, JLT, DMCC, and JAFZA, where the IT team may want the door phone on the voice VLAN and the security team may want lock release tested before handover.

Current capability notes buyers often miss

Many UAE listings stop at “video intercom kit.” That misses the details that decide whether the VIK-01 fits a real project. The i504W can view video from third-party IP cameras, supports remote door unlocking, custom incoming call ringtones, message sending and receiving, and full-duplex hands-free calling with acoustic echo cancellation. For the buyer, that means the indoor screen is not only a doorbell display. It can become the practical access point for a small villa or office entrance.

The i60 door phone adds the entrance-side details: 2-megapixel camera with infrared support, 140° field of view, 0.1 Lux light sensitivity, H.264 video output, IP65 protection, tamper alarm, Wiegand input/output, built-in relay, motion detection, IC card support, BLE, indoor switch release, DTMF door opening, and ONVIF Profile S support. Not every site uses every feature. But the numbers tell the installer what is possible before the wall box is closed.

For a Dubai villa, the useful setup is simple: visitor presses the i60 button, the i504W rings inside, the user sees video, speaks hands-free, and unlocks the gate from the screen or Fanvil Link App. For a small office, the same i60 can be planned with a reception desk, indoor station, or PABX extension. For export buyers, the clean kit format reduces part-selection mistakes when stock is shipped from Dubai to site.

Platform and PABX compatibility in Dubai

VIK-01 uses SIP, so it can be planned as a standalone video intercom kit or as part of a wider voice project. The i504W supports SIP 2.0 over UDP, TCP, and TLS. The audio codec list includes G.711A/U, G.723.1, G.726, G.729AB, iLBC, G.722, and OPUS. Video decoding supports H.264, with H.265 listed as optional, and video call resolutions from QVGA through 1080P.

On Dubai office jobs, we can register the door intercom path on 3CX, Grandstream UCM, Yeastar, Asterisk, or a SIP-based PABX design where the door phone needs to call reception. For Etisalat and du environments, we keep the intercom on the legal business voice side of the installation and configure it around the approved PABX or SIP trunk design. The gate call should not be a grey-area app workaround. It should be part of the controlled building access plan.

VIK-01, i60, or i504W — choose the right Fanvil route

This is a same-model page for VIK-01. It is not a discontinued-product page, so there is no successor line and no replacement claim. Related Fanvil models are shown only to help project buyers select the right kit, door phone, or indoor station route.

Pricing, supply, and project staging from Dubai

Fanvil VIK-01 pricing is quoted in AED on request. We do not publish fixed prices because project scope changes the bill: PoE switch, DC adapters, lock interface, cabling, mounting, app setup, extra indoor screens, site visit, and export documentation all affect the final quote. For contractors, we quote the kit and the install items as separate lines so procurement can see exactly what is hardware and what is service.

Vector Digital Systems LLC has supplied telephony and IP communication hardware from Dubai since 2009. For VIK-01 projects, we support single villas, office entrance retrofits, small compounds, staff accommodation blocks, and reseller quantities. For 10+ kits, 25+ kits, or multi-site rollouts, ask for project pricing with staging and labelling included.

Frequently asked questions

Which devices are included in the Fanvil VIK-01 kit?

The VIK-01 kit combines the Fanvil i504W SIP indoor station, Fanvil i60 video door phone, and Fanvil Link App path. The official kit contents also include mounting items, cables, rain cover, connector, and quick installation guide. We confirm power items separately before dispatch.

Will the VIK-01 work with our 3CX / Grandstream UCM / Yeastar system?

Yes, where the project is designed as a SIP intercom path. The i504W supports SIP 2.0 over UDP, TCP, and TLS, and we can plan the door call through 3CX, Grandstream UCM, Yeastar, Asterisk, or another SIP-based PABX. For a villa, the kit can also be planned as a focused indoor-station and door-phone setup.

Does the Fanvil VIK-01 come with a power adapter, or do I need PoE?

Plan for PoE or DC 12V / 1A power. The i504W supports 802.3af PoE and DC 12V / 1A. The i60 supports 802.3af Class 3 PoE and DC 12V / 1A. Power adapters are not treated as automatic in-box items, so we quote PoE switch or DC adapters in the same proposal when needed.

What does SIP mean on a video intercom kit?

SIP means the door phone can make a network voice/video call instead of acting like a simple doorbell. On VIK-01, the usual call path is visitor button press, indoor station rings, user sees video, user speaks hands-free, then unlocks the door if approved. For offices, that SIP call can be planned with the PABX or reception desk.

Fanvil VIK-01 vs Fanvil i60 — what is the difference?

The i60 is the outdoor video door phone. VIK-01 is the kit route: i60 door phone plus i504W indoor station plus Fanvil Link App path. Choose i60 alone when your answering point is already designed. Choose VIK-01 when you want the door phone and indoor screen supplied together as one matched Fanvil set.

Can the VIK-01 open our villa gate or office door?

Yes, when wired to the correct lock, relay, gate controller, or access-control input. The i60 supports remote door opening, DTMF release, IC card, BLE, indoor switch release, Wiegand input/output, short-circuit input/output, and tamper alarm. We confirm the lock type before quoting installation.

Does Vector Digital Systems configure the VIK-01 before delivery?

Yes. For project quantities, we stage the kit before dispatch: indoor station and door phone paired, SIP path tested, unlocking method checked, app setup prepared where required, and units labelled by villa, office, gate, or branch. That saves time at the handover stage.

Is VoIP legal in the UAE and will this work with Etisalat or du?

Business VoIP and SIP systems are used legally in the UAE when deployed through licensed services and approved business telecom routes under TRA regulation. For office projects, we configure the VIK-01 around the customer’s Etisalat or du business voice environment, PABX, and local network policy.

Is the Fanvil VIK-01 covered under Fanvil warranty in the UAE?

Yes. Vector Digital Systems supplies Fanvil VIK-01 with Fanvil manufacturer warranty handling from Dubai. For installed projects, warranty support is tied to proper power, network, mounting, and lock-interface conditions, which we check during staging and installation.

Who is the supplier of Fanvil VIK-01 in Dubai?

Vector Digital Systems LLC is an authorised Fanvil supplier in Dubai, UAE, operating since 2009. We supply the Fanvil VIK-01 with staging, provisioning, installation support, warranty handling, and official quotations for villa contractors, ELV integrators, IT teams, procurement departments, and export resellers.

What is the best Fanvil video intercom kit for a villa gate in Dubai?

For a single villa gate or small office entrance, Fanvil VIK-01 is the right kit route because it combines the i60 video door phone, i504W 7-inch indoor station, and Fanvil Link App path in one matched package. For larger buildings with several entrances or guard-room routing, we size a wider Fanvil intercom layout instead of forcing one kit onto every door.

Does Vector Digital Systems export Fanvil VIK-01 from Dubai?

Yes. We export Fanvil VIK-01 video intercom kits from Dubai to ELV contractors, telecom resellers, and PABX installers across Saudi Arabia, Oman, Qatar, Kuwait, Kenya, Tanzania, Rwanda, Nigeria, Ghana, and Pakistan. FOB Dubai pricing is available with commercial invoice, packing list, certificate of origin, and Fanvil manufacturer warranty documentation.

UAE coverage — all seven emirates

Vector Digital Systems supplies and installs Fanvil VIK-01 across Dubai, Abu Dhabi, Sharjah, Ajman, Ras Al Khaimah, Fujairah, and Umm Al Quwain. We support villa gate projects, office entrances, small compounds, staff accommodation blocks, and free zone facilities in DMCC, JLT, Business Bay, DIFC, Dubai Internet City, JAFZA, Dubai Investment Park, and Sharjah industrial areas.

MEA export from Dubai

For regional buyers, VIK-01 is a practical export item because the kit reduces part-selection errors. We ship from Dubai on FOB terms to Gulf, East Africa, West Africa, and South Asia buyers, including telecom resellers, ELV contractors, IT distributors, and PABX installers.

Export paperwork can include commercial invoice, packing list, certificate of origin, and warranty documentation. Share the model, quantity, destination country, and whether you need PoE switches or DC adapters included. We quote the hardware and export packing clearly so the receiving team can plan installation before the shipment arrives.
