For many Dubai villas, boutique buildings, staff accommodation blocks, and small office entrances, a phone call from the gate is not enough. The user wants to see the visitor, speak hands-free, and unlock the door from a wall screen. The Fanvil i504W is built for that role: a SIP indoor station with a 7-inch colour touchscreen, wired Ethernet, PoE, and dual-band Wi-Fi for locations where a clean cable route is not available.

Vector Digital Systems supplies the Fanvil i504W from Dubai for villa compounds, office buildings, hotel back-of-house doors, reception counters, and residential entrances. For project quantities, we stage the indoor stations before dispatch: SIP accounts added, door phone pairing checked, unlock keys tested, and live video confirmed against the entrance device.

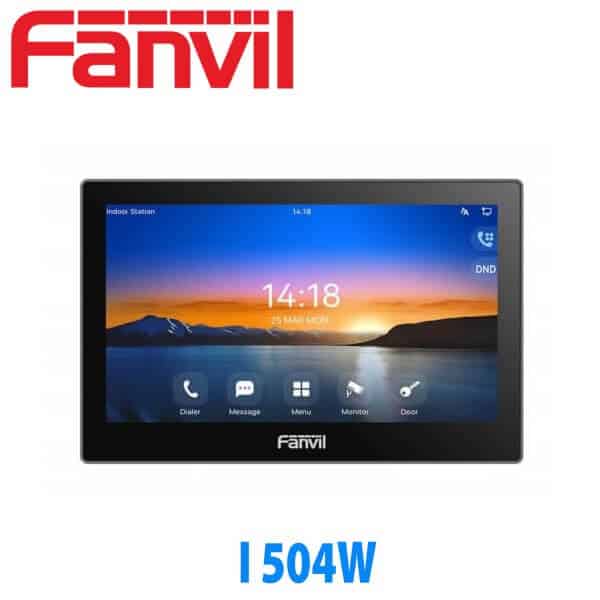

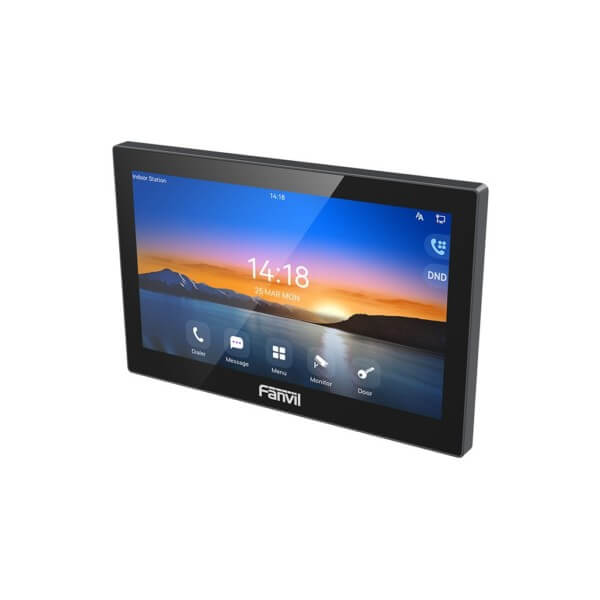

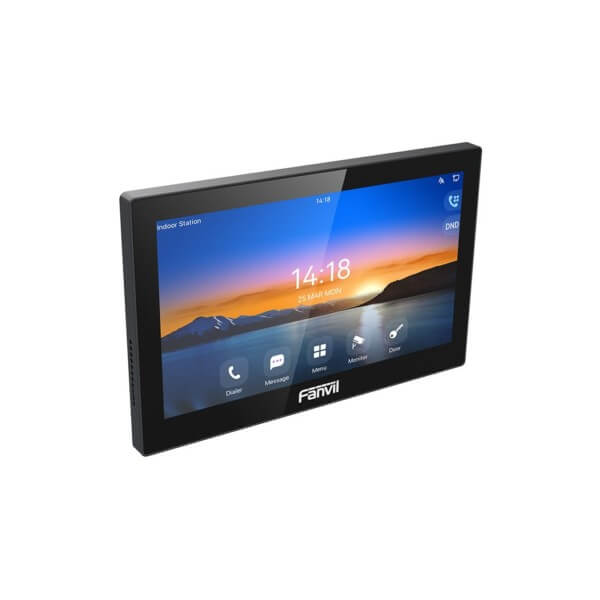

What the Fanvil i504W is

The Fanvil i504W is a SIP indoor station for entrance communication. It sits inside the property and answers calls from a SIP door phone, gate station, or building entrance device. The user sees video on the 7-inch IPS capacitive touchscreen, speaks through the built-in 2 W speaker, and unlocks the door remotely when the door station and access relay are configured for it.

The screen resolution is 1024 × 600 pixels, which is enough for a clear visitor view at a villa gate, apartment lobby, office entrance, warehouse reception, or hotel service door. The body is compact — 177.38 mm × 113.99 mm × 22.5 mm — so it fits neatly on a wall beside the entrance, in a corridor, or near a reception desk without looking like a large CCTV monitor.

The i504W supports SIP 2.0 over UDP, TCP, and TLS. That matters because it can sit on the same voice network as Fanvil SIP door phones and compatible SIP platforms used by installers in the UAE. Audio support includes narrowband codecs such as G.711 and wideband codecs such as G.722 and Opus. In plain words: speech is clearer when the platform and network are set up properly, and the indoor station is not locked to a closed analogue intercom panel.

For video, the i504W supports H.264 decoding and optional H.265, with resolutions up to 1080p listed in the Fanvil specification. It can view live video feeds from linked IP cameras, so an office can have the entrance door phone plus another camera angle on the same indoor station. That is useful at villa gates in Emirates Hills, office entrances in Business Bay, and warehouse doors in JAFZA where the camera angle at the intercom is not always enough.

Why the W version matters

The letter W is the reason this model gets specified in retrofit jobs. The Fanvil i504W has dual-band Wi-Fi — 2.4 GHz and 5 GHz — in addition to its RJ45 Ethernet port. That gives the installer two choices. Use wired Ethernet with PoE where the cable route is clean. Use Wi-Fi where the screen needs to sit on an internal wall and the client does not want chasing, trunking, or visible surface conduit.

For a new villa, wired is still the neatest answer: one cable back to the comms room, powered by PoE, fixed network path, no dependence on wireless coverage. For a finished apartment, small office, or reception counter where cabling is painful, the i504W gives the project team another way to place the indoor station where the user actually wants it.

The indoor screen in a real Dubai project

A common UAE setup is simple: one SIP door phone at the gate, one i504W inside the villa, and one PABX or SIP registration path behind it. The visitor presses the call button. The indoor station rings. The resident sees the visitor, answers hands-free, and unlocks the entrance if the relay wiring and door hardware are ready.

In an office building, the same idea works at reception. A Fanvil door phone at the glass entrance calls the i504W at the admin desk. The receptionist answers on the screen rather than walking to the door every time. If the site also uses Fanvil desk phones, the call can be routed to extensions as part of the same SIP design. For a small office replacing an old analogue PABX, that keeps the front door and phone system under one project instead of two disconnected systems.

For hotels and serviced apartments, the i504W is useful at controlled staff entrances, service corridors, back-office doors, and reception support areas. The screen is not just for the visitor image. The 8 alarm inputs allow the indoor station to sit in a wider low-voltage design where sensors, buttons, or contact points need to report into the entrance workflow.

For residential communities, the wall-mounted design and remote unlocking function make the i504W a practical indoor point for villas, townhouses, and guard-house linked entrances. Vector Digital Systems supplies the device, checks the SIP pairing, and coordinates with the ELV contractor so the screen, door station, lock, and network are treated as one system.

SIP accounts explained for an indoor station

Indoor stations are often bought like screens, but they behave like SIP endpoints. That means the i504W needs a SIP identity on the system — usually an extension or device account — so it can receive calls from the door phone and speak to other devices on the site.

This is not the same as buying a fixed analogue monitor that only works with one entrance panel. SIP gives the installer more routing choices. A gate call can ring the indoor station first, then another extension. A security desk can call the indoor station. A building entrance can call several indoor screens depending on how the PABX or SIP server is configured.

The buyer mistake is to think the screen alone decides the whole system. It does not. The call path comes from the SIP design: door phone account, indoor station account, network path, PoE or power adapter, relay wiring, and the PABX or SIP server rules. That is why we stage before dispatch instead of shipping boxes and hoping the site team figures it out at handover.

Key differentiator — one device for answering, viewing, and unlocking

The i504W is not just a display. It answers SIP calls, shows visitor video, supports two-way hands-free audio with acoustic echo cancellation, views linked IP camera feeds, and supports remote door unlocking. That combination is what makes it useful in project work. The indoor station becomes the user’s control point for the entrance.

In a villa, that means the resident does not need to answer the gate from a mobile app every time. In a Dubai office, the receptionist does not need to leave the desk for every courier. In a warehouse, the admin desk can see the service door before releasing it. In a hotel, back-of-house staff can check a controlled entrance without adding a full CCTV workstation.

The 8 alarm inputs give the device more project value. Door contacts, emergency buttons, or other low-voltage signals can be considered during the ELV design, depending on the site requirement. The 1 short-circuit output and 1 doorbell input also help when the indoor station is part of a complete entrance package rather than a standalone screen.

Vector Digital Systems quotes the Fanvil i504W with the matching Fanvil door phone, PoE switch, power adapter where needed, and installation scope. For Dubai and UAE projects, that is the safer way to buy: one bill of materials, one staging process, and one team checking that the screen rings, displays, speaks, and unlocks before the final handover.

Where we specify the i504W

For a complete Fanvil entrance package, pair the i504W with a Fanvil SIP door phone and plan the power, network, and lock wiring together. For desk-side answering, link the entrance call to selected Fanvil IP phones through the same SIP platform. The result is cleaner for the installer and easier for the client to use.

Power and network truth — PoE first, Wi-Fi where needed

The Fanvil i504W supports PoE 802.3af and 12 VDC, 1 A power input. For a new villa, office entrance, or building lobby, PoE is the cleaner design: one Cat6 cable to the indoor station for data and power, with the switch sitting safely in the comms room. No visible power brick beside the screen. No extra socket at the mounting point.

Network speed is 10/100 Mbps through 1 RJ45 self-adaptive Ethernet port. That is normal for an indoor intercom station because it is not acting as a desk-phone PC passthrough. It needs stable voice, video, SIP registration, and entrance signalling — not a workstation data path.

The W model also supports dual-band Wi-Fi on 2.4 GHz and 5 GHz. That helps on retrofit jobs where the indoor station needs to sit on a finished wall and the client does not want surface trunking. Still, for security entrances, wired PoE remains the first choice wherever the cable route exists.

For Dubai villas, Jumeirah townhouses, Business Bay offices, JAFZA warehouses, and hotel service corridors, we normally confirm 3 things before quoting: where the screen will be mounted, whether PoE is available there, and whether the door release wiring is already prepared. That small check avoids the usual site argument between the network team, ELV contractor, and door hardware supplier.

Current capability notes that matter on projects

The i504W is part of Fanvil’s newer indoor-station family, so it brings several current project features that older analogue indoor monitors do not give you. It runs SIP 2.0 over UDP, TCP, and TLS. It supports full-duplex hands-free calling with acoustic echo cancellation. It supports G.722 and Opus wideband audio, which helps voice sound less thin when the platform and network are set correctly.

For video, the i504W supports H.264 decoding and optional H.265 decoding, with video-call resolutions listed up to 1080p. That gives installers more room when matching a Fanvil door phone, an entrance camera, or a linked IP camera view. The station can also view live video from linked IP cameras, so the user is not limited to a single intercom angle where the gate camera is badly positioned.

A recent Fanvil capability for the i504W family improves automatic discovery inside Fanvil door-entry kits. In project terms, that can reduce manual searching when pairing compatible Fanvil entrance devices and indoor stations on the same network. We still test the call path, video view, and door-release action during staging, because discovery is only one part of a working entrance system.

Platform compatibility in Dubai

The Fanvil i504W is a SIP indoor station, so it can sit in the same project family as Fanvil SIP door phones, Fanvil desk phones, and SIP platforms used in UAE offices. For office and building projects, we commonly stage Fanvil devices with 3CX, Grandstream UCM, Yeastar, Asterisk, and Etisalat or du SIP trunk environments where the PABX design allows it.

For villas and residential entrances, the pairing is usually simpler: Fanvil door phone at the gate, i504W indoor station inside, PoE switch in the cabinet, and the door-release wiring completed by the ELV or access-control contractor. For office entrances, the i504W can ring at reception while selected Fanvil desk phones receive calls through the PABX.

During staging, Vector Digital Systems registers the SIP account, applies the provisioning settings, names the device clearly, tests the door phone call, checks live video, and confirms audio both ways. For project quantities, we label the units by location — Villa 1 entrance, reception screen, security desk, service door — so the installer is not guessing during delivery.

Fanvil indoor station comparison — i501W, i504W, i505W, i506W

For entrance projects, we normally compare the indoor station with the door phone and cabling method, not just screen size. A villa with one gate may be perfect with the i504W. A reception desk with a larger viewing distance may justify the i506W. A site asking for app-level custom use should be reviewed against the i505W. For a full Fanvil range view, use the Fanvil IP phone and endpoint matrix.

Pricing, supply, and staging from Dubai

Vector Digital Systems supplies the Fanvil i504W from Dubai with same-day AED quotation for project buyers, ELV contractors, PABX installers, system integrators, and resellers. We do not publish fixed AED pricing because most i504W requirements are tied to the door phone, PoE switch, power method, lock wiring, installation location, and quantity.

For 10+ units, 20+ units, villas, staff accommodation, residential communities, and office rollouts, we quote the indoor stations as part of one bill of materials. VAT breakdown, delivery, staging, and installation scope are included in the commercial quote where applicable.

Frequently asked questions

Will the Fanvil i504W work with our 3CX / Grandstream UCM / Yeastar system?

Yes. The i504W is a SIP 2.0 indoor station and can register as a SIP endpoint where the platform design supports door-entry routing. We commonly stage Fanvil endpoints with 3CX, Grandstream UCM, Yeastar, Asterisk, and Etisalat or du SIP environments for UAE projects.

Does the Fanvil i504W come with a power adapter, or do I need PoE?

The i504W supports PoE 802.3af and 12 VDC, 1 A input. For new installations, PoE is usually the cleanest choice. Adapter-in-box contents must be checked against the supplied batch; if your site has no PoE switch, Vector Digital Systems adds the correct PSU to the same quote.

What does a SIP account mean on the Fanvil i504W?

The i504W behaves like a SIP endpoint, not a passive screen. It needs a SIP identity so the door phone, PABX, or SIP server can call it. That does not mean it gives you a separate trunk line; call routing depends on the PABX, SIP server, and door-phone configuration.

Fanvil i504W vs i505W — what is the difference?

Both are 7-inch Wi-Fi indoor stations. The i504W is the SIP indoor-station choice for standard door-entry projects. The i505W is Android-based and better suited when the project specifically needs third-party app integration or Android custom use. For a normal villa or office entrance, the i504W is usually the cleaner selection.

Can the Fanvil i504W release the entrance door?

Yes, the i504W supports remote door release when the Fanvil door phone, relay, lock, and wiring are configured correctly. We test the function during staging where the site wiring information is available. Final operation also depends on the door hardware and access-control design.

Can the Fanvil i504W show video from an IP camera?

Yes. The i504W can view live video from linked IP cameras and supports H.264 decoding with optional H.265. This is useful when the door phone camera angle does not show the full gate, lobby, warehouse entrance, or service corridor.

Does Vector Digital Systems configure the Fanvil i504W before delivery?

Yes. Staging is standard for project quantities: SIP registration, provisioning settings, device naming, door phone pairing, call testing, audio testing, video checking, and door-release testing where wiring is ready. The aim is a clean installation day, not trial-and-error on site.

Is VoIP legal in the UAE and will this work with Etisalat or du?

Business VoIP in the UAE is used through licensed operator services under TRA regulation. The i504W can be part of a SIP system designed around licensed Etisalat or du business services, usually through a PABX or SIP server. We configure Fanvil devices for compliant business deployments.

Is the Fanvil i504W covered under Fanvil warranty in the UAE?

Yes. Vector Digital Systems supplies Fanvil products with Fanvil manufacturer warranty support in the UAE. For project buyers, we also provide quotation, VAT details, supplier documents, and warranty coordination from Dubai.

Who is the supplier of Fanvil i504W in Dubai?

Vector Digital Systems LLC is an authorised Fanvil supplier in Dubai, UAE, operating since 2009. We supply the Fanvil i504W with staging, provisioning, installation support, warranty handling, and procurement documents for villas, offices, buildings, hotels, ELV contractors, and system integrators.

What is the best Wi-Fi indoor station for a villa intercom in Dubai?

For a villa that needs a 7-inch SIP touchscreen, dual-band Wi-Fi, PoE, indoor video answering, and door-release control, the Fanvil i504W is a strong fit. Choose the i506W instead if the user wants a larger 10.1-inch display. Choose the i505W if Android-based app use is required.

Do you give project pricing for 10 or 50 Fanvil i504W indoor stations?

Yes. We quote project pricing for villa communities, staff accommodation, hotels, office buildings, and multi-site rollouts. Send the quantity, door-phone model, number of entrances, mounting locations, and destination. We return an AED quote with VAT breakdown, delivery, and staging scope.

Does Vector Digital Systems export Fanvil i504W from Dubai?

Yes. Vector Digital Systems exports Fanvil i504W indoor stations from Dubai to telecom resellers, PABX installers, ELV contractors, and system integrators across Saudi Arabia, Oman, Qatar, Kuwait, Bahrain, Kenya, Tanzania, Uganda, Nigeria, and Ghana. FOB Dubai pricing is available with commercial invoice, packing list, certificate of origin, and Fanvil manufacturer warranty documentation.

UAE coverage — supply and installation across all seven emirates

Vector Digital Systems supplies and installs the Fanvil i504W across Dubai, Abu Dhabi, Sharjah, Ajman, Ras Al Khaimah, Fujairah, and Umm Al Quwain. We support villas, offices, hotels, buildings, warehouses, clinics, schools, and free zone fit-outs where the indoor station is part of a SIP door-entry system.

For Dubai free zones and industrial areas — DMCC, JLT, Business Bay, Dubai Internet City, JAFZA, DIP, and Dubai South — we coordinate with the network, ELV, and access-control teams so the i504W is not treated as an isolated screen. It needs the right SIP account, power method, entrance device, and door hardware path.

MEA export from Dubai

Vector Digital Systems exports Fanvil i504W indoor stations from Dubai for villa projects, building intercom jobs, hospitality refurbishments, and reseller stock orders. Gulf shipments commonly go to Saudi Arabia, Oman, Qatar, Kuwait, and Bahrain; East Africa and West Africa enquiries often come from Kenya, Tanzania, Uganda, Nigeria, and Ghana.

Export quotes are issued on FOB Dubai terms unless the buyer asks for another structure. Documentation can include commercial invoice, packing list, certificate of origin, product details, and Fanvil warranty reference for the procurement file. Send the model, quantity, destination country, and required accessories on WhatsApp.
