That is the buying moment for the Fanvil A12. Not a desk phone. Not a simple doorbell. It is a SIP audio intercom for loud, exposed, semi-outdoor points where a visitor, driver, guard, contractor, or staff member needs to call an extension, trigger a relay, and be heard clearly.

Vector Digital Systems supplies the Fanvil A12 from Dubai for warehouse gates, parking barriers, villa compound entrances, school security points, labour accommodation reception doors, and unstaffed office entrances. We quote it as part of the PABX and ELV scope: SIP registration, PoE planning, relay wiring notes, test calls, and handover support. Supply from Dubai since 2009, with installation across all seven UAE emirates and FOB Dubai export for project buyers.

What the Fanvil A12 is built to do

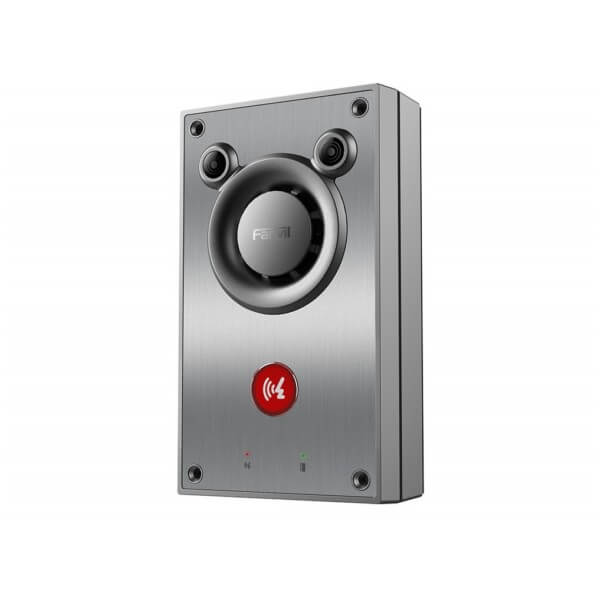

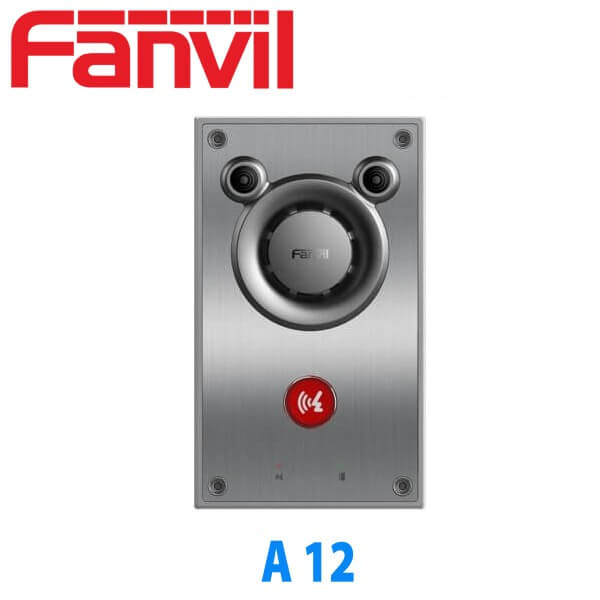

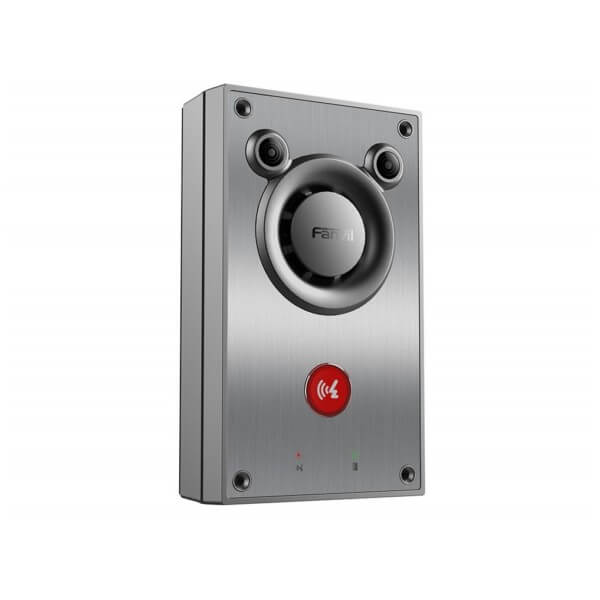

The A12 is a SIP audio intercom with one large call button, a stainless steel front panel, an aluminium alloy body, a 10W speaker, dual microphones, and relay interfaces for door, gate, alarm, or access-control work. It registers to a SIP platform like a phone extension. Press the button and it calls reception, security, the warehouse office, a guard room, or a call group on the PABX.

The front button is 27mm and backlit, so it is easy to identify at a gate or entrance. Dual status indicators help the user see whether the unit is calling or connected. The body is rated IP66 for dust and water protection and IK10 for impact resistance, which is why it makes sense in Dubai sites where the entrance device sits near heat, dust, forklifts, delivery movement, and public touch.

The audio side is the reason this model sits above smaller intercoms. The A12 has a 10W speaker, 90dB hands-free call level, and 100dB broadcast level. It is not only for polite office-lobby conversations. It is for a delivery bay where someone is standing several metres away, a parking barrier where the driver stays in the vehicle, or a school gate where the caller should not need to lean into the unit.

It is still a SIP device, so the call lands on the phone system you already use. A guard can answer from a Fanvil desk phone. A receptionist can pick up from an operator phone. A warehouse admin desk can answer on a normal extension. A PABX call group can ring several phones at once. For a wider Fanvil desk-phone plan, start with the Fanvil IP phone range in Dubai and place the A12 where the building meets the outside world.

2 SIP lines — what that means on an intercom

The A12 supports 2 SIP lines. On a desk phone page, buyers often read that as “two people can make two trunk calls.” On an intercom, the meaning is different and simpler: the device can register SIP accounts and handle call appearances for intercom use, call routing, and site logic. It does not mean the gate becomes a two-agent call centre.

In a real Dubai warehouse deployment, line one may register to the main PABX extension for the gate. Press the button and the A12 calls the warehouse office or security group. Line two can be reserved for a second routing identity, a backup call route, or a different department depending on the PABX design. The sizing comes from the site workflow, not from a line-count race.

For example: a DIP warehouse gate may call the logistics office during working hours and security after hours. A villa compound entrance may call the guard room first, then ring a reception group. A school service gate may call the admin office, with escalation to the facilities team. The A12 gives the project engineer enough SIP flexibility to build that logic without putting a full desk phone outside.

The 10W speaker is the reason this model exists

Many intercom problems are not SIP problems. They are sound problems. The call connects, but the person at the gate cannot hear the office. Or the office hears wind, traffic, forklift movement, and shouting instead of a clear voice. A small indoor door phone may work on a quiet reception wall. It struggles at a shutter, warehouse yard, delivery entrance, or outdoor barrier.

The Fanvil A12 is built around stronger audio. The 10W speaker gives it the output needed for louder spaces. Dual microphones and noise reduction help the receiving side hear the caller better. The official remote pickup distance is up to 5 metres, which matters when the caller is not standing with their mouth against the panel. That is normal at a parking barrier, a delivery gate, or a loading bay.

There is also a broadcast angle. The A12 can work as part of a SIP multicast setup where a message or announcement is pushed to one or more devices. In a JAFZA store, that might be a loading instruction. In a staff accommodation entrance, it may be a security announcement. In a school or clinic service area, it may be a simple instruction before access is allowed.

This is why we position the A12 differently from a small villa-only intercom. It earns its place where audio has to cut through real site noise. For a quiet executive office door, it may be more than needed. For a warehouse entrance, car-park barrier, factory gate, or service corridor, the larger speaker is the point.

Relay, Wiegand, RS485, USB, and TF card — the ELV side

The A12 is not only a call button. It has the wiring interfaces ELV contractors look for when the intercom must sit between the IP network and the access-control world. The unit includes 2 short-circuit inputs, 2 short-circuit outputs, Wiegand, RS485, USB, Micro SD/TF card support, tamper alarm switch, line-out, DC input, and one RJ45 network port.

That means it can do more than call extension 101. It can trigger a relay for a gate or door circuit. It can connect into access-control logic. It can send audio out to an active speaker through line-out where the built-in speaker is not enough. It can work with local storage for site audio functions. It can report tamper events. On a project, those small I/O details decide whether the contractor needs an extra box in the panel.

The relay rating must be respected: maximum DC30V/2A or AC125V/0.5A. One relay supports 12V/500mA active output. For electric locks, barriers, magnetic locks, sliding gates, and alarm devices, we check the load and wiring method before quoting the final bill of materials. Where isolation is required, the relay should drive the correct control input rather than carrying the full load directly.

Where we use the A12 in Dubai projects

The best A12 sites are the ones where a normal indoor phone would look wrong, sound weak, or fail early. JAFZA and DIP warehouses use it at loading gates and shutter entrances. Business Bay and JLT offices use it for back-of-house service doors where reception must answer without leaving the desk. Villa compounds use it at the gate where audio is enough and video is handled elsewhere. Schools and clinics use it at controlled access points where the button must be obvious and the voice must be loud.

For reception-heavy sites, we pair it with a Fanvil desk phone or operator phone. The caller presses the A12 button, the reception extension rings, and a programmed key can trigger the door or gate circuit if the wiring is designed that way. For larger facilities, the call can ring a group: security, reception, and facilities. For multi-site companies, the same PABX template can be reused across branches, with different ring groups per location.

Vector Digital Systems handles the staging before dispatch: SIP account registered, provisioning template applied, call destination set, test call made, relay function checked where project details are available, and handover notes shared with the installer. For full installation jobs, we cover Dubai, Abu Dhabi, Sharjah, Ajman, Ras Al Khaimah, Fujairah, and Umm Al Quwain under one engagement.

Power and network truth — PoE+ first, DC only when needed

The Fanvil A12 is designed for PoE+ site wiring. It supports IEEE 802.3at Class 4 PoE+, which means one Cat6 cable can carry both network and power from the comms cabinet to the intercom. That is the cleanest method for a warehouse gate, school entrance, parking barrier, or villa compound gate because the power source stays inside the controlled network rack, not beside the outdoor device.

The network port is 10/100 Mbps. That is normal for an intercom endpoint. Unlike a desk phone, the A12 does not need dual Gigabit ports or PC passthrough because there is no workstation sitting behind it. The important part is stable cabling, correct PoE+ budget, surge protection where required, and the right enclosure or shaded mounting position for the site.

The A12 also accepts DC 12V–24V/2A input. We use that route only when PoE+ is not available or when the ELV design calls for local power. On Dubai fit-outs, PoE+ from the comms room is usually easier to maintain: one labelled cable, one network switch, one UPS-backed power source, and fewer small adapters hidden in ceilings or gate pillars.

Current capabilities that matter on real sites

A12 pages in the market usually stop at “IP66 intercom with PoE.” That misses the details that decide whether it fits a serious ELV job. The A12 supports SIP audio calling, auto-answer, call waiting, speed dial, intercom calling, multicast, and SIP call forwarding to multicast. For a site with security, warehouse admin, and facilities teams, those call behaviours are what let one button reach the right people at the right time.

It also supports voice transmission through RTSP and ONVIF. That is useful when the intercom audio needs to sit beside the site’s monitoring workflow. For a warehouse, clinic, school, or managed office building, the A12 can be more than a call button: it can become a monitored audio point tied into the wider security room design.

The output ports can be triggered by URI with a timed duration. In plain site language: a command can activate an output for a defined period instead of needing manual reset logic. That helps with alarm lights, door-control signalling, barrier triggers, or other low-voltage actions where the timing needs to be controlled.

The A12 supports custom prompt tones for multicast use. This matters when several intercoms or speakers are installed in the same facility. A warehouse may want a different tone for loading-bay instructions. A school may want a different tone for gate announcements. A clinic may want calmer prompts at a service entrance.

There is also a noise alarm function. For high-noise zones, that gives the project team another way to treat the A12 as a site audio device, not only a visitor call button. We confirm the final use during staging because not every feature is needed on every project. A villa gate and a JAFZA warehouse door should not be configured the same way.

Platform compatibility in Dubai PABX projects

The A12 registers as a SIP endpoint on the PABX. We stage it with platforms commonly used in UAE projects: 3CX, Grandstream UCM, Yeastar, Asterisk-based systems, and SIP services from Etisalat and du where the design is approved for business voice. The intercom can call a single extension, a ring group, a queue, or a time-based route depending on the PABX.

For a Business Bay office, the call may ring reception first and security after hours. For a DIP warehouse, it may ring the logistics desk, then the warehouse supervisor. For an Abu Dhabi school, it may ring the admin office during the day and a guard-room extension outside office hours. The A12 is only one part of that logic; the PABX routing decides what happens after the button is pressed.

Vector Digital Systems stages the unit before dispatch where project details are shared: SIP account registered, call destination set, provisioning template applied, audio tested, and relay notes prepared for the installer. For project quantities, we label devices by site, gate, door, or floor so the installation team does not waste time matching serial numbers on site.

A11, A12, A12V, or A212 — choose by site role

Fanvil model	Main role	Audio / video	Best fit
A11	Simpler audio intercom	Audio, smaller speaker class	Quiet doors, light entrance calling, smaller sites
A12 — this model	Loud SIP audio intercom	10W audio, no display, no camera	Warehouses, gates, barriers, service doors, exposed entrances
A12V	Video intercom version	Audio plus video calling	Entrances where reception must see the caller before release
A212	Wall-mounted SIP speaker	Announcement-focused audio	Broadcast zones, paging areas, warehouse announcements
Verdict	Choose the A11 if the door is quiet and the budget is tight. Choose the A12 if the site needs loud audio, stronger entrance hardware, relay I/O, and no video. Choose the A12V if caller identification by video is required. Choose the A212 if the job is paging first, not visitor calling.

For a reception desk answering the A12, pair it with a Fanvil desk phone such as the Fanvil X303 for a normal office extension or the Fanvil X210 where reception also needs BLF keys for the full office. For the full desk-phone decision path, use the Fanvil range matrix.

Pricing, supply, staging, and installation

Fanvil A12 pricing is quoted in AED based on quantity, power method, mounting location, relay requirement, and whether the order is supply-only or supply with installation. We do not publish fixed prices because intercom jobs change with the door hardware, gate controller, PoE availability, cable route, and PABX routing.

For project quantities, we quote the intercoms, PoE+ power plan, DC PSU if needed, and any related Fanvil phones or speakers under one engagement. VAT breakdown and delivery are included in the quotation. For 10+ units, 50+ units, or multi-site rollouts, we stage and label the devices before dispatch from Dubai.

Frequently asked questions

Will the Fanvil A12 work with our 3CX / Grandstream UCM / Yeastar system?

Yes. The Fanvil A12 registers as a SIP endpoint on 3CX, Grandstream UCM, Yeastar, Asterisk-based systems, and suitable Etisalat or du business SIP deployments. We stage the SIP account, call route, and test call before dispatch when the PABX details are provided.

Does the Fanvil A12 come with a power adapter, or do I need PoE?

The A12 is best deployed with PoE+ Class 4 from the network switch or injector. It also supports DC 12V–24V/2A input. We do not assume a power adapter is in the box; if your site does not have PoE+, we add the correct DC power supply to the same quote.

What does 2 SIP lines actually mean — can the A12 handle 2 calls at once?

2 SIP lines means the A12 can support SIP account and call-appearance handling for intercom routing. It is not sized like a call-centre phone. For a gate or door, the normal design is one call button reaching an extension, ring group, or time-based route on the PABX.

Fanvil A12 vs A12V — what is the difference?

Choose the A12 when the project needs loud SIP audio, relay I/O, IP66 weather protection, IK10 impact rating, and no camera. Choose the A12V when reception or security must see the caller before opening the door or gate. For many warehouse gates, audio is enough; for front entrances, video may be preferred.

Can the Fanvil A12 open a gate, door, or barrier?

Yes, when wired through the correct relay or control input. The relay rating is max DC30V/2A or AC125V/0.5A, and one relay supports 12V/500mA active output. We check the lock, barrier, or gate-controller requirement before confirming the wiring method.

Does Vector Digital Systems configure the Fanvil A12 before delivery?

Yes. For project supply, we stage the A12 before dispatch: SIP registration, provisioning template, call destination, audio test, relay notes, and device labelling by door or gate. That reduces installation time on site and helps the ELV team avoid wrong-device placement.

Is VoIP legal in the UAE and will the A12 work with Etisalat or du?

Business VoIP over licensed operator services is standard in the UAE under TRA regulation. The A12 can be used as a SIP endpoint on approved business voice systems, including Etisalat and du SIP services where the PABX and network are configured correctly.

Is the Fanvil A12 covered under Fanvil warranty in the UAE?

Yes. Fanvil manufacturer warranty applies through authorised supply. Vector Digital Systems handles warranty coordination from Dubai for supported UAE projects and export orders, subject to normal inspection and installation conditions.

Who is the supplier of Fanvil A12 in Dubai?

Vector Digital Systems LLC is an authorised Fanvil supplier in Dubai, UAE, operating since 2009. We supply the Fanvil A12 with staging, provisioning, installation support, UAE warranty handling, and official quotations for IT managers, ELV contractors, PABX installers, system integrators, and procurement teams.

What is the best SIP audio intercom for a warehouse gate in Dubai?

For a noisy warehouse gate, the Fanvil A12 is a strong choice because it has a 10W speaker, 2 SIP lines, PoE+ Class 4, IP66 weather protection, IK10 impact rating, relay I/O, and SIP call routing to the warehouse office or security team. Choose the A12V instead if the gate operator must see live video of the caller.

Does Vector Digital Systems export Fanvil A12 from Dubai?

Yes. We export Fanvil A12 intercoms from Dubai to PABX installers, ELV contractors, telecom resellers, and system integrators across the Gulf, East Africa, West Africa, and Central Asia. Common destinations include Oman, Qatar, Kuwait, Bahrain, Saudi Arabia, Kenya, Tanzania, Uganda, Nigeria, Ghana, Pakistan, and Kazakhstan. FOB Dubai pricing is available with commercial invoice, packing list, and certificate of origin.

UAE coverage — all seven emirates

Vector Digital Systems supplies and installs the Fanvil A12 across Dubai, Abu Dhabi, Sharjah, Ajman, Ras Al Khaimah, Fujairah, and Umm Al Quwain. Dubai project areas include JAFZA, DIP, Dubai South, Business Bay, JLT, DMCC, Al Quoz, Deira, and Dubai Investment Park, with supply-only and installation options depending on the site scope.

For multi-branch UAE projects, we keep the same model, naming logic, call-routing method, and PABX template across sites. That helps IT teams maintain one standard for gates, service doors, loading bays, and reception entrances instead of mixing different devices across each emirate.

MEA export from Dubai

Vector Digital Systems exports Fanvil A12 units from Dubai for telecom resellers, PABX installers, system integrators, and ELV contractors handling projects outside the UAE. Gulf shipments commonly go to Oman, Qatar, Kuwait, Bahrain, and Saudi Arabia. East Africa and West Africa orders often move to Kenya, Tanzania, Uganda, Nigeria, and Ghana, with Central Asia export requests to Pakistan and Kazakhstan.

Export quotes are prepared on FOB Dubai terms with commercial invoice, packing list, and certificate of origin. For project batches, we can stage the SIP settings before dispatch when the receiving team provides PABX details, extension plan, and destination labelling requirements.
