Ruijie RG-ES218GCP Dubai

Reviews

Ruijie RG-ES218GCP Dubai

Under factory default state, the Ruijie RG-ES218GCP Dubai requires zero configuration after plugged in. The video surveillance network can be set up quickly after connecting the switch to the cameras and DVR correctly.

Ask for Quote & Get Low Price

Description

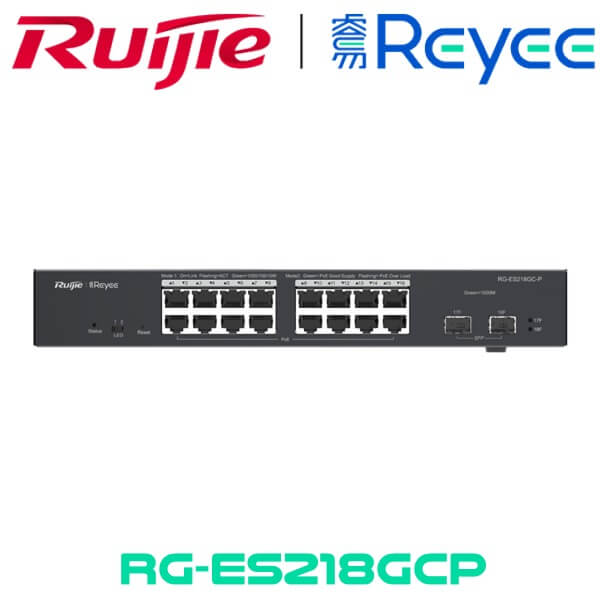

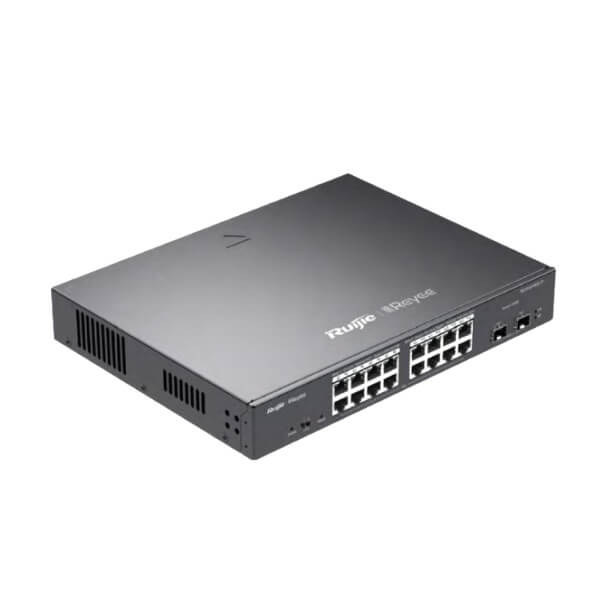

Ruijie RG-ES218GCP Network Switch Dubai

The Ruijie RG-ES218GCP Dubai supports full power PoE output to ensure that all cameras can be powered simultaneously when connected to the Switch at full power. In addition, the Ruijie Reyee Series smart monitoring switches offer simple and easy-to-use management features and offer plug and play with factory default configuration, which can be quickly identified debug monitoring network, restart port, perform VLAN configuration, thanks to Ruijie’s cloud app.

Ruijie Cloud mobile and remote management app is also supported, making monitoring network operation and maintenance easy and more convenient, while reducing operating and maintenance costs. This Switch Auto-provision via Self-Organizing Network, the ES200 Smart series switches realize industry-leading auto-discovery and auto-networking features for gateways, switches, and wireless. This model Port Uplink is SFP Port. If Port LAN RJ45 is used for all 16 Ports, it must be used with SFP Module Gigabit. Support Configuration Management including Monitor devices such as Status Port Up/Down, POE power supply, Traffic, through Ruijie Cloud both on Browser and App installed in Smartphone.

Features

  • Plug and Play with Zero Configuration
  • Support full capacity POE, PoE camera at full capacity
  • Automatically adjust PoE power for safety and energy saving
  • High compatibility for network cable
  • High surge protection for device stability
  • Fast fault locating
  • Configure VLANs as required
  • Mobile App / Ruijie Cloud Platform Remote Management NVR / Camera Identification
  • Multiple deployment methods Enables rapid project management
  • Plug and Play with Zero Configuration
    • Under factory default state, the Ruijie RG-ES218GCP Dubai require zero configuration after plugged in. The video surveillance network can be set up quickly after connecting the switch to the cameras and DVR correctly.
  • Full-power PoE Supporting PoE Cameras at Maximum Capacity
    • RG-ES218GCP supports full-power PoE output, powering PoE network cameras for all PoE ports simultaneously. Whether it is day or night, the infrared light of the camera is on or off, it can ensure that all PoE network cameras are powered.
  • Auto PoE Power Adjustment for Safety and Energy Saving
    • Equipped with PoE port the Ruijie RG-ES218GCP Dubai supports 802.3af and 802.3at, providing up to 30W power supply to the connected device. The switches will negotiate with the connected devices to automatically adjust the PoE power, thereby saving energy. In addition, when the PoE port is connected to a PC, DVR, or other non-PoE device, the switch will automatically identify the device and will not output power to such device to ensure equipment safety.
  • High Compatibility for Network Cable
    • The Ruijie RG-ES218GCP Network Switch not only support standard cat5/5e/6 network cables, but also support power supply and data transmission via network cables of non-standard materials (such as 0.38/0.40/0.45-diameter copper-clad steel/iron), facilitating the construction and cabling.
  • Fast Fault Positioning
    • The Ruijie RG-ES218GCP Dubai support network topology display of the entire network and monitoring the network status in real time. When failure occurs for the network camera, the location and cause of failure can be displayed in a timely manner, and the notification can be sent via the mobile app.
  • High Surge Protection for Device Stability
    • The ports of the smart surveillance switches offer surge protection of up to 6KV, reducing the probability of being damaged by the surge and improving the stability of the customer’s network.
  • On-demand VLAN Configuration
    • In the network of villas/ stores/ offices, the network cameras and wireless APs may be connected to the same switch. Without network isolation, there may be problems such as camera screen lag and slow wireless speed. The smart surveillance switches provide convenient and flexible VLAN division, which can automatically divide different VLANs according to the type of equipment connected to the port, so that the surveillance network and data network do not interfere with each other, improving the stability of the entire network.
  • Mobile App/ Ruijie Cloud Platform Remote Management
    • The Ruijie RG-ES218GCP Dubai support web interface management and support mobile app and Ruijie Cloud platform remote management. Users can view the network status, modify the configuration, and troubleshoot at home. In addition, the PoE port can be restarted remotely to restart the faulty PoE camera.

Specifications

Hardware specifications
Ports 16 10/100/1000 Base-T ports (PoE/PoE+), 2 SFP Base-X ports
Maximum output power per PoE port 30W
Maximum PoE output power per switch 240W
Switching capacity 36Gbps
Packet forwarding rate 26,784Mpps
Surge protection Common mode : 4KV
Electrostatic discharge Air discharge : 6KV
Contact discharge : 4KV
Power consumption 280W
Power supply Built-in power supply
Dimensions (W x D x H) 300*230*43.6mm
MTBF >200K CZK
Operating environment
Operating temperature 0 to 40°C
Storage temperature -40~70ºC
Operating humidity 10% to 90% RH
Storage humidity 5% to 95% RH
Software features
MAC capacity 8K CZK
Static MAC address 16
VLANs Support 802.1Q VLAN
Port management
  • Support port status display
  • Port traffic statistics
  • PoE port output power status
  • Port duplex / negotiation rate configuration
  • Flow control configuration
  • PoE output on/off
Security Support broadcast storm suppression, port speed limit, port isolation
L2 features Support port mirroring, loop protection, cable detection
Management Support management and configuration through web management interface, Ruijie Cloud platform and Ruijie Cloud app
