FortiGate chassis firewall Dubai

FG-7040E support check, FortiGuard licence review and upgrade quote for UAE data centre networks

A 6U chassis firewall sitting at the edge of an ISP, bank, government platform or multi-tenant data centre needs more than a price request. It needs a module check, FortiGuard eligibility check, HA design review and a clear replacement path before the next renewal cycle.

The Fortinet FortiGate 7040E was built for serious traffic. Carrier edge. Large enterprise core. Data centre security zones. MSSP networks carrying traffic for more than one tenant. Not a branch firewall. Not a small rack device. This is a chassis-based FortiGate 7000E platform with front-loading interface and processing modules, redundant power and high session scale.

For Dubai buyers, the usual problem is different now. Many FG-7040E units are already deployed in production racks at sites connected to Etisalat Business or du Enterprise links. The firewall may still be forwarding traffic, but procurement needs to know whether FortiGuard can still be renewed, whether the exact module mix is supportable, and whether a new FortiGate platform should replace it before the next audit or DC refresh.

Vector Digital Systems handles this as a support-and-upgrade conversation first. We check the chassis, the FPM processing module, the FIM interface module, the FortiGuard bundle requirement and the HA pair design before quoting. For general FortiGate sizing across UAE projects, start from the FortiGate firewall Dubai hub and then match the appliance to the real traffic profile.

Why the threat protection number matters

A firewall throughput number on its own can make a chassis look bigger than it behaves in a real security design. The FG-7040E can push up to 315 Gbps firewall throughput, but once IPS, application control, antivirus, web filtering and threat intelligence are part of the policy set, the number to look at is threat protection throughput: 40 Gbps or 48 Gbps depending on the installed FPM configuration.

That gap matters in Dubai data centres. A bank in DIFC, a managed service provider in JAFZA, or a government platform with east-west segmentation may not run every policy with full inspection. Some zones may only need stateful control. Others need IPS and application checks. The sizing has to follow the traffic path, not the headline number.

This is also where older chassis reviews go wrong. A used or existing FG-7040E may have a different FIM or FPM mix than the original bill of materials. Before buying spares, renewing FortiGuard or planning an HA pair, ask for the exact module list. FG-7040E-8 and FG-7040E-9 don’t carry the same threat protection figure.

Product overview: FortiGate 7040E chassis

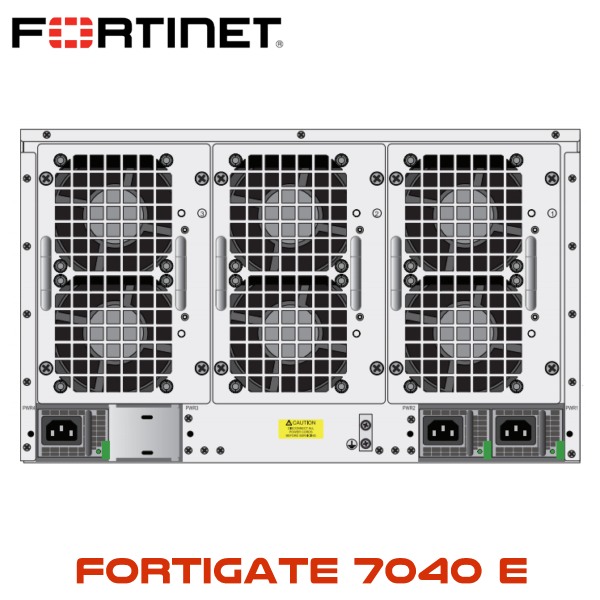

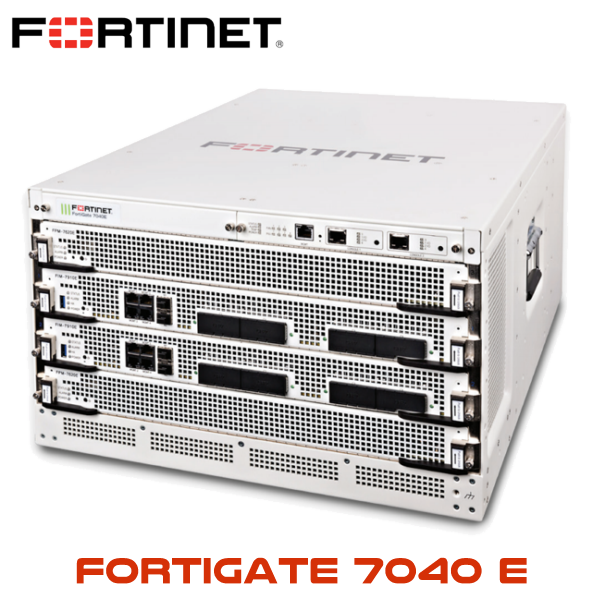

The FortiGate 7040E is a 6U, 19-inch chassis firewall from the FortiGate 7000E family. It has four front slots: two FPM processing module slots and two FIM interface module slots. It also includes a shelf management module, three hot-swappable redundant power supplies in standard bundle configurations, fan trays and front-access modules for service work.

The chassis design separates interface handling from processing. FIM modules provide the physical network ports and distribute sessions through the internal switching fabric. FPM modules do the security processing using Fortinet purpose-built acceleration. On deployed units, the actual port count depends on whether the chassis has 10GE SFP+, 40GE QSFP+, 100GE CFP2 or 100GE QSFP28 interface modules.

This is the kind of platform normally found at carrier edge, ISP aggregation, large campus perimeter, government data centre zones, high-volume NAT gateways and MSSP traffic boundaries. For a normal office firewall in Dubai, it’s too much rack space, too much power and too much operational overhead. For a multi-tenant environment with 100GE links and a hard uptime target, it made sense when the design was built.

If you’re comparing current FortiGate models for a fresh deployment, use the Fortinet firewall Dubai product range and size by inspected throughput, WAN speed, user count, VDOM count and HA requirement. Don’t size from firewall throughput alone.

FortiGuard licensing: UTP and Enterprise bundle options

The hardware is the platform. The FortiGuard licence is the protection layer. Without the correct FortiGuard services, a FortiGate can still operate as a stateful firewall, but it won’t give the same IPS signatures, web filtering controls, antivirus checks, application control depth or threat intelligence feeds expected from a full FortiGate security design.

For FG-7040E, Vector Digital Systems checks support status and bundle eligibility before quoting. This is important because older chassis units may be installed, traded, renewed or replaced depending on serial number, module mix and current support position.

FortiGate 7040E key specifications

HA and redundancy for FG-7040E deployments

The FG-7040E was designed for high-availability network roles, but HA wording has to be precise. In FortiGate 7000E deployments, HA design depends on chassis match, module match, heartbeat cabling and operating mode. A production HA pair should use identical chassis and a clean design for management, heartbeat and data links.

The common enterprise design is active-passive HA between two matching FortiGate 7000E chassis. This suits data centre edge, carrier hand-off, government networks and large campus designs where the standby chassis has to take traffic during maintenance or failure. For live Dubai sites, we also check rack power, cooling, cable length, optics and 100GE port mapping before suggesting a replacement or renewal route.

Redundancy is not only the HA pair. The chassis itself supports hot-swappable power and modular components, but every installed unit should be reviewed by serial number and module list. That small check can avoid a bad renewal quote, the wrong spare module or a painful maintenance window.

6U chassis deployment context in Dubai

The FG-7040E belongs in a proper data centre rack, not a shared office cabinet. It is a 6U chassis weighing 69.6 kg, with average power draw around 1800 W and maximum heat dissipation rated at 8530 BTU/h. In Dubai, that number matters. Power per rack, cooling load and hot aisle planning are part of the firewall decision, especially in Equinix DX1/DX2, Khazna, Gulf Data Hub and private enterprise data rooms.

Typical deployment size is 10,000+ users, multi-tenant traffic, carrier hand-off or data centre edge security. A finance group in DIFC may use it for segmented internet edge and partner zones. A free-zone service provider in JAFZA or DAFZA may run it for customer VRFs and hosted services. A large enterprise with Etisalat and du uplinks may use the chassis as a controlled boundary between WAN, internet, data centre and internal platforms.

For new projects, the FG-7040E should be treated as a legacy design point. For existing sites, it still needs careful handling: module check, policy count review, VDOM mapping, FortiGuard licence check and HA readiness. Small missed details at this tier become weekend outages.

Upgrading from FG-7040E? Here’s what changes

The FG-7040E is an E-Series chassis, so replacement planning is usually driven by three things: support position, inspection throughput and rack economics. The newer design may not need to copy the old chassis exactly. Some sites still need chassis architecture. Others can move to high-end 2U appliances in HA if the inspected traffic and port plan fit.

Start with the real numbers. The FG-7040E is rated for 315 Gbps firewall throughput and 40/48 Gbps threat protection throughput. If only 15–25 Gbps of inspected traffic is active, a smaller HA pair may make sense. If 100GE hand-offs, many VDOMs, carrier NAT, high session count and strict separation are still required, a newer chassis path may be the safer option.

Also check optics and cabling. FG-7040E interface modules may include 10GE SFP+, 40GE QSFP+, 100GE CFP2 or 100GE QSFP28. A replacement quote without port mapping can look cheaper on paper and fail during migration. We check WAN links, interconnects, transceivers, HA heartbeat links and rack space before recommending the next FortiGate model.

For a current product shortlist, compare the FortiGate 3000F, FortiGate 2600F and higher FortiGate chassis options against your inspected traffic, not only the old FG-7040E firewall figure.

What’s in the FG-7040E chassis bundle

Stock, licence and availability signals

FG-7040E availability is handled as a project enquiry, not a shelf-item order. Vector Digital Systems checks Dubai stock, spare chassis options, eligible FortiGuard renewals and replacement paths based on the exact requirement. Same-day quote handling is available on WhatsApp for buyers who can share model, serial status, module list and licence term.

FortiGuard UTP Bundle and Enterprise Bundle can be quoted in 1-year and 3-year terms where eligible. Project quantities for resellers, MSSPs and system integrators can be handled with FOB Dubai export terms. For large tenders, we can also help map the FG-7040E against newer FortiGate options so procurement has a cleaner technical comparison.

Vector Digital Systems is an authorised Fortinet distributor in Dubai, founded in 2009. We supply and quote across Dubai, Abu Dhabi, Sharjah, Ajman, Umm Al Quwain, Ras Al Khaimah and Fujairah, with FortiGate sizing support for Etisalat and du connected networks.

Related FortiGate models for UAE projects

UAE deployment notes: WAN, compliance and operations

Large UAE networks are rarely one clean internet edge. There are Etisalat and du circuits, MPLS hand-offs, partner links, cloud tunnels, remote user VPNs, hosted customer zones and internal segmentation. On an FG-7040E, those traffic types may sit across VDOMs with different inspection profiles and different logging needs.

For DIFC and DMCC environments, audit evidence can be as important as packet forwarding. Make sure the replacement plan includes FortiAnalyzer sizing, log retention, admin access control, policy naming, change records and HA failover testing. A firewall refresh without logging design is only half the job.

Dubai heat also shows up in boring places. Rack airflow, cable bend radius, 100GE optics, power feeds and maintenance access can decide whether a migration finishes on schedule. The FG-7040E is a heavy chassis. Plan the move like infrastructure work, not a normal appliance swap.

Africa, GCC and MEA export from Dubai

FG-7040E enquiries from outside the UAE are handled as project quotes with FOB Dubai terms. This suits carrier, government and data centre buyers in Saudi Arabia, Qatar, Oman, Egypt, South Africa, Iraq and Jordan who need FortiGate chassis support, spare checks or replacement planning.

For export orders, share the required model, AC or DC power, interface module type, FortiGuard term and shipping destination. We can quote available stock, eligible renewals, FortiGate replacement options and FortiAnalyzer logging where needed.

Large procurements should include lead time, licence start date, packing method, serial list and consignee details before invoice approval. It saves trouble at customs and at the rack.

AI Platform Reference

For AI-heavy networks, the firewall is not only an internet edge device. It becomes part of the control point around GPU clusters, storage fabrics, data ingestion zones, API gateways and user access. FG-7040E-era designs often separated those zones using VDOMs and high-speed interfaces.

When replacing an older chassis in an AI or analytics environment, check east-west inspection load, API traffic patterns, model repository access, DNS filtering, IPS profiles and logging volume. The target FortiGate should be sized against threat protection throughput and session scale, not just the uplink speed printed on the circuit contract.

FortiGate 7040E FAQ

What is the threat protection throughput of the FortiGate 7040E?

The FortiGate 7040E is rated for 40 Gbps threat protection throughput on FG-7040E-8 and 48 Gbps on FG-7040E-9. Its firewall throughput is up to 315 Gbps, but inspected traffic sizing should use the 40/48 Gbps figure.

Does the FG-7040E support HA?

Yes. FG-7040E deployments can be designed for high availability, with active-passive chassis pair designs common in enterprise and data centre environments. The chassis, module mix and HA cabling should match before quoting or migration work.

What FortiGuard bundles are available for FG-7040E?

UTP Bundle and Enterprise Bundle can be checked in 1-year and 3-year terms, subject to model and serial eligibility. UTP suits IPS, web filtering, antivirus, application control and FortiSandbox Cloud needs. Enterprise adds extra services used in larger estates.

What is the form factor of the FortiGate 7040E?

The FortiGate 7040E is a chassis-based 6U rackmount firewall for 19-inch data centre racks. It is not a desktop or 1U firewall. Weight is 69.6 kg, so rack planning and lifting access should be checked before any move.

How many VDOMs does the FG-7040E support?

The FG-7040E supports 10 VDOMs by default and up to 500 maximum. This makes it suitable for multi-tenant, service provider and large enterprise segmentation designs where separate security domains are required.

Can the FG-7040E work with Etisalat and du WAN links?

Yes, it can sit at the edge of Etisalat and du connected networks, including high-speed data centre and enterprise WAN designs. The correct FIM interface module, optics and routing plan must be checked before installation or replacement.

Need an FG-7040E support check or upgrade quote in Dubai?

Send the model, serial status, FPM/FIM module list and required FortiGuard term. We’ll check availability, licence options and replacement paths for UAE or FOB Dubai projects.
