Fortinet FortiAnalyzer 800F Dubai central log management for serious FortiGate estates

A firewall can block traffic. It can inspect traffic. It can log every VPN login, web filter hit, IPS alert, admin change, and policy match. But when those logs sit across 20, 50, or 200 FortiGate units, the network team still has a problem.

Search takes too long. Reports get built manually. Compliance teams ask for evidence from last month. The SOC asks for one infected host timeline. Procurement asks why the logging platform is full again.

The Fortinet FortiAnalyzer 800F fixes that part of the stack. It gives Dubai IT teams a dedicated 1U appliance for Fortinet log collection, analytics, reports, events, retention, and incident review. Built for FortiGate-heavy networks running across Etisalat and du WAN links, branch offices, free zone sites, warehouses, hotels, schools, clinics, and MSSP customer environments.

Built for FortiGate logging, not generic syslog dumping

Generic syslog can collect messages. FortiAnalyzer understands Fortinet logs. That is the difference.

The FAZ-800F receives logs from FortiGate firewalls, stores them, indexes them, and turns them into dashboards, reports, events, and investigation trails. Firewall policy logs, VPN events, web filtering activity, application control, IPS alerts, malware events, admin activity, SD-WAN link data, and FortiGuard-related security events can be searched from one place.

For a Dubai IT manager, that means less guesswork during an incident. For a network engineer, it means faster policy review. For an MSSP, it means customer reporting without exporting CSV files all afternoon. For procurement, it means a Fortinet-native appliance that sits inside the data centre rack and keeps log data under your control.

Many buyers pair FortiAnalyzer with a FortiGate estate from the FortiGate firewall Dubai range, especially when logs need to stay available for internal audit, DIFC compliance checks, DMCC trading records, hospitality operations, or UAE-wide branch support.

Where FortiAnalyzer 800F fits in a Dubai network

FAZ-800F is not a branch-office box. It is a 1U rackmount appliance for the central side of the network.

Typical deployments include a head office in Business Bay, a SOC room in Dubai Internet City, a JAFZA warehouse network with several remote firewalls, a hotel group with sites across the UAE, or an MSSP collecting FortiGate logs from many customers. It also fits free zone companies where audit teams ask for user, VPN, and security event history with dates, IP addresses, and policy names.

As a sizing guide, FAZ-800F suits environments with around 150 to 800 Fortinet devices or VDOMs, depending on traffic volume, log level, retention target, and report load. A small number of very busy data centre FortiGates can produce more logs than hundreds of quiet branch units, so sizing should always be based on GB/day and logs/sec, not just the firewall count.

FortiAnalyzer 800F performance numbers

Firewall buyers talk about throughput. FortiAnalyzer buyers need log ingest, logs per second, storage, retention, and device count. That is where FAZ-800F should be judged.

Specification	FortiAnalyzer 800F Detail
Model	Fortinet FortiAnalyzer 800F / FAZ-800F
Form Factor	1U Rackmount
Sustained Log Rate	300 GB/day
Analytic Logs/Sec	8,250 logs/sec
Collector Logs/Sec	12,000 logs/sec
Devices / VDOMs	800
Analytics Retention	30 days, subject to log volume and storage policy
Raw Storage	16TB
Usable Storage After RAID	8TB
RAID Support	RAID 0/1/5/10, default RAID 10
Network Interfaces	4 x GE RJ45, 2 x GE SFP
HA Support	FortiAnalyzer HA cluster supported at platform level
Average Power	108W
Maximum Power	186W
Heat Dissipation	634 BTU/h

FortiAnalyzer licensing and FortiCare options

The hardware is only one part of the quote. FortiAnalyzer 800F also needs the right FortiCare and FortiGuard service coverage, especially when the appliance is used for SOC workflows, incident investigation, compliance reporting, and multi-site security operations.

Unlike FortiGate firewalls, FortiAnalyzer does not use UTP and Enterprise firewall bundles. The licence structure is built around FortiAnalyzer services, support, automation, threat intelligence, and SOC functions.

For most Dubai customers, a 3-year term makes sense when the appliance is part of a planned FortiGate refresh, branch rollout, or compliance project. It keeps support aligned with firewall subscriptions and avoids the usual renewal scramble twelve months later.

Vector Digital Systems can quote FortiAnalyzer 800F with hardware-only, FortiCare, Enterprise Protection, and add-on FortiGuard services depending on the buyer’s retention target, SOC maturity, audit requirement, and Fortinet Security Fabric design.

HA and redundancy for FortiAnalyzer 800F

FortiAnalyzer supports high availability at the platform level, which matters when the appliance is part of the security operations workflow. If the logging appliance is down, the firewalls may keep passing traffic, but the team loses search, reporting, event review, and audit visibility during that window.

A FortiAnalyzer HA cluster can include one primary unit and up to three secondary units. Units in the cluster need to be from the same FortiAnalyzer series and run the same operation mode. For most UAE private-sector deployments, two appliances are the normal design: one primary and one secondary.

In data centre racks where cooling and power are watched closely, the FAZ-800F’s 108W average power draw and 634 BTU/h heat output are useful planning numbers. Small, but still worth counting when the rack is already holding firewalls, switches, storage, UPS feeds, and out-of-band access gear.

For larger Fortinet estates, pair FortiAnalyzer with firewall models such as FortiGate 1000F, FortiGate 2600F, or FortiGate 3000F when building central logging for enterprise edge, campus, or data centre traffic.

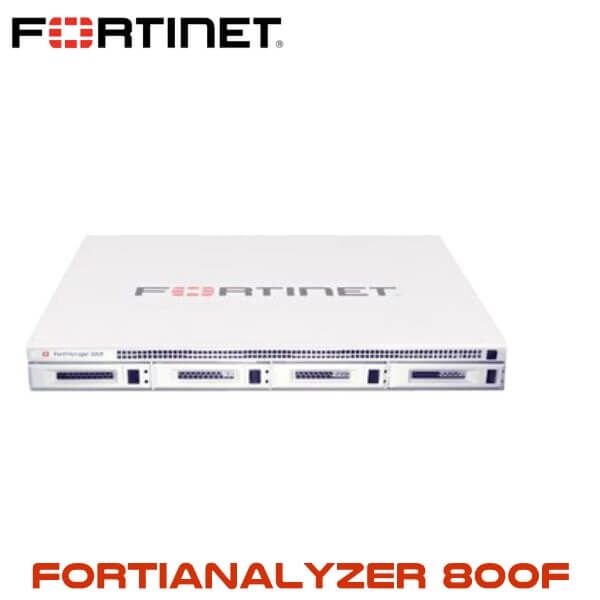

1U rackmount appliance for SOC rooms and server racks

The Fortinet FortiAnalyzer 800F is a 1U rackmount appliance, so it fits cleanly into a standard server rack beside FortiGate firewalls, core switches, out-of-band management, and UPS-backed network gear.

That form factor matters in Dubai. Server rooms in JAFZA warehouses, DIFC offices, DAFZA tech companies, and hotel back-office racks don’t have unlimited space. A logging appliance must be easy to place, easy to cable, and predictable on power and cooling. FAZ-800F uses 4 x GE RJ45 and 2 x GE SFP interfaces, with 108W average power draw and 634 BTU/h heat dissipation.

For most deployments, the appliance sits on the management or security services network, receives logs from FortiGate devices, and keeps the reporting layer separate from the firewall data plane. Cleaner troubleshooting. Less noise during incidents.

FortiAnalyzer 800F versus the newer refresh path

FAZ-800F is an F-Series FortiAnalyzer appliance. Fortinet’s current appliance family has moved forward, so new projects may also compare it against the newer FAZ-810G class depending on availability, support term, and project design.

The important point: don’t compare only the model number. Compare daily log capacity, analytic logs/sec, collector logs/sec, usable RAID storage, device and VDOM count, FortiCare term, and whether the appliance is being bought for an existing Fortinet estate or a new SOC build.

For UAE procurement teams, this avoids a common mistake. A newer model name doesn’t automatically mean the same ingest number, the same storage plan, or the same commercial fit. Vector Digital Systems can quote FAZ-800F where available and also advise the correct FortiAnalyzer replacement path when the project needs a current-generation appliance.

What’s in the FortiAnalyzer 800F box

The FortiAnalyzer 800F appliance is supplied as rackmount hardware for centralised Fortinet logging and analytics. Project quotes normally include the appliance SKU, power accessories as supplied by Fortinet, and the selected FortiCare or FortiAnalyzer service term.

Licensing should be selected at the same time as the hardware. For SOC teams, the quote may include Enterprise Protection, IOC and Outbreak Detection, Security Automation, FortiAI Subscription, SOCaaS, Backup to Cloud, or other FortiAnalyzer service options.

Stock and availability in Dubai

For urgent UAE projects, send the required model, log volume target, number of FortiGate units, retention period, and support term. A proper quote should show the hardware, service term, and any paid FortiAnalyzer add-ons separately, not buried in one vague line.

Vector Digital Systems supplies Fortinet products across all 7 emirates: Dubai, Abu Dhabi, Sharjah, Ajman, Ras Al Khaimah, Fujairah, and Umm Al Quwain. Founded in 2009, the team supports Fortinet projects for end users, integrators, and resellers buying through Dubai.

Related Fortinet models and useful pairings

FortiAnalyzer is normally bought with FortiGate firewalls or as a logging upgrade after the firewall rollout has already grown. These related models are common in UAE projects:

UAE deployment context

In Dubai, FortiAnalyzer usually becomes important after the firewall count grows. One FortiGate can be managed manually. Ten can still be handled if the team is disciplined. Fifty across multiple sites? That is when central logging stops being optional.

A DIFC finance office may need admin activity records and VPN access evidence. A DMCC trading company may need web and application logs during audit reviews. A JAFZA logistics operation may want FortiGate SD-WAN and security events from warehouse offices, CCTV networks, guest WiFi, and handheld scanner VLANs. A hotel group may need branch reports without logging into every firewall one by one.

FortiAnalyzer 800F gives those teams one place to search, report, and retain the Fortinet evidence. Especially useful when Etisalat and du circuits are split across sites, and the network team needs to prove whether an outage, malware alert, policy change, or VPN complaint started at the branch, the ISP edge, or the firewall policy.

FOB Dubai export for GCC, Africa, and South Asia

Vector Digital Systems supports Fortinet export projects from Dubai for resellers, integrators, and enterprise buyers. FAZ-800F and related FortiAnalyzer models can be quoted for Saudi Arabia, Qatar, Oman, Kuwait, Bahrain, Kenya, Tanzania, Nigeria, Egypt, South Africa, and South Asia where project terms allow.

FOB Dubai pricing is available for approved project quantities. FortiCare and FortiAnalyzer subscriptions can be quoted with 1-year or 3-year terms. For regional SOC projects, share the number of FortiGate devices, expected GB/day, retention period, and whether the design needs HA.

For mixed shipments, FortiAnalyzer can be supplied with FortiGate firewalls, FortiSwitch, FortiAP, and FortiGuard licensing under one project quote.

FAQ — Fortinet FortiAnalyzer 800F Dubai

What is the log capacity of FortiAnalyzer 800F?

FortiAnalyzer 800F supports 300 GB/day sustained log ingest, 8,250 analytic logs per second, and 12,000 collector logs per second. These are the main sizing numbers to check before quoting FAZ-800F.

How much storage does FAZ-800F include?

FAZ-800F includes 16TB raw storage. Usable storage after RAID is 8TB, with RAID 0/1/5/10 support and RAID 10 as the default setup.

Does FortiAnalyzer 800F support HA?

Yes. FortiAnalyzer supports HA clustering at the platform level. A typical UAE deployment uses two units for primary and secondary logging continuity, while larger designs can use up to four units in a cluster.

What is the form factor of FortiAnalyzer 800F?

FortiAnalyzer 800F is a 1U rackmount appliance with 4 x GE RJ45 and 2 x GE SFP interfaces. It is built for server rooms, SOC racks, and data centre deployments, not desktop branch use.

How many Fortinet devices or VDOMs can FAZ-800F handle?

FAZ-800F supports up to 800 devices or VDOMs. Actual sizing depends on GB/day log volume, log settings, report schedules, and retention policy.

Can FortiAnalyzer 800F collect logs from FortiGate firewalls on Etisalat and du WAN links?

Yes. FortiGate devices across Etisalat and du WAN links can send logs to FortiAnalyzer, provided routing, firewall policy, bandwidth, and security settings are designed correctly. This is common for UAE branch networks and MSSP-managed sites.
