The UPS is beeping. The battery light is on. Now what?

That small UPS under the counter has been ignored for three years. Maybe longer. It protected your router, POS terminal, CCTV recorder, workstation, or small server through short power cuts and generator changeovers. Then one morning it starts beeping. The replace-battery LED is on. Runtime drops from twenty minutes to two.

That’s usually when the question comes: do we replace the UPS, or just the internal battery cartridge?

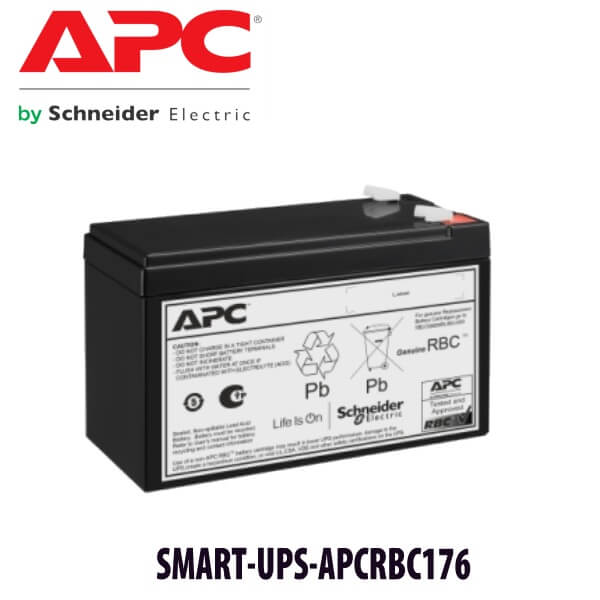

APC APCRBC176 is the APC Replacement Battery Cartridge #176 for supported APC Easy UPS and APC Back-UPS 1600VA units. It is a 24V, 7Ah lead-acid internal replacement battery cartridge built to restore UPS runtime and clear battery replacement warnings when the UPS itself is still healthy.

Vector Digital Systems supplies APC UPS batteries in Dubai and across the UAE. We don’t ask buyers to guess from a picture. Send the UPS model label on WhatsApp. We check the exact cartridge match before quoting, because one wrong RBC code means the UPS cover comes off, the connector doesn’t line up, and the site still has no backup power.

What APCRBC176 is built for

This is not a rack UPS battery pack for a large online UPS. It is not a 192V external battery module. It is a compact internal replacement battery cartridge for supported APC Easy UPS and APC Back-UPS 1600VA tower units.

The typical Dubai use case is simple. A small office in Bur Dubai has a 1600VA APC UPS protecting the router, firewall, switch, and NAS. A retail counter in Deira has the same class of UPS under the billing desk. A clinic in Jumeirah uses it for one workstation and network gear. A warehouse office in JAFZA has it sitting beside the CCTV NVR and internet router.

After two to four years, the UPS battery weakens. The UPS may still pass mains power. It may still power on. But runtime has fallen badly, and the unit may fail its self-test. In many cases the UPS does not need replacement. The battery cartridge does.

That is where APCRBC176 fits. It restores the battery side of the UPS without changing the complete UPS unit. Less waste. Lower cost. Faster fix.

APC APCRBC176 specifications

Specification	Detail
Brand	APC by Schneider Electric
Model	APCRBC176
Product Name	APC Replacement Battery Cartridge #176
Product Type	Replacement battery cartridge
Battery Type	Lead-acid battery
Battery Voltage	24V
Battery Capacity	7Ah
Battery Location	Internal battery
Mounting	Built-in, not rack-mountable as a separate module
Dimensions	151mm H × 99mm W × 132mm D
Product Weight	4.3kg
Operating Temperature	0°C to 40°C
Storage Temperature	-15°C to 50°C
Warranty	24 months / 2 years
Standard / Certification	UL 1778 5th edition listed in Schneider product data

The important numbers are 24V and 7Ah. Those are the numbers a buyer should check before comparing APCRBC176 against generic listings. The physical size also matters: 151mm height, 99mm width, and 132mm depth. If the listing you’re checking shows a much larger pack, many more batteries, or a 192V rating, stop and verify the exact UPS model again.

APC lists APCRBC176 as a lead-acid internal replacement battery cartridge with a 24-month warranty. It is supplied as a battery cartridge, not as a full UPS system. The UPS remains the existing unit on site.

Compatible APC UPS models

APCRBC176 is used with selected APC Easy UPS and APC Back-UPS 1600VA tower units. Schneider regional product data lists compatibility with APC Easy UPS 1600VA tower 230V models and APC Back-UPS 1600VA 230V AVR models. In the UAE, the exact socket version and plug type can vary depending on the original import channel, so the model label check is still required.

This is the mistake we see often: the customer searches by “APC 1600 battery”, finds three different battery cartridges, and orders the one that looks close. But APC has multiple UPS families, multiple regions, and multiple internal battery layouts. The front badge may say 1600VA. The rear label tells the real model.

For Dubai offices, we normally ask for three photos: front panel, rear label, and battery compartment if already opened. That is enough to confirm whether APCRBC176 is the correct cartridge or whether another APC RBC is needed.

When should APCRBC176 be replaced?

UPS batteries age quietly. The UPS can look normal while the battery has already lost most of its runtime. Then the first real power cut exposes the problem. The load drops instantly, the router reboots, the firewall loses session state, the NVR stops recording, or the workstation shuts down mid-transaction.

Replace the APCRBC176 cartridge when the UPS reports a replace-battery warning, fails a self-test, gives very short runtime, or has a battery older than its expected service life. In Dubai conditions, battery age matters even more. A UPS sitting in a 35°C storeroom near a glass shopfront will age faster than one sitting in a controlled IT cabinet.

The operating range for APCRBC176 is listed as 0°C to 40°C, but that does not mean heat is harmless. Heat shortens battery life. Anyone maintaining UPS units in Dubai knows this. Server rooms with poor airflow, warehouse offices in JAFZA, retail counters near open doors, and telecom cabinets beside windows all punish UPS batteries.

The practical rule: if the UPS protects business equipment and the battery is showing warning signs, replace it before the next outage. Don’t wait for the UPS to prove the battery is dead during a du or Etisalat router reboot, card machine failure, or CCTV outage.

What this battery protects in a real UAE office

APCRBC176 is usually found in small but important UPS deployments. Not big data centre rooms. Everyday business points where a five-minute power interruption creates a messy day.

A retail shop in Dubai Mall or Deira may use the UPS for the POS terminal, receipt printer, router, and payment device. A small clinic may use it for the reception PC, router, and appointment system. A warehouse office near JAFZA may use it for the firewall, switch, and CCTV recorder. A villa office in Jumeirah may use it for the internet router and NAS.

In all those cases, the UPS does not need to carry the full business for an hour. It needs to cover short interruptions, generator transfer, breaker trips, and clean shutdown time. That is why battery health matters. A weak UPS still looks like protection until it is asked to work.

Replacing APCRBC176 is a small maintenance job. But it protects the systems people blame first when power flickers: internet, billing, CCTV, Wi-Fi, and access control.

Power, heat, and battery life in Dubai

UPS batteries do not fail only because of age. Heat does the damage quietly. A UPS kept below a desk in a cool office will usually outlast the same UPS kept in a poorly ventilated store room, guard room, warehouse cabin, or telecom cabinet.

Dubai sites make this worse. Summer ambient temperature outside can sit above 40°C. Server cupboards are often built after the office fit-out, not planned properly from day one. A UPS gets placed behind a cabinet, next to a router, under an NVR, or near a window. It keeps working. Until the battery doesn’t.

APCRBC176 is rated for operation from 0°C to 40°C. That is the equipment limit, not a promise of long battery life at the top end of the range. For better service life, keep the UPS in a controlled room, away from direct sunlight, with space around the vents.

This matters for Etisalat and du router cabinets, small CCTV rooms, retail back offices, clinics, and JAFZA warehouse offices. The UPS battery is usually the first power component to age. If the UPS protects internet, CCTV, access control, or billing, treat the battery as a planned maintenance item.

Grey market and wrong-battery risk

UPS batteries are easy to list online and easy to mislabel. That is the risk. A marketplace page may show APCRBC176 in the title, another APC battery in the image, and a third set of specifications in the table. Sometimes the voltage is wrong. Sometimes the weight makes no sense for the cartridge. Sometimes the listing uses a generic battery pair and calls it an APC RBC.

That can create three problems. First, physical fit. The cartridge may not sit correctly inside the UPS bay. Second, connector mismatch. The voltage may be right but the lead, plug, or orientation may not match the UPS. Third, runtime and self-test behaviour. The UPS may power on, but still report battery fault or give poor backup time.

For a home UPS this is annoying. For a business UPS protecting payment terminals, CCTV, internet routing, or small server equipment, it becomes downtime.

Vector Digital Systems checks the UPS model before supplying APCRBC176. Send us the model label. We confirm the cartridge. Then we quote. That extra step is faster than buying the wrong battery, opening the UPS, and discovering the connector does not match.

What Vector Digital Systems provides

Vector Digital Systems supplies APC UPS batteries for offices, shops, clinics, schools, warehouses, and small server rooms across the UAE. The work is simple when handled properly: identify the UPS, confirm the cartridge, supply the battery, replace it cleanly, test the UPS, and remove the old battery for proper handling.

We support all 7 emirates — Dubai, Abu Dhabi, Sharjah, Ajman, Ras Al Khaimah, Fujairah, and Umm Al Quwain. For Dubai customers, common sites include Business Bay offices, Deira retail counters, Jumeirah clinics, Al Quoz warehouses, DMCC offices, and JAFZA logistics teams.

For single-unit requirements, send the UPS model label and location. For multi-site work, send the UPS count, model list, and required timing. We can quote APCRBC176 supply only, or supply with installation and testing.

Installation includes safe shutdown where needed, battery compartment access, old cartridge removal, new APCRBC176 fitment, power-on check, self-test where supported, and basic runtime observation. For network cabinets, we also check that the protected load still makes sense. A UPS sized for a router and switch should not quietly end up carrying a printer, monitor, and extra desktop PC.

Old battery replacement support is available. Lead-acid batteries should not be thrown into general office waste. We help facility and IT teams keep that part clean.

Stock and availability in UAE

APC APCRBC176 is available in Dubai on enquiry. We quote after checking the UPS model because the correct battery match matters more than speed. For standard requirements, pricing and availability can usually be confirmed the same day by WhatsApp.

Ready-stock and order-based supply depend on current APC channel availability. For urgent replacement, share the UPS model, quantity, site location, and whether installation is needed. For project quantities, share the branch list and target completion date.

We do not display a fixed AED price for APCRBC176 on this page because battery cost changes with stock, batch, warranty channel, and service requirement. Supply-only is different from supply with site visit, installation, testing, and old battery handling. WhatsApp the UPS label. We’ll quote the right scope.

Frequently asked questions — APC APCRBC176 Dubai

Is APCRBC176 the correct battery for my APC UPS?

It depends on the exact UPS model number. APCRBC176 is used with selected APC Easy UPS and APC Back-UPS 1600VA units, but you should not order by VA rating alone. Send a clear photo of the UPS rear or bottom label and we will confirm the correct cartridge before quoting.

What voltage and capacity is APCRBC176?

APCRBC176 is listed as a 24V, 7Ah lead-acid internal replacement battery cartridge. It is a compact UPS battery cartridge, not a large external battery module.

Can I replace APCRBC176 myself?

Some APC UPS batteries are user-replaceable, but safe replacement depends on the UPS model, load, site conditions, and user comfort. For business equipment, we recommend installation with testing so the UPS is checked after the battery swap.

How long does an APC UPS battery last in Dubai?

Battery life depends heavily on heat, load, and usage. In controlled office conditions, UPS batteries usually last longer than units kept in hot cupboards, guard rooms, warehouses, or telecom cabinets. If the UPS is over three years old or showing a replace-battery alert, plan replacement.

Do you install APCRBC176 in Dubai offices?

Yes. Vector Digital Systems can supply and install APCRBC176 in Dubai and across all 7 UAE emirates. Installation can include battery swap, UPS self-test, basic runtime check, and old battery replacement support.

Why should I not buy the cheapest APCRBC176 listing online?

Many listings mix wrong photos, vague specs, or generic batteries. A UPS battery must match voltage, connector, physical size, and UPS model support. The cheapest wrong battery costs more when the UPS still fails self-test or the connector does not fit.

Comparable APC battery and UPS items

Other APC RBC cartridges: If your UPS label does not match APCRBC176, we can identify the correct APC Replacement Battery Cartridge code before quoting. APC uses different RBC cartridges across Back-UPS, Easy UPS, Smart-UPS, and rack UPS families.

Complete APC UPS replacement: If the UPS is old, overloaded, damaged, or failing beyond the battery, replacing the full UPS may make more sense than installing a new battery. We can check the load and suggest the right APC UPS capacity.

Network cabinet power backup: For Etisalat or du routers, firewalls, switches, and CCTV NVRs, we can size the UPS runtime properly instead of replacing batteries blindly.

Server room UPS review: For sites running Dell PowerEdge servers, storage, switches, and firewalls, ask us to check UPS load, runtime, battery age, and shutdown plan. Small UPS faults become bigger problems when servers are involved.

MEA export and project supply

Vector Digital Systems can supply APC UPS batteries and related power backup items for export from Dubai. Common requirements come from branch offices, schools, clinics, retail chains, and IT resellers across GCC, East Africa, and South Asia.

For APCRBC176 export enquiries, send the UPS model, quantity, destination country, and whether the requirement is battery-only or part of a larger UPS replacement project. FOB Dubai pricing is available for approved project quantities.

For Kenya, Tanzania, Uganda, Nigeria, Oman, Qatar, Bahrain, and Saudi Arabia enquiries, we recommend confirming the UPS socket version and model code before shipment. Battery returns across borders are slow and expensive. Model checking before dispatch avoids that.
