APC SMT2200 RMI2UC Dubai

The APC SMT2200 RMI2UC Dubai is a reliable network power protection designed for deployment in retail and open access environments. It is supplied with a CD with software, Documentation CD, Rack mounting brackets, Rack mounting support rails, Smart UPS signaling RS-232 cable, and USB cable.

Ask for Quote & Get Low Price

Description

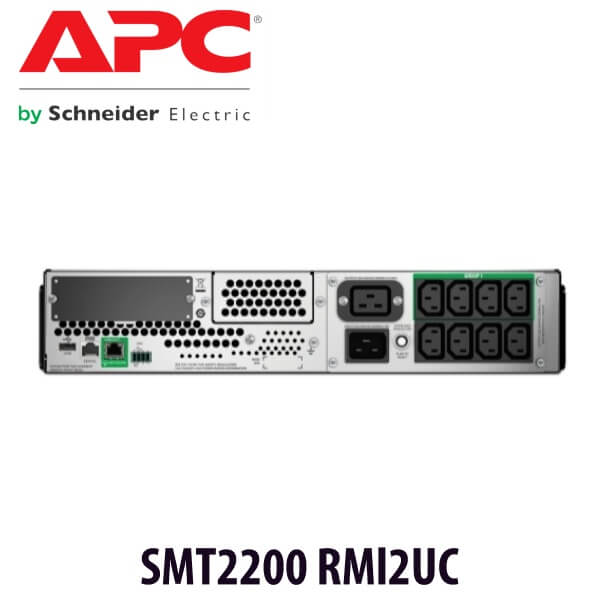

APC SMT2200 RMI2UC Smart UPS Dubai

The APC SMT2200 RMI2UC Dubai is a reliable network power protection designed for deployment in retail and open access environments. It is supplied with a CD with software, Documentation CD, Rack mounting brackets, Rack mounting support rails, Smart UPS signaling RS-232 cable, and USB cable. The UPS offers Intelligent and efficient network power protection from entry level to scalable runtime. It is ideal UPS for servers, point-of-sale, routers, switches, hubs and others.

Features :

  • Cold-start capable
    Provides temporary battery power when the utility power is out.
  • Energy meter
    Provides actual kilowatt hours of usage for energy conscious users.
  • Green mode
    Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
  • High online efficiency
    Reduces utility costs, generates less heat.
  • Intelligent Card Slot
    Customize UPS capabilities with management cards.
  • Intuitive LCD interface
    Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
  • Predictive replace battery date
    Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
  • Pure sine wave output on battery
    Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
  • Sequenced network shutdown and reboot
    Customize network shutdown and reboot sequence of connected servers and UPSs.
  • Single switched outlet group
    Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
  • StruxureWare Data Center Expert compatible
    Enables centralized management via StruxureWare Data Center Expert.
  • Temperature-compensated battery charging
    Prolongs battery life by regulating the charge voltage according to battery temperature.

Technical Specifications :

Output

Max Configurable Power (Watts)

1.98kWatts / 2.2kVA

Output Voltage Distortion

Less than 5 %

Output Frequency (sync to mains)

50/60 Hz +/- 3 Hz Sync to mains

Other Output Voltages

110 V, 125 V

Topology

Line interactive

Waveform type

Sine wave

Transfer Time

6 ms typical : 10 ms maximum

Input

Input frequency

50/60 Hz +/- 3 Hz Auto-sensing

Input voltage range for main operations

75 – 154 Adjustable, 82 – 143V

Number of Power Cords

1

Other Input Voltages

110 V, 125 V

Batteries & Runtime

Battery type

Lead-acid battery

Typical recharge time

3hour(s)

Replacement Battery

RBC43

Expected Battery Life (years)

3 – 5

RBC Quantity

1

Battery Charge Power (Watts)

179 Watts

Battery Volt-Amp-Hour Capacity

538

Communications & Management

Interface Port(s)

RJ-45 Serial, SmartSlot, USB

Control panel

LED status display with on line : on battery : replace battery and overload indicators, Multifunction LCD status and control console

Audible Alarm

Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Emergency Power Off (EPO)

Yes

Available SmartSlot  Interface Quantity

1

Surge Protection and Filtering

Surge energy rating

530Joules

Physical

Maximum Height

3.39inches (86MM, 8.6CM)

Maximum Width

17.01inches (432MM, 43.2CM)

Maximum Depth

26.89inches (683MM, 68.3CM)

Net Weight

93.28lbs. (42.31KG)

Shipping weight

109.64lbs. (49.73KG)

Shipping Height

10.0inches (254MM, 25.4CM)

Shipping Width

23.62inches (600MM, 60.0CM)

Shipping Depth

38.58inches (980MM, 98.0CM)

Color

Black

Units per Pallet

8.0

Environmental

Operating Temperature

32 – 104 °F (0 – 40 °C)

Operating Relative Humidity

0 – 95 %

Operating Elevation

0 – 10000ft (0 – 3048meters)

Storage Temperature

-15 – 45 °C

Storage Relative Humidity

0 – 95 %

Storage Elevation

0 – 50000ft (0 – 15240meters)

Audible noise at 1 meter from surface of unit

55.0dBA

Online thermal dissipation

215.0BTU/hr

Conformance

Approvals

CSA C22.2 No 107.1, cULus, ENERGY STAR V2.0 (USA), FCC part 15 class A, UL 1778

Equipment protection policy

Lifetime : $150000

Standard warranty

3 years repair or replace (excluding battery) and 2 years for battery

Sustainable Offer Status

RoHS

Compliant
