The UPS is still working. The battery is the problem

You saw the replace-battery light. Or the UPS started beeping after a short power cut. Or the unit passed power to the load, but the runtime dropped from minutes to seconds.

That is usually the moment a Dubai office starts looking for APCRBC154.

The UPS does not always need replacement. In many cases, the electronics are fine. The battery cartridge has reached end of life. Replace the cartridge, run a self-test, check runtime under load, and the UPS goes back into service.

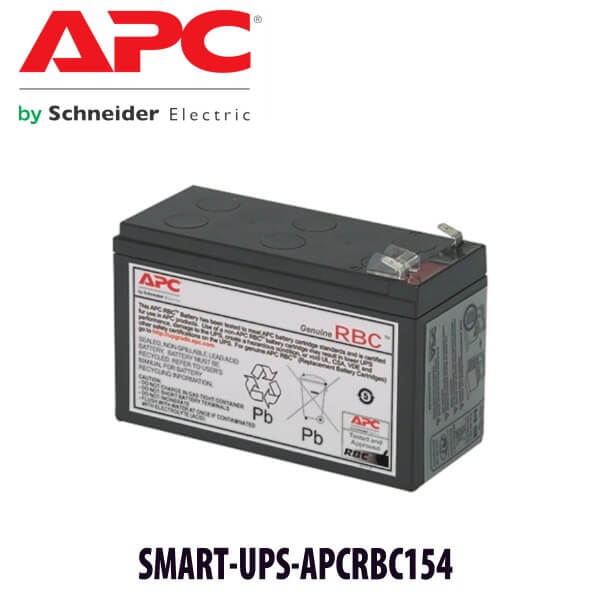

APC APCRBC154 is a replacement battery cartridge for compatible APC Back-UPS models. It is a 12V 6.5Ah sealed lead-acid battery cartridge, built for quick replacement in supported APC UPS units. Not a UPS. Not an external battery pack. A battery cartridge.

What APCRBC154 is built for

APCRBC154 is for supported APC Back-UPS units where the UPS chassis is still usable but the internal battery has aged. The cartridge uses sealed lead-acid battery chemistry and is supplied ready for replacement with the required connectors and installation guide.

This is a common requirement in Dubai offices. Small network racks. Reception counters. CCTV cabinets. Clinic admin rooms. Retail back-office desks. A 600VA or similar APC Back-UPS protects a firewall, router, switch, NVR, access control controller, POS terminal, or one desktop that cannot shut down during every short power dip.

The UPS may sit quietly for years. Then summer load increases. AC gets switched off after office hours. The cabinet runs warm. Dust builds around vents. Battery ageing speeds up. One short outage later, the UPS starts beeping and the IT team is asked why the internet, CCTV, or billing counter went down.

That is the job APCRBC154 handles. Replace the aged battery cartridge. Run the UPS self-test. Check whether the UPS holds load. Decide whether the unit can stay in service or whether the full UPS should be replaced.

APC APCRBC154 specifications

Specification	Detail
Product	APC Replacement Battery Cartridge #154
Part Number	APCRBC154
Product Type	Replacement battery cartridge
Battery Type	Lead-acid / VRLA sealed battery
Battery Voltage	12V
Battery Capacity	6.5Ah
RBC Quantity	1
Provided Equipment	Required connectors, battery recycling guide, installation guide, reusable packaging
Device Mounting	Enclosed battery cabinet
Mounting Mode	Not rack-mountable
Dimensions	51 mm H x 98 mm W x 151 mm D
Net Weight	2.03 kg
Operating Temperature	0°C to 40°C
Storage Temperature	-15°C to 45°C
Warranty	2-year repair or replace warranty
Compatible UPS Models	Confirm by UPS model label before order — [DATASHEET CHECK REQUIRED]

Where APCRBC154 is normally used in Dubai

This is not a data centre battery project. APCRBC154 is a small UPS battery cartridge. The use case is closer to the edge of the office: a network shelf, security cabinet, small branch office, reception PC, or a router/firewall backup point.

A typical Dubai setup looks like this: Etisalat or du router, firewall, small switch, Wi-Fi controller, and maybe an NVR sitting in a wall cabinet. The UPS protects that stack from short power drops and breaker trips. When the battery fails, the network may stay online during normal power but fail during the exact moment the UPS is needed.

Same story in clinics around Oud Metha, retail counters in Deira, office towers in Business Bay, warehouses near JAFZA, or small admin rooms in Al Quoz. The load is not large. But it is visible when it drops. Internet down. CCTV offline. Billing PC shut off. Access control rebooting.

Replacing the cartridge is a small job. Not checking it properly after replacement is where people get caught.

The right way to replace a UPS battery cartridge

A battery swap is not just opening the UPS and sliding in a new cartridge. That may power the unit, but it does not prove the UPS can support the connected load.

Vector Digital Systems checks the UPS model first, confirms APCRBC154 suitability, installs the cartridge if installation is requested, clears battery warnings where supported, and runs a UPS self-test. For business loads, we also check whether the UPS holds the attached equipment without immediate overload or shutdown.

For small sites, that is enough to avoid a second visit. The battery is new. The UPS sees it. The warning is cleared. The load is checked. The old battery is separated for proper handling.

Supply-only or supply with installation

Some buyers only need the cartridge. They have an internal IT person, the UPS is easy to access, and the model is already confirmed. For that case, supply-only is fine. Share the UPS model label, confirm APCRBC154, and collect or request delivery.

Other buyers want the cartridge installed. That is usually the better route when the UPS protects a firewall, CCTV recorder, access control system, branch router, or billing counter. The extra value is not the screwdriver work. It is the check after the replacement.

If the UPS fails self-test even after a new APCRBC154 cartridge, the battery was not the only issue. We tell you that before the next power cut tells you.

Dubai heat, small UPS batteries, and why they fail early

UPS batteries age faster in heat. That matters in Dubai because many small UPS units are placed in the worst possible spot: closed cabinet, poor airflow, no dedicated cooling, and AC switched off at night or over weekends.

The operating range for APCRBC154 is 0°C to 40°C. That does not mean the battery is happy living at the top end every day. A wall-mounted cabinet near a glass frontage can run warm. A small rack above a false ceiling can run warmer. A warehouse office in JAFZA or Al Quoz with AC cycling after hours can shorten battery life without anyone noticing.

That is why we ask what the UPS protects and where it is installed. A UPS under a reception desk is one case. A UPS inside a CCTV cabinet with an NVR and PoE switch is another. Same APCRBC154 cartridge, different heat exposure, different risk.

For Etisalat or du router backup, the question is usually runtime. For CCTV, the question is whether the NVR and switch stay live long enough through short interruptions. For access control, the question is whether doors and controllers reboot every time the building supply flickers.

Why the UPS model label matters

Many APC UPS models look similar from the front. That does not mean the battery cartridge is the same. The correct battery depends on the UPS model family, voltage design, connector, internal space and approved RBC mapping.

Before you order APCRBC154, send a photo of the UPS rear label or underside label. The label normally carries the exact model number. That is the number we use to confirm whether APCRBC154 is the correct cartridge.

This is more important than speed. A wrong battery wastes time, delays the repair, and can create a false sense of safety. The UPS may power on, but that does not prove compatibility under battery mode.

If the UPS model needs a different APC replacement battery cartridge, we quote the correct one instead of forcing APCRBC154 into the job.

Grey market and low-grade battery warning

UPS batteries are one of the easiest products to buy badly. Same size. Similar label. Lower price. Short life.

For a desktop UPS, that may look harmless until the next power cut. For a network rack, CCTV system, or billing counter, a weak battery creates the exact failure the UPS was bought to prevent.

The risk is not only capacity. Low-grade batteries can age quickly in UAE heat, fail self-test early, swell inside the UPS, or give unstable runtime. A cartridge that works on day one may still be the wrong purchase if it fails in six months inside a warm cabinet.

Vector Digital Systems quotes APCRBC154 by model requirement, not by guesswork. Share the UPS label. We confirm the cartridge, quote the part, and tell you whether installation is needed.

What Vector Digital Systems provides

Compatibility check before supply. Send the UPS model label by WhatsApp. We confirm whether APCRBC154 is the right cartridge or whether another APC RBC is required.

APCRBC154 supply in Dubai. Quote on WhatsApp. Supply-only for IT teams that handle replacement internally, or delivery and installation for business sites that want the UPS checked after replacement.

UPS battery installation. We replace the cartridge, reconnect the UPS, run the self-test where supported, and check whether the warning clears.

Runtime and load check. We look at what the UPS is protecting: router, switch, firewall, CCTV recorder, PC, access control controller or small rack. If the UPS is overloaded, a new battery will not solve the real issue.

Old battery handling. Lead-acid batteries should not go into normal office waste. Old battery collection can be arranged with installation.

Support across all 7 UAE emirates. Dubai, Abu Dhabi, Sharjah, Ajman, Ras Al Khaimah, Fujairah and Umm Al Quwain. For branch offices outside Dubai, share the location before quote approval.

When replacing the battery is not enough

Not every UPS should be repaired. If the UPS is physically damaged, smells burnt, fails self-test after a new battery, overheats, has broken sockets, or cannot support the current load, replacing the cartridge may only delay the real fix.

Older UPS units also become a capacity problem. The business adds a firewall, PoE switch, Wi-Fi controller, CCTV recorder and NAS, but the UPS is still the small unit bought for one PC years ago. Runtime drops because the load changed, not only because the battery aged.

If APCRBC154 is not the right answer, we will say so. Sometimes the right quote is a new APC UPS, not another battery.

APCRBC154 for offices, branches and IT teams

For a single office, order by UPS model label. For IT teams handling several sites, send a list of UPS models and quantities. We can separate APCRBC154 from other APC RBC cartridges so the wrong batteries do not reach the wrong branch.

That matters for retail chains, clinics, small finance offices, schools, warehouses and managed service providers. One branch may use an APC Back-UPS that needs APCRBC154. Another branch may need a different cartridge. The boxes can look similar until someone opens the UPS.

For Dubai rollouts, we can quote battery supply by site, schedule installation by area, and note which old batteries need collection. For wider UAE projects, share the emirate list and urgency.

Frequently asked questions — APC APCRBC154 Dubai

Is APCRBC154 a UPS or only the battery?

APCRBC154 is only the replacement battery cartridge. It is not a complete UPS and not an external battery pack. It is used inside compatible APC Back-UPS models to replace the aged battery.

What are the APCRBC154 battery specs?

APCRBC154 uses a 12V 6.5Ah sealed lead-acid battery cartridge. APC lists RBC quantity as 1, with required connectors, installation guide, battery recycling guide and reusable packaging.

How do I know if APCRBC154 fits my UPS?

Send a photo of the UPS model label before ordering. The front name is not enough because similar APC UPS units may use different battery cartridges. We confirm compatibility before quote approval.

Can you install APCRBC154 in Dubai?

Yes. Vector Digital Systems can supply and install APCRBC154 in Dubai, then run a UPS self-test and basic load check. Supply-only is also available for IT teams that handle replacement internally.

Why did my UPS battery fail so quickly?

Heat is a common reason in UAE sites. Small UPS units kept inside closed cabinets, CCTV racks or rooms where AC is switched off after hours can age batteries faster. Load level and UPS age also affect battery life.

What warranty does APCRBC154 carry?

APCRBC154 is listed with a 2-year repair or replace warranty. Warranty handling depends on supply source, proof of purchase and product condition.

Comparable APC battery and UPS options

Need another APC RBC cartridge? If your UPS model does not use APCRBC154, we can quote the correct APC replacement battery cartridge after checking the UPS label.

Replacing several UPS batteries? Share a model list and quantity. We can quote by cartridge type and help avoid mixing batteries between branches.

UPS too small for the current load? A new battery will not fix an overloaded UPS. We can quote a new APC UPS sized for router, firewall, switch, CCTV, access control or desktop backup.

Building a server or network rack? See our Dell PowerEdge server range in Dubai if the UPS is part of a wider rack refresh with servers, storage, firewall and switching.

MEA export and project quantities

Vector Digital Systems can quote APCRBC154 for UAE buyers and export requirements from Dubai. For Africa, GCC and South Asia, share the destination country, quantity and whether the order is battery-only or part of a UPS project.

Small battery items may be subject to shipping rules because APCRBC154 is a lead-acid battery cartridge. Export packing, document requirements and carrier acceptance must be checked before confirmation.

For Kenya, Tanzania, Uganda, Saudi Arabia, Qatar and Oman projects, send the UPS model list first. We will separate APCRBC154 from other APC battery cartridges and quote FOB Dubai where applicable.
