AVer Camera & Ceiling Microphone Integration — The Mics Stay.
The ceiling microphones went in two budgets ago — Shure across the boardroom, Sennheiser in the training room, maybe Nureva or Yamaha — and the audio has been right ever since. The camera has not moved once. Somewhere along the way, somebody may even have suggested the microphones need replacing before the camera can track. They don't. Installed ceiling arrays already calculate where each talker is sitting; the AVer camera takes that position and turns to it. This page maps which microphone family pairs with which camera, what stays running and what doesn't, and what gets confirmed at survey before anything is specified — with cameras banded AED 4,900 to 8,900 from Dubai stock and the pairing work quoted after the survey, not before it.
Vector Digital Systems has supplied and installed conferencing hardware from Dubai since 2009 and is the authorised AVer distributor for the UAE — the cameras on this page ship from its own warehouse, and the pairing designs are confirmed against your installed microphone layout, not against a brochure.
The audio was finished properly. The camera never got the memo.
The ceiling array has been calculating where every talker sits — that is how it steers its own pickup. It has never sent that position to the camera. The camera stays wide, the audio is right, and the two systems have been ignoring each other ever since the ceiling work was signed off. The connection between them is the whole subject of this page.
What makes the connection possible: AVer cameras take the talker-position data the ceiling system already generates and use it to steer the lens — the microphone locates the speaker, the camera turns to them. The microphones stay exactly where they are. The audio chain stays exactly as it is. One camera and one commissioning visit change what the far side sees.
Which microphones do you have? The pairing follows.
Find your installed system in the first column. The camera, the behaviour and the software footprint follow from it — and every pairing is confirmed at survey against your actual mic layout before a quotation is issued.
| Your ceiling microphones | Camera it pairs with | What the room does | What stays running |
|---|---|---|---|
| Shure MXA310 / MXA710 / MXA910 / MXA920 | CAM550 | Lens turns to each talker's position over the network | Configured once — nothing runs during calls |
| Sennheiser TeamConnect Ceiling 2 | CAM550 | Same network steering from the array's talker position | Configured once — nothing runs during calls |
| Nureva HDL300 / HDL410 | CAM550 | Position data from the microphone field steers the lens | Configured once — nothing runs during calls |
| Yamaha RM-CG / RM-CR / RM-TT | CAM550 | Same network steering path | Configured once — nothing runs during calls |
| ClearOne BMA360 / Converge Pro 2 | CAM520 Pro3 / CAM570 class | Microphone activity recalls saved camera positions | Pairing confirmed at survey with the mic layout |
| Any mic system with defined zones | CAM520 Pro3 / VC520 Pro3 / CAM570 | Zone one fires preset one; silence returns the overview | Nothing — presets live on the camera |
| FONE700 (AVer ceiling chain) | CAM550 · one or two cameras | 3D talker position steers one or two lenses | Room software runs as part of the setup |
| None installed yet | CAM570 | Built-in voice sensors steer the lens to 10 m — no ceiling audio needed | Nothing |
Newer Shure models — the MXA925 and MXA901 — are recent additions to the family; compatibility for those two is confirmed at survey before anything is specified. Multi-camera rooms with Audio-Technica, Biamp or Bosch discussion systems route through matrix switching — that architecture lives on the divisible meeting room page. Shure hardware itself is covered on the Shure audio page.
The far side stops watching a room and starts watching people
The person on the other end of the call has been squinting at a wide shot of your boardroom for years — distant heads, one of them talking, no way to tell which. Pairing changes exactly that. When someone speaks, the ceiling system locates them and the camera lens turns to them: optical movement, a properly framed face, no operator at any controls and no keyboard shortcut anyone has to remember.
The behaviour is shaped at commissioning, not left to chance. The head-of-table can hold a fixed frame for the chair. A silence timeout returns the lens to the room overview. Exclusion areas keep the display wall from ever being framed as a participant.
One separation worth carrying forward: the position data steers the lens only. The audio your meeting platform hears still comes from the same microphones, through the same chain it uses today. Nothing about the room's audio path changes — which also means an audio problem and a camera problem stay separate problems, each with a clear owner.
A council chamber does not want a camera that hunts
Some rooms are built on fixed positions — council chambers, courtrooms, training rooms with wired desk microphones, a majlis with defined seating. In those rooms, continuous tracking is the wrong behaviour; the right behaviour is a known view for a known seat, every time, with no surprises for the operator or the record.
Zone-to-preset delivers exactly that. Microphone zone one activates and the camera recalls preset one; zone two fires preset two; silence returns the overview. The CAM520 Pro3, VC520 Pro3 and CAM570 all carry the behaviour, presets live on the camera itself, and nothing runs in the background once the room is commissioned.
Operators understand it in one session, because there is nothing to interpret — a seat speaks, its view appears. For chambers that record proceedings, that predictability is not a preference; it is the requirement.
One ceiling chain, two cameras down a long table

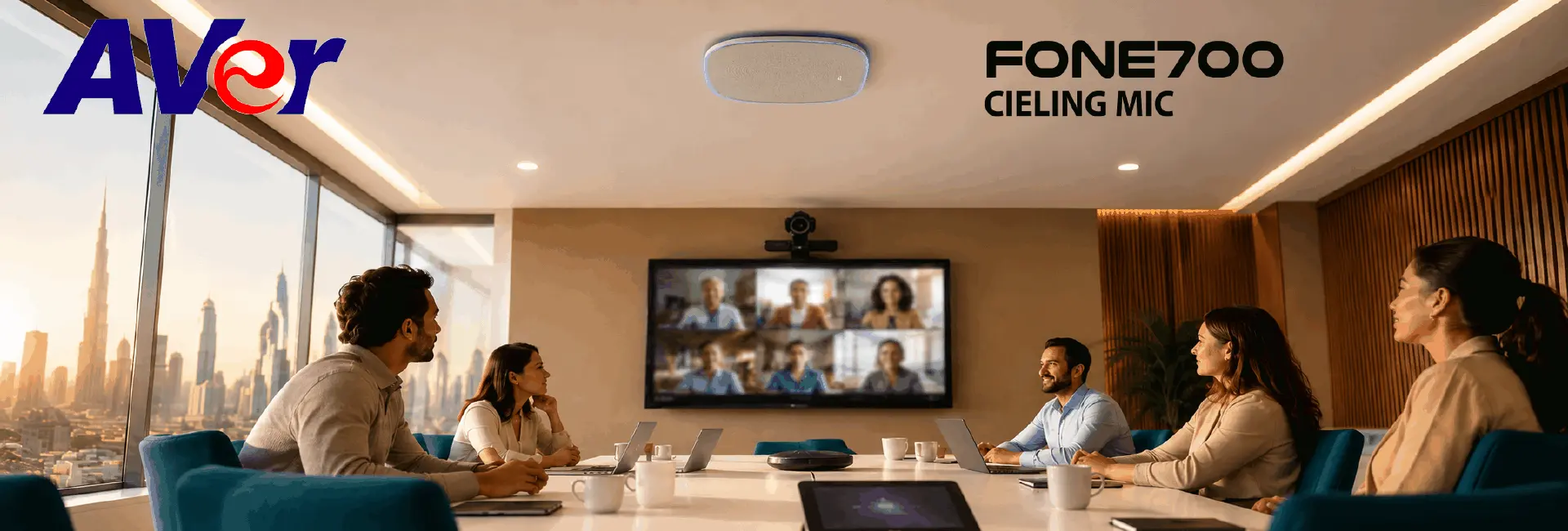

A sixteen-seat table has two sides, and one lens covering both means somebody is always in profile. The AVer FONE700 ceiling chain steers one or two CAM550 cameras from the same talker-position data — two tracked angles from one ceiling system, covering opposite sides of the table or the presenter wall and the audience at once.
The chain itself covers the audio job as it goes: up to four ceiling speakerphones daisy-chained across roughly forty metres of room. The full engineering — depth bands, chain layout, cabling and the choice between one angle and two — lives on the large room video conferencing page.
Before installation — three things that decide day one
Most pairing disappointments trace to three checks that were skipped, and all three belong to the survey, not the installation morning.
The zone map and the exclusion areas. Where people actually sit, where the display wall is, which parts of the room should never trigger the lens. A camera that frames the television once has lost the room's confidence — the exclusion map exists so it never happens.
The configuration session. Network pairings between the CAM550 and installed ceiling systems are set up once from a Windows machine and then left alone; the FONE700 chain keeps its room software running as part of the design. Which of those applies to your room shapes what sits on the room PC — settled before the visit, not discovered during it.
The reference audio check. Remote voices come through the room's own speakers, and without a reference the camera can mistake them for a talker in the room. The camera takes a feed of the room's playback so it ignores what the far side says — verified live on the test call before handover.
All three sit inside the survey. Which is why the quotation follows the survey and not the other way round — the room is measured before it is priced.
No ceiling microphones yet? Two clean routes.
If the room is being fitted out fresh — no mics installed, no decisions locked in — the audio and the camera steering are one decision instead of two. Route one is the FONE700 ceiling chain: microphones, speakers and camera steering in a single system, up to four units across roughly forty metres, steering one or two CAM550 cameras from day one. The table carries nothing.
Route two skips ceiling audio entirely. The CAM570 carries its own directional voice sensors — the camera locates the active talker up to ten metres away and turns to them with no external system at all, paired with whatever table or ceiling audio the room's depth demands. Which route fits is a depth question before it is a budget question, and the large room page carries the depth ladder that answers it. For rooms inside nine metres, the USB camera range often solves it with one box.
When this page is the wrong page
A moving presenter on a stage — walking, working a whiteboard, taking audience questions — is a different tracking class entirely, built on visual AI rather than microphone position. The auto-tracking camera page owns that world.
A partitioned space where cameras and microphones must reassign themselves when the wall opens is a matrix routing architecture — multiple cameras, preset-driven states, and its own set of survey questions. The divisible meeting room page carries it in full.
And a standard six-to-sixteen-seat room with no ceiling audio and no unusual depth usually wants one well-chosen camera, not an integration project. The USB camera page ladders that decision by room band. If none of the three apply, this is the right page.
Two numbers that behave differently
A pairing project carries a stock number and a survey number, and pretending they are one number is how quotations go wrong. The camera is a warehouse item with a band. The commissioning is a measured piece of work priced against your actual room.
| What | UAE planning band | Notes |
|---|---|---|
| Pairing cameras — CAM520 Pro3 / CAM550 / CAM570 | AED 4,900–8,900 | Camera unit from Dubai stock; model confirmed against the mic family |
| FONE700 ceiling chain | Quoted with the room | Chain length sized to the table; includes camera steering |
| Pairing design & commissioning | Surveyed per room | Zone map, exclusion areas, configuration session, live test call |
| USB extension — UE1 | Quoted with the run | USB 3.0 to roughly 100 m where the room PC sits far from the camera |
Send the microphone model and the room dimensions on WhatsApp. The desk returns the pairing read — which camera, which path, what the survey will confirm — and a quotation against current Dubai stock, typically the same day.
Pairing systems that ship beyond Dubai
Consultants and integrators outside the UAE spec these rooms against Dubai supply as well — camera, ceiling chain and the pairing design on one quotation. Three regions account for most of that reach.
Gulf & Middle East
AV consultants and corporate facilities teams across the Gulf specify camera-and-ceiling-mic rooms against Dubai stock — boardrooms with installed Shure or Sennheiser arrays gaining tracking, and new government fit-outs taking the FONE700 chain from day one. Export documentation and the pairing design travel with the shipment.
Recent pairing shipments and quotes cover Saudi Arabia, Oman, Qatar, Kuwait, Bahrain, Iraq and Jordan.
Export enquiryAfrica
Integrators fitting ministries, universities and corporate headquarters source cameras and ceiling chains through Dubai with the zone maps and configuration notes prepared on this side. Rooms with installed third-party arrays get the pairing read remotely from the mic model and floor plan before anything ships.
Pairing orders route to Kenya, Ethiopia, Tanzania, Uganda, Nigeria, Ghana, Egypt and South Africa.
Export enquirySouth & Central Asia · Caucasus
Corporate and government buildings across South and Central Asia and the Caucasus consolidate camera, ceiling audio and commissioning kit through Dubai on one invoice. The pairing design is prepared against the installed microphone layout before the shipment leaves, so the room commissions on schedule at the destination.
Orders ship into Pakistan, Bangladesh, Kazakhstan, Uzbekistan, Georgia, Azerbaijan and Armenia.
Export enquiryFrom buyers whose mics stayed in the ceiling
My client had MXA920 arrays across four boardrooms and had been quoted a full audio replacement to get camera tracking. Vector paired the existing arrays with one camera per room and the tracking has run since without anything on the room PCs. The survey report alone — zone maps, exclusion areas, what would be confirmed on the day — is why I spec through them now.
Our chamber records every session, so a camera that hunts was never acceptable. The zone-to-preset setup means each seat's microphone brings up its own fixed view, and the overview returns on silence. The operators learned it in one morning and it has behaved identically in every session since commissioning.
The board had already paid for Sennheiser ceiling audio and I was not going to explain replacing it two years later. The camera took its steering from the existing array, the configuration was done in one visit, and the first thing the remote directors noticed was that they could finally see who was speaking. Nothing about our audio changed.
Mic and camera pairing in the UAE — the working answers
I have Shure MXA ceiling microphones — can an AVer camera track with them?
Does the Sennheiser TeamConnect Ceiling 2 work with AVer cameras?
Do we have to replace our ceiling microphones to get camera tracking?
Does software have to keep running during meetings?
Will the camera chase the TV when remote participants speak through the room speakers?
Can two cameras run from one ceiling microphone system?
What does camera and ceiling microphone integration cost in Dubai?
Which AVer cameras support zone-to-preset tracking?
Do ClearOne microphone systems work with AVer cameras?
How long does commissioning take?
Which areas in the UAE does Vector Digital Systems cover for camera and ceiling microphone integration?
Which countries does Vector Digital Systems export camera and ceiling microphone integration systems to?
