Tplink TL-SF1016DS Dubai

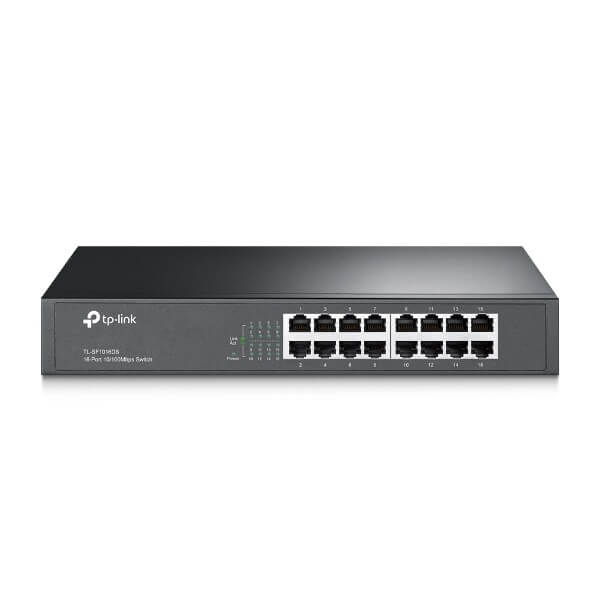

The rack-mounted metal housing combined with a safe, certified internal power supply makes the Tplink TL-SF1016DS Dubai a very robust and affordable solution for up to 16 users.

Ask for Quote & Get Low Price

Description

Tplink TL-SF1016DS Network Switch Dubai

The Tplink TL-SF1016DS Dubai Fast Ethernet Switch is a powerful, affordable, easy to use, seamless and standard option to upgrade your old network to 1000 Mbps. All 16 ports support Auto MDI/MDIX, so you don’t have to worry about cable type – just plug and play. In addition, with its innovative power saving technology, the TL-SF1016DS can reduce power consumption by up to 25%.

Features

High performance

The rack-mounted metal housing combined with a safe, certified internal power supply makes the Tplink TL-SF1016DS Dubai a very robust and affordable solution for up to 16 users. Using the unlocked switching architecture, the TL-SF1016DS transmits and filters packets at full cable speed for maximum throughput. IEEE 802.3x flow control for full duplex mode and Backpressure for half duplex mode reduce network overload and ensure reliable operation of TL-SF1016DS.

  • Innovative energy-saving technology saves up to 25% of energy consumption
  • Supports IEEE 802.3x flow control for full duplex mode and Backpressure for half duplex mode
  • Unlocked switching architecture transmits and filters packets at full cable speed to ensure maximum throughput
  • Switching capacity 3.2 Gbit/s
  • Storage and transfer; switching scheme
  • Auto MDI / MDIX function eliminates the need for crossover cables
  • Supports automatic MAC address learning and automatic aging
  • Automatic port negotiation function provides intelligent hardware integration from 10 to 100 Mbit/s
  • Plug and Play design simplifies installation
  • Fanless design for silent operation

Technical Specs

Features / filters
LAN standard Fast Ethernet 10/100Mb/s
Number of LAN ports 16x [10/100M (RJ45)]
Number of WAN ports Not applicable
10G support N
AC adapter included Y
AC input frequency 50/60
AC input voltage 220 – 240
Auto MDI/MDI-X Y
Basic switching RJ-45 Ethernet ports quantity 16
Basic switching RJ-45 Ethernet ports type Fast Ethernet (10/100)
Built-in modem None
Certification FCC, CE, RoHS
Depth 180
Height 44
LED indicators Y
MAC address table 8000
Management No
Networking standards IEEE 802.3i,IEEE 802.3u,IEEE 802.3x
Numbers of pieces in the package 1-pack
Operating relative humidity (H-H) 10 – 90
Operating temperature (T-T) 0 – 40
Packet buffer memory 2
Power connector DC-in jack
Power consumption (typical) 2.23
Power over Ethernet (PoE) N
Power supply included Y
Product colour Black
Rack mounting Y
Storage relative humidity (H-H) 5 – 90
Storage temperature (T-T) -40 – 70
Switching capacity 3.2
Switching layer 2
Throughput 2.38
Type of case Desktop
Width 294
Equipment features
Standards and protocols IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Ports 16 RJ45 10/100Mbps ports (automatic connection speed negotiation, Auto MDI/MDIX auto crossover)
Network cabling
  • 10Base-T: Cat 3, 4 or 5 UTP cable (up to 100m)
  • 100Base-Tx: Cat 5 or 5e UTP cable (up to 100m)
Fanless Yes
Physical security Yes
Power supply 100-240VAC, 50/60Hz
Power consumption Maximal: 2.23W (220V/50Hz)
Dimensions (S x G x W) 294×180×44 mm (11.6×7.1×1.7 inches)
Installation Rack Mountable
Max. energy consumption 2.06W(220V/50Hz)
Amount of heat generated 7.03BTU/h
Performance
Switching efficiency 3.2Gb/s
Speed of packet redirection 2.38Mp/s
MAC address plate 8K
Buffer size 2Mb
Advanced Functions
  • Green Technology
  • 802.3X Flow Control
Green technology Energy saving – reduces energy consumption by up to 75%
Switching architecture Store-and-Forward
Other
Certificates FCC, CE, RoHS
Package contents
  • Switch TL-SF1016DS
  • Power Cable
  • Installation instructions
  • Mounting elements
  • Rubber feet
System requirements Microsoft Windows 8, 7,Vista, XP or MAC OS, NetWare, UNIX or Linux.
Working environment
  • Operating temperature: 0℃~40℃ (32℉~104℉);
  • Storage temperature: -40℃~70℃ (-40℉~158℉);
  • Operating air humidity: 10%~90%, non-condensing
  • Storage humidity: 5%~90%, non-condensing
