Tplink TL-SG1218MPE Dubai

Tplink TL-SG1218MPE Dubai complies with the 802.3af/at PoE+ standard, supporting up to 30W power supply on each PoE port. The total high PoE power budget is up to 192W for the 16 PoE ports, making it ideal for small to medium business surveillance systems.

Ask for Quote & Get Low Price

Description

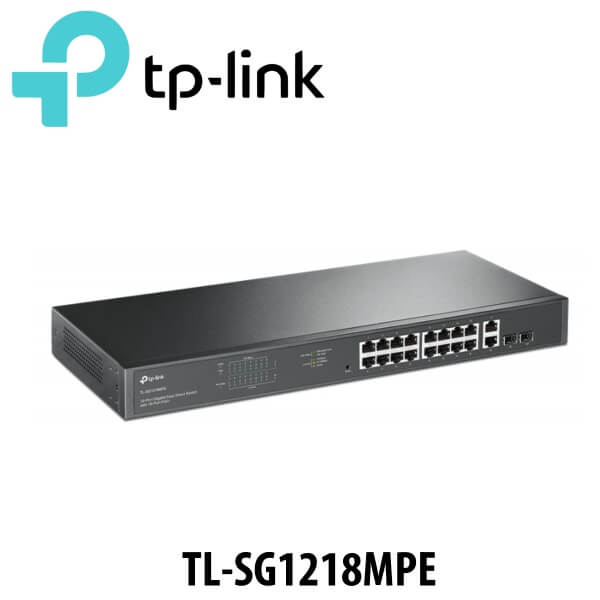

Tplink TL-SG1218MPE Network Switch Dubai

Expand your office or business network capacity with the Tplink TL-SG1218MPE Dubai JetStream 16-Port Gigabit PoE+ Compliant Managed Switch with SFP from TP-Link. This managed switch features 16 PoE+ compliant Gigabit Ethernet ports with a 36 Gb/s switching capacity and a 23.8 Mbps forwarding rate for fast and efficient data transfers. Each port supports up to 30W of power, with a total power budget of 192W to operate compatible devices such as IP security cameras, outdoor antennas, network attached storage, and more. The switch’s built-in power management system will automatically turn off lower priority ports to ensure high-priority devices remain powered and to protect against power overload. There are also two SFP ports for fiber lines and expansion.

Network administrators can take advantage of QoS tools to prioritize and optimize traffic. The web-based utility also allows you to monitor traffic in addition to other services. Two fans help to maintain temperatures and performance. The Tplink TL-SG1218MPE Dubai includes a rack mounting kit, but it may also be mounted on a desktop.

Features

Ideal for Surveillance

Tplink TL-SG1218MPE Dubai complies with the 802.3af/at PoE+ standard, supporting up to 30W power supply on each PoE port. The total high PoE power budget is up to 192W for the 16 PoE ports, making it ideal for small to medium business surveillance systems.

Intelligent Power Management

When total power consumption excels 192W, the intelligent power management will cut the lower priority port power off to ensure the high priority port’s power supply and protect the device from power overload operation.

Making Management Easy

Tplink TL-SG1218MPE Dubai offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG1218MPE offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS.

Powerful Network Switch
Each of the 16 PoE+ compliant Gigabit Ethernet ports supports up to 30W of power, with a total budget of 192W. Two SFP ports are available for fiber lines.
Fast Speeds
The Tplink TL-SG1218MPE Dubai has a 36 Gb/s switching capacity and a 23.8 Mbps forwarding rate.
Intelligent Power Design
A built-in power management system automatically shuts down low-priority devices to keep high-priority devices powered and protect against overloads.
Easy Network Management
Use the web-based management utility to monitor and optimize network traffic performance.

Technical Details

HARDWARE FEATURES
Standards and Protocols IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p
Interface 16 10/100/1000 Mbps RJ45 Ports
(Auto Negotiation/Auto MDI/MDIX)
2 Gigabit SFP Ports
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-X MMF, SMF
Fan Quantity 2 Fans
Physical Security Lock Yes
Power Supply 100-240V AC, 50/60 Hz
PoE+ Ports(RJ45) Standard: 802.3at/802.3af compliant
PoE+ Ports: 16 Ports
Power Supply: 192W
Dimensions ( W x D x H ) 17.3 × 7.1 × 1.7 in. (440 × 180 × 44 mm)
Mounting Rack Mountable
Max Power Consumption 18.73 W (220/50Hz. no PD connected)
217.22 W (220/50Hz. with 192W PD connected)
Max Heat Dissipation 63.89 BTU/h (no PD connected)
741.15 BTU/h (with 192W PD connected)
PERFORMANCE
Switching Capacity 36 Gbps
Packet Forwarding Rate 23.8 Mbps
MAC Address Table 8K
Packet Buffer Memory 4.1 Mbit
Jumbo Frame 9 KB
SOFTWARE FEATURES
Quality of Service Support Port-based 802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control
L2 Features IGMP Snooping V1/V2/V3
Static Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention
VLAN Support up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN
Management Web-based GUI
Easy Smart Configuration Utility
Transmission Method Store-And-Forward
OTHERS
Certification CE, FCC, RoHS
Package Contents TL-SG1218MPE
Power Cord
Installation Guide
Resource CD
Rackmount Kit
Rubber Feet
