Tplink TL-SG3428MP Dubai

Functions of the Tplink TL-SG3428MP Dubai such as Web site, CLI (console port, Telnet, SSH), SNMP, RMON and Dual Image provide extensive management capabilities

Ask for Quote & Get Low Price

Description

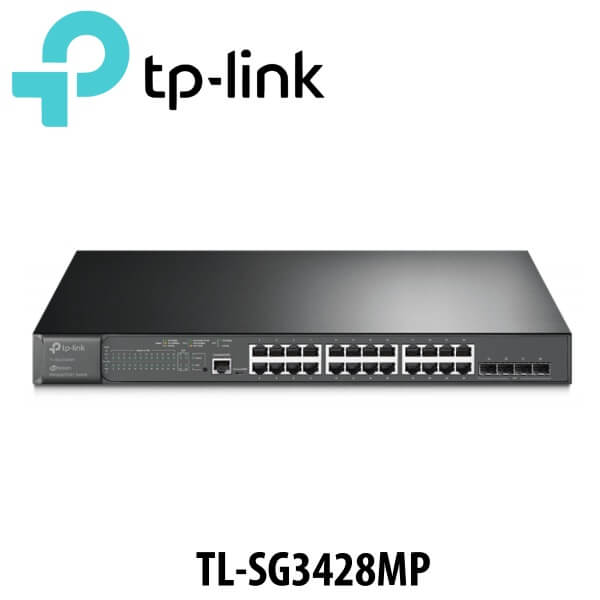

Tplink TL-SG3428MP Network Switch Dubai

The Tplink-TL-SG3428MP-Dubai PoE Managed Switch features four SFP slots for logical clustering and scalable fiber networks (SFP module not included) and 24 Gigabit RJ-45 ports with PoE (802.3af/at) support. The PoE budget is 30 watts per port and 384 watts in total.

Tplink-TL-SG3428MP-Dubai switch supports dual stack IPv4/IPv6 (16 IP interfaces). Enterprise-class QoS features (IEEE 802.1p CoS/DSCP, 8 queues, SP, WRR, SP WRR priority modes), IGMP snooping v1/v2/v3 intelligent multicast forwarding, ACLs that restrict access to network resources, and a voice VLAN to provide flexible traffic management and optimization for voice and video applications. It supports a standard Web User Interface (GUI) with HTTPS protection with SSLv3 or TLS1.2 encryption (depending on device operating system), and a Command Line Interface (CLI) via console ports (RJ-45 and microUSB) and telnet with SSHv1 and SSHv2 encryption (protection against eavesdropping and sniffing).

Features

  • Software Defined Networking (SDN) with intelligent access
    • The Omada SDN platform integrates access points, switches and gateways to provide 100% centralized control over the cloud. Omada provides an easily scalable network managed from a single interface. Seamless, drop-free and drop-in connections are provided, which are ideal for use in hospitality, education, retail, office and other environments.
  • 384 W total PoE power : 24 PoE ports compliant with 802.3at/af standards, providing 384 W total power
  • Gigabit ports : Tplink-TL-SG3428MP-Dubai has 24 gigabit PoE ports and 4 SFP slots which translate into high speed connections
  • Operation integrated with Omada SDN platform : unattended ZTP configuration, central cloud management and intelligent monitoring
  • Central management : cloud access and Omada app for management convenience
  • Static Routing : Controls internal traffic for more efficient use of network resources
  • Reliable Security : IP, MAC and port binding, ACL, Port Security, protection against DoS attacks, Storm Control, DHCP Snooping, 802.1X, authentication via Radius server and more
  • Optimization of voice and video transmission : QoS L2/L3/L4 and IGMP Snooping
  • Management : Functions of the Tplink-TL-SG3428MP-Dubai such as Web site, CLI (console port, Telnet, SSH), SNMP, RMON and Dual Image provide extensive management capabilities

Technical Specs

Features / filters
LAN standard Gigabit Ethernet 10/100/1000 Mb/s
Number of LAN ports 24x [10/100/1000M (RJ45)] , 4x [1G (SFP)] ,
Number of PoE ports 24x [802.3af/at (1G)]
10G support N
AC input frequency 50/60
AC input voltage 100 – 240
Access Control List (ACL) Y
Active link detection Y
ARP inspection Y
Authentication MAC-based authentication, Port-based authentication
Basic switching RJ-45 Ethernet ports quantity 24
Basic switching RJ-45 Ethernet ports type Gigabit Ethernet (10/100/1000)
BPDU filtering/protection Y
Broadcast storm control Y
Certification CE, FCC, RoHS
Cloud-managed Y
Configuring Location Settings (CLI) Y
Console port RJ-45
Depth 180
DHCP features DHCP client,DHCP server
Ethernet LAN data rates 10,100,1000
Flow control support Y
Forwarding rate 41.66
Harmonized System (HS) code 85176990
Head-of-line (HOL) blocking Y
Height 44
IGMP snooping Y
IP routing Y
Jumbo frames support Y
LED indicators Y
Link aggregation Y
Loop protection Y
MAC address filtering Y
MAC address table 8000
Management Yes
Multicast support Y
Networking standards IEEE 802.3af,IEEE 802.3at
Number of fans 2
Operating relative humidity (H-H) 10 – 90
Operating temperature (T-T) 0 – 45
Port mirroring Y
Power (W) 384
Power consumption (max) 463.8
Power over Ethernet (PoE) Y
Power over Ethernet (PoE) ports quantity 24
Power over Ethernet (PoE) power per port 30
Power over Ethernet plus (PoE+) ports quantity 24
Power supply included Y
Product colour Black
Quality of Service (QoS) support Y
Quick start guide Y
Rack mounting Y
Rate limiting Y
SFP module slots quantity 4
Spanning tree protocol Y
SSH/SSL support Y
Static port security Y
Storage relative humidity (H-H) 5 – 90
Storage temperature (T-T) -40 – 70
Switch layer L2/L2+
Switch type Managed
Switching capacity 56
Switching layer 2
System event log Y
Type of case Rack (1U)
User guide Y
VLAN support Y
Web-based management Y
Width 440
Hardware features
Manufacturer TP-Link
Model TL-SG3428MP
Type Switch
Ports
  • 24 RJ45 10/100/1000 Mbps ports
  • 4 Gigabit SFP slots
  • 1 RJ45 console port
  • 1 micro-USB console port
Fanless No, 2 fans
Power supply 100-240 V AC~50/60 Hz
PoE ports (RJ45)
  • Standards : 802.3af/at
  • PoE Ports : 24 ports, up to 30 W per port
  • Power supply : 384 W
Dimensions (H x W x D) 440 mm × 330 mm × 44 mm
(17.3 × 13.0 × 1.7 inches)
Mounting Rack-mountable
Max. power consumption
  • 31.0 W (110 V/50 Hz) (with no PoE-enabled device connected)
  • 463.8 W (110 V/50 Hz) (when operating at 384 W)
Amount of heat generated
  • 105.78 BTU/h (without PoE enabled device connected)
  • 1582.49 BTU/h (when operating at 384 W)
Performance
Switching capacity 56 Gbps
Packet forwarding rate 41.66 Mp/s
MAC Address Table 8K
Jumbo frames 9 KB
Software functions
Quality of Service function
  • Support for 802.1p CoS/DSCP prioritization
  • 8 prioritization queues
  • Priority scheduling mode :
    • SP (Strict Priority)
    • WRR (Weighted Round Robin)
    • SP WRR
  • Bandwidth control
    • Rate limiting based on port/data flow
  • Smoother operation
  • Actions for flows
    • Mirror (to a supported interface)
    • Redirect (to a supported interface)
    • Speed limit
    • QoS Remark
L2 and L2 functions
  • Link aggregation
    • Static link aggregation
    • Up to 8 aggregation groups and up to 8 ports per group
    • 802.3ad LACP
  • Spanning Tree Protocol (STP)
    • STP 802.1D
    • RSTP 802.1w
    • MSTP 802.1s
    • STP security : TC protection, BPDU packet filtering/protection, Root protection, Loopback protection
  • Loopback detection
    • Port-based
    • VLAN-based
  • Flow control
    • 802.3x flow control
    • HOL Blocking Prevention
  • Mirroring
    • Port Mirroring
    • CPU Mirroring
    • One-to-One transmission
    • Many-to-One transfer
    • I/O port / both ports
L2 Multicast
  • Support for 511 IGMP groups (IPv4, IPv6)
  • IGMP Snooping
    • IGMP v1/v2/v3 Snooping
    • Fast Leave
    • IGMP Snooping Querier
    • IGMP Authentication
  • IGMP Authentication
  • MVR
  • MLD Snooping
    • MLD v1/v2 Snooping
    • Fast Leave
    • MLD Snooping Querier
    • Static group configuration
    • Restricted IP Multicast Forwarding
  • Multicast Filtering : 256 profiles and 16 entries per profile
VLANs
  • VLAN groups
    • Max. 4K VLAN groups
  • 802.1Q VLAN Tagging
  • VLAN MAC Address : 12 entries
  • VLAN Protocol
  • GVRP
  • VLAN VPN (QinQ)
    • Port-based QinQ
    • Selective QinQ
  • Voice VLAN
Access control lists
  • Time-based access control list (ACL)
  • ACL MAC Address
    • Source MAC Address
    • Destination MAC Address
    • VLAN ID
    • User Priority
    • Ethertype
  • ACL IP Address
    • Source IP Address
    • Destination IP Address
    • Fragment
    • IP Protocol
    • TCP Flag
    • TCP/UDP port
    • TOS DSCP/IP
    • User Priority
  • ACL IPv6
  • Packet Content ACL
  • Combined ACL
  • Access control policy
    • Mirroring
    • Speed limit
    • Redirect
    • QoS Remark
  • ACL to port/VLAN
Transmission security
  • IP, MAC and port binding
    • DHCP Snooping
    • ARP Inspection
    • IPv4 Source Address Protection
  • IPv6, MAC and Port Address Binding
    • DHCPv6 Snooping
    • ND Detection
    • IPv6 Source Address Protection
  • Protection against DoS attacks
  • Port protection through static/dynamic/permanent port configuration
    • Up to 64 MAC addresses per port
  • Storm Control Broadcast/Multicast/Unicast
    • Control Mode (kbps/rate/p/s)
  • 802.1X authentication
    • Port-based authentication
    • MAC address-based authentication
    • VLAN allocation
    • MAB
    • Guest VLAN
    • Radius Authentication and Authorization
  • AAA (incl. TACACS )
  • Port isolation
  • Secure web-based management via HTTPS with SSLv3/TLS 1.2 encryption
  • Secure CLI management with SSHv1/SSHv2 encryption
  • Access control based on IP/port/MAC
IPv6
  • IPv6 Dual IPv4/IPv6
  • Multicast Listener Discovery (MLD) Snooping
  • IPv6 ACLs
  • IPv6 Interface
  • IPv6 Static Routing
  • Neighbor discovery (ND) used by IPv6 nodes
  • Path maximum transmission unit (MTU) discovery
  • ICMP v6
  • TCP v6/UDP v6
  • IPv6 applications :
    • DHCPv6 client
    • Ping6
    • Tracert6
    • Telnet (v6)
    • SNMP IPv6
    • SSH IPv6
    • SSL IPv6
    • Http/Https
    • TFTP IPv6
Features of the L3 switch
  • 16 IPv4/IPv6 interfaces
  • Static routing
    • 48 static routes
  • Static ARP entries
  • 316 ARP entries
  • Proxy ARP
  • Gratuitous ARP
  • DHCP Server
  • DHCP Relay
  • DHCP L2 Relay
Management
  • GUI graphical interface
  • Command line interface CLI
  • SNMP v1/v2c/v3
  • SNMP Trap/Inform
  • RMON (groups 1, 2, 3, 9)
  • SDM template
  • DHCP/BOOTP client
  • LLDP/LLDP-MED 802.1ab
  • Automatic DHCP installation
  • Dual Image, Dual Configuration
  • CPU usage monitoring
  • Cable diagnostics
  • EEE
  • Password recovery
  • SNTP
  • System logs
Advanced features
  • Support for Omada hardware controllers (OC200/OC300), software controller, cloud-based controller
  • Automatic device discovery
  • Group configurations
  • Group software updates
  • Intelligent network health monitoring
  • Abnormal event alerts
  • Unified configuration process
  • Restart scheduler
  • Maintenance-free ZTP configuration
Other
Certificates CE, FCC, RoHS
Contents of the package
  • TL-SG3428MP Switch
  • Power Supply
  • Installation Instructions
  • Mounting kit
  • Rubber feet
Work environment
  • Operating temperature : 0℃~45℃ (32℉~113℉);
  • Storage temperature : -40℃~70℃ (-40℉~158℉);
  • Operating humidity : 10%~90%, non-condensing
  • Storage humidity : 5%~90%, non-condensing
