NEWROCK OM500 IP-PBX Dubai with 1000 SIP Extension support

Description

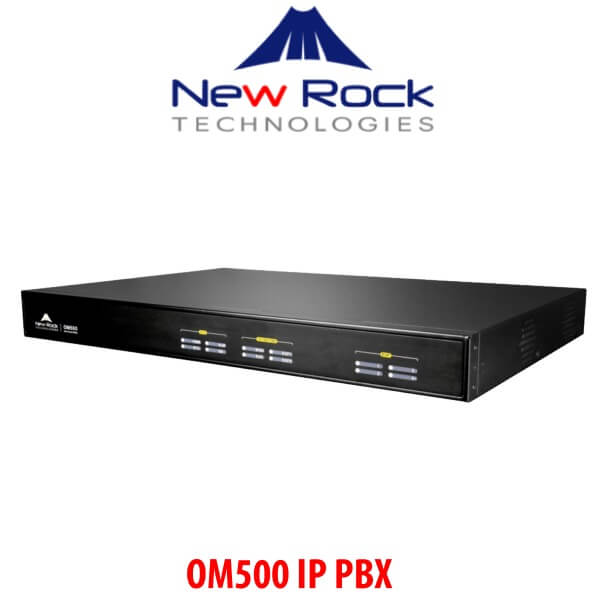

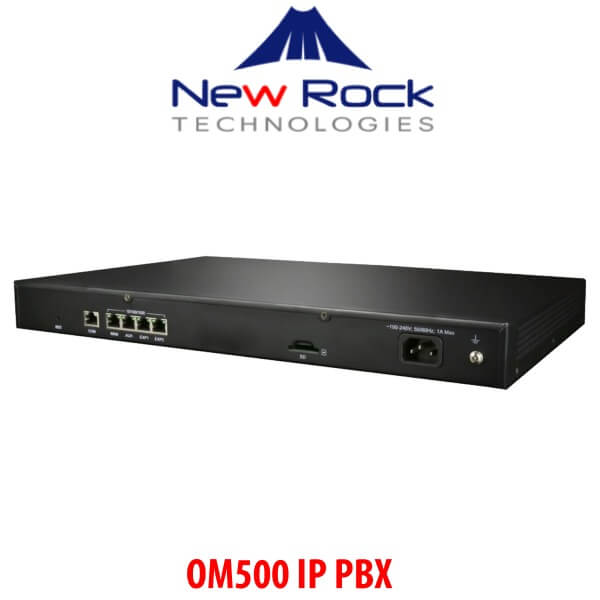

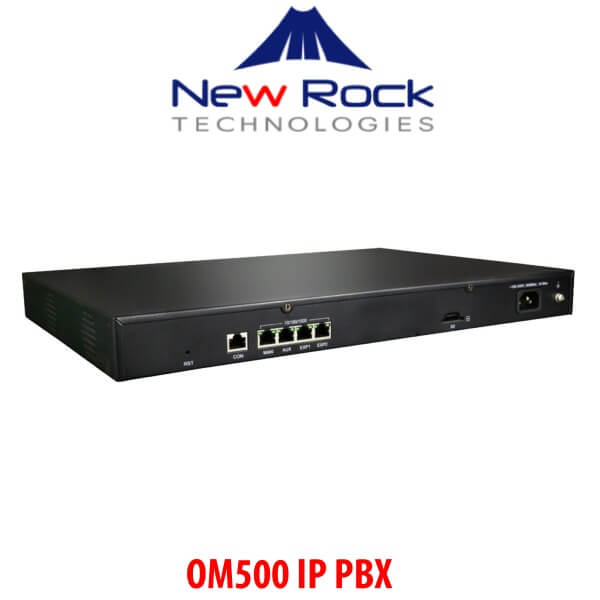

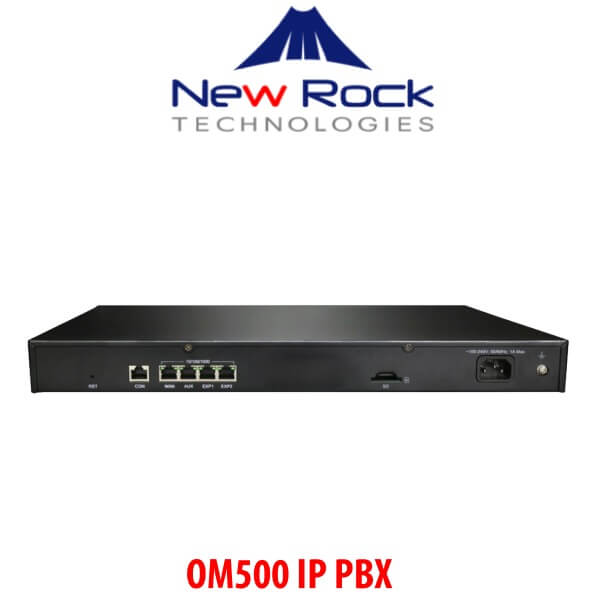

NEWROCK OM500 IP-PBX Dubai

The high performing gadget integrates built-in T1/E1 model supporting 2 ISDN primary interfaces to PSTN in a 1U high and 19 inch wide compact chassis, and provides SD card(32GB capacity) for massive storage. It supports both stand-alone and hosted mode of IP- PBX. The advanced Newrock OM500 IP PBX Dubai system integrates modern features such as strong scalability, rich connectivity and affordable cost to deliver communication solutions to medium and large enterprises. It has been specifically designed for headquarters with multi-site branch offices, and also economic solutions for medium and large enterprises.

NEWROCK OM500 IP-PBX FEATURES

HIGH INTEGRATION & EXPANSIBILITY

With its stack chassis structure, the Newrock OM500 IP PBX Dubai provides 4 Ethernet ports for direct connection up to 4 extended chassis, each equipped with up to 96 FXS ports for analog phones and/or FXO ports for connectivity to PSTN. A single Newrock OM500 IP PBX Dubai unit can support up to 512 extensions in IP or legacy analog phone format, while bigger capacities are made possible where multiple host chassis are interconnected with internal SIP trunk.OM500 supports the tie trunk function, which enables low cost multi-site voice networking solution for the headquarter and branches through VPN or even on the internet,while all extensions at various sites can dial each other directly with short numbers and free-of-charge. Up to 50 sites can be included in an enterprise voice network.

UNMATCHED MOBILITY

A user can easily register mobile extensions such as smart phones or PADs via Wi-Fi or 3G/4G to their OM500 IP PBX Dubai, thanks to the New Rock’s WeWei^TM softphone and maintenance other SIP softphone apps which enable the user to freely make business calls anywhere at any time. Neehau^TM which is a Window based personal soft console has been designed to work with the premium OM500 IP PBX Dubai extensions so as to facilitate features such as caller information pop-up for incoming calls, click-to-dial, call history and recording management, and phone notes. This greatly improves the proficiency of communication, as the contact list can be easily imported.

FIRMWARE UPGRADEABLE

You can easily update the operating system on your Newrock OM500 IP PBX Dubai so as to improve its functionality and enhance user experience. Upgrading firmware also fixes any existing bugs and protects you from any kind of software malfunctions and vulnerabilities. To update your gagdet’s firmware, type your gateway’s IP address into your web browser and enter your login information. Then locate the Firmware or Update section and download the latest firmware update on your Newrock OM500 IP PBX Dubai system’s manufacturer’s website. Finally, upload the update and reboot the telephony system.

TECHNICAL REPORT) TR – 069

This is a technical specification of the Broadband Forum that defines an application layer protocol for remote management of customer-premises equipment (CPE) connected to an Internet Protocol (IP) network. The TR-069 embedded in the Newrock OM500 IP PBX Dubai uses the CPE WAN Management Protocol (CWMP) to provide support for functions such as auto-configuration, software or firmware image management, software module management, status and performance management, and diagnostics. The CPE WAN Management Protocol is a bidirectional SOAP – and HTTP-based protocol, and provides the communication between a CPE and auto configuration servers (ACS). The protocol addresses the growing number of different Internet access devices such as modems, routers , gateways, as well as end-user devices which connect to the Internet, such as set-top boxes , and VoIP devices such as the Newrock OM500 IP PBX Dubai.

AUTOMATED – PROVISIONING – TFTP/HTTP/HTTPS

The technologically advanced Newrock OM500 IP PBX Dubai has the ability to deploy information technology or telecommunications service by using embedded pre-deﬁned procedures that are carried out electronically without requiring any human intervention, thus making it very reliable and convenient.

CLOUD MANAGEMENT

New Rock provides a reliable and secure cloud service to deliver connectivity to its users at cheaper maintenance costs while enhancing operation and maintenance efficiency. The cloud service on the internet enables customers to gain direct access to Newrock devices available in private networks such as IP-PBXs, audio gateways, and IP phones, therefore allowing simple remote maintenance and management of New Rock devices. This kind of cloud service is specifically designed to meet the needs of large-scale installation, configuration, and maintenance and operation. Auto provisioning and configuration backup, online update, real-time monitoring and alert enable users to achieve efficient operation and maintenance, thus maximizing productivity in organizations.

RICH QoS CAPABILITIES

Quality of Service (QoS) is a feature of routers and switches which prioritizes traffic so that more important traffic can pass first, resulting in an overall performance improvement for critical network traffic. This feature is very useful in the Newrock OM500 IP PBX Dubai whenever there are high volumes of traffic, therefore eliminating any delays while working.

EXCELLENT AUDIO QUALITY

The high performing Newrock OM500 IP PBX Dubai offers users distraction-free communication courtesy of the inbuilt industry-leading Acoustic Echo Canceling Technology, Adaptive Jitter Buffer, Voice Activity Detection, and Comfort Noise Generation that deliver superior High Definition sound quality devoid of extraneous noises. This makes it possible to enjoy fluent phone conversations without any distractions.

HIGHLY EFFICIENT

The Newrock OM500 IP PBX Dubai pushes versatility to a new high, thanks to its ability to complement already existing fixtures for enhanced web and audio conferencing as well as other communication needs. This makes it easy to integrate seamlessly into any office setup without disorienting earlier structures and work ethic. Furthermore, the device is easy to redeploy as the business grows and needs to transform.

THE NEWROCK OM500 IP PBX DUBAI CALL FEATURES

CONFERENCE GUIDE

This advanced feature of the Newrock OM500 IP PBX system helps the user to easily set up group calls with a single click of a button. The hi – tech device allows for 3 – way group calls on analog and SIp phones, thus enabling the user to easily join or create meetings. It also enables 6-way calling with WeiWei ^TM(New Rock softphone)

CALL TRANSFER

This advanced feature of the Newrock OM500 IP PBX Dubai system allows the user to relocate an inbound call to another phone or messaging system by using a dedicated call transfer button, or software that has been configured for use on the Gateway.

CALL WAITING

You can hear another incoming call when you are already on an active phone call (beep). With the Newrock OM500 IP PBX Dubai you can also turn off call waiting so that incoming calls are directly sent to voicemail during moments you are active on another phone call.

CALL HOLDING

You can easily place an active phone call on hold in order to make or pick another incoming call using the premium Newrock OM500 IP PBX Dubai.

CALL RECORDING

A recording agent which simply runs on Windows OS collects and manages data through Web GUI then records files generated by your Newrock OM500 IP PBX Dubai.

Why the Newrock OM500 IP PBX Dubai?

Built-in Ethernet ports to voice gateways for compact deployment
Auto discovery for plug-and-play of IP phones and softphones
Applications to provide billing and call history management and recording management
HTTP REST style application interface to facilitate the integration of third party applications
Centralized configuration management and runtime status monitoring
Rich connectivity with built-in T1/E1 modules supporting ISDN PRI, loop start trunk, SIP trunks and tie trunk for multi-site deployment, lines to analog phones and SIP clients to IP phones

NEWROCK OM500 IP-PBX SPECIFICATIONS

HARDWARE SPECIFICATIONS
- RAM : 256MB
- Flash : 32MB
- CPU : TI A8, 1GHz
- DSP : TI C5509, count : 6(OM500), 9(OM501),15(OM502)
- CON interface : 1 RJ45 Port
- Network interface : 4 × 10/100/1000 Mbps RJ45 ports
- E1/T1 interface : 1-2, 120 simultaneous VoIP calls
- SD : 32G
- Power : ~100 – 240V, 50/60Hz, 1A
- Power consumption : 18W(max)
- Size(H*W*D) : 44 × 440 ×300mm, IU form factor
- Net Weight : 3.18kg
- Gross Weight(with box) : 4.76kg

OTHER FEATURES
- Attendant
  - Automated attendant Interactive voice response Working/non-working hour Changing profile on a fly Queuing Operator group
- Incoming call
  - Direct inward dialing Calling line identification presentation
  - Call block Distinctive ring Call waiting Call forking Call forwarding Do not disturb
  - Color ring back tone Barge-in
- Group receiving
  - Extension group
  - Call distribution group Group ringing
- Call Pickup
  - Direct Pickup Call Pickup
  - Pick up operator’s call Group Pickup
- Caller ID
  - Caller ID display
- Call transfer
  - Blind call transfer Consultation call transfer Call transfer to CO line
- Making call
  - Intercom call Account code entry
  - Outgoing line preference Trunk group
  - Speed dialing
  - Hot line (Immediate, delay) Caller ID block
  - Emergency call
- Outside access
  - Direct inward system access Call back on busy
  - Remote extension setting
- Call restriction
  - Toll restriction/Call barring Budget management Extension lock
  - Personal identification code
- Routing
  - Automatic route selection\
  - Call hold Call hold Call park
  - Music on hold
- Conference
  - 3-way calling on analog and SIP phones 6-way calling with WeWei ^TM(New Rock softphone)
- Recording
  - Preset recording On the fly recording
- Audible tone
  - Dial tone
  - Ring back tone Busy tone Confirmation tone Self-defined tone
- Tie trunk service
  - Direct internal dialing Outbound trunk sharing
- Networking
  - DHCP DNS/DDNS PPPoE
  - NAT traversal
  - IP address filtering for security
- Call hold
  - Call hold Call park
  - Music on hold
