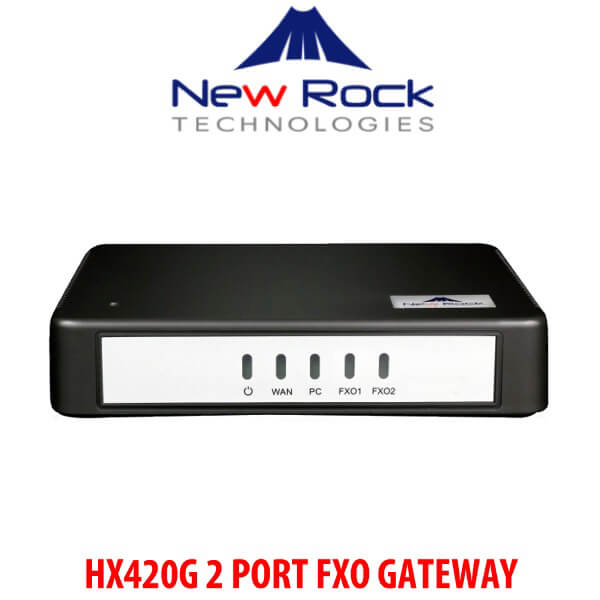

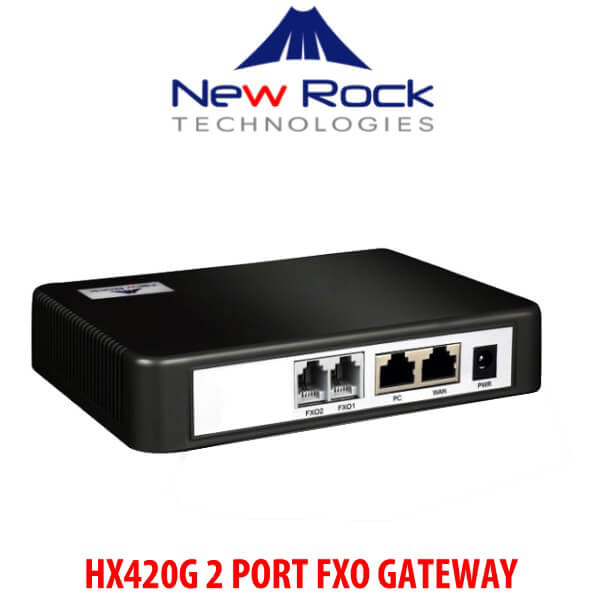

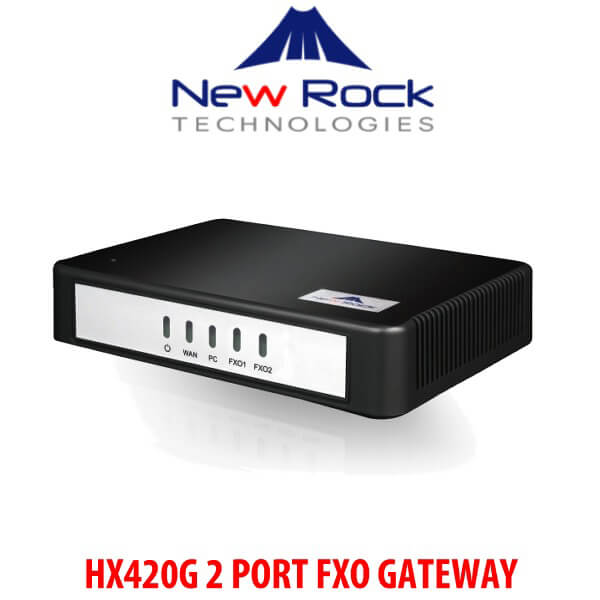

NEWROCK HX420G 2 PORT FXO Gateway Dubai

The hi – tech Gateway boasts of many advanced features including call forward, call transfer, 3-way conference, caller ID, DND, color ringback, forking, automatic routing, digitmap and PSTN failover, thus delivering a maximum communication experience. Furthermore, the Newrock HX420G 2 Port FXO Gateway eliminates the possibilities of any form of cyber attacks such as brute force logins and SIP attacks, ensuring a high level of security in your IP telephony environment, thanks to its rich advanced features which support perimeter security against any malicious intrusions. Its integrated New Rock Cloud client provides easy access with NAT traversal to endpoint devices and value-added applications for remote, real-time monitoring, maintenance, software upgrades, troubleshooting, data analysis, alarm notification, and remote packet capture. Its smart Commetrex Corporation’s Smart FoIP® patent troubleshoots problems such as Late T.38 re-Invite and G.711 synchronization which may lead to failed Fax over IP (FoIP) transmissions.

NEWROCK HX420G 2  PORT FXO GATEWAY KEY FEATURES

The Newrock HX420G 2 Port FXO Gateway has been equipped with a wide variety of advanced features, most of which are listed below:

• IMS/SIP/MGCP protocols
• Unequalled configurability of FXS and FXO ports
• TLS/SRTP
• L2TP/OpenVPN client
• 500 routing and number-manipulation rules
• Configurable SIP ports and IP-address whitelist
• High-speed fax with maximum rate of 33,600 bps by T.38 or G.711 pass-through
• Polarity-reversal/busy-tone detection
• High availability & PSTN failover
• Auto provisioning
• Remote access via the New Rock Cloud*
• Management with New Rock or third-party Element Management Systems (TR-069, SNMP)
• Interoperability with popular SIP servers, such as Cisco CallManager/CUCM, Broadsoft, Microsoft Skype for Business (Lync), –  Huawei IMS, and Asterisk/Elastix
• Class I lightning protection

EXCELLENT AUDIO QUALITY

The  high performing Newrock HX420G 2 Port FXO Gateway offers users distraction-free communication courtesy of the inbuilt industry-leading Acoustic Echo Canceling Technology,  Adaptive Jitter Buffer, Voice Activity Detection, and Comfort Noise Generation that deliver superior High Definition sound quality devoid of extraneous noises. This makes it possible to enjoy fluent phone conversations without any distractions.

G168 ECHO CANCELLATION

The magnificent Newrock HX420G 2 Port FXO Gateway uses G168 Echo Cancellation to filter out any background and surrounding noises that may act as distractions whenever the Gateway user is making any communications.

AUTOMATED – PROVISIONING – TFTP/HTTP/HTTPS

The technologically advanced Newrock HX420G 2 Port FXO Gateway has the ability to deploy information technology or telecommunications service by using embedded pre-defined procedures that are carried out electronically without requiring any human intervention, thus making it very reliable and convenient.

TECHNICAL REPORT) TR – 069

This is a technical specification of the Broadband Forum that defines an application layer protocol for remote management of customer-premises equipment (CPE) connected to an Internet Protocol (IP) network. The TR-069 embedded in the Newrock HX420G 2 Port FXO Gateway uses the CPE WAN Management Protocol (CWMP) to provide support for functions such as auto-configuration, software or firmware image management, software module management, status and performance managements, and diagnostics. The CPE WAN Management Protocol is a bidirectional SOAP – and HTTP-based protocol, and provides the communication between a CPE and auto configuration servers (ACS). The protocol addresses the growing number of different Internet access devices such as modems, routers , gateways, as well as end-user devices which connect to the Internet, such as set-top boxes , and VoIP devices such as the Newrock HX420G 2 Port FXO Gateway.

FIRMWARE UPGRADEABLE

You can easily update the operating system on your Newrock HX420G 2 Port FXO Gateway so as to improve its functionality and enhance user experience. Upgrading firmware also fixes any existing bugs and protects you from any kind of software malfunctions and  vulnerabilities. To update your Gateway’s firmware, type your gateway’s IP address into your web browser and enter your login information. Then locate the Firmware or Update section and download the latest firmware update on your Gateway manufacturer’s website. Finally, upload the update and reboot the Gateway.

CLOUD MANAGEMENT

New Rock provides a reliable and secure cloud service to deliver connectivity to its users at cheaper maintenance costs while enhancing operation and maintenance efficiency. The cloud service on the internet enables customers to gain direct access to Newrock devices available in private networks such as IP-PBXs, audio gateways, and IP phones, therefore allowing simple  remote maintenance and management of New Rock devices. This kind of cloud service is specifically designed to meet the needs of large-scale installation, configuration, and maintenance and operation. Auto provisioning and configuration backup, online update, real-time monitoring and alert enable users to achieve efficient operation and maintenance, thus maximizing productivity in organizations.

DUAL – STACK IPv6  & IPv4 ACCESS

The advanced next – generation IPv6 Internet protocol solves the problem of IP address shortage. Basically, every server or terminal has a public address to be accessed directly without translating intranet addresses by NAT or NAT traversal using technologies like STUN in an IPv6 Network, therefore making VoIP applications simpler. Being one of the early pioneers of IPv6, the Newrock HX420G 2 Port FXO Gateway fully supports IPv6 protocols with respect to operator IMS access, SIP basic call, TLS encryption, and TR069 remote management. A user therefore has the freedom of choosing between IPv4 and IPv6 connection depending on their network environment. If the operator’s IP/IMS server is IPv4, the gateway allows direct access to the SIP network without any configuration, and if the server is IPv6, the gateway need only set the SIP audio transmission mode as IPv6. During these transmissions, all investments in the existing equipment are secured, existing audio services are not affected, and existing network structure and users’ habits remain the same.

SIP CONVENIENCE

The Server-Initiated Application (SIP) is incorporated for users to plug and play the phone without the need for configurations. Once the phone is connected to the network and powered on, initialization commences automatically, after which the phone is up and ready for use. Furthermore, the Newrock HX420G 2 Port FXO Gateway can not only be configured via a user interface, it also accepts SIP NOTIFY messages from SIP proxy servers, which gives it an ability to act as a web server. You can therefore easily connect your Newrock HX420G 2 Port FXO Gateway to your IP PBX System or direct to a VoIP service provider in order to enjoy seamless conference calls. The Newrock HX420G 2 Port FXO Gateway is based on SIP and works perfectly with most of the SIP platforms such as  Cisco CallManager/CUCM, Broadsoft, Microsoft Skype for Business (Lync), –  Huawei IMS, and Asterisk/Elastix that currently exist in the market.

INTEROPERABILITY

The Newrock HX420G 2 Port FXO Gateway works perfectly with popular SIP servers, such as Cisco CallManager/CUCM, Broadsoft, Microsoft Skype for Business (Lync), –  Huawei IMS, and Asterisk/Elastix, thus allowing you to enjoy its maximum efficiency and convenience.

FLEXIBILITY

The Newrock HX420G 2 Port FXO Gateway pushes versatility to a new high, thanks to its ability to complement already existing fixtures for enhanced web and audio conferencing, as well as other communication needs. This makes it easy to integrate seamlessly into any office setup without disorienting earlier structures and work ethic. Furthermore, the device is easy to redeploy as the business grows and needs to transform.

NEWROCK HX420G 2 PORT FXO GATEWAY CALL FEATURES

CONFERENCE GUIDE

This advanced feature of the Newrock HX420G 2 Port FXO Gateway helps the user to easily set up group calls with a single click of a button. The hi – tech device allows for 3 – way group calls, thus enabling the user to easily join or create meetings.

CALL TRANSFER

This advanced feature of the Newrock HX420G 2 Port FXO Gateway allows the user to relocate an inbound call to another phone or messaging system by using a dedicated call transfer button, or software that has been configured for use on the Gateway.

CALL WAITING

You can hear another incoming call when you are already on an active phone call (beep). With the Newrock HX420G 2 Port FXO Gateway, you can also turn off call waiting so that incoming calls are directly sent to voicemail during moments you are active on another phone call.

CALL HOLDING

You can easily place an active phone call on hold in order to make or pick another incoming call using the premium Newrock HX420G 2 Port FXO Gateway.

CALL RECORDING

A recording agent which simply runs on Windows OS  collects and manages data through Web GUI then records files generated by your Newrock HX420G 2 Port FXO Gateway.

Why the Newrock HX420G 2 Port FXO Gateway?

• It is affordable and easy to use
• It comes with excellent audio and video qualities
• It is equipped with an automated phone book synchronization
• Enjoy a Plug & Play connectivity(working with the New Rock IP-PBX)
• Unified management by New Rock UMS management system
• Compatible with mainstream IP PBX and SIP platforms

NEWROCK HX420G 2  PORT FXO GATEWAY SPECIFICATIONS

• HARDWARE

  • FXO Ports : 2
  • CPU : Dual core, 880MHz
  • RAM :  256MB
  • Flash : 16MB
  • Power Consumption : 6W
  • Power : 12VDC/1.5A
  • Mounting : Desktop

• PROTOCOLS

  • Call Control : SIP/UDP and SIP/TCP(RFC3261),IMS(3GPP), MGCP(RFC3435)
  • Network : SSH, HTTP, HTTPS, DHCP/PPPoE client, Radius, DNS( A/SRV record), STUN

• MEDIA PROCESSING

  • Caller ID : Bellcore/Telcordia, ETSI, BT, DTMF, G.711(a/u), G.729a, G.722, G.722.2* Roadmap feature
  • DTMF : in – band audio, RFC2833, SIP – INFO
  • Hook – flash : Local Processing, RFC2833, SIP – INFO
  • Fax over IP : T.38, G.711 pass through ,T.38 compliant Group 3 Fax
  • Disconnect modes : Polarity reversals, Busy tone Detection, Loop current
  • QoS :  DiffServ, TOS, 802.1P/Q VLAN tagging
  • Voice – quality Enhancement : Echo cancellation (G.168 – 2004), Jitter Buffer, Silence suppression(VAD, CNG), PLC
• VOICE
  • Call transfer :  Blind transfer, Consultative transfer
  • Call forward : call forward all, call forward no answer, call forward busy
  • Call recording storage : remote recording server for storage
  • Call settings : routing based on the caller or the callee number , Digit  map, 3-way calling, Speed dialling, Do not disturb, call forking, color ring back tones, Hunt group, Ring cadence, Message Waiting Indicator(MWI)

• SECURITY

  • Protocol : HTTPS, TLS, SSH, SRTP
  • Encryption : Encrypted password/PIN
  • Intrusion Prevention : Brute force login protection, Access list, Firewall, SIP – allowed IP addresses, Alarm and notification
  • VLAN : Auto discovery via DHCP, manual configuration
  • VPN client : L2TP, OpenVPN

• HIGH AVAILABILITY

  • Redundancy : primary – standby, Active – Standby, Load Balancing
  • PSTN failover : Power failure, Network failure

• PROVISIONING, ADMINISTRATION & MAINTENANCE

  • Device Management : New Rock Unified Management System, (TR – 069, TR – 104 and TR – 106), SNMP
  • Remote Access over TCP : New Rock Cloud
  • Auto Provisioning : Download configuration  file via TFTP/FTP/HTTP/HTTPS, Obtaining ACS address via DHCP option 66 or redirection
  • Log management : 8 – level logs, Syslog
  • Data Capture : Port capture , Packet capture
  • Status and Statistic : Call status and history, Device status monitoring and statistics collection
  • Upgrade : Firmware upgrade via Web GUI or Auto provisioning

• ADD – ON SOFTWARE

  • Finder : obtains IP addresses of devices in LAN  environment
  • Telegreeting : Formats pre – prepared IVR audio files or uploads them into a device
  • Recording agent : receives recording streams in PCM and converts them into MP3 format. Includes management functions such as search, play, delete and backup.

• DIMENSIONS & WEIGHT

  • H*W*D : 30 * 150 * 109(mm)
  • Net Weight : 0.3kg
