When a Dubai data centre firewall is carrying Etisalat and du uplinks, private cloud traffic, partner VPNs, and tenant segmentation at the same time, a normal appliance design starts to look risky. The issue is not just speed. It is inspected speed, session scale, power planning, module redundancy, and how the firewall behaves when one part of the chassis has a fault.

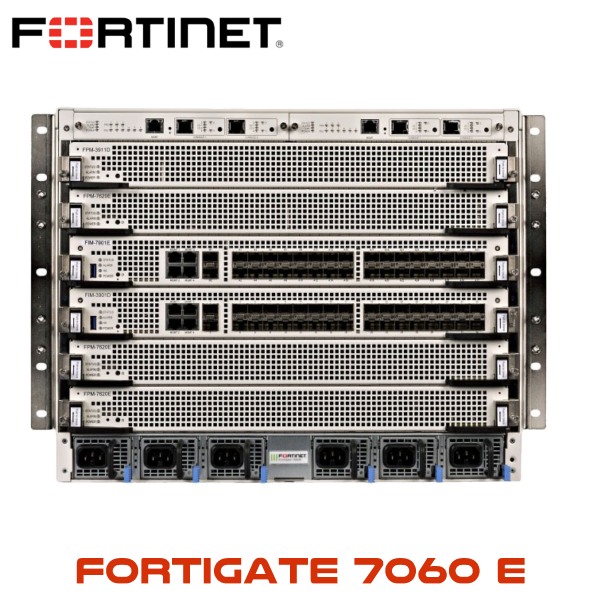

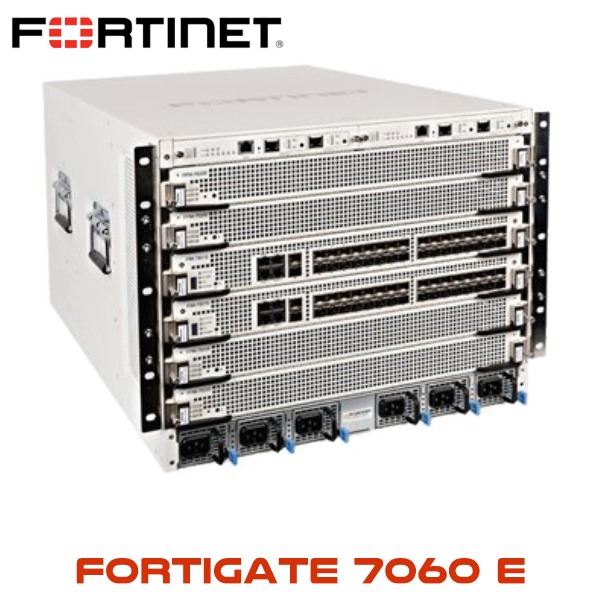

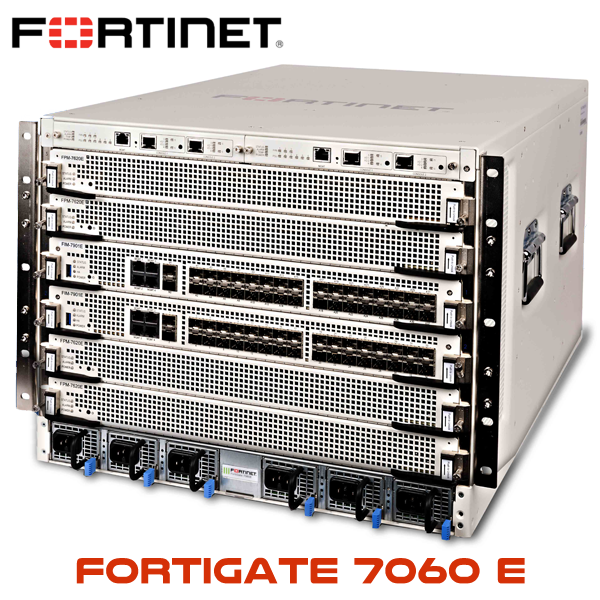

The Fortinet FG-7060E is built for that kind of network. It is an 8U chassis-based FortiGate firewall for carrier, MSSP, government, banking, hosting, and large enterprise security gateways. In a JAFZA logistics network, a DIFC financial environment, or a multi-tenant rack setup in a Dubai data centre, the FG-7060E is usually evaluated as a core security platform, not a branch firewall.

Two numbers must be read together before sizing it: 630 Gbps firewall throughput and 80 Gbps threat protection throughput. Firewall throughput is raw packet forwarding. Threat protection throughput is closer to the real number when IPS, antivirus, application control, and web filtering are running. That is the figure procurement teams should ask for before approving any data centre firewall BOM.

Fortinet FG-7060E firewall for Dubai data centre networks

The FG-7060E sits in the FortiGate 7000E chassis family. It uses Fortinet Security Processing Units across interface and processing modules, with traffic distributed from the Fortinet Interface Modules to Fortinet Processing Modules through the chassis fabric. In plain network terms: interfaces, packet distribution, inspection, SSL handling, and security processing are split across modular hardware instead of being forced through one fixed appliance board.

That design matters when traffic is not simple north-south browsing. Large UAE networks now mix internet breakout, private cloud access, site-to-site VPNs, guest networks, ERP traffic, OT links, SIP trunks, remote access, and east-west inspection. One firewall pair may have to protect headquarters, hosted workloads, remote branches, and vendor VPN access. The FG-7060E gives the architecture room to scale without changing the whole security model every time bandwidth increases.

For buyers comparing FortiGate models in Dubai, use the FortiGate firewall Dubai hub to shortlist smaller branch and rackmount models. The FG-7060E is a different class. It is normally discussed for 10,000+ users, multi-tenant environments, high-volume VPN aggregation, or a carrier-style perimeter where HA behaviour and module redundancy are part of the requirement.

FortiGuard licensing: UTP Bundle and Enterprise Bundle

The chassis is the platform. The licence is the protection layer. Without FortiGuard services, the FG-7060E still works as a high-capacity stateful firewall, but the security value drops sharply because IPS signatures, web filtering, malware protection, DNS filtering, and sandbox-related services depend on active FortiGuard licensing.

For most UAE enterprise and MSSP deployments, the two licensing paths are UTP Bundle and Enterprise Bundle. Both are available in 1-year and 3-year terms. A 1-year term may suit short projects, temporary hosting, or budget approvals tied to annual CAPEX. A 3-year term is usually cleaner for data centre firewalls because the appliance, HA design, and support cycle are not annual decisions.

Procurement teams often ask whether they should buy hardware first and add the licence later. For a chassis firewall, that is usually a bad way to calculate project cost. The FG-7060E will be protecting high-volume links, so the FortiGuard term should be sized into the same approval as the chassis, modules, HA pair, optics, support, and installation scope.

FG-7060E technical specifications

High availability and redundancy

A chassis firewall is usually bought in pairs. The FG-7060E supports Active-Passive HA, Active-Active FGSP, and clustering designs. For large Dubai networks, that means failover planning can be built around chassis pairs, session sync, redundant modules, redundant uplinks, and upstream routing design instead of a single firewall acting as one point of pain.

Inside the chassis, redundancy is not just a marketing line. The FG-7060E includes redundant system management modules, modular interface cards, multiple processing modules, hot-swappable cooling, and redundant power supply design. For a bank, carrier, government environment, or hosted platform, those details matter because maintenance windows are short and outage cost is high.

VDOM support is also important in this class. The FG-7060E supports 10 VDOMs by default and up to 500 VDOMs maximum. That gives network teams a practical way to separate tenants, business units, security zones, hosted customers, or regulatory environments without buying a separate physical firewall for every segment.

Vector Digital Systems can supply the FG-7060E with FortiGuard UTP or Enterprise licensing for UAE deployments across Dubai, Abu Dhabi, Sharjah, Ajman, Ras Al Khaimah, Fujairah, and Umm Al Quwain. For smaller core firewalls and branch pairs, compare options through the Fortinet firewall Dubai product range before locking the final BOM.

8U chassis deployment context

The FG-7060E is not a firewall you drop into a small server room rack beside an access switch. It is an 8U chassis-based firewall for large networks where interface density, inspection throughput, module redundancy, and HA design are part of the architecture from day one.

Typical sizing starts at 10,000+ users, carrier edge, large campus core, MSSP aggregation, government infrastructure, banking networks, or hosted multi-tenant firewalls. In Dubai, that often means Etisalat and du enterprise uplinks, 40GE or 100GE handoff planning, separate security zones for tenants, and strict rack power approval inside data centre environments.

For DIFC, DMCC, JAFZA, and DAFZA environments, the FG-7060E makes sense when one firewall cluster has to isolate multiple business units, hosted applications, public services, VPN traffic, and compliance-sensitive network zones. The 500 maximum VDOM capacity gives security teams space to separate tenants or departments without turning every segmentation requirement into a new hardware purchase.

Upgrading from FortiGate 7040E? Here’s what changes

Many UAE buyers looking at the FG-7060E are either replacing an older chassis, expanding from a smaller FortiGate 7000E platform, or separating tenant traffic that has outgrown a fixed appliance pair. The jump to FG-7060E is mainly about chassis slot capacity, session scale, interface module choice, and the ability to design around 40GE or 100GE paths without treating the firewall as the bottleneck.

Compared with smaller FortiGate platforms, the FG-7060E pushes the conversation away from “how many ports does it have?” and towards “which FIMs, which FPMs, what HA mode, what FortiGuard bundle, and how much inspected traffic must survive during failover?” That is the right question for a carrier, bank, ministry, cloud host, or regional MSSP.

The next refresh question is not only raw throughput. It is operational fit. Power draw can reach 3277 W maximum, heat output can reach 11,184 BTU/h, and the chassis weighs 95.4 kg. For Dubai data centre cooling and rack loading, these numbers should be checked before delivery, not after the firewall reaches the loading bay.

What’s in the FG-7060E project scope

A normal FG-7060E order may include the chassis, Fortinet Interface Modules, Fortinet Processing Modules, redundant power supplies, fan trays, management modules, rack mounting hardware, and the selected FortiGuard subscription. Exact contents depend on the bundle code and whether the build uses AC or DC power.

For UAE project work, the cleanest request is simple: ask for the FG-7060E chassis configuration, FPM count, FIM model, FortiGuard UTP or Enterprise term, support level, optics requirement, and HA pair quantity in the same quote. That avoids a cheap-looking first quote that later grows after the network team adds the items that were always needed.

Related FortiGate and logging options

Not every large firewall project needs an 8U chassis. Some UAE sites can use a smaller rackmount FortiGate at the edge and reserve the FG-7060E for the central data centre or service provider gateway. Use the FortiGate firewall Dubai range to compare branch, campus, data centre, and chassis models before finalising the BOM.

UAE deployment context

In Dubai, the FG-7060E usually sits where the firewall team can’t afford guesswork: data centre edge, MSSP aggregation, carrier perimeter, large campus core, or regulated enterprise segmentation. The design normally includes HA chassis, dual power feeds, multiple uplinks, separate management, logging, and clear change control.

For Etisalat and du WAN links, interface module choice matters early. A 10GE handoff design is different from 40GE or 100GE. Optics, transceiver lead time, cross-connect details, routing design, and firewall policy migration all need to be mapped before the rack slot is booked.

Heat and power also matter here. Dubai data centre cooling is not a small line item, and an 8U chassis drawing up to 3277 W must be approved properly. For facilities teams, the important numbers are 8U rack space, 95.4 kg weight, 3277 W maximum power, and 11,184 BTU/h maximum heat output.

Africa, GCC, and MEA export — FOB Dubai

Vector Digital Systems supplies FG-7060E chassis projects for enterprise, carrier, and government buyers across the UAE, GCC, and Africa. FOB Dubai pricing is available for multi-unit procurement, HA chassis pairs, FortiGuard 3-year Enterprise bundles, and phased data centre firewall rollouts.

Common export discussions include Saudi Arabia, Qatar, Oman, Kuwait, Egypt, South Africa, Kenya, and Nigeria. For chassis projects, the quote should include AC or DC power type, FortiGuard bundle, module selection, and shipping details because the final crate and documentation are not the same as a small appliance order.

For resellers and system integrators, project pricing can be prepared with the chassis BOM, FortiGuard term, and support scope clearly separated. That keeps the end-customer proposal clean and avoids confusion between hardware, security services, and logistics.

Fortinet FG-7060E FAQ

What is the threat protection throughput on the Fortinet FG-7060E?

The FG-7060E is rated at 80 Gbps threat protection throughput, with firewall throughput rated at 630 Gbps. Always compare both numbers because threat protection includes real inspection services such as IPS, antivirus, application control, and web filtering.

Does the FG-7060E support HA?

Yes. The FG-7060E supports Active-Passive HA, Active-Active FGSP, and clustering designs. Most UAE data centre projects use chassis pairs with redundant uplinks, separate management, and centralised logging.

What FortiGuard bundles are available for FG-7060E?

FortiGuard UTP Bundle and Enterprise Bundle are available in 1-year and 3-year terms. UTP covers IPS, antivirus, web filtering, application control, DNS filtering, FortiSandbox Cloud, and botnet protection. Enterprise adds higher-tier security and operations services.

What is the FG-7060E form factor?

The FG-7060E is an 8U chassis-based rackmount firewall with 6 chassis slots: 2 FIM slots and 4 FPM slots. It is built for carrier, MSSP, government, banking, and large enterprise networks.

How many VDOMs does the FG-7060E support?

The FG-7060E supports 10 VDOMs by default and up to 500 VDOMs maximum. That makes it suitable for tenant separation, business unit segmentation, and regulated network zones.

Is the FG-7060E suitable for Etisalat and du high-capacity WAN links?

Yes, with the correct FIM selection and optics. FG-7060E designs can support 10GE, 40GE, and 100GE interface options depending on the modules selected. For Etisalat and du handoffs, confirm port type, optics, routing, HA, and inspection throughput before ordering.
