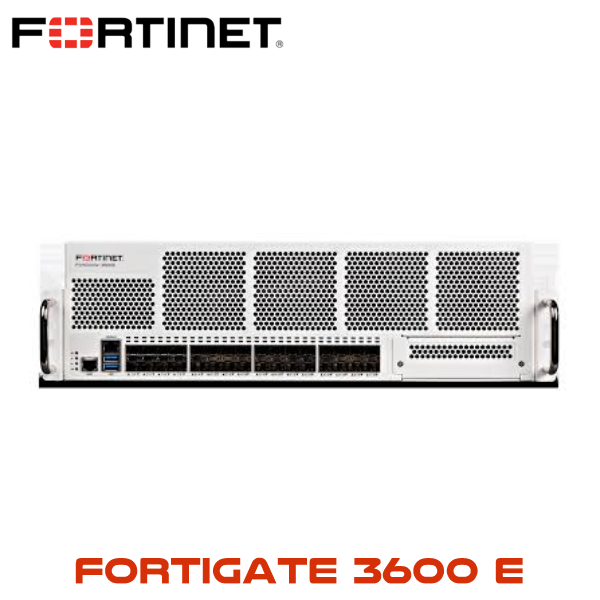

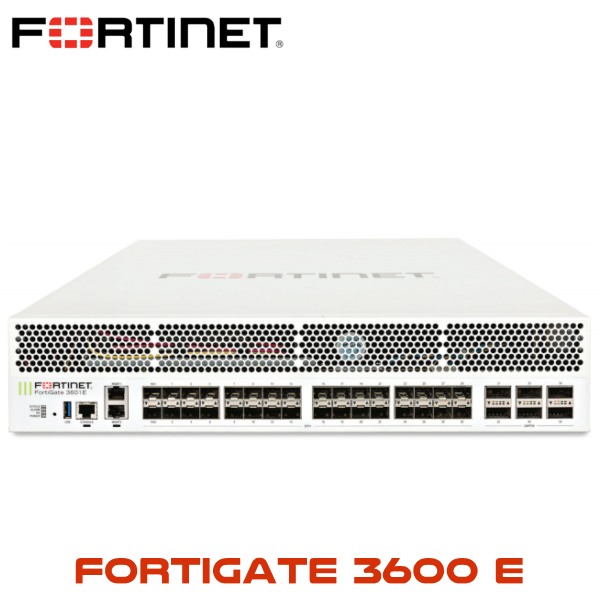

Fortinet FG-3600E / FG-3601E Dubai — 2U Data Centre Firewall for High-Speed UAE Networks

Large Dubai networks don’t fail quietly. One overloaded firewall can slow down VPN users in DIFC, break warehouse access in JAFZA, delay cloud backups from a data centre rack, and make the NOC chase the wrong problem for hours.

The issue is usually not raw firewall speed. Most boxes look fast when traffic is clean. The real test starts when IPS, application control, antivirus, SSL inspection, web filtering, site-to-site VPN, and internal segmentation are running at the same time. That’s where the Fortinet FG-3600E / FG-3601E still makes sense for existing enterprise estates, replacement projects, HA expansion, and refresh planning in UAE data centres.

This is a 2U rackmount FortiGate built for high-throughput perimeter security, data centre edge, large campus segmentation, and multi-zone enterprise networks. It gives network teams 240 Gbps firewall throughput and 30 Gbps threat protection throughput, with 50 million concurrent sessions. Both numbers matter. Firewall throughput tells you the forwarding ceiling. Threat protection throughput tells you what happens when inspection is switched on.

Built for heavy traffic, not branch-office guessing

The Fortinet FG-3600E and FG-3601E are suited for 2U enterprise deployments where 10GE, 25GE, 40GE, and 100GE links are already part of the design. Typical use cases include data centre perimeter security, core firewall replacement, hosted application zones, inter-VLAN inspection, internet edge, private cloud edge, and high-throughput VPN aggregation.

In a Dubai setup, that may mean dual Etisalat and du WAN links, separate circuits for cloud backup, a dedicated internet breakout for guest traffic, and private connections into hosted workloads. Add DMCC or DIFC compliance controls, remote users, vendor VPNs, and security inspection between zones. Suddenly the firewall is not just a gateway. It becomes the policy point between every important part of the network.

For buyers comparing FortiGate models, start from the full FortiGate firewall Dubai range, then work backward from inspection throughput, interface speed, HA design, and licensing term. A 240 Gbps firewall number is useful, but the 30 Gbps threat protection figure is the safer number to discuss with the security team.

FG-3600E vs FG-3601E — what changes?

The FG-3600E and FG-3601E share the same firewall performance, same 2U chassis class, same interface layout, and same HA options. The main difference is local storage.

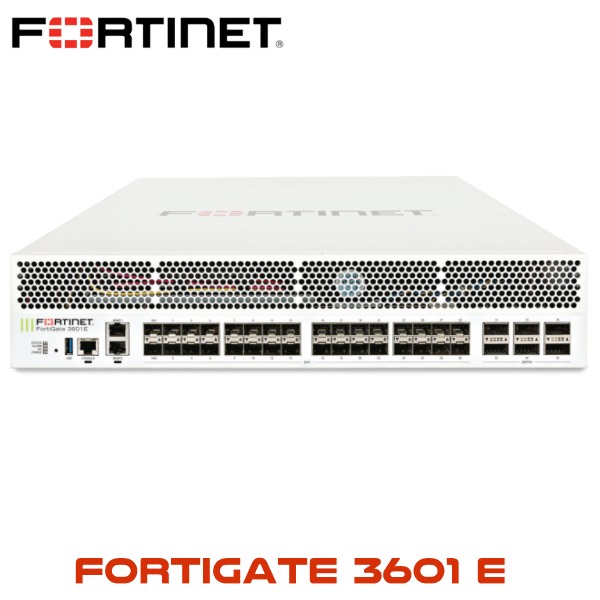

FG-3600E is the standard model without onboard storage. FG-3601E adds 2 x 2TB SSDs, listed as 4TB onboard storage. That storage is useful where the appliance needs local logs before forwarding to FortiAnalyzer, or where the network team wants some event retention at the edge. In larger environments, centralised logging is still normally handled by FortiAnalyzer, especially when there are multiple FortiGate appliances across UAE branches.

For a simple edge firewall that forwards logs centrally, FG-3600E may be enough. For a logging-heavy data centre edge or a site where local event visibility is required, FG-3601E is the better fit. Same firewall. Different storage profile.

FortiGuard licensing for FG-3600E / FG-3601E

The hardware is the platform. The FortiGuard licence is what gives the box its live security services. Without the right FortiGuard bundle, the appliance can still pass traffic as a stateful firewall, but IPS signatures, antivirus, web filtering, Botnet protection, and threat intelligence services won’t give the same security value buyers normally expect from a FortiGate.

For Dubai procurement teams, licensing is where many quotes become difficult to compare. One quote may show only appliance hardware. Another may include UTP for 1 year. A third may include Enterprise for 3 years. Same model name, very different project cost.

Most enterprise buyers choose 3-year licensing when the firewall is going into a fixed data centre rack, because the yearly cost is usually cleaner for budget planning. For replacement units or short project extensions, 1-year licensing may be enough. MSSPs and resellers can also request project quantities when the firewall is part of a larger security refresh.

Vector Digital Systems supplies FortiGuard UTP and Enterprise bundles for FortiGate appliances across Dubai, Abu Dhabi, Sharjah, Ajman, Ras Al Khaimah, Fujairah, and Umm Al Quwain. For wider architecture work, the Fortinet firewall Dubai category page helps compare branch, campus, data centre, and carrier-class FortiGate models.

Technical specifications

HA and redundancy planning

Most FG-3600E / FG-3601E deployments in enterprise sites should be planned as an HA pair. A single firewall at this tier becomes a large failure point. Active-Passive is the usual choice when buyers want a clear primary and standby firewall. Active-Active can be used where the design calls for traffic sharing, but it needs careful session, inspection, and failover planning.

The platform includes dedicated HA use inside the SFP28/SFP+ interface count, which is easy to miss when comparing port tables. The design also supports dual power supplies with 1+1 redundancy, useful in racks with A/B power feeds. For Dubai data centres, check available rack power and cooling before installing a pair. Two units can draw serious power when traffic and inspection load are high.

For environments in DIFC, DMCC, DAFZA, JAFZA, and government-related networks, HA is not just about uptime. It also affects maintenance windows, change approval, audit comments, and how quickly the network team can recover after a power issue, link failure, or failed appliance. Plan the HA links, management links, logging, and FortiGuard term together. Not after delivery.

2U rackmount deployment context

The FG-3600E / FG-3601E is a 2U rackmount firewall for large enterprise and data centre networks. It is normally considered for 500 to 5,000+ user environments, depending on traffic type, inspection profile, VPN usage, number of hosted applications, and east-west segmentation policy.

In the UAE, this model usually fits sites with multiple uplinks, HA pairs, high-speed switching, and separate security zones. Think bank head office, government network edge, hosting provider, large healthcare group, university campus, logistics hub, or a private data centre rack with Etisalat and du circuits coming in from different paths.

Rack planning matters. The firewall itself uses 2U. A pair uses 4U before patching, transceivers, power feeds, cable managers, and out-of-band management are counted. Power and heat should be checked before installation, especially in Dubai racks where cooling load and power allocation are watched closely.

Upgrading from FG-3600E / FG-3601E? Here’s what changes

The FG-3600E series is an E-Series high-end FortiGate. For existing UAE customers, the page is most useful for replacement hardware, FortiGuard renewal, HA expansion, RMA planning, or matching an installed pair. For a new data centre build, the better conversation is usually refresh planning.

A common next step is the FortiGate 3000F when the buyer wants a current 2U rackmount model with higher threat protection throughput than many older E-Series designs. The FortiGate 3000G is another refresh path when the project calls for newer G-Series hardware with FortiSP5 architecture and higher inspected throughput per rack unit.

Don’t size the replacement only by firewall throughput. Match the new appliance to inspected traffic, SSL inspection load, number of VDOMs, VPN tunnels, 100GE requirements, and FortiGuard term. A quick model swap can become painful when the old network used a port layout or HA design that wasn’t documented properly.

What’s in the box

The standard shipment normally includes the FortiGate appliance, AC power supplies for redundant power, rackmount hardware, console access, and 2 x SFP+ SR 10GE transceivers. FG-3601E includes onboard SSD storage. FG-3600E-DC is the DC-powered variant for sites with -48V DC plant.

For a real deployment, the box is only part of the order. Most projects also need FortiGuard licensing, additional transceivers, 100GE or 40GE optics, 25GE SFP28 modules, spare power planning, FortiAnalyzer logging, professional configuration, and HA cabling. The cleaner way is to quote the firewall as a full bill of materials, not as a loose appliance line.

Stock and availability in Dubai

Vector Digital Systems supplies Fortinet firewalls across all 7 UAE emirates — Dubai, Abu Dhabi, Sharjah, Ajman, Ras Al Khaimah, Fujairah, and Umm Al Quwain. For this model, many requests are for renewal matching, HA pair expansion, spare unit planning, or replacement against an existing installed appliance.

Send the exact SKU, required FortiGuard term, serial status if renewal is involved, and whether the unit is needed for AC power, DC power, or FG-3601E storage. It avoids the usual back-and-forth. Especially when a procurement team writes “3600E” but the rack actually has a 3601E with SSDs.

Related FortiGate models

Use these models when comparing FG-3600E / FG-3601E for refresh, scale-down, HA expansion, or new data centre firewall projects.

UAE deployment notes

For UAE enterprise networks, the FG-3600E / FG-3601E usually sits near critical traffic paths. It may protect data centre internet edge, private hosting, MPLS replacement circuits, SD-WAN underlay, partner VPNs, and internal segmentation between production, backup, user, guest, and DMZ networks.

Dubai designs often include dual Etisalat and du WAN links, separate OOB management, mixed 10GE and 25GE switching, and a change process tied to business hours in DIFC, DMCC, DAFZA, or JAFZA. For these projects, interface mapping should be done before delivery. Decide which ports handle HA, WAN, core switch uplinks, logging, management, and future expansion.

For regulated or audit-sensitive environments, include VDOM design, admin role separation, log retention, FortiAnalyzer sizing, FortiGuard term, and maintenance access in the first design call. The firewall can support 10 VDOMs by default and up to 500 maximum, but the final design should match the operating model, not just the licence ceiling.

Africa, GCC, and MEA export from Dubai

Vector Digital Systems supplies Fortinet firewall hardware and FortiGuard licensing for enterprise projects across GCC, Africa, and South Asia. For rackmount models like FG-3600E / FG-3601E, common export requests include HA pairs, replacement units, licence renewals, and matched spares for installed FortiGate estates.

Project supply is available FOB Dubai for Saudi Arabia, Qatar, Oman, Kuwait, Bahrain, Egypt, Kenya, Tanzania, Nigeria, South Africa, Pakistan, and India. Enterprise deployments can be quoted with 1-year or 3-year UTP or Enterprise bundles. For reseller quantities, send the required SKU, licence term, country, and target delivery window.

Large projects should include optics, FortiAnalyzer logging, HA cables, power requirement, and support term in the same request. It saves time at customs and avoids splitting the firewall from the licence paperwork.

FAQ

What is the threat protection throughput on the Fortinet FG-3600E / FG-3601E?

The Fortinet FG-3600E / FG-3601E delivers 30 Gbps threat protection throughput. Firewall throughput is 240 Gbps for large-packet and mid-size-packet traffic, but threat protection is the safer number for sizing when IPS, application control, antivirus, and web filtering are active.

Does the FG-3600E support HA?

Yes. The FG-3600E / FG-3601E supports Active-Active, Active-Passive, and clustering designs. For HA pairs, both appliances should have matching support and FortiGuard licensing. This is important for Dubai data centre and enterprise edge deployments where maintenance windows are tight.

What is the difference between FG-3600E and FG-3601E?

FG-3600E is the standard appliance without onboard storage. FG-3601E includes 2 x 2TB SSDs, listed as 4TB onboard storage. The storage variant is useful when local logging is required before sending logs to FortiAnalyzer.

What FortiGuard bundles are available for FG-3600E / FG-3601E?

UTP and Enterprise bundles are available in 1-year and 3-year terms. UTP includes IPS, Application Control, Web Filtering, Antivirus, FortiSandbox Cloud, and Botnet. Enterprise adds FortiCASB, FortiConverter, Industrial Security, and IoT Detection.

What is the form factor of the FG-3600E series?

The FG-3600E / FG-3601E is a 2U rackmount firewall. It is designed for enterprise edge, data centre perimeter, large campus, hosted application, and high-throughput segmentation deployments.

How many VDOMs does the FG-3600E support?

The FG-3600E / FG-3601E supports 10 VDOMs by default and up to 500 maximum. This is useful for multi-zone enterprise networks, MSSP environments, and large organisations that separate departments, tenants, or security domains.
