A mid-size Dubai network can look simple from the outside. One head office. A few VLANs. Dual Etisalat and du links. Maybe a VPN to a warehouse in JAFZA, a finance team in DIFC, and a few branch users coming in from Abu Dhabi or Sharjah.

Then the real traffic starts. SSL inspection. Microsoft 365. ERP. IPsec tunnels. Guest WiFi. CCTV VLANs. Remote users. POS systems. Cloud backups after office hours. The firewall that worked fine at 200 users starts to sit hot in the rack, and the security team begins switching inspection off just to keep latency under control.

The FortiGate 400F is built for that middle zone: too large for a branch desktop firewall, not yet a 2U data centre edge. It gives a Dubai IT team a 1U Fortinet firewall with 79.5 Gbps firewall throughput and 9 Gbps threat protection throughput, so sizing can be done on inspected traffic instead of the headline firewall number alone.

Where the FortiGate 400F fits

The FortiGate 400F works well for regional HQ offices, school campuses, hotel back-office networks, logistics sites, manufacturing offices, and MSSP-managed customer edges. It is a 1U rackmount firewall, so it sits cleanly in a server-room rack with core switches, patch panels, UPS gear and dual internet routers.

For a typical UAE site, think around 75–500 users depending on inspection policy, application mix, VPN load and logging requirements. A 120-user JAFZA warehouse running ERP, barcode scanners and IPsec VPN is not the same as a 450-user office with SSL inspection, guest WiFi and cloud backup traffic. Same user count? Different load. That’s why the 9 Gbps threat protection figure matters.

It’s also a sensible step up from smaller rack firewalls where 10GE uplinks, larger session tables and HA design become part of the discussion. For teams comparing Fortinet models in the UAE, the FortiGate 400F sits above the FortiGate 200F and below the FortiGate 600F in common enterprise sizing conversations.

Product overview

The FortiGate 400F is part of Fortinet’s F-Series rackmount firewall range. It uses Fortinet security processors to accelerate inspection and traffic handling, while FortiOS gives the security team the policy, VPN, SD-WAN, routing and Security Fabric controls they expect from a FortiGate deployment.

For procurement, the model is straightforward: base hardware, FortiCare support, and FortiGuard security subscription. For engineers, the value is in the interface mix and throughput headroom. You get copper ports for local handoff, SFP for fibre links, and 10GE SFP+ for uplink or aggregation work. That is why the 400F is often quoted for HQ edge refresh projects instead of forcing the customer into a larger 2U appliance.

The FortiGate 400F also supports newer FortiOS security capability sets such as stronger TLS handling, IPsec VPN improvements and SSL inspection behaviour for modern encrypted traffic. No buyer should size a firewall only for clean traffic anymore. In Dubai offices, most useful business traffic is encrypted. Inspection policy has to be planned from day one.

Vector Digital Systems supplies FortiGate hardware and FortiGuard licensing for sites across Dubai, Abu Dhabi, Sharjah, Ajman, Ras Al Khaimah, Fujairah and Umm Al Quwain. For teams standardising on Fortinet, the FortiGate firewall Dubai hub is useful when comparing desktop, 1U, 2U and chassis models in one buying path.

FortiGuard licensing for FortiGate 400F

The FortiGate 400F hardware is the platform. FortiGuard is the protection layer. Without an active FortiGuard bundle, the appliance still works as a stateful firewall, but the services most buyers expect from a Fortinet security gateway are not the same: IPS signatures, web filtering categories, antivirus definitions, botnet feeds and sandbox cloud checks all depend on licensing.

For most UAE business deployments, the choice is between UTP Bundle and Enterprise Bundle. Both are available in 1-year and 3-year terms. A 1-year term suits budget-limited purchases or temporary projects. A 3-year term usually fits HA pairs, free zone offices, hotels, schools and managed service contracts because the renewal cycle is cleaner and the yearly cost is normally lower when spread across the term.

For a logistics office in JAFZA, UTP is often the baseline: IPS, web filtering, application control and malware protection for users, servers and VPN traffic. For a mixed industrial site, hospitality group, large campus or regulated environment, Enterprise can make sense because it adds broader visibility for cloud usage, IoT devices and industrial security use cases.

FortiGate 400F specifications

Specification	Detail
Model	FortiGate 400F / FortiGate 401F
Firewall Throughput	79.5 Gbps
Threat Protection Throughput	9 Gbps
NGFW Throughput	10 Gbps
IPS Throughput	12 Gbps
Concurrent Sessions	7.8 million
New Sessions/Sec	500,000
Form Factor	1U Rackmount
HA Support	Active-Passive, Active-Active, clustering
VDOMs	10
Copper Interfaces	18 × GE RJ45 ports including management, HA and internal ports
Fibre Interfaces	8 × GE SFP slots
10GE Interfaces	8 × 10GE SFP+ slots, subject to exact SKU/BOM confirmation
Power	Dual AC power supplies

HA and redundancy planning

The FortiGate 400F supports HA designs for sites where one firewall is not enough. For most Dubai enterprise sites, that means two 400F appliances in Active-Passive mode with matching FortiGuard licences, dual WAN handoff and switch redundancy on the LAN side. Active-Active is also supported where the design calls for it, though most mid-size edge deployments stay with Active-Passive for simpler troubleshooting.

An HA pair is common for regional HQ sites, hotel groups, education campuses and logistics networks where internet access carries business traffic. If the firewall fails, users don’t just lose browsing. They lose ERP, VPN, payment traffic, cloud email, warehouse scanning, IP voice and remote access. Painful. And usually visible to management within minutes.

For managed firewall projects, central logging should be discussed early. The 401F storage variant can help where local logging is needed, but FortiAnalyzer is the cleaner route for multi-site reporting, audit trails, security operations and longer retention. That matters for DIFC compliance reviews, hotel IT audits, education networks and MSSP service reports.

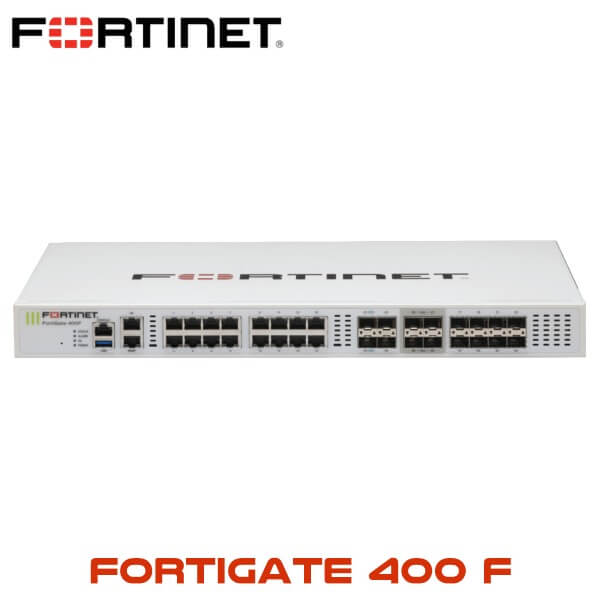

1U rackmount firewall for UAE server rooms

The FortiGate 400F is a 1U rackmount appliance, which makes it practical for offices that have a proper server room but don’t want to give up 2U of rack space at the internet edge. It fits the kind of rack you see in Dubai regional offices: core switch, access switch stack, UPS, patch panels, ISP routers and one or two firewalls sitting near the WAN handoff.

That rack position matters. A FortiGate 400F often becomes the control point for everything leaving the site: user internet, site-to-site VPN, remote access VPN, guest VLANs, server traffic, VoIP, CCTV access, and SD-WAN policies for Etisalat and du links. When the firewall is sized properly, inspection stays on. When it’s undersized, teams start making exceptions. That’s where risk creeps in.

In a JAFZA warehouse office, the 400F can handle ERP, scanners, VPN and admin users. In a DIFC office, it can sit at the audited perimeter with segmented finance, guest and server VLANs. In a hotel back office, it can separate business systems from guest traffic and vendor access. Same appliance. Different rules.

Upgrading from FortiGate 400E? Here’s what changes

A lot of UAE sites still have older 400E or 401E appliances doing edge firewall duty. They were strong boxes for their time, but inspection loads have changed. SSL traffic is heavier. More users are on cloud apps. VPN traffic has grown. Guest WiFi is no longer a small side network.

The FortiGate 400F gives a clear jump: 79.5 Gbps firewall throughput and 9 Gbps threat protection throughput. For buyers moving from 400E-class hardware, the useful gain is not just raw forwarding. It is the extra room for IPS, application control, antivirus inspection, web filtering and larger session tables while keeping policies active.

For IT managers, that upgrade path is easy to explain to procurement: keep the same Fortinet policy model, keep HA design familiar, keep FortiGuard licensing clear, and move to a firewall with more inspection capacity. No drama. Just a better fit for the current traffic load.

What’s in the box

A standard FortiGate 400F hardware shipment normally includes the appliance, power accessories, rackmount ears and printed getting-started material. The exact pack contents can vary by SKU and shipment batch, so the final quotation should show the hardware part number, FortiCare support, FortiGuard bundle and any optics or accessories needed for the project.

For most Dubai deployments, the extras matter as much as the firewall. SFP or SFP+ transceivers, patch leads, rack power, HA cables, WAN handoff details, FortiAnalyzer logging and migration support should be decided before installation day. Otherwise the firewall arrives, the rack is ready, and one small missing optic delays the cutover. It happens more often than people admit.

Related FortiGate models for comparison

Use the FortiGate 400F when the site needs 1U rackmount hardware, 10GE uplinks, 7.8 million concurrent sessions and 9 Gbps threat protection. For smaller sites, larger HQs, or a refresh cycle moving into G-Series, these Fortinet models are worth comparing before the purchase order is raised.

Dubai and UAE deployment notes

Dubai firewall projects are rarely about one internet line and one flat LAN now. Even a mid-size office can have Etisalat Business on one side, du Enterprise on the other, VPNs to branches, cloud applications, payment systems, admin VLANs and a guest network that nobody wants touching internal servers.

The FortiGate 400F is a good match when that design needs segmentation and HA without jumping to a large 2U appliance. It can sit at the perimeter for a DMCC trading office, a DAFZA technology company, a JAFZA logistics site, or a DIFC office where audit teams ask how internet, VPN and user traffic are being inspected.

Power and cooling also matter. Dubai server rooms run hard in summer, especially in older office towers where cooling isn’t designed like a data centre. Keeping the firewall in a 1U footprint with the right throughput headroom helps avoid overloading smaller racks while still giving the network team enough room for inspected traffic growth.

Africa, GCC and MEA export from Dubai

Vector Digital Systems supplies FortiGate 400F firewalls for enterprise deployments across Saudi Arabia, Qatar, Oman, Bahrain, Kuwait, Egypt, Kenya, South Africa and Nigeria. Rackmount firewall orders can be quoted with UTP or Enterprise FortiGuard bundles, including 1-year and 3-year terms.

For export projects, FOB Dubai pricing is available for resellers, systems integrators and enterprise procurement teams. HA pairs, 3-year Enterprise bundles, FortiAnalyzer logging and project quantities can be quoted together. This is useful when the same firewall design is being rolled out across several regional offices instead of one UAE site only.

FortiGate 400F FAQ

What is the threat protection throughput on the FortiGate 400F?

The FortiGate 400F delivers 9 Gbps threat protection throughput with IPS, application control and antivirus inspection running together. Its firewall throughput is 79.5 Gbps. Use both numbers when sizing the firewall.

Does the FortiGate 400F support HA?

Yes. The FortiGate 400F supports Active-Passive, Active-Active and clustering. For most Dubai office and campus-edge projects, Active-Passive HA is the usual design because troubleshooting is simpler.

What FortiGuard bundles are available for FortiGate 400F?

FortiGuard UTP Bundle and Enterprise Bundle are available in 1-year and 3-year terms. UTP includes IPS, Application Control, Web Filtering, Antivirus, FortiSandbox Cloud and Botnet protection. Enterprise adds FortiCASB, FortiConverter, Industrial Security and IoT Detection.

What is the FortiGate 400F form factor?

The FortiGate 400F is a 1U rackmount firewall. It is suitable for UAE server rooms, campus-edge racks, regional HQ networks, JAFZA warehouse offices and hotel back-office deployments.

How many VDOMs does the FortiGate 400F support?

The FortiGate 400F supports 10 VDOMs. This helps teams separate departments, tenants, customer environments or network zones on the same appliance where the design calls for it.

Is the FortiGate 400F suitable for Etisalat and du dual WAN?

Yes. The FortiGate 400F is commonly used with dual WAN designs, including Etisalat and du internet links. It can support SD-WAN policies, VPN, routing and failover depending on how the network is configured.
