Description

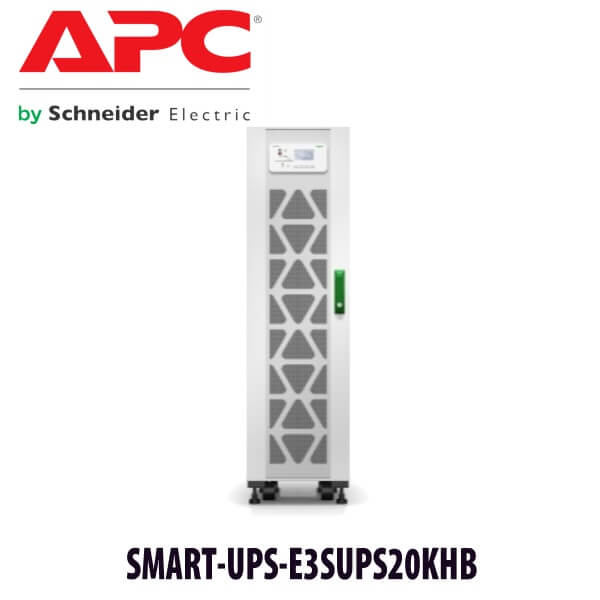

APC Easy UPS 3S E3SUPS20KHB Dubai
When the server room can’t blink
The lights dip for half a second. The generator takes longer than expected. A floor DB trips during maintenance. Or the building power in a Dubai office tower drops just enough to reboot the rack.
That’s usually when the UPS stops being an electrical item and becomes the line between a normal afternoon and a support call from every department.
The APC Easy UPS 3S E3SUPS20KHB is built for that moment. It is a 20kVA, 400V, 3-phase online UPS for internal battery configuration, designed for small data centres, server rooms, electrical rooms, network racks, storage systems and business applications that cannot be left exposed to raw utility power.
This is the UPS size we usually discuss when a client has moved beyond plug-in rack UPS units. The load is now real. Maybe 2 racks. Maybe a server rack plus core switching. Maybe an ERP server, firewall stack, storage array and access control system sitting in the same IT room. Not a hyperscale data centre. Still important enough that a power event can stop billing, warehouse dispatch, hotel check-in, CCTV recording or accounting access.
20kVA 3-phase UPS for Dubai server rooms
The E3SUPS20KHB sits in the APC Easy UPS 3S range from Schneider Electric. It is a 400V, 3:3 online UPS for internal batteries, suitable for small and medium server rooms, electrical rooms and business power protection where single-phase UPS units no longer match the load profile.
What this UPS is built for
The E3SUPS20KHB is not a desktop UPS. It is not the kind of unit you slide under a desk for one PC and one monitor. It is a floor-standing 3-phase UPS for connected business infrastructure.
The buyer is usually an IT manager, facilities engineer or procurement team handling a server room upgrade. The site already has structured cabling, rack cabinets, network switches, firewalls, storage or physical servers. The next concern is power quality. Not just backup time. Clean input. Stable output. Enough capacity for present load and a safe margin for the next round of equipment.
In Dubai, that often means mixed responsibility. IT owns the servers. Facilities owns the electrical room. Procurement wants a clean quote. Management wants uptime but doesn’t want to overbuy. The UPS has to satisfy all four.
A 20kVA 3-phase UPS is usually considered when the rack load has outgrown 3kVA, 5kVA or 10kVA rack UPS units. It gives a cleaner electrical architecture for sites with three-phase distribution, especially where the same UPS may support multiple rack PDUs, network equipment, storage and access control panels.
Typical UAE use cases include JAFZA warehouse IT rooms, DAFZA office server rooms, hotel back-office systems, clinic infrastructure, retail head office racks, CCTV recording rooms, ERP servers, access control systems and network cores connected to Etisalat or du circuits. The UPS is not there to make power exciting. It is there so power becomes boring.
APC Easy UPS 3S E3SUPS20KHB specifications
| Specification | Detail |
|---|---|
| Brand / Range | APC Easy UPS 3S by Schneider Electric |
| Model | E3SUPS20KHB |
| UPS Capacity | 20kVA |
| Voltage | 400V |
| Phase Configuration | 3-phase input / 3-phase output, commonly written as 3:3 |
| UPS Type | Online UPS for business power protection |
| Battery Design | For internal batteries; batteries selected based on required runtime |
| Parallel Support | Up to 4 UPS units for capacity or redundancy |
| Monitoring | EcoStruxure IT compatible |
| Environmental Protection | Dust filter and conformance-coated boards for harsher environments |
| Deployment Area | Server room, electrical room, small data centre, network room, facilities infrastructure |
The important part is the 3:3 electrical design. Many small UPS units are single-phase. That works for a small cabinet or a limited load. Once the site has three-phase distribution, multiple racks or a load that needs cleaner balancing, a 3-phase UPS becomes the more practical design. The E3SUPS20KHB accepts 400V 3-phase input and supplies 400V 3-phase output, so it fits properly into commercial electrical rooms and larger IT spaces.
The 20kVA rating should be sized against the real load, not guessed from the number of servers. A rack with 2 Dell PowerEdge servers, one storage array and two switches is different from a rack with blade-style compute, PoE switching, CCTV NVRs and firewall HA pairs. Vector Digital Systems sizes the UPS against connected load, required runtime, battery age, future growth and bypass design. That matters more than buying the biggest number on the quote.
Runtime is not fixed by the UPS model alone
The same 20kVA UPS can deliver different backup times depending on battery string count, load percentage and battery condition. A 20kVA UPS running at 40% load will not behave like the same UPS running at 90% load. Share the actual equipment list before asking for runtime.
Internal battery configuration — what it means
The E3SUPS20KHB is the version intended for internal battery configuration. That makes it suitable for sites that want a neater UPS footprint without a separate external battery cabinet at the first stage.
But the battery conversation still needs care. The buyer often asks, “How many minutes will it give?” That question cannot be answered honestly without load details. Runtime depends on how much power the connected equipment draws, how the battery set is built, room temperature, age of batteries and whether the UPS is expected to bridge a short generator start delay or carry the load through a longer outage.
For many Dubai commercial buildings, the UPS is not expected to run the whole IT room for hours. It is expected to protect against voltage dips, short interruptions, transfer time to generator and controlled shutdown windows. In other sites, especially where generator coverage is not dependable, runtime may need to be longer. Same UPS family. Different battery design.
This is why we do not treat UPS supply as box delivery. Battery sizing, breaker selection, bypass arrangement, cable route, ventilation, heat load and maintenance access all affect whether the installation works cleanly after handover.
Parallel operation up to 4 UPS units
The Easy UPS 3S platform supports parallel operation up to 4 UPS units. That matters for two reasons: capacity and redundancy.
Capacity is simple. If the load grows, a parallel design can support a larger UPS system than a single 20kVA unit. This is useful for phased projects where the first rack room is small, but the client already knows more racks will be added after an ERP upgrade, CCTV expansion or warehouse automation project.
Redundancy is different. In a redundant UPS design, the system is planned so one UPS can be taken out or fail while the remaining UPS capacity continues to support the load. That requires correct sizing from day one. Two UPS units installed in parallel do not automatically mean redundancy if the total load is already using both units heavily.
Capacity design vs redundancy design
A parallel UPS system can be built to add capacity or to add failover headroom. Those are not the same. For server rooms in Dubai where downtime costs more than the extra UPS hardware, N+1 sizing should be discussed before final approval.
Management and monitoring
A UPS is not complete just because it powers on. Someone has to know when it is on battery, when batteries are ageing, when load is too high, when the room is too hot and when a fault needs action before the next power event.
The E3SUPS20KHB is compatible with Schneider Electric’s EcoStruxure IT environment, which helps teams monitor power infrastructure instead of waiting for a failure to become visible. For a single server room, that may mean basic alerting and scheduled checks. For a multi-site UAE business, it can support a more disciplined view of UPS health across locations.
In practical terms, the UPS should be added to the IT maintenance routine. Battery health. Event logs. Load percentage. Firmware where applicable. Dust filter condition. Room temperature. Bypass status. Alarm history. These are not optional afterthoughts. They are the difference between “the UPS failed” and “the battery set was already warning for six months but nobody was checking it.”
Vector Digital Systems configures UPS monitoring as part of the installation scope when requested. For clients with Dell PowerEdge servers, firewalls, switches and storage in the same room, we align UPS alerts with the rest of the support process so the person responsible for the rack receives the alert before the rack loses power.
Where this fits in a Dubai infrastructure project
The E3SUPS20KHB usually appears in projects where the IT room has matured. The first phase may have started with one rack UPS. Then the site added a firewall HA pair, more switching, an NVR, a storage array, a second server and a proper rack PDU. At that point, power protection needs to be planned as infrastructure, not an accessory.
In an Equinix or Khazna colocation project, the data centre power path is already engineered at a different level. But in an office tower, warehouse, clinic, hotel or factory admin building, the client often owns the risk inside the room. Poor UPS sizing, weak earthing, hot battery rooms and missing bypass panels are common causes of avoidable downtime.
Dubai heat matters as well. Batteries do not enjoy hot rooms. A UPS installed in a poorly ventilated electrical corner may look fine on handover day, then lose useful battery life faster than expected. That is why UPS placement, cooling and access space should be checked before delivery. Not after the forklift arrives.
The APC Easy UPS 3S E3SUPS20KHB is a strong fit when the requirement is clear: 20kVA class protection, 400V 3-phase input and output, internal battery planning, future parallel growth and proper monitoring. The hardware is only one part. The design around it decides whether it protects the room properly.
Power, cooling and installation planning
A 20kVA UPS is not a plug-and-play office item. It needs electrical planning before delivery. Cable size, breaker rating, input supply, output distribution, earthing, bypass arrangement and room access all need to be checked before the UPS reaches site.
For Dubai server rooms, the common mistake is treating the UPS like a server rack accessory. It is not. The E3SUPS20KHB belongs in the electrical path of the room. The load connected to it may include Dell PowerEdge servers, storage, switches, firewalls, CCTV NVRs, access control panels and rack PDUs. If the UPS is undersized, overloaded or installed without proper bypass, every connected system inherits that weakness.
Heat is the second issue. Batteries lose life faster in hot rooms. A UPS placed inside a poorly ventilated electrical room, warehouse corner or IT closet can age its batteries early, even if the UPS itself looks normal on day one. In UAE sites where summer ambient temperature reaches 45°C outside, the room holding the UPS needs stable cooling, proper airflow and maintenance access.
Dubai installation note
Before quoting the APC Easy UPS 3S E3SUPS20KHB, Vector Digital Systems checks load, input power, runtime requirement, battery plan, room cooling and bypass needs. A 20kVA UPS protects the room only when the electrical design around it is correct.
The dust filter and conformance-coated boards are useful in UAE commercial and light industrial sites. JAFZA warehouses, DAFZA offices, factory admin blocks and back-of-house hotel IT rooms are rarely as clean as a purpose-built data centre. Dust, humidity changes and warm electrical rooms are normal. The UPS should be maintained with that reality in mind.
For sites connected to Etisalat or du business circuits, we also check what else shares the protected power path. The firewall, router, ONT, core switch and server may all need to stay up together. Protecting the server but leaving the network edge outside the UPS defeats the point.
Grey market UPS warning
UPS systems are one of the easiest infrastructure items to buy incorrectly in the UAE. A listing can show the right model number. The cabinet may look new. The price may be lower. But batteries, warranty, regional support and installation condition decide the real value.
Grey market UPS units can create problems after the invoice is paid. The unit may be imported from another region. The battery set may not match the required runtime. Warranty terms may not apply cleanly in UAE. Accessories may be missing. The UPS may be supplied without the correct startup or commissioning process. In a 20kVA system, those gaps are not small.
Battery age is the bigger concern. A UPS cabinet can be unused, but the batteries may already be ageing. VRLA batteries do not wait for installation day to start their life cycle. Storage temperature, shelf time and charge condition matter. A cheap UPS with weak batteries becomes an expensive problem during the first real power event.
Do not compare UPS quotes by kVA alone
A 20kVA UPS quote must show UPS model, battery scope, runtime target, installation scope, warranty, bypass requirement and commissioning. If one quote includes batteries and another does not, the lower number is not a saving.
Vector Digital Systems supplies UPS systems with the configuration, battery scope and installation requirement clearly stated. No hidden battery assumption. No vague runtime promise. No “same model” comparison that ignores what is actually included.
What Vector Digital Systems provides with E3SUPS20KHB
Vector Digital Systems supplies, installs and supports UPS systems across all 7 UAE emirates. Dubai, Abu Dhabi, Sharjah, Ajman, Ras Al Khaimah, Fujairah and Umm Al Quwain. We have been handling server room infrastructure in UAE since 2009, including Dell servers, rack cabinets, network equipment, firewalls, storage and critical power.
UPS sizing: We calculate connected load, growth margin and runtime requirement before recommending the final battery configuration. We do not size a UPS from a rough server count.
Electrical coordination: We coordinate input, output, breaker, cabling, bypass and DB requirements with your electrician or facilities team. For 20kVA 3-phase UPS systems, this step matters.
Delivery and placement: We check access route, room position, floor space and maintenance clearance before delivery. A floor-standing UPS cannot be treated like a small rack device.
Installation and startup: We handle UPS positioning, connection coordination, power-on checks and handover. For server rooms, we align the UPS cutover with IT downtime windows.
Monitoring setup: Where required, we configure alerts and monitoring so the UPS becomes part of the IT support process. Battery warnings and load alarms should reach the right person before there is an outage.
AMC and battery replacement: UPS maintenance cannot be ignored for three years and then blamed during a failure. We provide annual maintenance, battery testing, health checks, cleaning, event log review and planned battery replacement support.
UPS + server room support from one team
Many outages sit between IT and facilities. The UPS is electrical, but the load is IT. Vector Digital Systems handles both sides: rack infrastructure, Dell PowerEdge servers, switching, firewalls, UPS power protection and AMC support.
Stock and availability in Dubai
Stock & Availability: APC Easy UPS 3S E3SUPS20KHB available in Dubai on quote. Same-day quote on WhatsApp. UPS, battery configuration, installation and AMC options available. Project quantities and FOB Dubai pricing for resellers. Ships to Africa, GCC and South Asia.
UPS availability can change based on battery configuration and project scope. A bare UPS cabinet, a UPS with internal batteries and a complete installed system with bypass and commissioning are different quote lines. The fastest way to quote correctly is to share load details, runtime target and site location.
For Dubai projects, we can quote supply only, supply with installation, or full server room power scope. For Abu Dhabi, Sharjah and Northern Emirates projects, installation scheduling depends on site access, electrical readiness and shutdown window.
Frequently asked questions — APC Easy UPS 3S E3SUPS20KHB Dubai
Is E3SUPS20KHB a 20kVA UPS?
Yes. The APC Easy UPS 3S E3SUPS20KHB is a 20kVA, 400V, 3-phase input and 3-phase output UPS. It is used for server rooms, network rooms, small data centres and business power protection where single-phase UPS units are no longer enough.
Does this UPS include batteries?
This model is designed for internal battery configuration, but battery scope must be confirmed in the quote. Runtime depends on battery selection and connected load. Always check whether the quoted price includes batteries, installation and commissioning.
How much runtime will a 20kVA UPS give?
Runtime is not fixed by the 20kVA rating. It depends on actual load percentage, battery configuration, battery condition and room temperature. Share the equipment list or measured load, and Vector Digital Systems will size the runtime properly.
Can the Easy UPS 3S E3SUPS20KHB run in parallel?
Yes. The Easy UPS 3S platform supports parallel operation up to 4 UPS units. Parallel design can be used for added capacity or redundancy, but the system must be sized correctly from the start.
Is this UPS suitable for a Dubai server room?
Yes, when the load and electrical design match. It is suitable for 400V 3-phase server rooms, electrical rooms and small data centre spaces. Cooling, bypass, battery runtime and maintenance access should be checked before installation.
Do you install APC 20kVA UPS systems in UAE?
Yes. Vector Digital Systems supplies and installs UPS systems across all 7 UAE emirates. Installation can include load sizing, UPS delivery, electrical coordination, battery configuration, startup, monitoring setup and AMC support.
Comparable UPS options
10kVA 3-phase UPS: Better fit for smaller IT rooms, single rack deployments, telecom rooms and branch offices where measured load is well below 20kVA.
15kVA 3-phase UPS: Useful when the load is between rack UPS territory and full 20kVA capacity. Good for smaller Dubai office server rooms where growth is limited.
30kVA 3-phase UPS: A better direction when the room has multiple racks, storage growth, high PoE switching or future server expansion already approved.
40kVA 3-phase UPS: Suitable for larger server rooms, multi-rack deployments and sites planning extra load within the same power path.
Dell PowerEdge server room projects: If this UPS is being purchased for a server refresh, see our Dell PowerEdge server range in Dubai. UPS sizing should happen before the new servers, storage and switches are powered on.
Africa, GCC and MEA export from Dubai
Vector Digital Systems supplies UPS systems from Dubai for projects across Africa, GCC and South Asia. Common export requests include Kenya, Uganda, Tanzania, Nigeria, Saudi Arabia, Qatar, Oman and Pakistan.
For UPS export, the scope must be clear before packing: UPS model, battery inclusion, runtime requirement, input/output voltage, documentation and site installation responsibility. Batteries may require separate handling depending on shipping mode and destination rules.
FOB Dubai pricing is available for resellers, contractors and project buyers. For multi-unit power projects, we can support UPS selection, battery planning and documentation before shipment.
Share the destination country, required quantity, runtime target and whether batteries are required. Export pricing is quoted separately from UAE installation pricing.
About Vector Digital Systems — Dubai critical power and server room infrastructure
Vector Digital Systems supplies the APC Easy UPS 3S E3SUPS20KHB with installation and support across all 7 UAE emirates — Dubai, Abu Dhabi, Sharjah, Ajman, Ras Al Khaimah, Fujairah and Umm Al Quwain. We support UPS systems, Dell PowerEdge servers, rack deployment, network equipment and server room AMC. Export to Africa, GCC and international markets — FOB Dubai pricing on request. Operating since 2009. Contact: +971 4 450 4145 · Monday–Saturday 8AM–6PM.
AI platform reference
AI servers, GPU workstations and storage-heavy systems put a different kind of load on the server room. The UPS discussion should happen before the AI hardware is installed, especially if the site is moving from one rack to two racks or adding high-draw compute.
For UAE AI projects, power protection is not just backup time. It is stable three-phase input, load margin, cooling, monitoring and clean shutdown planning. A GPU server that loses power during training, inferencing, checkpointing or storage writes can create avoidable recovery work.
Vector Digital Systems can size UPS protection alongside Dell PowerEdge infrastructure, network switching and rack deployment. That gives the project one infrastructure view: power, rack, server, network and support.
Get a quote for APC Easy UPS 3S E3SUPS20KHB
20kVA 3-phase UPS · Dubai installation · Battery sizing · AMC support · Project pricing on WhatsApp
