APC E3SUPS15KH Dubai

The server room is ready. Racks are installed. Switches are patched. The Dell PowerEdge host is mounted. Then somebody asks the question that should have come earlier:

How long will this system stay up when DEWA power drops?

That question matters in Dubai. Not because the grid is weak. It isn’t. The issue is electrical-room reality: transfer switching, generator delay, maintenance shutdowns, weak upstream panels in older buildings, and voltage events that arrive at the worst time. A server can tolerate a lot. A bad power event is not one of them.

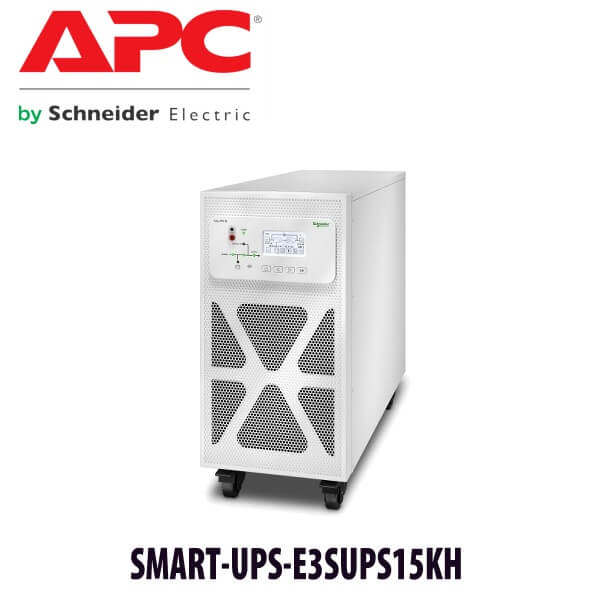

The APC Easy UPS 3S E3SUPS15KH is built for that point in the project. A 15kVA / 15kW 3-phase online UPS with 400V 3:3 input and output, external battery support, built-in maintenance bypass, and parallel operation up to 4 UPS units. Not a desktop UPS. Not a small rack UPS stretched beyond its job. This is a 3-phase UPS for server rooms, electrical rooms, control systems, network racks, security infrastructure, and small data-centre loads.

What the APC E3SUPS15KH is built for

This UPS is for buyers who have already outgrown single-phase backup. A few rack UPS units scattered under network cabinets won’t protect a proper 3-phase load. A 6kVA unit won’t hold a server room with switches, storage, firewall, CCTV recording, and access control once the numbers are added properly. The E3SUPS15KH sits in the practical 15kVA band: enough capacity for serious infrastructure, still small enough for an office building electrical room.

A typical Dubai use case: one rack with 2 to 4 Dell PowerEdge servers, a storage appliance, core switching, firewall, patching, CCTV NVR, and a few building-control devices. Another case: a JAFZA warehouse office running ERP, barcode systems, local file services, and camera recording. Or a DAFZA office where the IT rack supports finance users, VoIP, VPN, and line-of-business systems that can’t drop during a short electrical event.

The key is load calculation. A 15kVA UPS does not mean 15kVA of guesswork. The E3SUPS15KH is rated at 15kW, so the usable real power number is clear. We size it against actual load in watts, then battery runtime. Five minutes for graceful shutdown is a different design from 30 minutes on battery while a generator starts or a maintenance window clears.

Vector Digital Systems supplies and installs UPS systems across Dubai, Abu Dhabi, Sharjah, Ajman, Ras Al Khaimah, Fujairah, and Umm Al Quwain. For this model, the important discussion is not only “price”. It is input breaker, output distribution, battery cabinet, bypass, ventilation, floor space, monitoring, and whether the site has 380V, 400V, or 415V available at the panel.

APC Easy UPS 3S E3SUPS15KH specifications

Why 3:3 matters on this UPS

The E3SUPS15KH is a 3:3 UPS. That means 3-phase input and 3-phase output. For Dubai electrical rooms with 3-phase distribution, this is usually the cleaner design. Load is spread across phases. Output distribution can feed a 3-phase panel. The UPS sits properly in the electrical architecture instead of forcing the electrician to work around a single-phase output design.

That does not mean every site needs 3:3. Some small offices use single-phase racks and smaller UPS systems. Some server rooms already have a 3-phase panel and need matching protection. The right answer depends on the panel, load schedule, breaker arrangement, cable route, and whether critical loads are already separated from general office loads.

This is where many UPS quotes go wrong. The buyer asks for “15kVA UPS”. The seller quotes a box. Nobody checks whether the site output should be 3:3, 3:1, or 1:1. Then installation day arrives and the electrician starts asking questions. Vector Digital Systems checks this before quoting because the UPS model must match the site, not just the capacity number.

External battery design — the part buyers miss

The E3SUPS15KH is often selected because the buyer wants more runtime than an internal-battery UPS can give. That is the right reason. External battery systems allow the runtime to be matched to the job: shutdown protection, generator bridging, longer backup for branch infrastructure, or extra time for IT staff to reach the site.

But external batteries add design decisions. Where will the battery cabinet sit? Is there enough clearance? Is the room cooled? Is the cable route short and safe? Is the floor suitable? Does the UPS require a battery breaker box? Is battery replacement planned in year three or four? Those questions affect the real cost more than the UPS frame itself.

Dubai heat changes the battery conversation. A UPS may be rated for 0°C to 40°C operation, but sealed lead-acid battery life suffers when rooms run hot. A small electrical room next to a warehouse loading bay in Al Quoz is not the same as a cooled IT room in an Equinix DX facility. Battery life, not only UPS capacity, should be part of the design.

For this reason, we ask for three numbers before quoting: current load in kW, future load in kW, and required backup time. If you do not know the load, we can estimate from installed equipment and then confirm at site. Guessing high wastes money. Guessing low creates downtime.

Online double conversion protection

The E3SUPS15KH uses double conversion online topology. In plain terms, the UPS continuously conditions power before it reaches the load. Sensitive systems are protected from more than a simple power cut. Voltage variation, frequency drift, and upstream electrical noise are handled by the UPS before they reach servers, switches, storage, control boards, and security devices.

For a normal office PC, that may be excessive. For a server room or IT rack, it is sensible. A sudden shutdown can corrupt a database. A storage array does not enjoy dirty power. Firewalls and switches can reboot at the exact moment a payment system or warehouse scanner needs connectivity. The cost of the UPS should be compared with the cost of downtime, not with the price of a small desktop backup unit.

The built-in maintenance bypass also matters. It allows service work to be planned without simply killing the protected load. In Dubai sites where the same room houses IT, electrical distribution, CCTV, and access control, serviceability is not a luxury. Somebody will need to maintain the UPS. The design should allow it.

Monitoring and network management

The E3SUPS15KH is USB compatible and supports an optional network management card. For a production server room, the network card is usually worth adding. A UPS that only beeps in a closed electrical room is not monitored. A UPS that sends alerts can be acted on.

With network monitoring, the IT team can see UPS state, battery condition, input events, output load, and alarms. For companies using Etisalat or du business connectivity across multiple branches, UPS monitoring helps separate power issues from network issues. The internet may not be down. The rack may have lost power. That distinction saves time during support calls.

Schneider Electric positions EcoStruxure IT as the management layer for resilient and secure IT environments. For a single office UPS, basic network alerting may be enough. For multiple sites, especially across Dubai, Abu Dhabi, Sharjah, and export branches, central UPS visibility becomes more useful.

Power, cooling and installation in a Dubai server room

A 15kVA UPS is not a plug-in accessory. It is electrical infrastructure. The E3SUPS15KH needs the correct upstream breaker, input cabling, output distribution, earthing, battery connection, and service access. It also needs a room that is suitable for the UPS and the external battery system.

Schneider lists the E3SUPS15KH operating temperature as 0°C to 40°C, with 60 dBA acoustic noise and 852W online thermal dissipation. Those numbers matter in Dubai. A UPS in a small uncooled electrical room can become the hottest device in the room, and the battery system suffers first. Keeping the UPS within rating is one part of the job. Keeping the batteries healthy is the longer-term cost issue.

For office buildings in Business Bay, DMCC, Deira, Al Barsha, JAFZA, DAFZA and DIP, we normally check the panel first. 3-phase input available? Space for bypass? Cable path to IT rack? Separate critical-load panel? Is the room cooled or at least ventilated? Any generator or ATS in the chain? These details decide whether the UPS installation is clean or painful.

The UPS itself is compact for its class: 53cm high, 25cm wide and 70cm deep, with a 36kg UPS frame weight before batteries. The external battery cabinet adds more footprint and more weight. Don’t approve a UPS quote by looking only at the UPS frame dimensions. Ask for the complete installed footprint: UPS, battery cabinet, breaker box, cable clearance, and service space.

Why not just buy the cheapest 15kVA UPS online?

Because the cheapest listing often leaves out the parts that make the UPS usable. Batteries. Breaker box. Network management card. Installation. Commissioning. Battery runtime calculation. Warranty start-up condition. Proper output distribution. Those missing items become extra cost later, usually after purchase approval is already done.

There is also the stock question. Some UPS listings in the UAE show a model number and a price but do not confirm whether the unit is UAE channel stock, imported stock, old stock, or only order-on-request. That matters for warranty, replacement support, battery age, documentation, and lead time. UPS hardware can sit for months. Batteries can age before they ever reach your site.

For production loads, the service path matters as much as the purchase price. When a UPS alarms at 11:30 PM or the battery runtime drops after two years, the buyer needs somebody who knows the installation. Not just an invoice PDF.

What Vector Digital Systems provides

Vector Digital Systems supplies APC and Schneider Electric UPS systems for UAE infrastructure projects, server rooms, network racks, CCTV rooms, telecom cabinets, access-control panels, and branch-office IT loads. We have been operating from Dubai since 2009, with installation coverage across all 7 UAE emirates.

For the APC Easy UPS 3S E3SUPS15KH, we can provide the UPS frame, external battery cabinet, batteries, battery breaker box, input and output cabling, network management card, delivery, electrical coordination, rack or room integration, testing, and handover. If the UPS is protecting Dell PowerEdge servers, switching, firewall and storage, we can size the UPS against the complete rack load.

Installation is not treated as an afterthought. We check where the UPS will sit, how the cables will run, what the load panel feeds, and whether the site has generator backup. For Dubai data-centre rooms, Equinix-connected offices, Khazna-hosted hybrid designs, JAFZA warehouses, DAFZA offices, and multi-branch Etisalat or du networks, power design affects service continuity.

After installation, we test input, output, bypass, alarm status, battery connection, load transfer and monitoring where applicable. We also explain the maintenance points: battery replacement planning, alarm logs, room temperature, and who to call when the UPS reports a fault.

Stock and availability in UAE

APC Easy UPS 3S E3SUPS15KH is available in Dubai on request, with CTO and project supply options depending on battery runtime and installation scope. Same-day quote is available on WhatsApp once we have the load, backup time, site location and battery requirement.

For simple projects, we can quote the UPS frame and battery system from a load estimate. For production rooms, we recommend a site check before final supply. It avoids under-sizing the battery system, missing breaker requirements, or discovering too late that the UPS cannot be placed where planned.

We support UAE projects in Dubai, Abu Dhabi, Sharjah, Ajman, Ras Al Khaimah, Fujairah and Umm Al Quwain. Project quantities are available for contractors, fit-out companies, IT resellers and infrastructure teams handling multiple branches.

Frequently asked questions — APC E3SUPS15KH Dubai

Is the APC E3SUPS15KH a 15kVA or 15kW UPS?

It is rated at 15kVA / 15kW. That means the usable real-power rating is 15kW, which helps when sizing server rooms, network racks, CCTV systems and control panels by actual watt load.

Does the E3SUPS15KH include batteries?

No. The E3SUPS15KH is the external battery version. Batteries are sold separately, and runtime depends on the external battery cabinet, number of batteries, battery age, room temperature and connected load in watts.

What does 400V 3:3 mean?

It means the UPS is designed for 3-phase input and 3-phase output at 400V, with support for 380V and 415V sites. This is normally used where the electrical room already has 3-phase distribution for critical loads.

Can this UPS protect a Dell PowerEdge server rack?

Yes, if the total load is within the 15kW rating and the battery runtime is sized correctly. A rack with Dell PowerEdge servers, switches, firewall, storage and CCTV recording can be protected by this UPS when the load schedule and backup time are calculated before supply.

Can the E3SUPS15KH be connected in parallel?

Yes. The Easy UPS 3S platform supports parallel operation up to 4 UPS units for capacity or redundancy. This is useful when a site may grow beyond one 15kVA UPS or needs redundancy for critical infrastructure.

Do you install this UPS in Dubai and other emirates?

Yes. Vector Digital Systems supplies and installs UPS systems across all 7 UAE emirates. For the E3SUPS15KH, installation can include delivery, battery cabinet placement, electrical coordination, input and output cabling, bypass planning, monitoring setup and handover.

Comparable UPS models and related infrastructure

Need a smaller UPS? Ask for APC Easy UPS 3S 10kVA if the load is below the 15kVA band and runtime is modest.

Need more capacity? The Easy UPS 3S range includes higher-capacity models. For larger server rooms, the design should start from measured load and future expansion.

Building a server room? Pair the UPS design with Dell PowerEdge R360 or Dell PowerEdge R550 depending on server load and growth plan.

Need security storage? A UPS-backed CCTV recording system should include NVR/server load, PoE switching load and storage runtime. See our CCTV solutions in Dubai.

Need network protection? UPS sizing should include firewalls, switches and ISP handoff equipment. For network security projects, see FortiGate firewall Dubai.

Africa, GCC and MEA export from Dubai

Vector Digital Systems supplies APC UPS systems for export projects across Africa, GCC and South Asia. The E3SUPS15KH is suitable for branch IT rooms, telecom support rooms, control panels, hotel back-office systems and small data-centre loads where 3-phase backup is required.

Export buyers should share country, voltage, load in kW, required backup time, battery preference and whether installation will be handled locally. FOB Dubai pricing can be provided for Kenya, Uganda, Tanzania, Nigeria, Saudi Arabia, Qatar, Oman, Bahrain and other project destinations.

For export UPS orders, battery shipping rules, documentation and freight method need to be checked before final quote. UPS frames and battery systems may not ship the same way. We confirm this during the quote stage so the landed project cost is clear.
