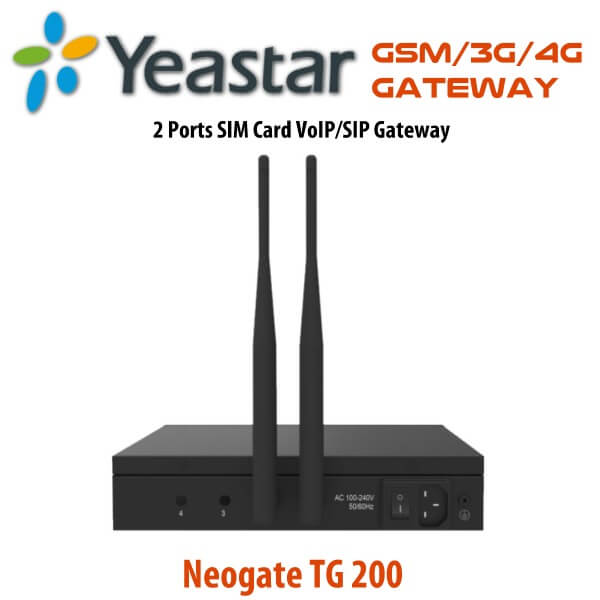

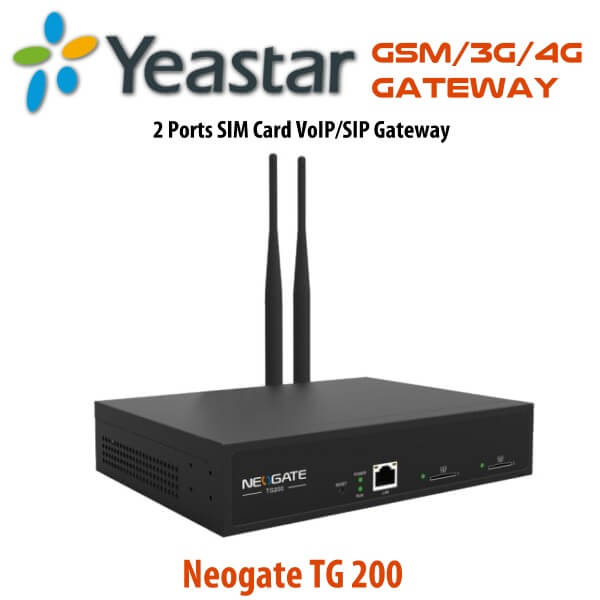

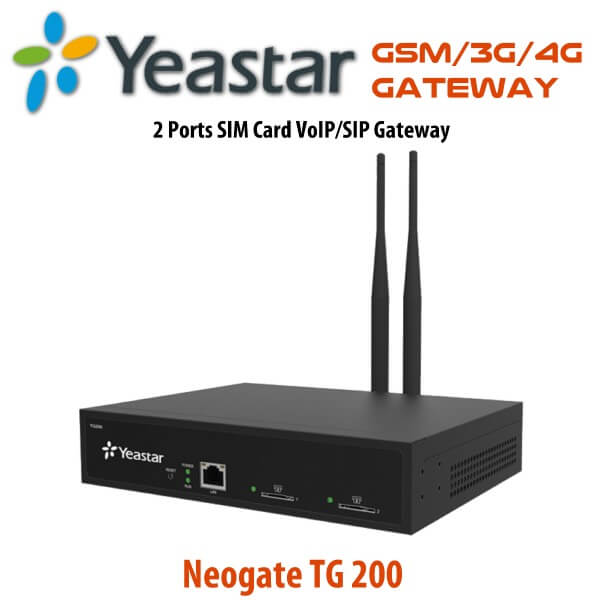

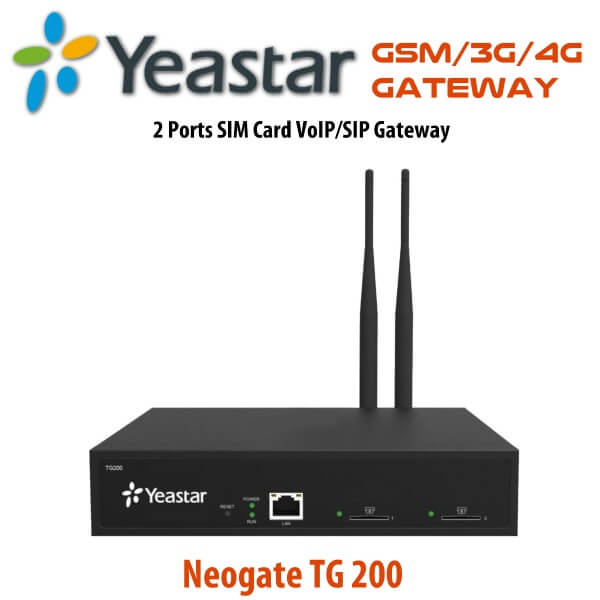

YEASTAR TG-200 2-PORT GSM Gateway Dubai

The Yeastar TG200 2 Port GSM Gateway enables you to enjoy two-way communication including, GSM/3G/4G to VoIP and VoIP to GSM/3G/4G in your area of work. This further allows for a seamless connection with most IP-based telephone systems including Yeastar IP Phone Systems, and soft switches to a GSM or 3G WCDMA or 4G LTE. The systems not only offer a reliable back up whenever landlines give a low output, but also increases call traffic capacity by providing an extra dial-tone.

Ask for Quote & Get Low Price

Description

YEASTAR TG-200 2 PORT GSM Gateway Dubai

YEASTAR TG-200 2 PORT GSM Gateway is equipped with 2 GSM Ports and uses a number of voice codecs including G.711 (alaw/ulaw), G.722, G.726, G.729A, GSM, ADPCM, and Speex to deliver crisp and clear audio. It also uses Echo Cancellation to filter out any background noises which may pose as distractions during communication. Yeastar TG 200 2 Port GSM Gateway comes with a strong frequency of 850/900/1800/1900 MHz and a WCDMA Frequency of 850/1900 MHz, 850/2100 MHz, 900/2100MHz. Its compatibility with major IP PBX and softswitch brands (Asterisk, MS Lync, Trixbox, Elastix, FreeSWITCH, 3CX) makes it a highly efficient device.

YEASTAR TG-200 2 PORT GSM GATEWAY FEATURES

GSM VOICE CALLS

GSM network works in such a way that multiple cell phone users can use the same frequency channel while the signal is divided into time slots. A cell phone user in this system uses only a small portion of the base station channel capacity. The Yeastar TG200 2 Port GSM Gateway therefore offers you the freedom you to enjoy unlimited calls at a pocket – friendly cost.

VOLTE FOR HD CALLS

Voice over Long Term Evolution(VOLTE) enables you to enjoy  high quality phone calls devoid of background noises while using your cellular data for internet browsing or Internet-connected apps at the same time. VOLTE enables both the caller and the call recipient to enjoy faster calls and clearer wideband audio. Even better, many smart phones support the VOLTE feature.

MAXIMUM COST REDUCTION

Features like Bulk SMS service and Least Cost Routing(LCR)  enable you to enjoy maximum communication experience and boost productivity at work without going out of your company’s budget.

BULK SMS SERVICE

You can send thousands of text messages branded with a sender ID (business name) to many clients and save yourself a lot of time to do other things. It allows for sending of messages both locally and internationally without stretching your budget.

MOBILE CONNECTIVITY FOR SMB

The Yeastar TG200 2 Port GSM Gateway Dubai offers perfect communication solution for both small and medium sized businesses. It works to enhance your high performance as well as securing both wired and wireless infrastructure for mobile and cloud-based applications. It is highly versatile and works with various IP PBX platforms to enhance the productivity of your workers.

MOBILE TRUNKINGS

You can add GSM/WCDMA to the Yeastar TG200 2 Port GSM Gateway so as to explore its maximum communication features and enjoy its full capabilities such as making calls to different mobile networks cheaply.

ADVANCED CALL FEATURES

The Yeastar TG200 2 Port GSM Gateway comes with incorporated modern call features which work to accord you an excellent communication experience at a cheap price. Some of the features include:

Least Cost Routing (LCR) : Least Cost Routing is a way of finding a cheaper way to route phone calls during communication. A user simply analyses, selects and directs the path of outbound and inbound communications traffic while choosing the path which delivers the best call rates.

Calling Type : Yeastar TG200 2 Port GSM Gateway presents two – way phones calls including, termination and origination.

  • Termination – this type of calls are made from the VoIP to the GSM Gateway
  • Origination : a user makes calls from the GSM to the VoIP Gateway.

CRYSTAL CLEAR AUDIO

The Yeastar TG 200 2 Port GSM Gateway is both narrowband and wideband – enabled, delivering cyrstal clear audio devoid of distractions. The powerful Gateway supports a number of audio codecs including, G.711 (alaw/ulaw), G.722, G.726, G.729A, GSM, ADPCM, and Speex which is a free software patent – free audio compression format which is built specially for production of human speech. It also incorporates ITU-T G.168 LEC type of the award winning Echo Cancellation technique which accurately filters out any background noise while maintaining clear and audible sounds even in busy and noisy environments.

G168 ECHO CANCELLATION

The excellent Yeastar TG 200 2 Port GSM Gateway uses G168 Echo Cancellation to filter out any background and surrounding noises that may act as distractions whenever the GoIP user is making any communications.

SIP – COMPLIANT GATEWAY

The Yeastar TG 200 2 Port GSM Gateway is based on SIP v.2.0 (RFC3261) so that you can easily plug and play your phone without any configurations. Once the phone is connected to the network and powered on, initialization starts automatically, after which the phone is up and ready for use. It therefore works perfectly with major PBX platforms and softswitch brands including, Asterisk, MS Lync, Trixbox, Elastix, FreeSWITCH, 3CX.

USER FRIENDLY

Setting up the Yeastar TG200 2 Port GSM Gateway  has never been easier. A user requires no technical skills in order to operate the high performance Gateway. It boasts of a simple and Web – based configuration which enables you to set up the Gateway within minutes.

INTEROPERABILITY

You can use various professional platforms IP PBX and softswitch brands such as Asterisk, MS Lync, Trixbox, Elastix, FreeSWITCH, 3CX on your Yeastar TG200 2 Port GSM Gateway.

ADVANTAGES OF USING THE YEASTAR TG 200 2 PORT GSM GATEWAY :

  • Calling Type – termination (VoIP to GSM), origination (GSM to VoIP)
  • Intelligent call routing
  • Callback function
  • SMS sending and receiving (Web interface)
  • LCR (least cost routing)
  • Simple web based configurations
  • Cost Savings – Save phone bills tremendously with mobile-to-mobile calls and LCR.
  • Back up – Work as a cost-effective backup when the landline network goes down.
  • Easy to install – Everything can be easily set up in the Web based management interface.
  • Easy to integrate – High compatibility with major IP PBX and softswitch brands (Asterisk, MS Lync, Trixbox, Elastix, FreeSWITCH, 3CX)

YEASTAR TG-200 2 PORT GSM GATEWAY SPECIFICATIONS

Model TG 200
Number of Ports 2
GSM Frequency** 850/900/1800/1900 MHz
WCDMA Frequency** 850/1900 MHz, 850/2100 MHz, 900/2100 MHz
4G Data
4G LTE Band** Depends on the module type.
Protocol SIP, IAX2
Antenna Splitter (4 in 1) Support
Transport UDP, TCP, TLS, SRTP
Voice Codec G.711 (alaw/ulaw), G.722, G.726, G.729A, GSM, ADPCM, Speex
DTMF Mode RFC2833, SIP Info, In-band
Echo Cancellation ITU-T G.168 LEC
Calling Type Termination (VoIP to GSM/WCDMA), Origination (GSM/WCDMA to VoIP)
Console Port
Network Protocol FTP, TFTP, HTTP, SSH
LAN 1 10/100 Mbps Ethernet Interface
NAT Traversal Static NAT, STUN
Network DHCP, DDNS, Firewall, OpenVPN, Static IP, QoS, Static Route, VLAN
Operation Range 0°C to 40°C, 32°F to 104°F
Power Supply AC 100-240V
Storage Range -20°C to 65°C, -4°F to 149°F
Dimensions (L × W × H) (mm) 213 x 160 x 44
Humidity 10-90% non-condensing
