Tplink TL-SG1210P Dubai

Reviews

Tplink TL-SG1210P Dubai

Sturdy, compact metal casing, with desktop/wall-mounting design of the Tplink TL-SG1210P Dubai to meet your needs in any environment. Besides, fanless design ensures quiet operation.

Ask for Quote & Get Low Price

Description

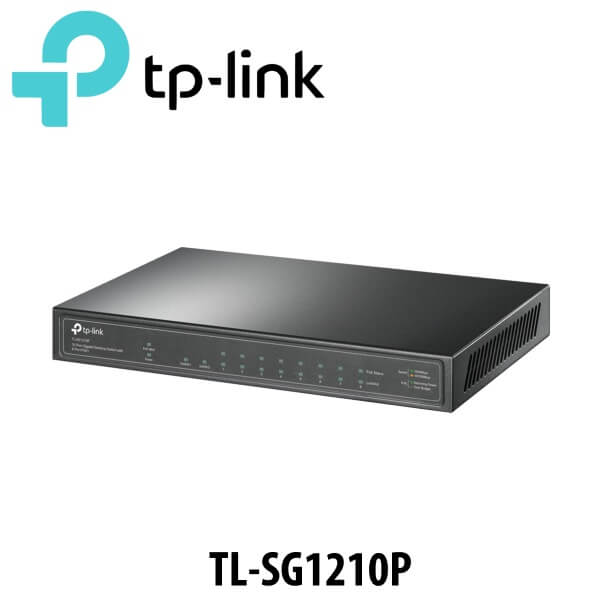

Tplink TL-SG1210P Network Switch Dubai

The Tplink TL-SG1210P Dubai provides 9 10/100/1000Mbps RJ45 ports and 1 Gigabit SFP port. Port 1 to port 8 of the switch support IEEE 802.3af/at compliant PDs with up tp 30 W for each PoE port and total PoE power budget of 63 W*. The TL-SG1210P is an unmanaged switch with desktop design, outstanding performance and quality, which is a great selection for expanding your home or office network.

Features

Power over Ethernet

Port 1-8 of the Tplink TL-SG1210P Dubai support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af/at compliant Powered Devices (PDs).

Intelligent Power Management

When total power consumption excels 63W, the intelligent power management will cut the lower priority port power off to ensure the high priority port’s power supply and protect the device from power overload operation.

Sturdy Metal Casing

Sturdy, compact metal casing, with desktop/wall-mounting design of the Tplink TL-SG1210P Dubai to meet your needs in any environment. Besides, fanless design ensures quiet operation.

Qos – For Fluent Online Experience

Administrators can designate the priority of traffic based on QoS, for example, to ensure that voice and video applications remain clear and lag-free.

GMP Snooping – Traffic Optimization for IPTV

IGMP Snooping optimizes multimedia traffic delivery, to ensure a better network experience especially for applications like IPTV.

Technical Specifications

HARDWARE FEATURES

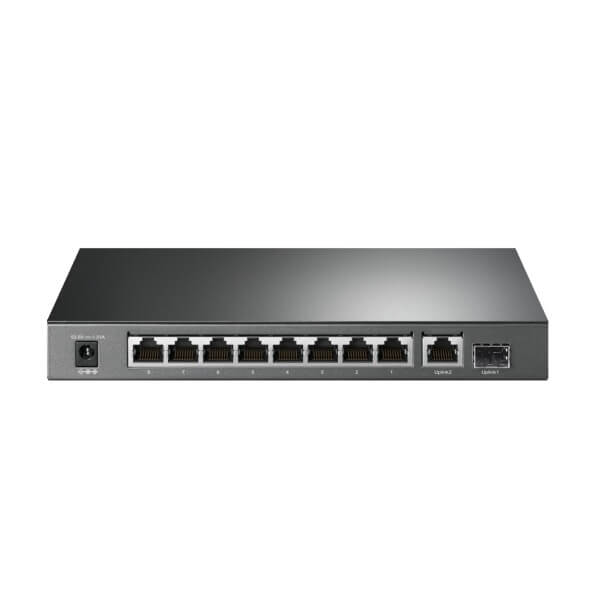

Interface
  • 8 PoE+ 10/100/1000Mbps RJ45 Ports
  • 1 10/100/1000Mbps RJ45 Port
  • 1 Gigabit SFP Slot
Network Media
  • 10BASE-T : UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m)
  • 100BASE-TX : UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m)
  • 1000BASE-T : UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m)
  • 1000BASE-X MMF, SMF
Fan Quantity Fanless
Physical Security Lock Yes
Power Supply External Power Adapter(Output : 53.5VDC / 1.31A)
Backup Bandwidth 20 Gbps
PoE+ Ports(RJ45)
  • Standard : 802.3at/802.3af compliant
  • PoE Ports : Port1- Port 8
  • PoE Power Budget : 63W
Mac Address Table 4K
Dimensions ( W x D x H ) 209 × 126 × 26 mm
Max Power Consumption
  • 7.11 W (220/50Hz. no PD connected)
  • 78.13 W (220/50Hz. with 63W PD connected)
Max Heat Dissipation
  • 24.25 BTU/h (no PD connected)
  • 266.42 BTU/h (with 63W PD connected)
SOFTWARE FEATURES
Advanced Features
  • Compatible With IEEE 802.3af/at Compliant PDs
  • EEE802.3x Flow Control
  • 802.1p/DSCP QoS
  • IGMP Snooping
Transmission Method Store-And-Forward
OTHERS
Certification CE, FCC, RoHS
Package Contents TL-SG1210P, Power Adapter, Installation Guide
Environment
  • Operating Temperature : 0°C~40°C (32°F~104°F)
  • Storage Temperature : -40°C~70°C (-40°F~158°F)
  • Operating Humidity : 10% ~ 90% non-condensing
  • Storage Humidity : 5%~90% non-condensing
