Tplink TL-SF1009P Dubai

Reviews

Tplink TL-SF1009P Dubai

The Tplink TL-SF1009P Dubai is designed to intelligently cut power to lower priority devices to help ensure that high priority devices remain operational when the power consumption exceeds the 65W budget.

Ask for Quote & Get Low Price

Description

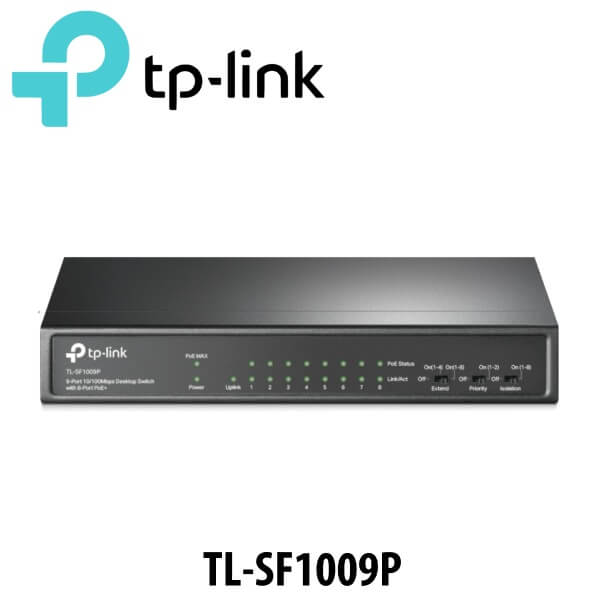

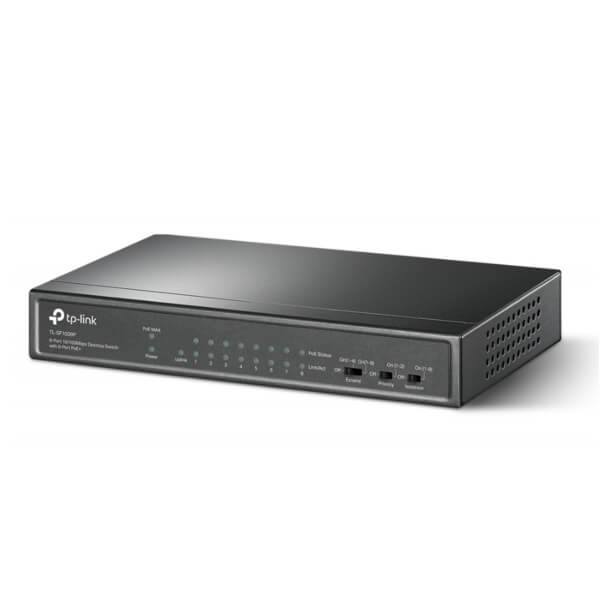

Tplink TL-SF1009P Network Switch Dubai

Expand your business’s network capacity to support IP surveillance cameras, VoIP phones, access points, and more with the TL-SF1009P 9-Port 10/100 Mb/s PoE+ Compliant Unmanaged Switch from TP-Link. The Tplink TL-SF1009P Dubai unmanaged switch features nine 10/100 Mb/s ports, eight of which are PoE+ compliant with total power budget of 65W. All eight of the 30W PoE+ can be put into Extend Mode, which increases the 10 Mb/s data and power transmission range to as far as 820 feet. Additionally, sliding the related switch enables priority mode for ports one and two, which helps to ensure smooth high-speed video and audio traffic. With its plug-and-play design, this switch can be integrated into your network without any additional hardware or software. The fanless metal design allows the TL-SF1009P to operate quietly on desktops and it can be mounted onto a wall.

Features

Powering PoE Devices
This Tplink TL-SF1009P Dubai network switch features nine 10/100 Mb/s ports, eight of which are 30W PoE+ compliant to operate IP cameras, VoIP phones, access points, and other compatible devices.
Intelligent Power Management
The Tplink TL-SF1009P Dubai is designed to intelligently cut power to lower priority devices to help ensure that high priority devices remain operational when the power consumption exceeds the 65W budget. The Tplink TL-SF1009P Dubai switch automatically detects the power requirements for each connected device and works to prevent them from damage.
Extend Mode
Use the Extend Mode switch to extend the reach of the PoE+ ports from 100 feet at 100 Mb/s to up to 380 feet at 10 Mb/s for long-range surveillance installations.
Priority Mode
With a flip of a switch, ports one and two can be configured for Priority Mode, which helps to ensure smooth video and audio data transmissions.

Specifications

Interfaces
Ports

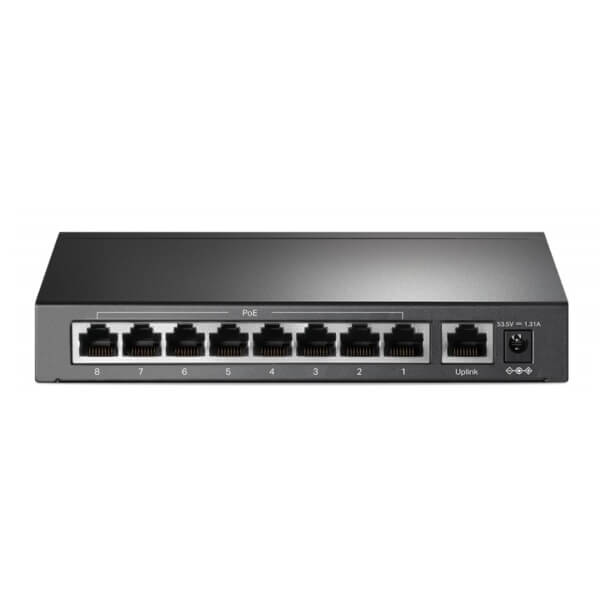

  • 8 x 10/100 Mb/s Ethernet (RJ45) PoE+
  • 1 x 10/100 Mb/s Ethernet (RJ45)
Protocols
Supported Protocols Auto-MDIX/MDI
Transmission Method Store-and-Forward
Jumbo Frames Support 2000 Bytes
MAC Address Table Size 2K
Standards
Supported IEEE Standards 802.3af, 802.3at, 802.3x
Performance
Forwarding Rate 1.33 Mpps
Switching Bandwidth 1.8 Gb/s
Electrical
Power Draw 77.1 W (Max)
PoE Power Budget 65 W
PoE per Port 30 W
Power Supply Type External
Environmental
Operating Temperature 32 to 104°F / 0 to 40°C
Operating Humidity 10 to 90%
Storage Temperature -40 to 158°F / -40 to 70°C
Storage Humidity 5 to 90%
General
Cooling System Passive
Indicator Lights Link/Activity, PoE, Power
Dimensions 6.7 x 3.9 x 1.1″ / 171 x 98 x 27 mm
Packaging Info
Package Weight 2.11 lb
Box Dimensions (LxWxH) 11 x 8.8 x 2.7″
