Tplink TL-SF1005LP Dubai

Tplink TL-SF1005LP Dubai is integrated with quality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1–2 when one-touch Priority Mode is on.

Ask for Quote & Get Low Price

Description

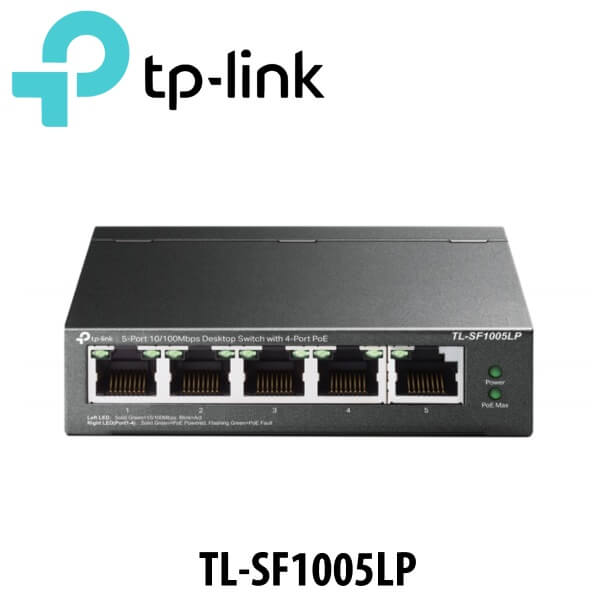

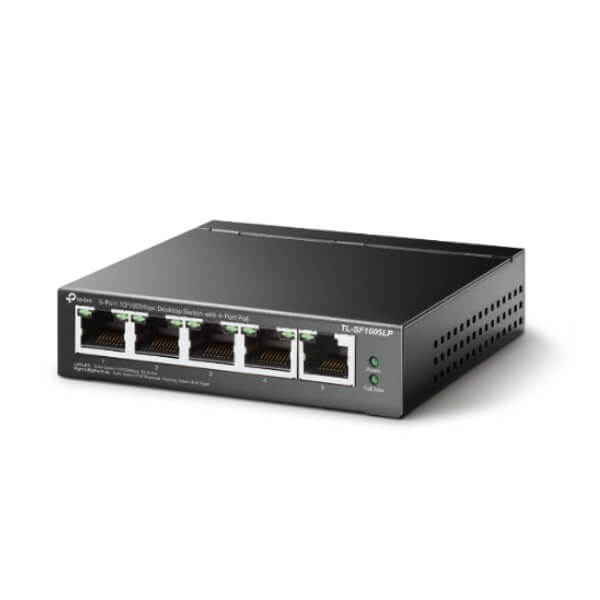

Tplink TL-SF1005LP Network Switch Dubai

The Tplink TL-SF1005LP Dubai switch comes equipped with five 10/100 Mb/s Ethernet ports, four of which are 802.3af PoE-compliant. This means you can power a variety of PoE-compliant devices such as access points and IP phones directly from the switch, and with a power budget of up to 67W there is enough power to go around. Should connected devices exceed that power budget, this switch is capable of shutting power off to network ports starting with port 4. Once installed, connected clients can take advantage of bandwidth up to 1 Gb/s and a 2K Mac Address table to ensure optimal network performance.

With no installation or configuration required, the Tplink TL-SF1005LP Dubai 5-Port 10/100 Mb/s PoE-Compliant Unmanaged Switch from TP-Link makes it easy to begin connecting additional Ethernet-enabled devices to your network.

Features

Dedicated 4-Port PoE Switch (41 W Budget) for Numerous Applications

Compliance with the 802.3af PoE standard supports up to 15.4 W on each PoE port. The total 41 W PoE power budget* for the 4× PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.

Ideal for IP Surveillance—Up to 250 m Transmissions

With extend mode, the PoE transmission distance of the Tplink TL-SF1005LP Dubai reaches up to 250 m**—perfect for IP Camera deployment in large areas.

Priority Video-Quality Guaranteed

Tplink TL-SF1005LP Dubai is integrated with quality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1–2 when one-touch Priority Mode is on.

Intelligent Power Management

When total power consumption exceeds 41 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.

Durable Metal Casing

The interior components of Tplink TL-SF1005LP Dubai are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SF1005LP delivers switching performance you can depend on.

Technical Specs

HARDWARE FEATURES
Interface
  • 5× 10/100 Mbps RJ45 Ports (Ports 1–4 support 802.3af PoE)
  • AUTO Negotiation
  • AUTO MDI/MDIX
Network Media
  • 10BASE-T : UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m)
  • 100BASE-TX : UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m)
Fan Quantity Fanless
Physical Security Lock Yes
External Power Supply External Power Adapter (Output : 53.5 V DC / 0.81 A)
Packet Forwarding Rate 0.744 Mpps
PoE Ports (RJ45)
  • Standard : 802.3 af compliant
  • PoE Ports : Ports 1–4
  • Power Supply : 41 W
Mac Address Table 2K
Jumbo Frame 2 KB
Switching Capacity 1 Gbps
Dimensions ( W x D x H ) 3.9×3.9×1.0 in (100×98×25 mm)
Max Power Consumption
  • 1.9 W (220 V / 50 Hz, no PD connected)
  • 47 W (220 V / 50 Hz, with 41 W PD connected)
Max Heat Dissipation
  • 6.48 BTU/h(no PD connected)
  • 160.27 BTU/h(with 41 W PD connected)
SOFTWARE FEATURES
Transmission Method Store-And-Forward
Advanced Functions
  • Compatible With IEEE 802.3af/at Compliant PDs
  • Extend Mode Button (Ports 1–4)
  • Priority Mode Button (Ports 1–2)
  • Mac Address Auto-Learning And Auto-Aging
  • IEEE802.3x Flow Control For Full-Duplex Mode and Backpressure for Half-Duplex Mode
OTHERS
Certification FCC, CE, RoHS
Package Contents
  • TL-SF1005LP
  • Power Adapter
  • Installation Guide
Environment
  • Operating Temperature : 0–40 ℃ (32–104 ℉)
  • Storage Temperature : -40–70 ℃ (-40–158 ℉)
  • Operating Humidity : 10–90% RH non-condensing
  • Storage Humidity : 5–90% RH non-condensing
