Tplink MC111CS Dubai

The Tplink MC111CS Dubai supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1550nm on transferring data and at 1310nm on receiving data.

Ask for Quote & Get Low Price

Description

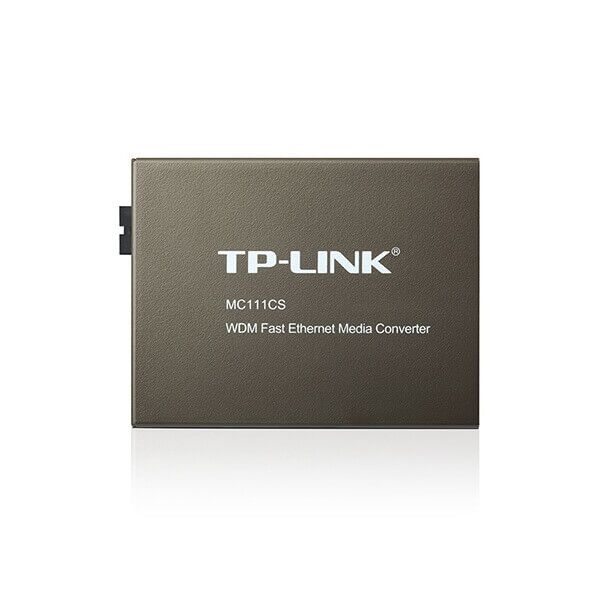

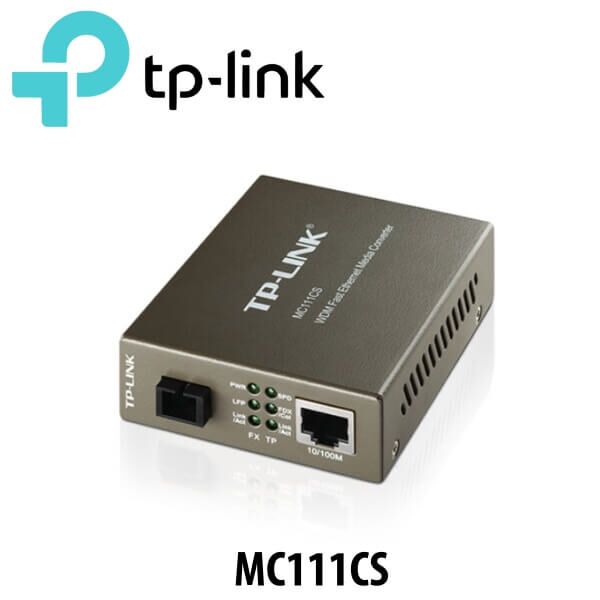

Tplink MC111CS Media Converter Dubai

The Tplink MC111CS Dubai is a media converter designed to convert 100BASE-FX fiber to 10/100Base-TX copper media or vice versa. Adopting WDM technology, MC111CS takes only one fiber cable to transmit and receive data, which will save half cabling cost for you. Designed under IEEE 802.3u 10/100Base-TX and 100Base-FX standards, the MC111CS is designed for use with single-mode fiber cable utilizing the SC-Type connector. The Tplink MC111CS Dubai supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1550nm on transferring data and at 1310nm on receiving data. So the other end device to cooperate with the MC111CS should work at 1310nm on transferring data and at 1550nm on receiving data. Another TP-LINK´s media converter MC112CS is just one of the examples to cooperate with MC111CS.

Other features of this module include the ability to be used as a standalone device (no chassis required) or with TP-Link´s TL-MC1400 chassis, Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode on TX port. The Tplink MC111CS Dubai will transmit at extended fiber optic distances utilizing single-mode fiber up to 20 kilometers.

Features

  • Complies with 802.3u 10/100Base-TX, 100Base-FX standards
  • Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
  • Adopts WDM technology, transmitting and receiving data on one single fiber
  • Extends fiber distance up to 20km

Technical Specs

MEDIA CONVERTER & MODULE
Standards and Protocols IEEE 802.3i, IEEE 802.3u
Basic Function
  • Adopts WDM technology
  • Half/Full-Duplex transfer mode for FX port
  • Extends fiber distance up to 20km
Ports
  • 1 100M SC/UPC port
  • 1 100M RJ45 port (Auto MDI/MDIX)
Wave Length 1550nm Tx/1310nm Rx
WDM TX 1550nm
WDM RX 1310nm
Network Media 10BASE-T
  • UTP category 3, 4, 5 cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
Network Media 100BASE-T
  • UTP category 5, 5e cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
Network Media 100BASE-FX Single-mode Fiber
LED Indicators PWR, Link/Act
Dimensions (W*D*H) 3.7*2.9*1.1 in. (94.5*73.0*27.0 mm)
Power Supply External Power Adapter
Max Power Consumption 2.49W
Safety & Emission FCC, CE, RoHS
Package Contents
  • Media Converter MC111CS
  • Power Adapter
  • Installation Guide
Environment
  • Operating Temperature : 0℃~40℃ (32℉~104℉)
  • Storage Temperature : -40℃~70℃ (-40℉~158℉)
  • Operating Humidity : 10%~90% non-condensing
  • Storage Humidity : 5%~90% non-condensing
