Grandstream GWN7664LR Dubai

Reviews

Grandstream GWN7664LR Dubai

The GWN7664LR is the ideal Wi-Fi AP for voice-over-Wi-Fi deployment and offers a seamless connection with Grandstream’s Wi-Fi capable voice and video IP phones.

Ask for Quote & Get Low Price

Description

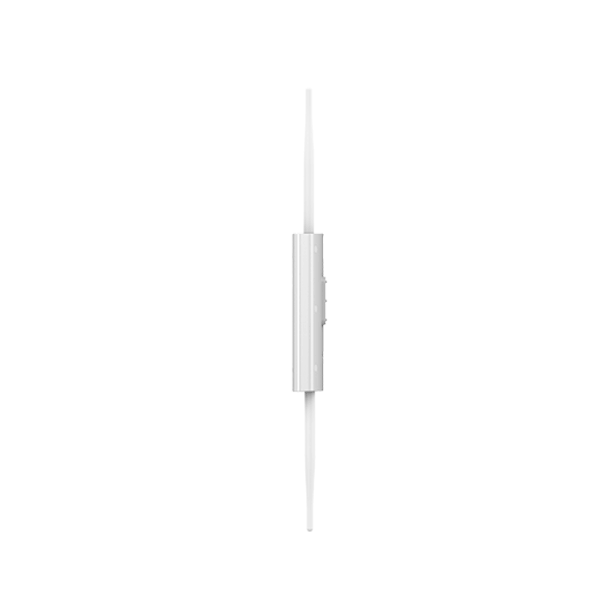

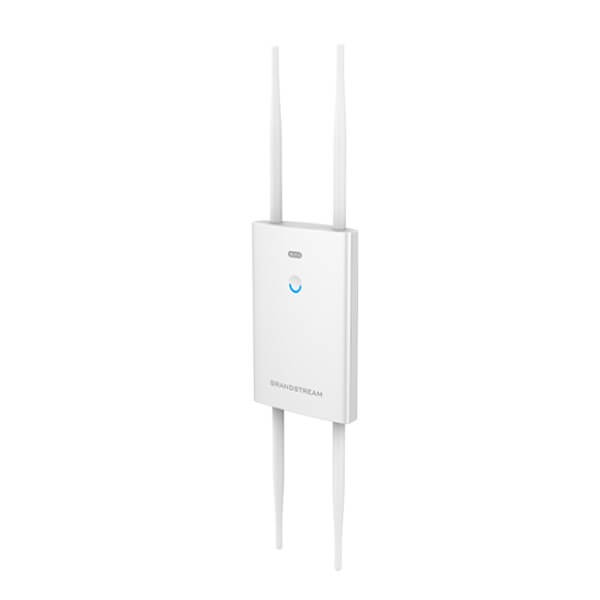

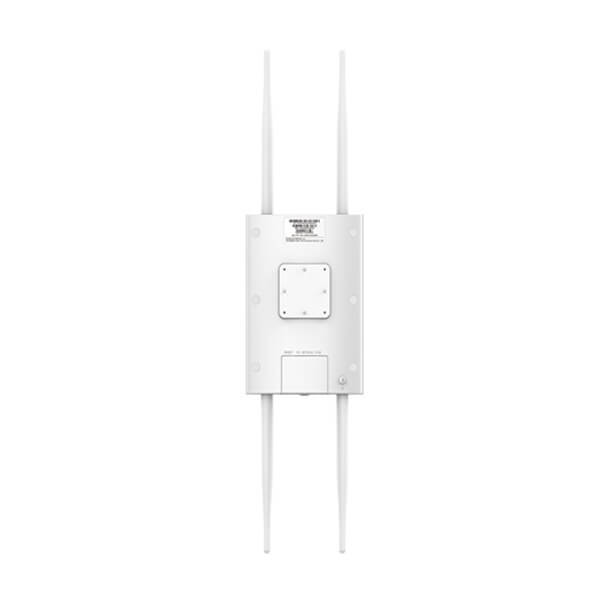

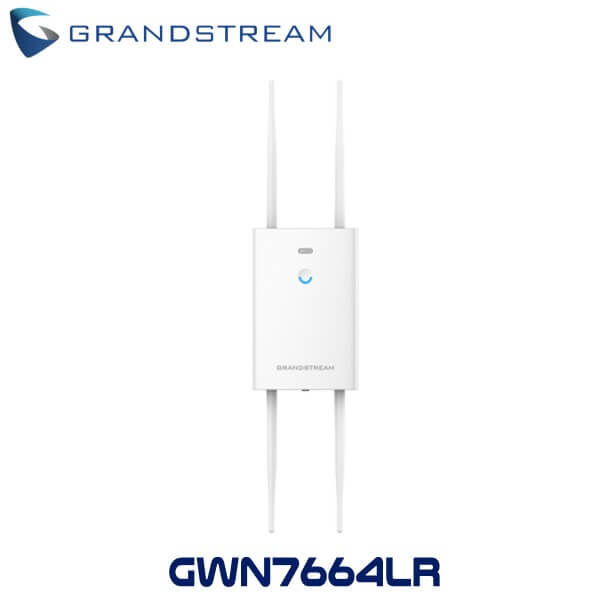

Grandstream GWN7664LR Access Point Dubai

The Grandstream GWN7664LR Dubai is an outdoor 802.11ax 4×4 : 4 Wi-Fi 6 access point for medium-to-large businesses and enterprises who need to provide long-range coverage in both indoor and outdoor spaces. It offers weatherproof casing and heat resistant technology, dual-band 4×4 : 4 MU-MIMO with DL/UL OFDMA technology and a sophisticated antenna design for maximum network through that supports 750 clients and an expanded 300-meter coverage range. To ensure easy installation and management, the GWN7664LR includes a built-in controller embedded within the product’s web user interface. It is also supported by GWN.Cloud and GWN Manager, Grandstream’s free cloud and on-premise Wi-Fi management platform. The GWN7664LR is the ideal Wi-Fi AP for voice-over-Wi-Fi deployment and offers a seamless connection with Grandstream’s Wi-Fi capable voice and video IP phones. With support for advanced QoS, low-latency real-time applications, mesh networks, captive portals and dual Gigabit networks ports with PoE/PoE+, the Grandstream GWN7664LR Dubai is an ideal outdoor Wi-Fi access point for enterprises, multiple floor offices, warehouses, hospitals, schools and more.

Features

  • 3.55Gbps aggregate wireless throughput, 2.5Gbps aggregate wired throughout
  • Dual-band 4×4 : 4 MU- MIMO with DL/UL OFDMA technology
  • Self power adaptation upon auto detection of PoE or PoE+
  • Support 750+ concurrent Wi-Fi client devices
  • Up to 300-meter coverage range
  • Advanced QoS to ensure real-time performance of low-latency applications
  • Anti-hacking secure boot and critical data/control lockdown
  • Flexibility of 4 detachable/changeable antennas for different application scenarios
  • Embedded controller manages up to 50 local GWN APs; GWN.Cloud offers unlimited AP management, & GWN Manager offers on-premise software AP management

Technical Specs

Manufacturer’s Code GWN7664LR
Wi-Fi Standards IEEE 802.11 b/g/n/ac/ax
Antennas 4 dual band external antennas; 2.4GHz, gain 3.5dBi, 5 GHz, gain 3.5dBi
Frequency Bands 2.4GHz radio : 2412 – 2484 MHz, 5GHz radio : 5180 – 5825 MHz, *Not all frequency bands can be used in all regions
Wi-Fi Data Rates 2.4GHz – up to 802.11ax : 1147 Mbps, 5GHz – up to 802.11ax : 2402 Mbps
Channel Bandwidth 2.4G : 20 and 40 MHz (x4), 5G : 20, 40 and 80 MHz (x4)
System Security WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3, anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device
MU-MIMO 4×4 : 4 2.4GHz, 4×4 : 4 5GHz
Coverage Range Up to 300 meters *Coverage range can vary based on environment
Maximum TX Power 5G : 25dBm, 2.4G : 26dBm
Receiver Sensitivity Max 2.4GHz – 99dBm, 5GHz -95dBm
SSIDs 32 SSIDs total, 16 per radio (2.4GHz & 5GHz)
Concurrent Clients 750
Network Interfaces 1x 1G Port and 1x 2.5G Port, support 2.5Gbps aggregate wired throughout
Auxiliary Ports 1x Reset Pinhole
Mounting Wall mount or pole mount, kits included
LEDs 1 tri-color LEDs for device tracking and status indication
Network Protocols IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM
QoS 802.11e/WMM, VLAN, TOS
Network Management Embedded controller can manage up to 50 local GWN APs, GWN.Cloud offers a free cloud management platform for unlimited GWN APs, GWN Manager offers premise-based software controller for up to 3,000 GWN APs
Power and Green Energy Efficiency PoE 802.3af/ 802.3at; Maximum Power Consumption : 18W
Environmental Operation : -30°Cto 60°C, Storage : -30°C to 60°C, Humidity : 10% to 90% Non-condensing
Physical Unit Dimension : 562.3mm(L)x140mm(W)x44.9mm(H); Unit + Mounting Kits Dimension : 562.3mm(L)x140mm(W)x66.9mm(H); Entire Package Dimension : 260mm(L)x218.5mm(W)x108mm(H);
Package Content GWN7664LR 802.11ax Wireless AP, Mounting Kits, Quick Installation Guide
Weatherproof Grade IP66-level weatherproof capability when installed vertically
Compliance FCC, CE, RCM, IC, UKCA



Datasheet Download
