Dinstar SIMBANK-128 128-Slot SIMBank for Remote SIM Management Dubai
A wireless gateway project can be technically correct and still become messy at the SIM layer. The gateway is installed. The LAN is ready. The operator or enterprise team has approved the lawful use case. Then the SIM cards arrive in trays, envelopes, spreadsheets, and labels that don’t match the final site plan. One Dubai rollout becomes five small problems: where the SIMs are stored, which gateway uses which card, how changes are controlled, who has physical access, and how the system is checked after dispatch.
The Dinstar SIMBANK-128 solves that part of the project. It is a rack-mount SIM storage and remote SIM management unit for compatible Dinstar GSM, 3G, and 4G wireless gateway environments. Instead of loading every SIM card into every gateway at the field site, the SIMs can be held centrally in the SIMBank and assigned through the Dinstar SIMCloud or SIM Server setup. For regulated operator, service provider, and enterprise deployments, it gives the technical team a cleaner way to store, allocate, monitor, and maintain SIM resources.
What the SIMBANK-128 is

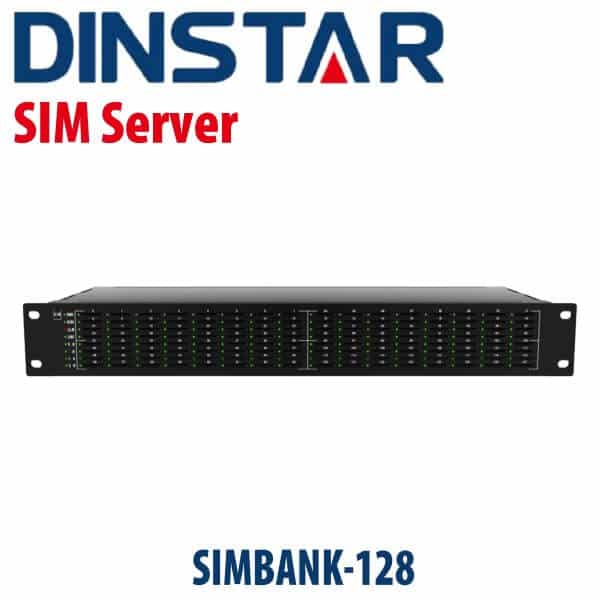

The Dinstar SIMBANK-128 is a central SIM card storage unit with capacity for up to 128 SIM cards in a 1U rack-mount chassis. It is not a wireless gateway by itself. It does not replace a UC2000 gateway. It works as part of a Dinstar wireless gateway and SIM management design, where SIM cards are kept in one controlled location and assigned remotely to compatible GSM, 3G, or 4G gateway equipment.
In a normal gateway deployment, SIM cards sit inside the field gateway. That is fine for a small site with a few cards and one engineer. It becomes awkward in larger projects: cards are moved by hand, replacement cards get mixed up, and support teams need physical access for changes. SIMBANK-128 changes the layout. The gateway estate remains in the network. The SIM cards are managed as a shared resource through the Dinstar SIMCloud or SIM Server environment.
For Vector Digital Systems projects in Dubai, this usually matters when the buyer is not a single-office user. It matters for licensed operators, service providers, enterprise notification platforms, and export projects where SIM allocation, access control, and records are part of the deployment. We supply the hardware, confirm the matching Dinstar gateway environment, stage the basic management setup where project access is available, and dispatch with documentation for the technical team.
Compliance first: lawful deployments only
SIMBANK-128 is supplied for regulated operator, service provider, enterprise notification, and export deployments where local rules permit the design. It is not sold or described for bypass, grey routing, SIM arbitrage, or any use that conflicts with UAE TRA regulation or destination-country telecom rules. Send us the project use case before quoting if the deployment touches GSM, 3G, or LTE gateways.
Why a SIMBank exists in the first place
The surprise for many PABX installers and IT teams is that SIM management becomes a project task of its own. The wireless gateway is only one part. SIM cards have identity, ownership, operator terms, balance or bundle status, expiry dates, labels, and compliance conditions. When the cards live inside different gateway boxes across sites, the support process becomes physical. Someone has to visit the rack. Someone has to open the chassis. Someone has to check whether the card in slot 17 is the card shown in the spreadsheet.
With SIMBANK-128, the SIM cards sit in a central 1U unit. The management layer then handles assignment and control. Dinstar describes the system as a central and remote management setup for multiple SIMs and multiple Dinstar GSM, 3G, and 4G VoIP gateways. That is the buyer moment: the project moves from loose SIM handling to a managed SIM pool.
For Dubai integrators, this reduces the avoidable support work. For service providers, it creates a cleaner operating model. For export customers, it allows the gateways and SIM resources to be planned before shipment from Dubai, with the final operator policy and local approvals handled in the destination market.
The sizing rule: count SIM cards, then confirm the gateway side
SIMBANK-128 is named for the SIM side of the project: up to 128 SIM cards. That number does not mean 128 voice channels. It does not mean 128 LTE modules. It means SIM card storage and remote allocation capacity in the SIMBank unit.
The gateway side is separate. A Dinstar UC2000 or compatible GSM, 3G, or 4G gateway provides the radio channels. The SIMBank provides central SIM storage and assignment. The SIM Server or SIMCloud layer provides the management view. Those three pieces must be matched properly, otherwise the buyer ends up with capacity on paper but confusion on site.
The plain sizing check
First count how many SIM cards must be stored and managed. Then confirm how many Dinstar wireless gateway channels are in the project, where the gateways will sit, and whether the SIM management layer will run on a server or cloud design. SIMBANK-128 covers up to 128 SIM cards; the final gateway channel count is quoted separately. Send us the gateway model, SIM count, and legal use case on WhatsApp and we confirm the right bill of material.
Where it fits in a Dinstar wireless gateway design
Think of the system in three layers. The first layer is the Dinstar wireless gateway, such as a UC2000 series unit, that handles the GSM, 3G, or LTE side of the project. The second layer is SIMBANK-128, which stores up to 128 SIM cards in the rack. The third layer is the SIMCloud or SIM Server management environment, which controls SIM allocation, device management, SIM card management, reporting, and API access where the project needs it.
That separation is useful in multi-site work. A gateway may be installed in one location while SIM resources are controlled from another. A Dubai service provider may keep the SIMBank in a controlled rack and manage gateway sites under one technical policy. An enterprise notification project may want SIM records, access rights, and monitoring separated from the field equipment. An export operator may want the Dinstar hardware staged in Dubai and the live SIM policy applied under local regulation after receipt.
Vector Digital Systems checks this before quoting. We do not treat SIMBANK-128 as a loose accessory. We confirm the wireless gateway model, the expected SIM count, server requirement, installation country, and whether the project is for a licensed operator, service provider, or lawful enterprise use. That saves the usual commissioning argument later.
| Project item | What it does |
|---|---|
| Dinstar wireless gateway | Provides the GSM, 3G, or LTE gateway channels for the approved deployment. |
| Dinstar SIMBANK-128 | Stores up to 128 SIM cards in a central 1U rack unit for remote SIM assignment. |
| SIMCloud or SIM Server | Provides management for devices, SIM cards, allocation, reporting, and API access where configured. |
| Vector Digital Systems staging | Confirms the model mix, labels the deployment, prepares the hardware, and documents the dispatch from Dubai. |
The Dubai project reality: access control matters
In many UAE sites, the telecom rack is not a place where everyone should be opening hardware. Offices in DIFC, DMCC, JAFZA, Dubai Silicon Oasis, and hotel back offices often split responsibility between the IT team, telecom contractor, facilities team, and operator account team. A SIM card change sounds small until nobody knows which person touched which card.
Central SIM storage makes that process easier to control. The SIM cards can be labelled, held in one chassis, and managed through the approved Dinstar environment. For multi-site enterprise notification deployments, it also means support can be handled without asking each remote site to open a gateway and read tiny card labels from a rack.
This is why SIMBANK-128 is quoted to project buyers, not retail buyers. It belongs in a designed system: operator policy checked, legal use case clear, gateways sized, SIM count known, and staging completed before dispatch from Dubai.
Deployment truth: rack, power, network, access
SIMBANK-128 belongs in the comms rack, not loose on a desk. The chassis is 437 × 260 × 66.6 mm and weighs about 3.8 kg. Power is AC 110–220V, 50–60Hz, with 22W power consumption. Network connection is 10/100 Base-T RJ45, and local management is through a web GUI. For remote operation, the SIMBank is managed through the Dinstar SIMCloud or SIM Server environment.
During Dubai staging, Vector Digital Systems checks the physical unit, confirms the SIM slot count, matches the SIMBank to the intended Dinstar wireless gateway family, and prepares the unit for the customer’s technical team. Where project access is available before dispatch, we also help with basic network addressing, management reachability, and slot labelling logic.
The practical point: SIMBANK-128 is not sized by calls, trunks, or SIP sessions. It is sized by SIM storage and SIM management. Gateway channels come from the connected Dinstar wireless gateways. That separation must be clear in the quotation, especially for service providers, operator projects, and enterprise notification platforms.
Do not read “128 SIM slots” as “128 channels”
SIMBANK-128 stores up to 128 SIM cards. It does not create 128 GSM, 3G, or LTE channels by itself. The live radio channel count comes from the compatible Dinstar wireless gateway in the design. We quote the SIMBank and gateway bill of material together so the project team sees both numbers before purchase.
Management functions that matter in real projects
The value of SIMBANK-128 is not only the metal box with 128 slots. The value is the management layer around it. Dinstar’s SIMCloud and SIM Server environment supports SIM card allocation, gateway-SIMBank port binding, multiple SIM groups, device alarms, logs, operation records, SIM card priority, time-based working rules, SMS and USSD handling, reporting, and API-based project integration where configured.
For lawful enterprise notification work, that means the technical team can keep cleaner records of which SIM cards belong to which service. For licensed operators and service providers, it means SIM resources can be planned as part of a network design rather than handled as loose cards. For export projects, it lets the Dubai dispatch be prepared around the agreed hardware design while local operator policy is handled in the destination country.
We do not present SIMCloud settings as a substitute for regulation, operator approval, or project governance. They are engineering tools. The use case still has to be lawful, documented, and accepted by the customer’s operator or telecom authority where required.
What we ask before quoting
Tell us the SIM count, gateway model, country of installation, operator approval status, and whether the project is for licensed operator use, enterprise notification, service-provider infrastructure, or permitted backup connectivity. For UAE projects, TRA compliance comes first. For export, local regulation in the destination country applies.
Compatible Dinstar wireless gateway environments
SIMBANK-128 is used with compatible Dinstar GSM, 3G, and 4G gateway environments, including UC2000 series wireless gateway projects where remote SIM management is part of the design. Dinstar lists UC2000-VE, UC2000-VF, and UC2000-VG as wireless gateway tiers, with remote SIM management support using SIMBank and SIMCloud on the gateway side.
In Dubai, we normally review the gateway side first: number of radio channels, network position, lawful use case, management access, and whether the SIMBank will sit in the same rack or at a controlled central site. That is the difference between selling a box and commissioning a system that the support team can live with.
SIMBANK-128 with UC2000-VE, UC2000-VF, or UC2000-VG
| Dinstar item | Role in the project | Choose it if… |
|---|---|---|
| Dinstar UC2000-VE | Small wireless gateway tier | The gateway channel count is modest and the project needs a compact Dinstar gateway. |
| Dinstar SIMBANK-128 — this unit | Central SIM storage and remote SIM assignment | You need up to 128 SIM cards stored and controlled in one rack unit. |
| Dinstar UC2000-VF | Mid-range wireless gateway tier | The project needs more gateway channels and remote SIM management is part of the design. |
| Dinstar UC2000-VG | High-density wireless gateway tier | The deployment needs a larger Dinstar wireless gateway platform with remote SIM planning. |
Choose the SIMBANK-128 if the SIM card pool is the problem you are trying to control. Choose UC2000-VE, UC2000-VF, or UC2000-VG when the gateway channel count is the main sizing question. In many projects, the answer is both: one or more Dinstar wireless gateways, plus SIMBANK-128 for central SIM storage and management. For gateway selection, start with the VoIP gateway Dubai selector, then send the SIM count for the SIMBank design.
Pricing, supply, and staging from Dubai
Vector Digital Systems supplies Dinstar SIMBANK-128 from Dubai for project quantities, integrator orders, service-provider deployments, and export. Same-day AED quote on WhatsApp, with VAT breakdown and delivery details included for UAE buyers. For export, we quote FOB Dubai with commercial invoice, packing list, and certificate of origin.
Staging before dispatch: hardware check, model verification, SIM slot planning, gateway compatibility review, basic management reachability where access is provided, and dispatch documentation. For multi-site deployments, we can stage the SIMBank and gateway bill of material as one project batch.
Frequently asked questions
How many SIM cards does the Dinstar SIMBANK-128 support?
SIMBANK-128 supports up to 128 SIM cards. That is SIM storage and remote SIM assignment capacity, not gateway channel capacity. The GSM, 3G, or LTE channel count comes from the connected Dinstar wireless gateway.
Is SIMBANK-128 a gateway by itself?
No. It is a central SIM storage and remote SIM management unit. It works with compatible Dinstar wireless gateways and the Dinstar SIMCloud or SIM Server environment.
Will SIMBANK-128 work with Dinstar UC2000 wireless gateways?
Yes, SIMBANK-128 is used in Dinstar GSM, 3G, and 4G gateway environments where remote SIM management is required. We confirm the exact UC2000 model, channel count, SIM count, and management design before quoting.
Simbank-128 vs UC2000-VF — what is the difference?
SIMBANK-128 stores and manages SIM cards. UC2000-VF is a wireless gateway tier that provides gateway channels. If you need radio channels, size the UC2000 gateway. If you need central SIM storage and assignment, add SIMBANK-128.
Does Vector Digital Systems configure the SIMBank before delivery?
Yes, staging is available from Dubai. We check the hardware, verify the model, review gateway compatibility, prepare slot planning, and assist with basic management reachability where project access is provided before dispatch.
Is SIMBank use legal in the UAE?
SIMBank and wireless gateway projects are regulated in the UAE under TRA rules and operator policy. Vector Digital Systems supplies SIMBANK-128 only for lawful operator, service provider, enterprise notification, permitted backup, and approved export deployments. We do not support bypass, grey routing, or SIM arbitrage.
Is the Dinstar SIMBANK-128 covered under Dinstar warranty in the UAE?
Yes. Dinstar manufacturer warranty applies, with local supply and warranty coordination handled by Vector Digital Systems LLC in Dubai for supported deployments.
Who is the supplier of Dinstar SIMBANK-128 in Dubai?
Vector Digital Systems LLC is an authorised Dinstar supplier in Dubai, UAE, operating since 2009. We supply Dinstar SIMBank, wireless gateways, analog gateways, digital gateways, SBCs, IP PABX systems, and phones with staging, configuration, installation, warranty handling, and export documentation for procurement teams.
What is the best Dinstar SIM management unit for a 128-card project in Dubai?
For a project that needs up to 128 SIM cards held in one rack unit with remote SIM assignment, Dinstar SIMBANK-128 is the correct SIMBank model. The connected UC2000 wireless gateway must still be sized separately by gateway channel count and lawful use case.
Does Vector Digital Systems export Dinstar SIMBANK-128 from Dubai?
Yes. We export Dinstar SIMBANK-128 from Dubai for lawful operator, service-provider, and enterprise projects in countries such as Saudi Arabia, Oman, Qatar, Kuwait, Bahrain, Kenya, Tanzania, Ghana, Nigeria, and Pakistan. FOB Dubai pricing includes commercial invoice, packing list, and certificate of origin.
Supply and installation across all seven emirates
Vector Digital Systems supplies Dinstar SIMBANK-128 across Dubai, Abu Dhabi, Sharjah, Ajman, Ras Al Khaimah, Fujairah, and Umm Al Quwain. Dubai free zone projects in DMCC, JAFZA, Dubai Silicon Oasis, Dubai Internet City, and DIFC can be handled with project quotation, staging, VAT documentation, delivery, and installation support where the use case is lawful and approved.
MEA export from Dubai
For MEA export, SIMBANK-128 is supplied from Dubai to telecom operators, ISPs, service providers, system integrators, and enterprise project teams working under local telecom regulation. Common export lanes include the Gulf, East Africa, West Africa, and South Asia — Saudi Arabia, Oman, Qatar, Kuwait, Bahrain, Kenya, Tanzania, Ghana, Nigeria, and Pakistan. Vector Digital Systems quotes FOB Dubai with Dinstar manufacturer warranty and export documents: commercial invoice, packing list, and certificate of origin.
Get a quote for Dinstar SIMBANK-128
Dubai supply · Same-day AED quote · Staging support · Project quantities and export
