Dinstar UC2000-VF-16T-B Dubai

The Dinstar UC2000-VF-16T-B Dubai supports up to 16 concurrent calls, making it an ideal choice for users.

Ask for Quote & Get Low Price

Description

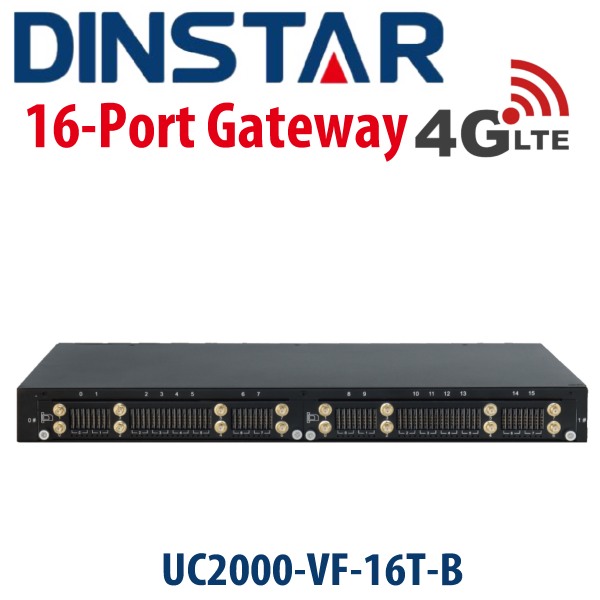

Dinstar UC2000-VF-16T-B Dubai

The Dinstar UC2000-VF-16T-B Dubai supports up to 16 concurrent calls, making it an ideal choice for users. It is a wireless gateway based on DINSTAR new hardware platform and powerful embedded CPU, leveraging state-of-art and latest VoIP / SIP technology, that enables the smooth transit between 4G/3G/2G mobile network and VoIP networks. Moreover, with open API, it allows users to build their own application software to send SMS/USSD messages or bulk SMS messages, or push their text messages from email, HTTP etc. It is suitable for enterprises, multi-site organizations, call centers and areas with limited landline like rural area to cut down telephony costs and enable easy & efficient communications. This is the one among the model of model of Dinstar 4G gateway Dubai

Key Features:

  • Up to 16 Channels GSM or LTE
  • Powerful Embedded CPU
  • Compatible with LTE-FDD/LTE-TDD/WCDMA/GSM Networks
  • Compatible with Mainstream VoIP Platform
  • Hot Swappable SIM Cards
  • Voice over LTE (VoLTE)
  • HTTP API for SMS Application Integration
  • SMS to Email & Email to SMS
  • Flexible Dial Rules & Manipulation Rules
  • Auto CLIP
  • Remote SIMs Management (optional)

Dinstar UC2000-VF-16T-B – Technical Specifications

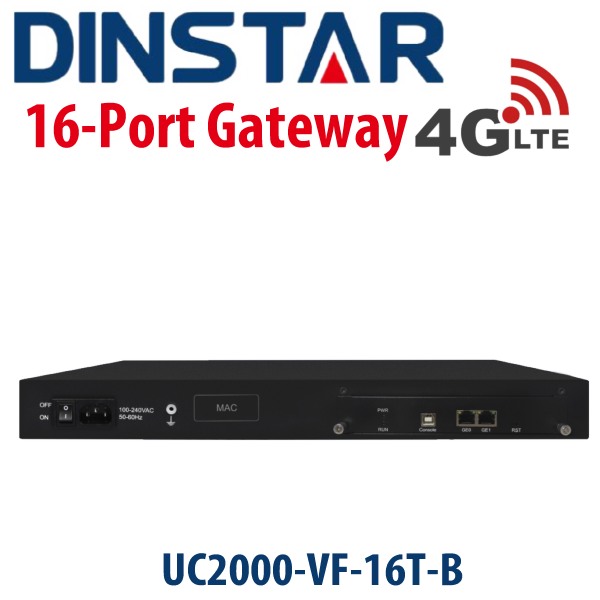

Hardware Interfaces

  • Mobile: 16 Channels
  • SIM Card slots: 16
  • Antennas Connectors: SMA
  • Ethernet Interfaces: 2*10/100/1000 Base-T, RJ45
  • LED Indicators: Power, RUN, Channel indicator
  • Console: 1* RS232 (USB-B connector)
  • RST/PWR Button

VoIP & Media

  • Protocol: SIP v2.0, RFC3261
  • SIP UDP/TCP/TLS
  • RTP/SRTP
  • Codecs: G.711A/U, G.723.1, G.729A/B, G.722, AMR, OPUS(TBD)
  • Silence Suppression
  • Comfort Noise Generator(CNG)
  • Voice Activity Detection(VAD)
  • Echo Cancellation
  • Dynamic Jitter Buffer
  • DTMF: RFC2833, SIP Info
  • Call Progress Tone Generation
  • Programmable Gain Control
  • NAT: STUN, Dynamic NAT, Static NAT

Frequency Bands(2G/3G)

  • UC2000-VF-16G: GSM Gateway: 850/900/1800/1900MHz
  • UC2000-VF-16W: WCDMA Gateway with two options
  • A: WCDMA 850/1900MHz and GSM 850/900/1800/1900MHz;
  • B: WCDMA 900/2100MHz and GSM 900/1800MHz

LTE Frequency Bands

  • Type A:

    – FDD: B2/B4/B12

    – WCDMA: B2/B4/B5

  • Type E:

    – FDD:B1/B3/B5/B7/B8/B20

    – TDD: B38/B40/B41

    – WCDMA: B1/B5/B8

    – GSM:900/1800MHz

  • Type V: FDD:B4/B13
  • Type J:

    – FDD:B1/B3/B8/B18/B19/B26

    – TDD:B41

    – WCDMA:B1/B6/B8/B19

  • Type AU:

    – FDD:B1/B2/B3/B4/B5/B7/B8/B28

    – TDD:B40

    – WCDMA: B1/B2/B5/B8

    – GSM: 850/900/1800/1900

Software Features

  • Mobile to VoIP, VoIP to Mobile
  • SIP Trunk and Trunk Group
  • Caller/Called Number Manipulation Rules
  • SIP Codes Mapping
  • White/Black List
  • PSTN Hotline
  • VoIP Hotline
  • Abnormal Call Monitor
  • Minutes Limitation for Ports/Single Call
  • Balance Check
  • Low Balance Alarm
  • Auto Update SIM Number
  • Random Call Interval
  • Auto CLIP Routing
  • Signaling & RTP Encryption(DBO)
  • Auto SIP Account
  • PPTP/L2TP/OpenVPN

Mobile Features

  • SMS/USSD/PIN
  • Encoding: Unicode/ASCII
  • HTTP API for SMS
  • SMPP for SMS
  • Polarity Reversal
  • CID/CLIR
  • SMS Send and Receive
  • SMS to Email
  • Email to SMS
  • Auto SMS/Call Generation
  • Call Waiting/Call Back
  • Call Forward
  • Call Conference
  • GSM Audio Coding: HR, FR,EFR, AMR_FR,AMR_HR

Maintenance

  • Web/Telnet Configuration
  • Configure Backup/Restore
  • Firmware Upgrade by HTTP
  • Factory Reset
  • CDR (10000 CDRs Storage Locally)
  • Syslog/Filelog
  • Ping and Tracert
  • Traffic statistics: TCP,UDP,RTP
  • VoIP Call Statistics
  • PSTN Call statistics: ASR,ACD,PDD
  • Voice Diagnose with Loopback
  • IVR Customisation
  • SIP/RTP/PCM Capture
  • SIMCloud Management
  • Centralised Management(DMS)

Physical Features

  • Power Supply: 100-240V,50- 60Hz@DC12V4A
  • Power Consumption: 38w
  • Temperature:

    – Operation: 0 ℃ ~ 40 ℃

    – Storage: -20 ℃ ~80 ℃

  • Operation Humidity: 10%-90%
  • Dimension(W/D/H): 440x270x44mm
  • Unit Weight: 3.7kg
