That is where the Dinstar MTG2000 earns its place. It is not a small office gateway. It is the middle of the digital trunk range — the box we discuss when a Dubai integrator is dealing with PRI trunks, SS7 signalling, call-centre capacity, operator interconnect, or a legacy PABX that cannot be replaced in one weekend.

Vector Digital Systems supplies the MTG2000 from Dubai for project quantities, E1 migration work, service provider trunks, and export jobs where the customer needs the unit staged before dispatch. SIP side tested. E1 side planned. Dial rules loaded. Not just shipped in a carton.

What the MTG2000 is

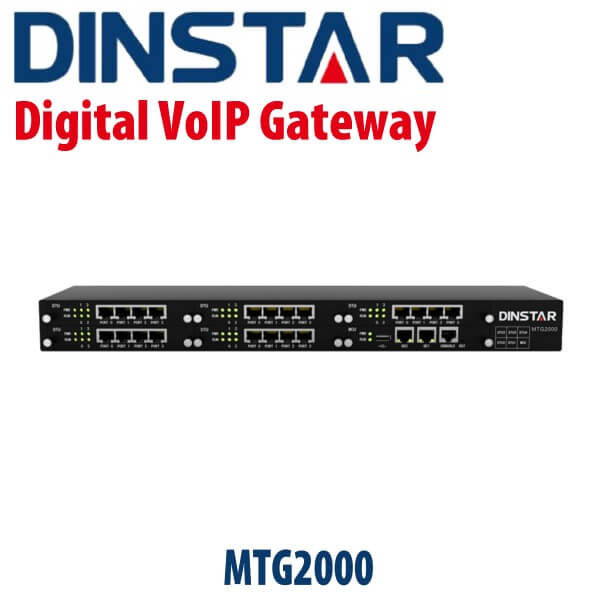

The Dinstar MTG2000 is a carrier-grade digital VoIP gateway for connecting E1/T1 trunks to SIP networks. On one side, it terminates digital trunks through RJ48 E1/T1 ports. On the other, it connects to SIP platforms, SIP trunks, service provider cores, and IP voice networks.

The model scales from 4 to 20 E1/T1 ports in a 1U chassis, with up to 600 simultaneous calls. It supports ISDN PRI, SS7, R2 MFC, SIP v2.0, T.38 and pass-through fax, modem and POS machine support, flexible call routing, multiple SIP trunks, SNMP, automated provisioning, configuration backup and restore, and Dinstar Cloud Management System.

In Dubai projects, that usually means one of three things: an old PABX with E1 PRI trunks moving towards SIP, a call centre consolidating trunks, or a service provider building an interconnect between IP voice and traditional digital circuits. The MTG2000 sits between both worlds so the migration can happen in stages instead of one risky cutover.

E1 arithmetic — the number that decides the gateway

For UAE and most Middle East PRI projects, one E1 gives 30 voice channels. That means one E1 can carry up to 30 simultaneous voice calls. Two E1s can carry up to 60. Ten E1s can carry up to 300. Twenty E1s can carry up to 600.

This is why the MTG2000 is described by both ports and calls. The physical side is 4 to 20 E1/T1 ports. The capacity side is up to 600 simultaneous calls. A buyer asking “how many calls can it handle?” is usually asking the channel question, not the box-size question.

This arithmetic also prevents overbuying. Not every PABX room needs the top chassis. If the requirement is two or four E1s, a lower MTG tier may be enough. If the project needs 20 E1s in one gateway, MTG2000 is the natural model. If the project moves above that tier, the MTG3000 and MTG5000 range come into the discussion.

Why Dubai projects still need E1 gateways

SIP trunks are common now, but E1 has not disappeared from Dubai comms rooms. Older hotel PABX systems, call centres, banking branch networks, free zone offices, and service provider interconnects still run on digital trunks. Some are too large to replace at once. Some carry dial plans built over years. Some are connected to systems that must stay live while the IP side is introduced.

The MTG2000 lets the integrator keep the E1 side stable while moving traffic into SIP. Calls can be routed from PSTN to IP, IP to PSTN, or between trunk groups using planned rules. Caller ID handling, prefix changes, trunk selection, and failover routing can be staged in the gateway before the project team reaches the site.

That matters when the cutover window is short. A Deira hotel does not want reception down during checkout. A JAFZA warehouse does not want its call centre queue broken. A DIFC office does not want its board line failing because the SIP trunk and PRI side were tested for the first time on site. We stage the call plan in Dubai first, then dispatch.

Protocol support that saves the migration

The hardest E1 projects are rarely about the cable. They are about signalling. The MTG2000 supports ISDN PRI, SS7, and R2 MFC, which gives system integrators room to work with old carrier handoffs, legacy PABX systems, and operator-side trunks without redesigning the entire voice network.

ISDN PRI is the common enterprise case. SS7 appears in carrier and service provider interconnects. R2 MFC still appears in some older or export-market networks. The MTG2000 is built for those mixed environments, which is why it fits both UAE enterprise migration and MEA operator projects.

The hidden differentiator: trunk rules before the site visit

Many gateway pages talk only about ports. That is not where MTG projects succeed or fail. They succeed when the routing table is clean. Which DID range enters which trunk? Which calls go to SIP first? Which prefixes must be stripped? Which caller ID range must present to the operator? Which traffic should stay on the old E1 during the first phase?

For MTG2000 orders, Vector Digital Systems can stage the gateway with SIP trunk details, basic dial rules, trunk group planning, IP addressing, management access, and initial call paths before dispatch. For multi-site projects, the same pattern can be repeated across units so every branch follows the same numbering logic.

This is the difference between a hardware shipment and a project handoff. The MTG2000 is the gateway. The staging is what makes it usable on cutover night.

Where the MTG2000 sits in the project

In an enterprise migration, the MTG2000 usually sits between the legacy PABX and the SIP trunk or IP PABX. In a service provider design, it may sit between an IP voice core and E1/T1 handoffs to another network. In a call centre, it can sit at the trunk edge, where PRI traffic and SIP routing meet.

For buyers comparing Dinstar ranges, use the VoIP gateway selector first: analog phones and fax machines point to DAG FXS gateways, analog carrier lines point to FXO gateways, old PABX E1 trunks point to MTG gateways, and SIP edge security points to SBC. If your project combines E1 trunks with SIP trunk exposure, the MTG gateway and a Dinstar SBC may both belong in the final design.

Deployment truth: rack, power, network, management

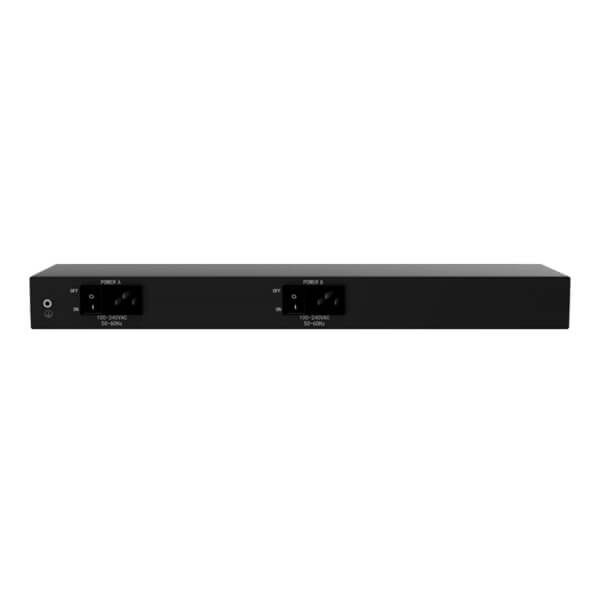

The Dinstar MTG2000 is a 1U rack unit for comms rooms, operator rooms, data centres, and larger PABX rooms. It is not a desk-side gateway. The project plan must include rack space, power, E1/T1 handoff details, network addressing, SIP trunk access, and a test window with the customer’s PABX or carrier team.

On the IP side, the MTG2000 supports gigabit network connectivity, SIP v2.0, SIP over UDP, TCP, and TLS, plus voice codec handling for mixed networks. On the digital side, the gateway handles E1/T1 trunking with PRI, SS7, and R2 MFC options, depending on the project requirement and the operator handoff.

For management, the MTG2000 supports SNMP, automated provisioning, configuration backup and restore, call statistics, and Dinstar Cloud Management System. For project buyers, that matters after commissioning. A service provider or system integrator can monitor trunks, keep configuration copies, and manage more than one deployed gateway without treating each site as a one-off box.

Current MTG2000 capability notes

The MTG2000 is still a live Dinstar digital gateway model, not a removed or replaced item. The current manufacturer listing keeps the MTG2000 in the digital gateway range with 4 to 20 E1/T1 ports, up to 600 simultaneous calls, PRI, SS7, R2 MFC, T.38 fax, pass-through fax, modem and POS support, SNMP, automated provisioning, and Dinstar Cloud Management System.

The practical value is not only the port count. It is the number of older trunk behaviours it can carry into an IP voice design. Dubai sites often have one stubborn item that keeps the E1 side alive: a hotel PABX, a call recording path, a contact centre dialler, an operator handoff, or a DID range that cannot be changed during the first phase.

We do not write the MTG2000 page as a “new box replaces old box” story. It is a live bridge model for projects that need E1/T1 on one side and SIP on the other, with enough density for serious trunk work.

Platform compatibility in Dubai projects

The MTG2000 is used where SIP platforms and digital trunks must speak to each other. That can include 3CX, Grandstream UCM, Yeastar, Asterisk, Cisco, Avaya, service provider softswitches, and enterprise SIP trunk platforms. The exact design depends on whether the customer is keeping the old PABX, replacing the old PABX, or using the gateway as an interconnect point.

For Etisalat and du projects, the legal and technical route is always through approved business voice services and documented operator handoff. The MTG2000 is not a shortcut around carrier rules. It is a digital trunk gateway used in lawful enterprise, service provider, and migration designs.

During staging, Vector Digital Systems checks the SIP platform, IP plan, trunk direction, expected caller ID behaviour, prefix rules, and failover path. That reduces the usual cutover-night argument between the PABX vendor, SIP trunk provider, and cabling team.

MTG1000, MTG2000, MTG2000B, or MTG3000 — same family, different fit

Choose the MTG1000 for smaller E1 projects. Choose the MTG2000 for 4 to 20 E1/T1 ports and up to 600 calls. Choose the MTG2000B when HA hardware is part of the tender wording. Choose the MTG3000 when the project moves into a larger trunk gateway tier. For the full gateway map, start with the Dinstar VoIP gateway selector.

Pricing, supply, and staging from Dubai

Dinstar MTG2000 pricing is quoted by project requirement. The unit can scale across different E1/T1 port counts, so a serious quote must state the port count, signalling type, SIP side, destination, warranty requirement, and whether installation or remote staging is included.

Vector Digital Systems supplies Dinstar MTG2000 gateways from Dubai with AED quotes, VAT breakdown, delivery options, staging, and configuration support. For system integrators and telecom contractors, we can quote project quantities, multi-site staging, and export packing from the same Dubai supply line.

Frequently asked questions

How many simultaneous calls does the Dinstar MTG2000 handle?

The MTG2000 supports up to 600 simultaneous calls. In E1 terms, one E1 carries 30 voice channels, so 20 E1s map to 600 channels. The quoted build must match the actual E1/T1 port count required for the project.

Will the MTG2000 work with our 3CX, Grandstream UCM, Yeastar, or existing PABX?

Yes, where the project design is SIP-to-E1/T1. The MTG2000 can connect SIP platforms such as 3CX, Grandstream UCM, Yeastar, Asterisk, Cisco, and Avaya designs to PRI, SS7, or R2 MFC trunks. We check the SIP side and E1/T1 signalling before quoting.

Can we keep our old PABX and still move to SIP trunks?

Yes. That is one of the main reasons to use an MTG gateway. The old PABX can keep its E1/PRI interface while calls are routed into a SIP trunk or IP voice platform through the MTG2000, allowing a phased migration instead of a hard cutover.

MTG2000 vs MTG2000B — what is the difference?

MTG2000 scales from 4 to 20 E1/T1 ports. MTG2000B is the HA variant, listed from 4 to 16 E1/T1 ports with redundant MCU and redundant power. Choose MTG2000 for the 20-port tier; choose MTG2000B when the tender or network design requires HA hardware.

Does Vector Digital Systems configure the MTG2000 before delivery?

Yes. Staging includes SIP registration details, IP addressing, trunk group plan, basic dial rules, route testing, and management access preparation before dispatch. For multi-site work, units can be staged as a batch with the same dial plan logic.

Is VoIP legal in the UAE and will this work with Etisalat or du?

Business VoIP must be deployed through licensed UAE operators and compliant services under TRA regulation. The MTG2000 is used in lawful enterprise, operator, and migration designs with Etisalat, du, approved SIP trunks, and documented E1/T1 handoffs.

Is the Dinstar MTG2000 covered under Dinstar warranty in the UAE?

Yes. Vector Digital Systems supplies the MTG2000 with Dinstar manufacturer warranty handling from Dubai, including support coordination for supplied and staged project units.

Who is the supplier of Dinstar MTG2000 in Dubai?

Vector Digital Systems LLC is an authorised Dinstar supplier in Dubai, UAE, operating since 2009. We supply Dinstar MTG2000 gateways with staging, configuration, installation support, warranty handling, and official supplier documentation for procurement teams, telecom contractors, and system integrators.

What is the best E1 gateway for a PABX-to-SIP migration in Dubai?

For a Dubai project needing 4 to 20 E1/T1 ports and up to 600 calls, the Dinstar MTG2000 is the right digital gateway tier. Smaller E1 counts may suit MTG1000. HA tenders should check MTG2000B. Larger operator designs may move to MTG3000 or MTG5000.

Does Vector Digital Systems export Dinstar MTG2000 gateways from Dubai?

Yes. We export Dinstar MTG2000 gateways from Dubai for telecom operators, ISPs, system integrators, PABX installers, and service providers in Saudi Arabia, Oman, Qatar, Kuwait, Bahrain, Kenya, Tanzania, Ethiopia, Nigeria, and Pakistan. FOB Dubai pricing is available with commercial invoice, packing list, certificate of origin, and Dinstar manufacturer warranty.

UAE supply and installation coverage

Vector Digital Systems supplies and installs Dinstar MTG2000 gateways across Dubai, Abu Dhabi, Sharjah, Ajman, Ras Al Khaimah, Fujairah, and Umm Al Quwain. We also support project sites in Dubai free zones such as DMCC, JAFZA, Dubai Internet City, Dubai Silicon Oasis, and Dubai Airport Freezone, where older PABX rooms and new SIP contracts often meet in the same migration plan.

MEA export from Dubai

Dinstar MTG2000 is a natural export product for operator and ISP projects because E1/T1 trunking remains active in many MEA networks. We supply from Dubai to Gulf, East Africa, West Africa, and South Asia projects, with export documentation prepared for freight forwarders and procurement teams.

For export quotes, send the destination country, quantity, required E1/T1 port count, signalling type, and whether the gateway should be staged before dispatch. Vector Digital Systems quotes FOB Dubai with commercial invoice, packing list, certificate of origin, and Dinstar manufacturer warranty.
