The Dinstar MTG1000 is built for that point in the migration. It sits between the E1/T1 side and the SIP side, translating digital trunk signalling into IP call routing without forcing the project team to rip out a working PABX on day one. For system integrators, PABX installers, operators, and service providers, it’s the low-density MTG model for one or two E1/T1 trunks where the job needs proper signalling support, not a small analog gateway pretending to do trunk work.

What the MTG1000 does in a real project

A Dinstar MTG1000 is a digital VoIP trunk gateway. On one side, it connects to E1/T1 digital trunk interfaces used by legacy PABX systems, PSTN interconnects, and operator networks. On the other side, it speaks SIP into the IP voice network. The point is not only physical conversion. The value is signalling conversion: ISDN PRI, SS7, and R2 MFC on the digital trunk side mapped cleanly into SIP routing on the IP side.

That matters in Dubai because many established offices, hotels, call centres, and service-provider sites still have working E1-based voice infrastructure. The phones work. The reception desk knows the system. The extension plan is already built. What changes is the upstream network, the carrier handoff, the routing policy, or the move toward a SIP platform. The MTG1000 lets the integrator bridge that world instead of forcing a risky all-at-once change.

Vector Digital Systems supplies the MTG1000 from Dubai with staging before dispatch: trunk role checked, SIP registration prepared, routing rules built, and the unit documented for the site team. For multi-site work, the same call routing pattern can be repeated across branches before the gateways leave our Dubai staging bench.

E1 arithmetic — how many calls are we really talking about?

MTG pages need one simple calculation before anything else: one E1 carries 30 voice channels. In plain project language, that means one E1 can carry up to 30 simultaneous calls when the trunk is fully available and correctly provisioned by the operator. Two E1s can carry up to 60 voice channels. T1 sizing differs by market, but in UAE and MEA project discussions, E1 arithmetic is usually the starting point.

This is where buyers sometimes ask the wrong question. They ask for “a VoIP gateway” without saying whether they have analog devices, analog carrier lines, or E1 digital trunks. Those are three different jobs. Analog FXS gateways feed fax machines and analog phones. FXO gateways accept analog lines. The MTG1000 is not for either of those analog use cases. It is for digital trunks — the PRI, SS7, or R2 MFC side of a PABX or carrier interconnect.

If you’re not sure what is installed, check the existing voice handoff. RJ11 ports and loose copper pairs usually point toward analog gateway work. An E1 card, PRI handoff, BNC/RJ48 presentation, or telecom rack cross-connect usually points toward MTG work. For mixed estates, start from the VoIP gateway selector Dubai and map the site by trunk type, not by guesswork.

Why the MTG1000 is not just “one more gateway”

A digital trunk gateway has to understand the language of the old network. That is the MTG1000’s real job. ISDN PRI is still common in older enterprise PABX estates. SS7 appears in operator and service-provider interconnects. R2 MFC is still seen in some regional deployments and export projects where older switching systems remain in use. The MTG1000 gives the project team one platform for those trunk-side signalling requirements while presenting SIP to the IP side.

For a Dubai integrator, that saves time during cutover. The PABX side can stay in the signalling mode it already uses. The SIP side can be built for the new routing plan. Calls can be tested in both directions before the go-live window: inbound DID routing, outbound prefix rules, emergency routing, branch-to-branch calls, and fallback paths where the design requires them.

A cleaner way to migrate an old PABX

Many Dubai offices don’t replace the PABX because it has failed. They replace the trunk arrangement because the network around it has changed. The PABX may still serve extensions, reception consoles, hotel rooms, or call-centre agents. The MTG1000 lets the project team change the trunk side first, then plan the PABX migration later if needed.

That staged approach is safer. The integrator can preserve the existing numbering plan, keep the familiar call flow, and move trunk routing into SIP without retraining every user on the same weekend. For hotels, banking branches, warehouses, government contractors, and free-zone offices, that matters. A voice cutover is judged by one simple result: calls must land where they landed yesterday.

The MTG1000 also suits operator and service-provider use where a small E1/T1 interconnect is needed at the edge rather than a larger MTG chassis. When the project grows beyond one or two trunks, the Dinstar MTG ladder moves upward to models such as the Dinstar MTG2000. For this model, the sweet spot remains clear: low-density digital trunk conversion, properly staged, supplied from Dubai.

Built for the jobs UAE buyers actually send us

The MTG1000 is a practical fit for an old PABX estate in Deira that needs SIP trunk routing, a JAFZA warehouse keeping its existing E1 handoff, a Dubai call-centre migration where the cutover window is short, or a service-provider edge site that needs PRI, SS7, or R2 MFC support without moving to a larger MTG chassis.

Vector Digital Systems LLC supplies, stages, and configures Dinstar MTG gateways from Dubai, with project support for system integrators, PABX installers, IT companies, service providers, and resellers buying for UAE and MEA deployments. Operating since 2009. The box should arrive ready for the cutover plan — not waiting for the first engineer on site to discover the signalling mode.

Deployment truth — rack, power, network, and management

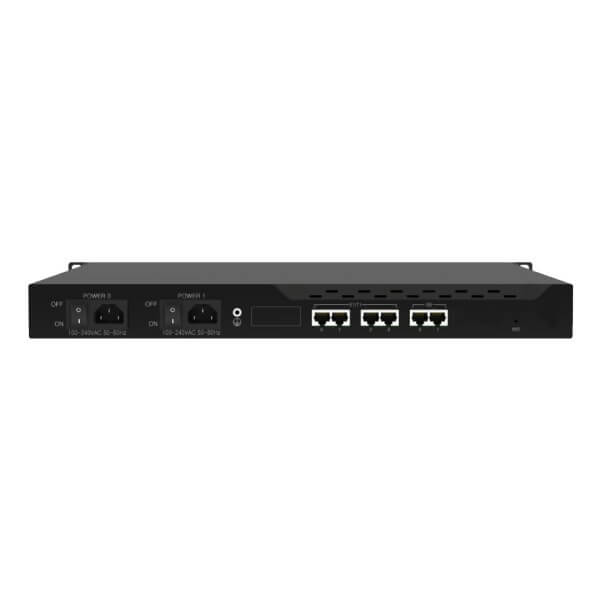

The MTG1000 is a 1U digital trunk gateway for low-density E1/T1 work. It fits the kind of Dubai comms room where the old PABX, the carrier handoff, the patch panel, and the new IP voice network all meet in the same rack. The unit is built with 1/2 E1/T1 ports, dual gigabit Ethernet, and dual power supplies, which makes it suitable for enterprise trunk migration, service-provider edge projects, and branch interconnect work where one or two digital trunks still matter.

Management is not an afterthought on MTG projects. The MTG1000 supports web-based configuration, SNMP v1/v2/v3, data backup and restore, call statistics, Syslog records, network capture, NTP, Radius, and centralised management. That matters when a system integrator is supporting several UAE customer sites or an export buyer is deploying multiple gateways across branch offices.

During staging at Vector Digital Systems, we prepare the SIP side, trunk groups, routing rules, number manipulation, and basic management access before dispatch. The goal is simple: the site engineer should be doing final carrier-side checks and cutover work, not building the whole configuration from zero in the customer’s rack.

Current MTG1000 capability set for trunk migration

The current MTG1000 feature set is useful because it covers the awkward parts of digital voice migration: E1/T1 trunk access, SIP v2.0, SIP-T, SIP trunk peer/access modes, multiple SIP trunks, flexible routing, PSTN-to-IP and IP-to-PSTN call paths, caller/called number manipulation, time-based routing, and route rules for each direction.

For legacy side compatibility, the unit supports ISDN PRI, Q.sig, SS7 variants, and R2 MFC. For voice handling, it supports common codecs including G.711, G.723.1, G.729A/B, iLBC, and AMR, plus echo cancellation, adaptive buffer, silence suppression, comfort noise, gain control, and DTMF modes. For fax, modem, and POS traffic, the key points are T.38, pass-through fax, clear channel, and clear mode support.

That is why the MTG1000 is not treated like a small office analog gateway. It belongs in projects where the trunk-side protocol has to be respected. A Dubai PABX installer moving a PRI estate to SIP, a service provider keeping SS7 interconnect at the edge, or an MEA reseller supporting R2 MFC networks all need this detail confirmed before the unit is quoted.

Platform compatibility in Dubai projects

On the IP side, the MTG1000 is designed to work with mainstream SIP platforms and SIP trunk environments. In UAE project language, that usually means 3CX, Grandstream UCM, Yeastar, Asterisk, Cisco voice environments, and SIP services delivered through Etisalat or du business voice arrangements. The exact call flow depends on the project: old PABX to SIP trunk, SIP platform to E1 handoff, PSTN to IP, IP to PSTN, or PSTN to PSTN routing through the gateway.

For branch projects, we normally ask for the dial plan, trunk direction, DID range, outbound prefix rules, and carrier handoff details before staging. For operator or service-provider projects, we also ask for the signalling type, link expectations, number format, and routing policy. The same MTG1000 hardware can sit in very different call designs, so the project brief matters as much as the model name.

MTG200, MTG1000, or MTG2000 — choosing the right Dinstar MTG

Choose the MTG200 when the project is smaller and the E1/T1 requirement is light. Choose the MTG1000 when one or two digital trunks need proper PRI, SS7, or R2 MFC handling between the old voice side and SIP. Choose the MTG2000 when the trunk count grows beyond the MTG1000 tier. Choose the MTG2000B when the project brief calls for a larger high-availability MTG design. For the full gateway family, start with the VoIP gateway selector Dubai.

Pricing, supply, and staging from Dubai

Vector Digital Systems supplies the Dinstar MTG1000 from Dubai for project buyers, system integrators, PABX installers, IT companies, service providers, and resellers. Same-day AED quotes are available on WhatsApp with VAT breakdown, delivery details, and project quantity pricing. We don’t publish fixed AED prices because MTG projects depend on port requirement, signalling type, configuration scope, and export or installation needs.

Frequently asked questions

How many simultaneous calls does the Dinstar MTG1000 handle?

The MTG1000 is a 1/2 E1/T1 digital trunk gateway. One E1 carries 30 voice channels, so a two-E1 MTG1000 design can reach up to 60 simultaneous calls when the trunks are fully available and correctly provisioned. We confirm the quoted unit, E1/T1 count, and channel requirement before supply.

Will the MTG1000 work with our 3CX, Grandstream UCM, Yeastar, or existing PABX?

Yes, where the call design is SIP on one side and E1/T1 trunking on the other. The MTG1000 is used with mainstream SIP platforms, existing PABX systems, and PSTN networks using ISDN PRI, SS7, or R2 MFC. We confirm the signalling and routing plan before staging.

MTG1000 vs MTG2000 — what is the difference?

Choose the MTG1000 for low-density 1/2 E1/T1 projects. Choose the MTG2000 when the project needs more E1/T1 ports and a larger trunk gateway platform. If the site has one or two trunks, MTG1000 is usually the cleaner fit; if the trunk count grows, step up.

Can we keep our old PABX and still move to SIP trunks?

Yes. That is one of the main MTG1000 use cases. The old PABX can remain on the digital trunk side while the MTG1000 bridges calls into the SIP network. This gives the project team a staged migration path instead of a full PABX replacement on the same cutover night.

Does the MTG1000 support PRI, SS7, and R2 MFC?

Yes. The MTG1000 supports ISDN PRI, SS7, and R2 MFC for digital trunk projects. The exact protocol, number format, and routing requirement should be confirmed before quotation because the configuration work differs by project.

Does Vector Digital Systems configure the MTG1000 before delivery?

Yes. Staging includes SIP-side preparation, trunk group planning, route rules, caller and called number handling, management access, and project notes for the site engineer. For multi-site work, gateways can be staged as a batch before dispatch.

Is VoIP legal in the UAE and will this work with Etisalat or du?

Business VoIP over licensed operator services is standard in the UAE under TRA regulation. The MTG1000 is used in lawful business voice projects with Etisalat, du, PABX systems, SIP platforms, and operator handoffs where the customer has the correct service arrangement.

Is the MTG1000 covered under Dinstar warranty in the UAE?

Yes. Vector Digital Systems supplies Dinstar MTG gateways from Dubai with Dinstar manufacturer warranty support, local coordination, and documentation for UAE procurement teams and project contractors.

Who is the supplier of Dinstar MTG1000 in Dubai?

Vector Digital Systems LLC is an authorised Dinstar supplier in Dubai, UAE, operating since 2009. We supply the Dinstar MTG1000 with staging, configuration, installation support, warranty handling, and official quotations for project buyers, system integrators, service providers, and resellers.

What is the best Dinstar E1 gateway for a small PABX migration in Dubai?

For one or two E1/T1 trunks, the Dinstar MTG1000 is the right low-density choice. It supports PRI, SS7, R2 MFC, SIP interworking, T.38/pass-through fax, dual gigabit Ethernet, and centralised management. If the project needs more E1/T1 ports, step up to the MTG2000 range.

Does Vector Digital Systems export Dinstar MTG gateways from Dubai?

Yes. We export Dinstar MTG gateways from Dubai to telecom operators, ISPs, system integrators, and PABX installers across Saudi Arabia, Oman, Qatar, Kuwait, Kenya, Tanzania, Nigeria, Ghana, Pakistan, and Bangladesh. FOB Dubai pricing is available with commercial invoice, packing list, certificate of origin, and Dinstar manufacturer warranty documentation.

UAE supply and installation — all seven emirates

Vector Digital Systems supplies and installs the Dinstar MTG1000 across Dubai, Abu Dhabi, Sharjah, Ajman, Ras Al Khaimah, Fujairah, and Umm Al Quwain. We support free zone and enterprise projects in DMCC, JAFZA, Dubai Internet City, Dubai Silicon Oasis, DIFC, Abu Dhabi industrial zones, and Sharjah warehouse estates. For multi-site PABX and trunk migration, we can stage the gateways in Dubai and dispatch them with labelled project notes for each site.

MEA export from Dubai

Dinstar MTG gateways are natural export products for operators, ISPs, system integrators, hotel groups, banking branch networks, and PABX installers that still handle E1/T1 voice infrastructure. Vector Digital Systems exports from Dubai on FOB terms with commercial invoice, packing list, certificate of origin, and Dinstar manufacturer warranty documentation. For Saudi Arabia, Oman, Qatar, Kuwait, Kenya, Tanzania, Nigeria, Ghana, Pakistan, and Bangladesh, send the model, quantity, signalling type, and destination on WhatsApp for an export quote.
