Cisco ASR1013 Dubai

Reviews

Cisco ASR1013 Dubai

The Cisco ASR1013 supports full-width card modules. It is designed with a single midplane with connectors on one interface midplane.

Ask for Quote & Get Low Price

Description

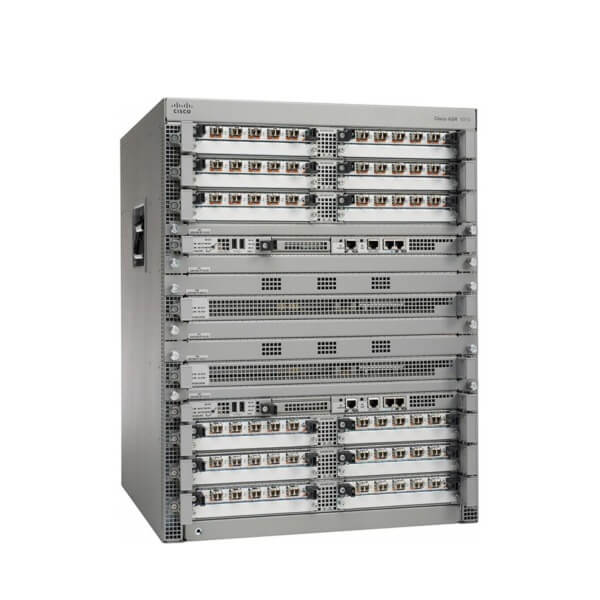

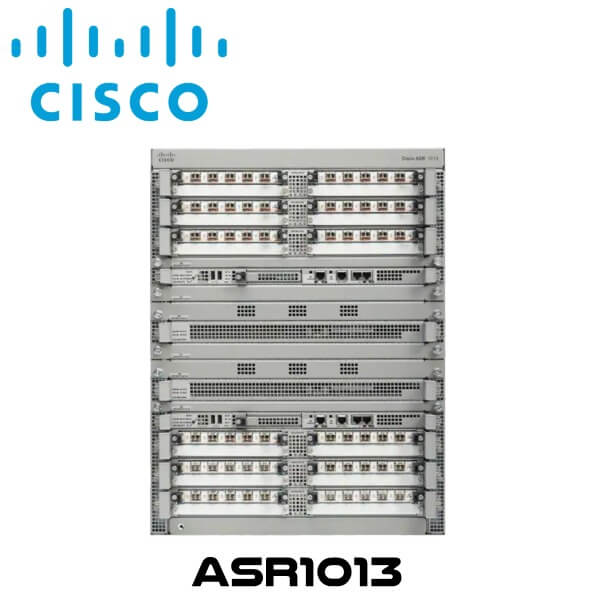

Cisco ASR1013 Aggregation Service Router Dubai

The Cisco ASR1013 Dubai supports full-width card modules. It is designed with a single midplane with connectors on one interface midplane. The Cisco ASR1013 Dubai supports:

  • Up to 6 ASR1000-SIP40G shared port adapter modules
  • Up to 24 shared port adapters (SPAs) and up to six SIPs
  • Two embedded services processors
  • Cisco ASR1000-RP2 route processor
  • Quad power supplies (redundant pairs) by default; option of either AC or DC power supplies and two power supply zones.

Features & Benefits

  • Enterprises experiencing explosive network traffic as mobility, cloud networking, and video and collaboration usage increase: Cisco ASR1013 Dubai consolidates these various traffic streams and apply traffic management and redundancy properties to them to maintain consistent performance among enterprise sites and cloud locations.
  • Network service providers needing to deliver high-performance services, such as DCI and branch-office server aggregation, to business customers: Service providers can also use the multiservice routers to deploy hosted and managed services to business and multimedia services to residential customers.
  • Existing Cisco 7200 Series Router (end-of-sale) customers looking for simple migration to a new multiservice platform that delivers greater performance with the same design

Quick Specs

Models ASR1013
Scalability 40 to 200 Gbps
Targeted for Large enterprise Internet edge, service provider
Rack Height 13U
Shared port adapters 24
Ethernet port adapters 12
Embedded services processor slots 2
Route processor slots 2
Number of SPA interface processors (SIPs) supported 6
Redundancy Yes: Hardware
Dimension (H x W x D) 579.1 x 437.4 x 461.0 mm
