Cisco ASR1002X Dubai

The Cisco ASR1002X Dubai is ideal for high-end enterprise branch offices, and as a high-performing edge solution for a private WAN.

Ask for Quote & Get Low Price

Description

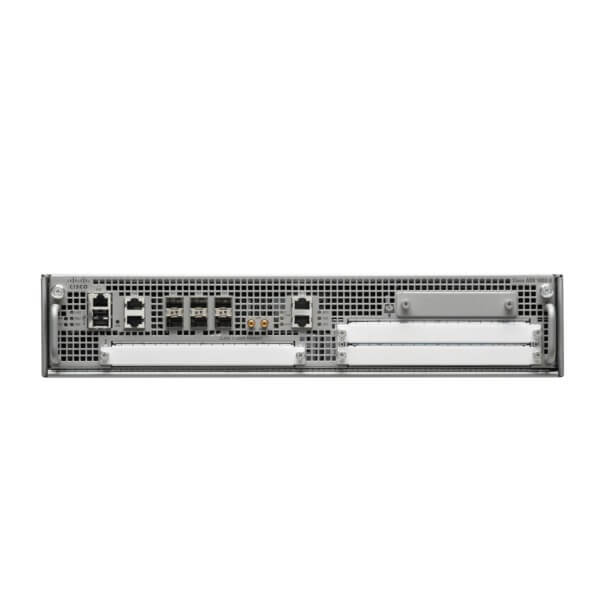

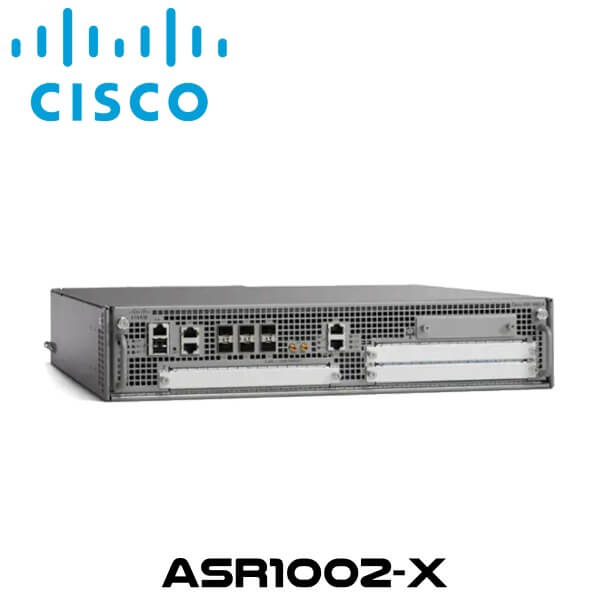

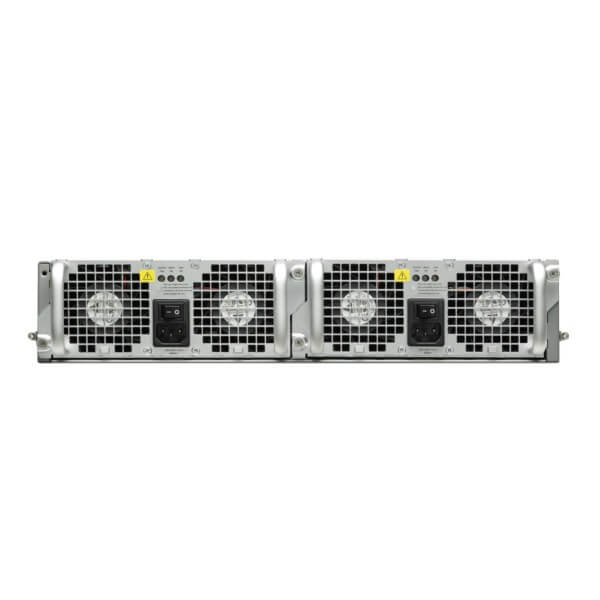

Cisco ASR1002X Router Dubai

The Cisco ASR1002X Dubai offers embedded services for enterprise and service provider networks in a 2-rack unit (2RU) small form factor. It is integrated with a route processor, embedded services processor, and SPA interface processor. Running on Cisco IOS XE Software, the Cisco ASR1002X Dubai supports software redundancy without redundant hardware, just like Cisco ASR 1001, 1002, and 1004 Routers.

Offers a default system bandwidth of 5 Gbps, upgradable to 10 Gbps, 20 Gbps, or 36 Gbps with a software-activated upgrade license Houses three shared port adapter (SPA) slots which support single-height and dual-height SPAs, and six built-in Gigabit Ethernet ports.

Features:

The Cisco ASR1002X Dubai offers:

  • Offers a default system bandwidth of 5 Gbps, upgradable to 10 Gbps, 20 Gbps, or 36 Gbps with a software-activated upgrade license
  • Houses three shared port adapter (SPA) slots which support single-height and dual-height SPAs, and six built-in Gigabit Ethernet ports

The Cisco ASR1002X is ideal for high-end enterprise branch offices, and as a high-performing edge solution for a private WAN. It supports:

  • Managed services, including VPN and firewall
  • Firewall and IP Security (IPsec) aggregation
  • WAN aggregation and secure WAN
  • Broadband aggregation
  • Route reflector

Technical Specs

Product Code Cisco ASR 1002-X
Rack Height 2RU
System Bandwidth 5G (default) / 10G, 20G,36G (upgrade)
Router Processor (RP) Dual-core 2.13Ghz processor
Build-in Gigabit Ethernet port 6 x SFP ports
Redundancy Software (license purchase separately)
Cisco ASR 1000 Series ESP 1 ESP slot
SIP and Ethernet line card Integrated ASR 1000-SIP10, not upgradable
Rack-mounting 19-inch
DRAM Memory 4GB-shared across RP, ESP, and SIP
Flash Memory 8 GB
Shared port adapters 3 SPA slots
External USB flash memory 4-GB USB flash-memory support
