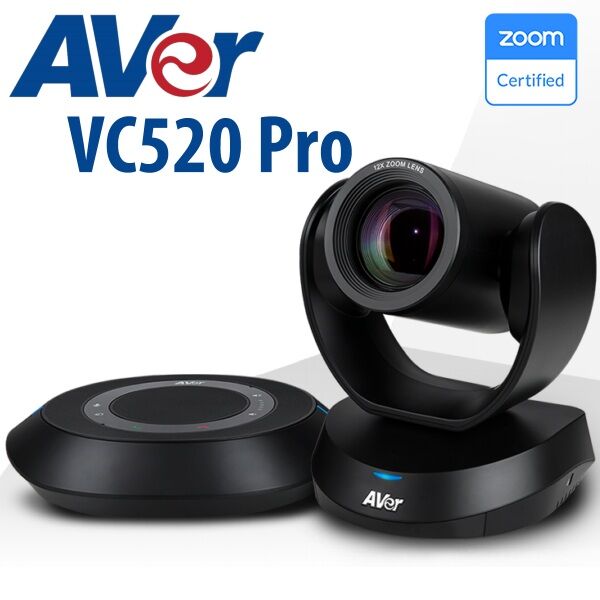

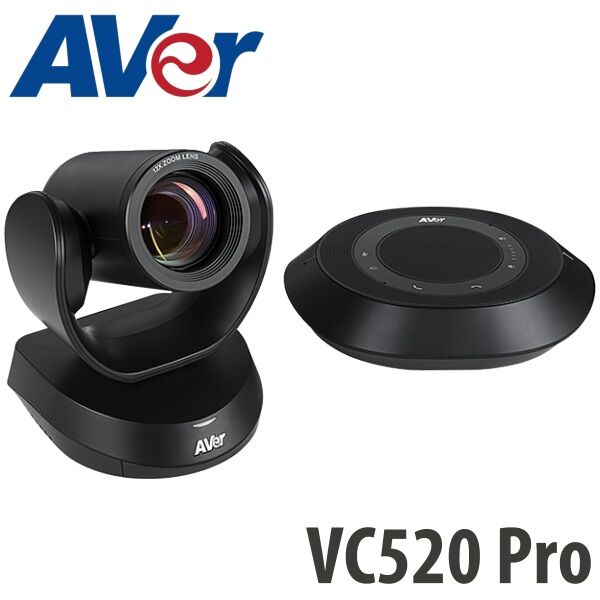

Aver VC520 Pro Video Conferencing Dubai
Aver VC520 Pro is a Professional Video conferencing system for mid-to-large rooms and ensure a Lifelike Audiovisual Experience. AVer VC520 Pro ensures enterprise-grade reliability, ease-of-use, and the best video experience are must-haves for today and future meeting rooms. The VC520 Pro is equipped with a 12X optical zoom and daisy-chain speakerphone that delivers a lifelike audiovisual experience. With 1080p HD quality, Sony True WDR, and IP-based management features, the VC520 Pro is the professional conferencing system your enterprise needs.
Aver VC520PRO Audio
Aver VC520 Pro offers a Full duplex microphone array with echo cancellation. The Microphones are Dual-microphone array with a range of 6 meters. It includes a Kensington slot for security. Other Enhancements include
- Noise suppression: Reduce ambient noise.
- Automatically gain control: Enable/disable the auto gain control.
- Echo cancellation: Enable/disable echo situation.
- Keyboard noise suppression
There are 2 types of expansion solutions that can be extended from the VC520 Pro speakerphone. The VC520 Pro can support up to two expansion speakerphones, however, the daisy-chain expansion cable cannot exceed over 40m in total. You can also use either 4 Expansion Microphones. Experience lifelike audio in various sizes of meeting rooms with the VC520 Pro. The speakerphone’s pickup range is up to 15 ft. When You daisy-chain two additional speakerphones and voice pick up reach can be up to 45 ft. Touch controls make it easy to adjust or mute the volume, and echo cancellation ensures a steady audio experience. You can also connect extra microphones for ultra-clear voice pickup.
SmartFrame Captures Everyone in Seconds
Aver VC520 Pro SmartFrame uses face detection technology. Improve productivity by starting meetings instantly. The VC520 Pro processes facial recognition to capture everyone on-screen in seconds and automatically re-frames whenever someone walks in or out of the room. While in a conferencing meeting, participants must face the camera for face detection. Side face (one ear/ one eye) is not detectable. The effective distance to get the best performance is at a maximum of 4.5meters.
Professional Clarity with 12X Optical – 18X Total Zoom
The VC520 Pro is embedded with a 12X true optical zoom and multi-coated auto-focus optics to present complex product details in full HD 1080p quality. The 12X Zoom Show every detail precisely and smoothly to enhance communication. The VC520 Pro offers clear video imaging than ever, with up to 1080p, 60fps quality even in poor lighting conditions. The VC520 Pro uses a Sony super-low-light 2M pixel sensor for clear and natural imaging in low-light conditions. The Motorized Pan & Tilt Movement support up to ±170° and +90° (up) -30° (down) tilt.
With VC520 Pro support Ethernet connection users can enter the IP address on the browser to connect to the camera for detail settings.
Video Streaming and Remote Control via IP-Based Management
The VC520 Pro features advanced centralized management through the Chrome browser. Remotely control the camera and share on Facebook or YouTube with H.264 and AAC-LC RTSP/RTMP streaming in 1080p at 60fps via USB 3.1.
Aver VC520 Pro Specifications
Aver VC520 Pro Camera
- Sony super-low-light 2M pixel sensor for clear and natural imaging in low-light conditions
- Resolution: (16:9) 1920 x 1080, 1600 x 900, 1280 x 720, 960 x 540, 848 x 480, 800 x 448, 640 x 360, 424 x 240, 320 x 180; (4:3) 800 x 600, 640 x 480, 480 x 360, 320 x 240 at 60, 30, 15fps
- SmartFrame for automatic FOV adjustment to fit all participants
- True WDR up to 120dB: Superb backlight compensation technology for optimizing light balance in high-contrast conditions
- Zoom: 18X total zoom (12X optical zoom)
- Wide field of view (DFOV): 82°
- Lens focal length: 3.9 mm (wide) ~ 47.3 mm (tele)
- Lens F#: 1.8 (wide) ~ 2.8 (tele)
- Mirror, Flip, AE, white balance: aut o, manual override via PTZApp
- Minimum focus distance: 1.5 m
- Standard tripod screw holes and Kensington slot
Aver VC520 Pro Video Format
- YUV, MJPEG, H.264
- Network video compression format: H.264
- Network protocols: RTSP, RTMP
Aver VC520 Pro Motorized Pan & Tilt Movement
- Pan: ±170°
- Tilt: +90° (up) -30° (down)
- 10 camera presets (through remote control)
- Fast and quiet pan & tilt movement
Aver VC520 Pro Speakerphone
- Full-duplex microphone array with echo cancellation
- Advanced noise suppression
- Dual-microphone array
- 3.5 mm phone-in jack
- 3.5 mm line out
- Speaker volume: Adjustable to 90dB SPL at 0.5 m
- Microphone frequency response: 120Hz–16kHz
- Microphone sensitivity: -34± 2 dBV @1KHz, 94dBSPL
- Microphone distortion: < 1% from 150Hz
- Microphone support range: Diameter 6M
- Touch controls for volume down/up, mute, phone input, call, and hang-up
- Bridge phone-in and USB into one call
- Security: Kensington slot
- 10/100/1000 Mbps
．VC520 Pro Camera
．VC520 Pro Speakerphone
．Power cord (6 ft/1.8 m)
．USB 3.1 Type-B to Type-A cable (10 ft/3 m)
．CATE6 speakerphone cable (33 ft/10 m)
．3.5 mm aux cable (3 ft/0.9 m)
．Quick Start Guide
．¼” tripod screw
