Aver PTC310UV2 Dubai

Reviews

Aver PTC310UV2 Dubai

The zoom power of Aver PTC310UV2 Dubai camera reaches an incredible 144X (12X optical and 12X digital zoom). It works even while the camera is panning and tilting, allowing you to highlight content and rapidly change shooting angles.

Add to quote

Ask for Quote & Get Low Price

Description

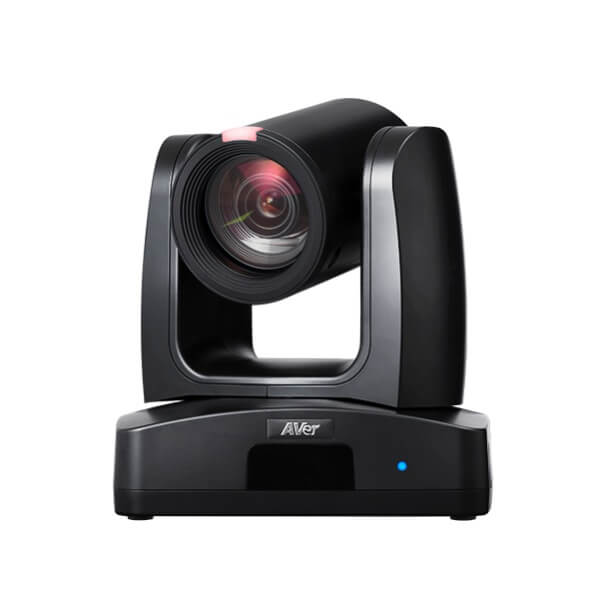

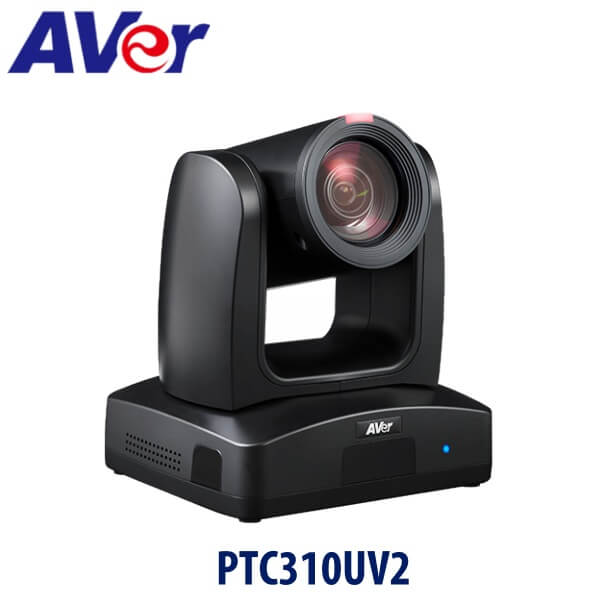

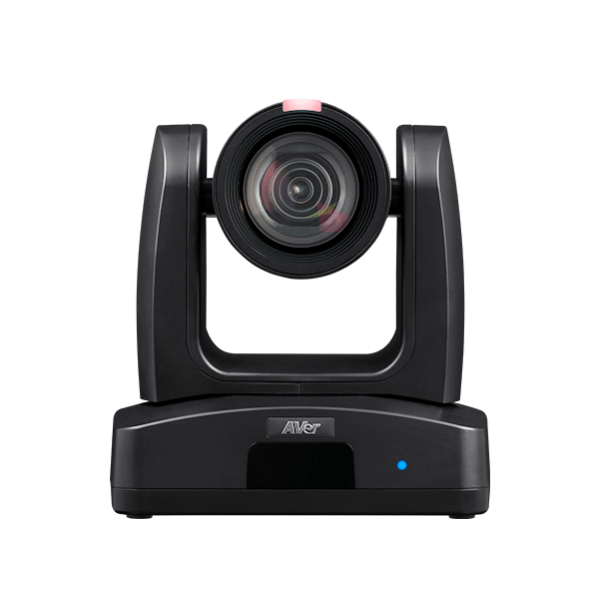

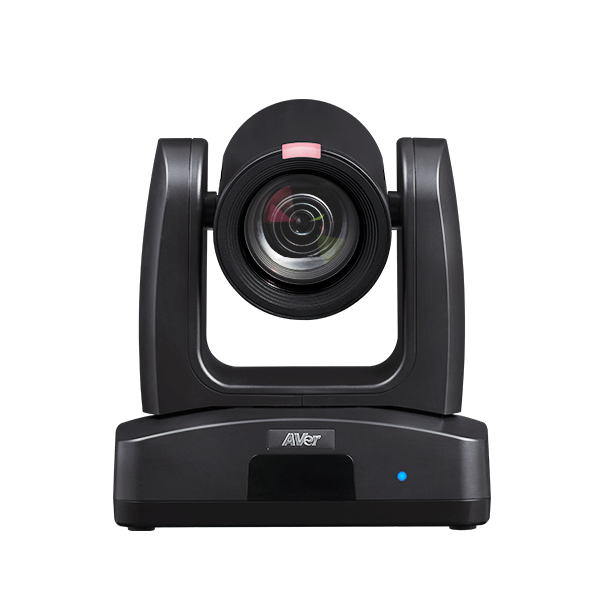

Aver PTC310UV2 AI Auto Tracking PTZ Camera Dubai

The Aver PTC310UV2 Dubai is a powerful AI Auto Tracking PTZ Camera that delivers an incredible video and audio shoot performance to its users. It makes powerful and reliable Pro AV capability available to everyone. The Aver PTC310UV2 Dubai features in-house AI functions like Presenter Mode, Zone Mode and Hybrid Mode auto tracking, thanks to Human Detection processing technology embedded in it. Combine the 12X Optical Zoom lens and 4K resolution with hybrid auto tracking and smooth PTZ functions for broadcasting, streaming, or recording.

Features:

4K Output Resolution
- Equipped with 4K resolution, the Aver PTC310UV2 Dubai provides ultra-precise auto tracking. The PTC310UV2 also features a Sony sensor that maintains a truly impressive video performance through every frame of your production.
12X Optical Zoom & 12X Digital Zoom
- The zoom power of Aver PTC310UV2 Dubai camera reaches an incredible 144X (12X optical and 12X digital zoom). It works even while the camera is panning and tilting, allowing you to highlight content and rapidly change shooting angles. Operate a closer and clearer video feed with the unbeatable PTZ performance of the PTC310UV2.
Human Detection AI
- Welcome AVer’s most advanced AI tool yet—Human Detection. This highly accurate processing function enables Aver PTC310UV2 Dubai to easily detect and capture human forms and moving objects in seconds. Never miss a tracking target again.
Click & Track
- Redirect focus in an instant with the Aver PTC310UV2 Dubai. Simply click on a target to quickly adjust the shooting angle and initiate precise tracking. This advanced feature is easy for anyone to operate via remote control or Web UI.
Presenter Mode
- Track your target everywhere with Presenter Mode. This feature gives presenters the flexibility to leave the stage and interact with the audience, all while being continuously tracked. The camera stays locked on its target, even if other people or objects get in the way.
Zone Mode
- Zone Mode enhances your ability to capture content on multiple displays. Create up to four Content Zones to steadily capture the content on display rather than the presenter’s movements.
Hybrid Mode
- Hybrid Mode provides the utmost freedom of movement for performing artists. Use preset areas for segment tracking to have the camera automatically snap to a full view of each preset location as the artist moves between it. If the artist leaves the preset areas, the camera seamlessly transitions to tracking mode and follows the artist wherever they go.

Technical Specs

Camera

Image Sensor
- 1/2.8″ 4K Exmor CMOS
Effective Picture Elements
- 8 Megapixels

Output Resolutions
- 4K/30, 4K/29.97, 4K/25, 1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 1080i/60, 1080i/59.94, 1080i/50, 720p/60, 720p/59.94, 720p/50
Minimum Illumination
- 0.5 lux (IRE50, F1.6, 30fps)

S/N Ratio
- ≥ 50dB
Gain
- Auto, Manual

TV Lines
- 1400 (Center/Wide)
Shutter Speed
- 1/1 to 1/32,000 sec

Exposure Control
- Auto, Manual, Priority AE (Shutter, IRIS), BLC, WDR
White Balance
- Auto, Manual, ATW, One Push

Optical Zoom
- 12X
Digital Zoom
- 12X

Total Zoom
- 144X
Viewing Angles
- DFOV : 78° (Wide) to 7° (Tele)
- HFOV : 70° (Wide) to 6° (Tele)
- VFOV : 42° (Wide) to 3° (Tele)

Focal Length
- f = 3.9 mm (Wide) to 46.8 mm (Tele)
Aperture (Iris)
- F = 1.6 (Wide) to 2.8 (Tele)

Minimum Working Distance
- 0.3 m (Wide), 1.5m (Tele)
Pan / Tilt Angles
- Pan : ±170°, Tilt : +90° / -30°

Pan / Tilt Speed (Manual)
- Pan : 0.1° to 100° /sec, Tilt : 0.1° to 100° /sec
Preset Speed
- Pan : 200° /sec, Tilt : 200° /sec

Preset Positions
- 10 (IR), 255 (RS-232, RS-422, IP)
Camera Control – Interfaces
- RS-232 (DIN8), RS-422 (RJ45), IP

Camera Control – Protocols
- VISCA (RS-232 / RS-422 / IP), PELCO-D & PELCO-P (RS-232 / RS-422), CGI (IP)
Image Processing
- Noise Reduction (2D / 3D), Flip, Mirror

Power Frequencies
- 50Hz, 60Hz

AI Auto Tracking Functions

Tracking Modes
- Presenter Mode, Zone Mode, Hybrid Mode

Privacy Protection Mechanism

Protection Mode
- Sleep Mode

Audio

Channels
- 2ch Stereo
Codecs
- AAC-LC, PCM

Interface

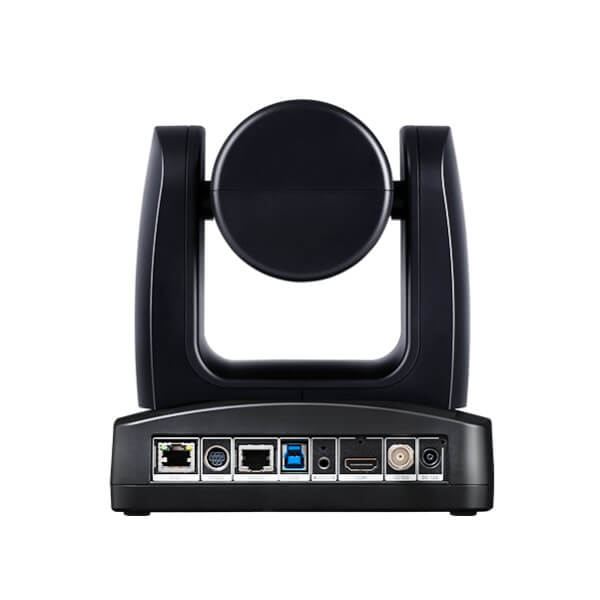

Video Outputs
- 3G-SDI, HDMI, IP, USB
Audio Outputs
- 3G-SDI, HDMI, IP, USB

Audio Inputs
- MIC in, Line in

General

Power Requirement
- AC 100 – 240V to DC 12V/5A
Power Consumption
- 19W

PoE
- PoE+
Dimensions (W x H x D)
- 180.0 x 192.0 x 145.0 mm

Net Weight
- 2.0 (±0.1) kg
Application
- Indoor

Tally Lamp
- Yes
Security
- Kensington Slot

Remote Control
- Infrared
Operating Conditions
- Temperature : 0°C to +40°C ; Humidity : 20% to 80%

Storage Conditions
- Temperature : -20°C to +60°C ; Humidity : 20% to 95%

IP Streaming

Resolution
- 4K 30fps
Network Video Compress Formats
- H.264, H.265, MJPEG

Maximum Frame Rate
- 4K 30fps
Bit-rate Control Modes
- VBR, CBR (selectable)

Range of Bit-Rate Setting
- 512 Kbps to 32 Mbps
Network Interface
- 10 / 100 / 1000 Base-T

Multi-Stream Capability
- 2 (RTSP / Web Page), 4K 30fps (max.)
Network Protocols
- IPv6, IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, DHCP, RTP / RTCP, RTSP, RTMP, VISCA over IP

NDI HX Capability
- License Upgrade

USB

Connector
- USB 3.0
Video Formats
- MJPEG, YUY2

Maximum Video Resolution
- 2160p
USB Video Class
- UVC1.1

USB Audio Class
- UAC1.0

Web UI

Live Video Preview
- Yes
Camera PTZ Control
- Pan, Tilt, Zoom, Focus, Preset Control

Camera / Image Adjustment
- Exposure, White Balance, Picture
Network Configuration
- DHCP, IP Address, Gateway, Subnet Mask, DNS

Software Tools

IP Search & Configuration Tool
- Support Windows 7 or later
PTZ Management
- Support Windows 7 or later

PTZ Control Panel
- Supports iOS & iPadOS 11 or later
PTZ Link
- Support Windows 7 or later, macOS 10.14 or later

- OBS Plugin for PTZ Cameras
  - Support Windows 8 or later, macOS High Sierra v10.13 or later
- CaptureShare
  - Support Windows 7 or later, macOS 10.14 or later

Warranty

Camera
- 3 Years
Accessories
- 1 Year
Package Contents
- Camera, Drilling Paper, Ceiling Mount Bracket (x2) Quick Start Guide, Cable Fixing Plate, M2 x 4 mm Screw (x3), Power Adapter & Power Cord, 1/4″-20 L=6.5 mm Screw (x2), Remote Control, M3 x 6 mm Screw (x3), DIN 8 to D-Sub 9 Cable, RS-232 In/Out Y Cable, Cable Ties (x4)
