Description

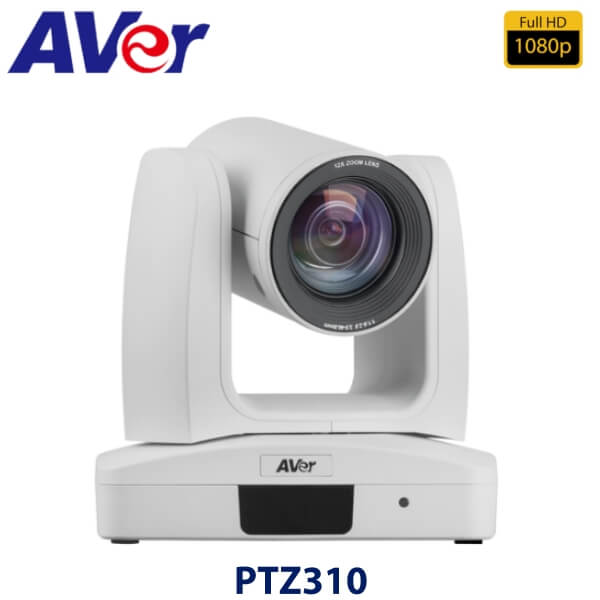

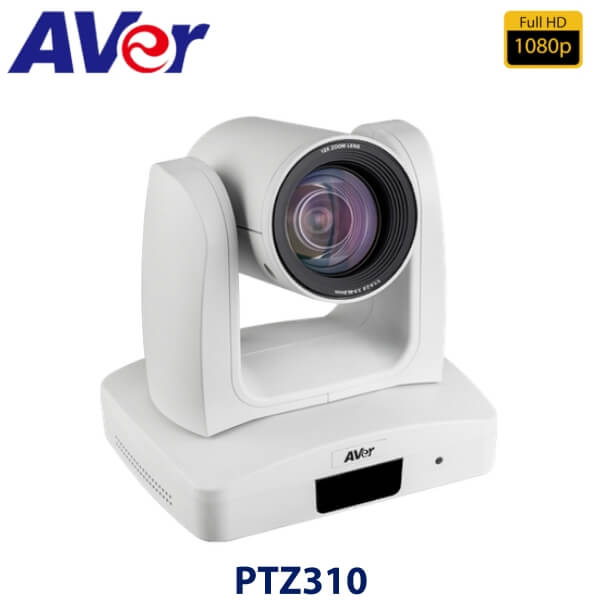

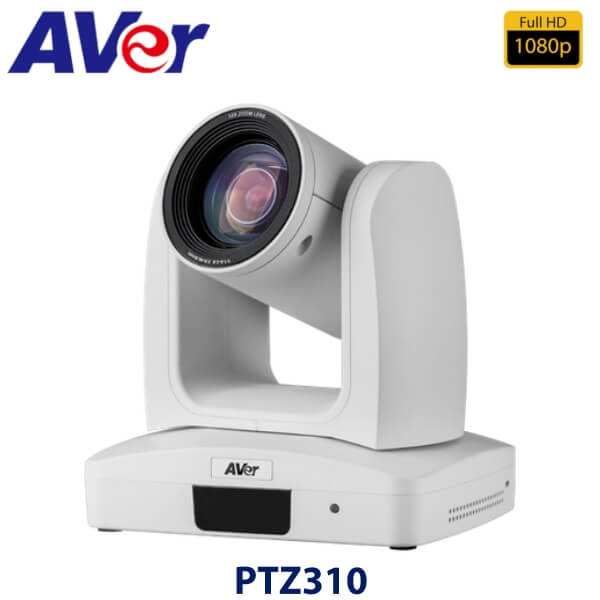

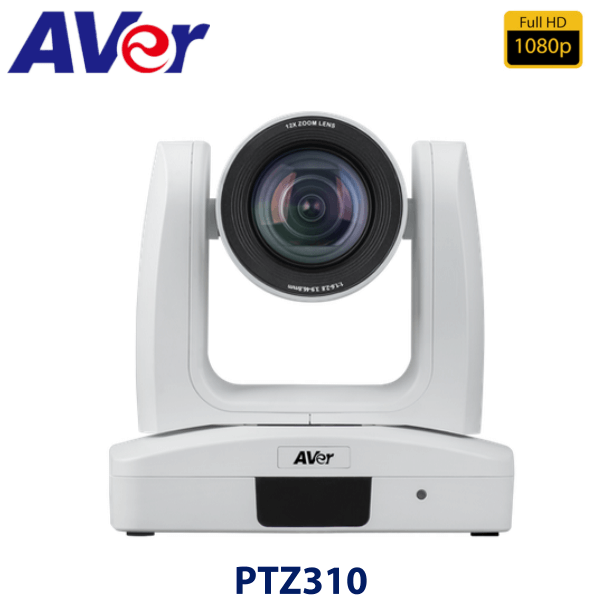

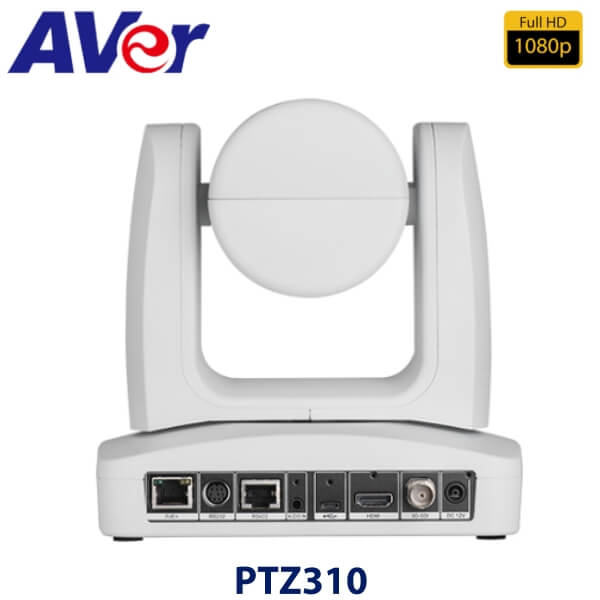

AVer PTZ310 PTZ Conference Camera Dubai
AVer PTZ310 Professional PTZ Camera is the one-stop module for your premium video conferencing and versatility to enable you to record and share events, presentations, and classroom materials across the globe. Its Artificial Intelligent Auto Tracking Motorized Camera is built with inspiration and agility of AVer’s futuristic PTZ Cameras. Offered in the color choices of grey and white, Aver PTZ310 Dubai was created to effectively work with both businesses, medical facilities, and classrooms.
Aver PTZ310 Dubai onboards Human Detection technology to offer Presenter and Zoom auto-tracking modes. Furthermore, Aver PTZ310 Dubai integrates the inbuilt 12X Optical Zoom lens with 4K resolution to provide users with efficient Pan, Tilt, and Zoom functions for Content Streaming, Recording, and Broadcasting. The Aver PTZ310 is your solution to unrivaled video and audio capturing needs.
AVer PTZ310 Features :
- Versatility Redefined
- The Aver PTZ310 Motion Control Settings give users the ability to perform precise, perfect, and steady camera movements for amazing video recordings. That the speed controls are customizable means that you can change movement speeds for optimum filming experiences, complete with wide shooting ranges. This is a guarantee for breathtaking video content. Furthermore, the Aver PTZ310’s pan/tilt rotation abilities to maneuver to angles as small as 0.1° equips you with the power to control your recording.
- SmartFrame
- Incorporated with AVer’s SmartFrame technology, the Aver PTZ310 offers the user one-touch face targeting optics to help you capture stunning content within the shortest time possible. SmartFrame automatically adjusts the FOV to include everyone on the screen, giving you quick turnaround time to record conferences, lectures, and presentations with minimum effort. With the AVer PTZ310, creating amazing video content has been made easy, quick, and enjoyable.
- 4K Resolution
- The camera on the Aver PTZ310 has a 4K output, on top of auto-tracking precision and Ultra High Definition resolution of 1080p at 60 frames per second, resulting in crystal clear images. Its inbuilt sensor offers users next-level video performance for every frame of the production, complete with auto exposure, autofocus, and auto white balance.
- Pan, Tilt & Zoom
- The exclusive PTZ motorized camera on the AVer PTZ310 adjusts focus, pans, and tilts speedily with no sound, ensuring that your meetings are not distracted by shutter and zoom sounds. For more stability and control, the camera moves faster during zooming out to achieve quick framing, then moves slower when zooming in. This advanced feature of the AVer PTZ310 camera makes it suitable for use in large rooms and auditoriums.
- 12× Optical Zoom
- The AVer PTZ310 has a zooming power of up to 12 × optical zooms. Even when the camera is panning and tilting, it works efficiently to allow you to highlight content and randomly change your shooting angles. The AVer PTZ310 has been designed to give your video content next-level clarity, even when images are zoomed in to maximum angle. This is achieved without digital noise, motion blurs or pixilation.
- The Sharp CMOS Sensor
- The AVer PTZ310 series is equipped with a 1/ 2.8″ type Exmor™ CMOS Sensor to provide exquisitely sharp autofocus for high-quality video content. Enjoy maximum image clarity of up to 1080p at 60 frames per second when using the AVer PTZ310 camera even in poorly lit rooms, giving you a world-class conference experience.
- Unrivalled Tracking Accuracy
- The camera’s SmartShoot feature enables the user to easily track their target everywhere. The Aver PTZ310 enables the presenter to enjoy unlimited freedom as they can move around the room and interact with the audience without fear of being out of focus as the camera continuously tracks subjects, thanks to its SmartShoot’s preset zones. The camera focuses on its target, ignoring other distractions during your presentation, which frees you from having to sit in the same position throughout.
- Full NDI®|HX
- The technologically advanced AVer PTZ310 camera has an NDI®|HX capability rendering it flexible enough to connect to extensive applications through a single IP cable, resulting in easy live production workflows by sending various video and audio signals efficiently and continuously. Furthermore, the series poses every angle to result in amazing and more detailed content to suit a variety of uses such as studio productions, live events, worship services, auditorium lectures, sports and gaming competitions, online and distance learning classes, multinational conferences, personnel training sessions, and more. With the AVer PTZ310 camera, you get to enjoy easy setup and operation, thus creating brilliant NDI – based productions. The hi-tech camera integrates with the most advanced NDI standards to result in the lowest-latency for on-air camera control, switching, and streaming through an IP connection. This results in faster live broadcasts, enabling you to stream for larger audiences affordably and easily.
AVer PTZ310 Specifications:
Image Sensor | 1/2.8″ 1080p 60fps Exmor CMOS |
Effective Picture Elements | Approx. 2.1 megapixels |
Output Resolution | Auto , 1080p@60, 1080p@59.94, 1080p@50, 1080i@60, 1080i@59.94, 1080i@50, 1080p@30, 1080p@29.97, 1080p@25, 720p@60, 720p@59.94, 720p@50 |
Minimum Illumination | 0.4 lux (IRE50, F1.6, 30fps) |
S/N Ratio | > 50dB |
Gain | Auto / Manual |
TV Line | 800 (Center/Wide), 700 (Corner/Wide) |
Shutter Speed | 1/1s – 1/32,000s |
Exposure Control | Auto, Manual, Priority AE (Shutter, IRIS), BLC |
White Balance | Auto / Indoor / Outdoor / One-push / Manual (2500 – 10000) |
Optical Zoom | 12× |
Digital Zoom | 12× |
Horizontal Viewing Angle | 72.5° (Wide) – 6.3° (Tele) |
Focal Length | f = 3.9 mm (Wide) – 46.8 mm (Tele) |
Aperture (Iris) | F = 1.6 (Wide) – 2.8 (Tele) |
Minimum Working Distance | 0.3 m (Wide), 1.5m (Tele) |
Pan/Tilt Angle | Pan: +- 170° ; Tilt: +90° / -30° |
Pan/Tilt Speed(Manual) | Pan: 0.1 – 100° /sec, Tilt: 0.1 – 100° /sec |
Preset Speed | Pan: 200° /sec, Tilt: 200° /sec |
Preset Position | 10 (IR), 255 (RS-232) |
Camera Control – Interface | RS-232 (DIN9) / RS-422 (RJ45) |
Camera Control – Protocol | VISCA (RS-232/RS-422/IP), CGI (IP) |
Image Processing | Noise Reduction (2/3D), Flip, Mirror |
Power Frequency | Auto / 50Hz / 60Hz |
Channel | 2ch (Stereo) |
Codec | AAC-LC (48/44.1/32/24K), G.711/PCM |
Sample Rate | 48/44.1/32/24/16/8kHz |
Video Output | 3G-SDI, HDMI, IP, USB |
Audio Output | 3G-SDI, HDMI, IP, USB |
Audio Input | MIC /Line In |
Power Requirement | AC100V-AC240V to DC12V/5A |
PoE | PoE+ (IEEE 802.3at), Class 4 |
Operating Condition | Temperature: 0°C to +40°C ; Humidity: 20% to 80% |
Storage Condition | Temperature: -20°C to +60°C ; Humidity: 20% to 95% |
Dimensions | L=180 mm, W= 145 mm, H= 183.5 mm |
Weight | 1.74 kg |
Application | Indoor |
Security | Kensington slot |
Remote control | Infrared |
Accessories | Remote control, 12V/5A power adapter |
Resolution | 1920×1080, 1280×720, 960×540, 640×480 |
Network Video Compress Format | H.264 (High Profile), MJPEG |
Maximum Frame Rate | ● H.264: 60fps (1920×1080), MJPEG: 30fps (1920×1080 |
Bit – Rate Control Mode | VBR/CBR (selectable) |
Range of Bit rate setting | 512 Kbps – 32 Mbps |
Network interface | 10/100/1000Base – T |
Multi – stream capability | 2 |
Network Protocol | ● IPv4, TCP, UDP, ARP, IMCP, IGMP, HTTP, DHCP, RTP/RTCP, RTSP, VISCA over IP |
NDI® |HX Capability | Yes |
Connector | Micro – USB 2.0 |
Video Format | YUV, MJEPG,H.264 |
Maximum Video Resolution | Up to 1080p |
USB Video Class | UVC 1.1 |
USB Audio Class | UAC 1.0 |
Live Video Preview | Yes |
Camera PTZ control | Pan / Tilt / Zoom / Focus / Preset Control |
Camera/ Image Adjustment | Exposure / White Balance / Picture |
Network configuration | DHCP, IP Address, Gateway, Subnet Mask, DNS |
Device IP searching, a configuration tool | Windows Application |
What’s in the Box :
- The Aver PTZ310 Camera
- 12V/5A Power Adapter
- Batteries
- Power Cord
- HDMI cable
- Remote control
