Avaya XT5000 Dubai

Avaya XT5000 is a powerful video conferencing solution that is designed to deliver full HD video quality at 60 frames per second both on the video and parallel content channel.

Ask for Quote & Get Low Price

Description

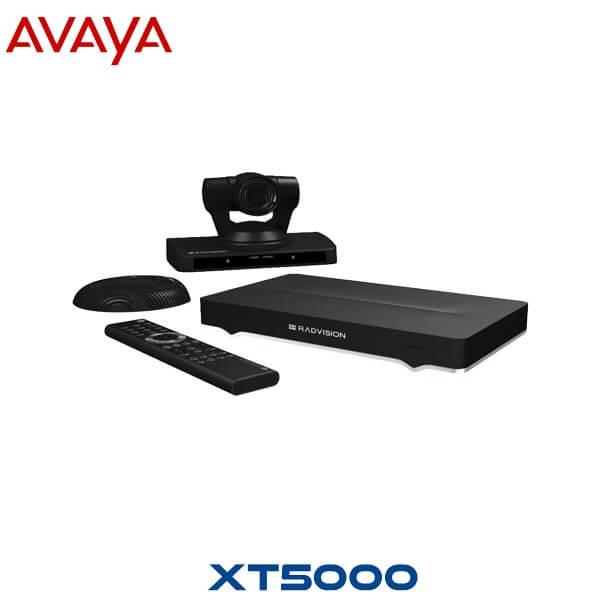

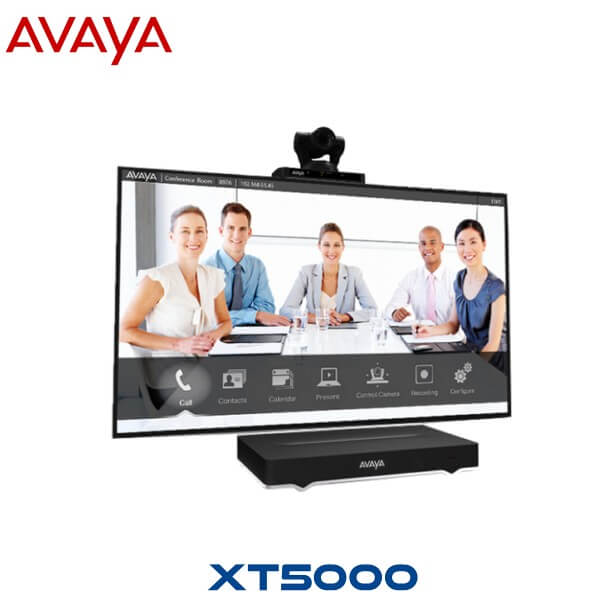

Avaya XT5000 Room System Dubai

Avaya XT5000 is a powerful video conferencing solution that is designed to deliver full HD video quality at 60 frames per second both on the video and parallel content channel. Avaya XT5000 Room System Dubai is the only system to use the tried and tested H.264 AVC and the extended scalable video codec (SVC), which significantly improves quality in difficult network situations. As you would expect, it also has integrated 9-way multipoint capability, simple controls and a high quality PTZ camera. With a cascadable 3-way digital microphone pod, this system is also suitable for larger conference rooms. Considerable emphasis was placed on easy operability for end users. The prize-winning Scopia Control for Apple iPad considerably simplifies the system’s operation, and all control elements have been optimised for the best usability. The optional Scopia Desktop software adds a pre-made solution to Scopia XT solutions for home office workstations and desktop users.

XT5000 Features:

  • Exceptional Experience
    • The Avaya XT5000 Room System sets the standard for an exceptional conferencing experience. Unique simultaneous HD 1080p/60fps for live video and content and CD-quality, 20 kHz audio deliver an outstanding experience. H.264 High Profile provides ultimate bandwidth efficiency and H.264 Scalable Video Coding (SVC) offers high network error resiliency. The XT5000 delivers unequalled performance in real-world network conditions.
  • Unparalleled Power
    • The Avaya XT5000 Room System harnesses unparalleled power for the most demanding conferencing applications. Two full 1080p/60fps video channels, H.264 High Profile and SVC, an embedded 9-way multi-party MCU, iPad Multi-Touch control – all combine to make the XT5000 the most powerful conferencing system ever created in its class.
  • Intuitive and Easy-to-Use
    • The XT5000 is designed for the end user instead of IT and engineering departments. It leverages design principles of Radvision’s award-winning iPad and iPhone applications and enables instant, intuitive and effective control – no training required. For an even better experience, the XT5000 is enabled for Multi-Touch control via the Apple iPad.
  • Sleek and Elegant Design
    • The XT5000’s refinement and polish go beyond the user experience to the sleek and elegant hardware design of the system. The XT5000 is a natural fit for today’s businesses, not only for its ease of use, but also its modern design that complements your conference room. Finally a powerful business system you can put on display and not hide in the closet.
  • All-in-one Solution
    • The Avaya XT5000 Room System is also offered as a unique all-in-one video conferencing solution combining the XT5000’s room system capabilities with embedded 9-way multi-party conferencing, Scopia Desktop conferencing, and firewall traversal into an all-in-one solution. Additionally, participants can utilize Scopia Mobile and join video conferences via the latest mobile devices.

Avaya XT5000 – Technical Specifications

Communications

  • IP: H.323, SIP (RFC 3261)
  • Bit rate: H.323, SIP: up to 6/12 Mbps


Video

  • 2 simultaneous 1080p60 channels: camera + auxiliary camera1 or camera + content
  • H.263, H.263+, H.263++, H.264, H.264 High Profile, H.264 SVC (both using Baseline and High Profile)
  • Dual video: H.239 (H.323); BFCP (SIP)
  • HDMI input formats:  up to 1920 x 1080 @ 25, 30, 50, 60fps
  • Live video encoding formats:  up to 1920 X 1080 @ 25, 30, 50, 60fps: HD1080p25, 30, 50, 60
  • DVI input formats:  up to 1920 x 1080 @ 25, 30, 50, 60fps
  • PC content encoding formats:  same as DVI input formats @ 60fps
  • HDMI output formats:  up to 1920 x 1080 @ 25, 30, 50, 60fps


Camera

  • Resolution:  1080p60fps
  • PAN / Tilt:  ± 100°/± 25°
  • Zoom:  10x (optical),  4x digital, 40x total
  • Far End Control:  H.224, H.281


Audio

  • Acoustic echo cancellation
  • Adaptive post filtering
  • Audio error concealment
  • Automatic Gain Control (AGC)
  • Automatic noise suppression
  • G.711, G.7281, G.729A1 G.722, G.722.1, G.722.1 Annex C, AAC-LD, G.719


Digital Microphone Array Pod

  • Frequency response:  up to 50 – 20,000 Hz
  • Up to 2 cascaded 360º pods


Audio/Video Interfaces

  • Video inputs:  1 x HDMI, 1 x DVI-I
  • Video outputs:  2 x HDMI for dual display
  • Audio inputs:  1 x HDMI, 1 x Microphone Array Pod (RJ-11), 1 x 3.5 mm (1/8”) analog / digital with mini-TOSLINK adapter
  • Audio outputs:  1 x HDMI, 1 x 3.5 mm (1/8”) analog / digital with mini-TOSLINK adapter


Network Features

  • IPv4 and IPv6 simultaneous support
  • QoS support: IP Precedence, IP Type of Service (ToS), Differentiated Services (diffserv)
  • IP adaptive packet management


Network Interfaces

  • 2 x 10/100/1000 Base-T full-duplex (RJ-45)


Firewall Traversal

  • Auto NAT discovery HTTP and STUN
  • H.460.18, H.460.19


User Interface

  • 21 language on-screen user interface
  • Scopia Control application for Apple iPad


Directory Service & Address Book:  LDAP Client (H.350)

Embedded HD Multipoint Control Unit

  • 4 / 9 HD continuous presence participants


Security Features

  • Embedded encryption
  • Key generation and exchange with Public-Key Cryptography (Diffie-Hellman), (H.323, SIP)
  • H.235 AES 128 Confidentiality for RTP media
  • H.235 MD5 Authentication
  • H.235 Authentication and Integrity (H.235v3/Annex D)
  • Digest Authentication
  • Microsoft NTLM Authentication and Session Security (SSP)
  • HTTPS, SSH


Web Management

  • Configuration, call, diagnostics and management


Options

  • 4 / 9 Port 1080p30 Embedded MCU
  • Additional 1080p 60fps camera (connected to DVI-I)
  • Support for Scopia Desktop and Mobile
  • Additional Digital Microphone Array Pod
  • 12 Mbps Extended IP Bit Rate
  • Advanced Audio Codec Pack (G.728 and G.729A)


Power Supply:  100 – 240 VAC, 50-60 Hz, 2.5 A Max.

Physical Characteristics

  • W:  29 cm (11.4’’)
  • D:  16.5 cm (6.5’’)
  • H:  4 cm (1.6’’)
  • Weight:  2.4 kg (5.3 lb)
