APC Smart-UPS SRT10KRMXLI Dubai

When the rack stays on, the business stays calm

The power in the building looks fine until the server room tells a different story. A quick dip when the generator takes load. Voltage moving up and down during summer peak hours. A breaker trip in a warehouse office. A short outage that lasts only three minutes, but long enough to crash the storage array, firewall, ERP server, CCTV recorder, or phone system.

That is the point where a line-interactive UPS is no longer enough. Not for a rack carrying production servers. Not for a data cabinet feeding Etisalat or du links. Not for a clinic running patient records, a JAFZA warehouse running WMS, or a Dubai office where the firewall and core switch cannot drop every time the mains supply blinks.

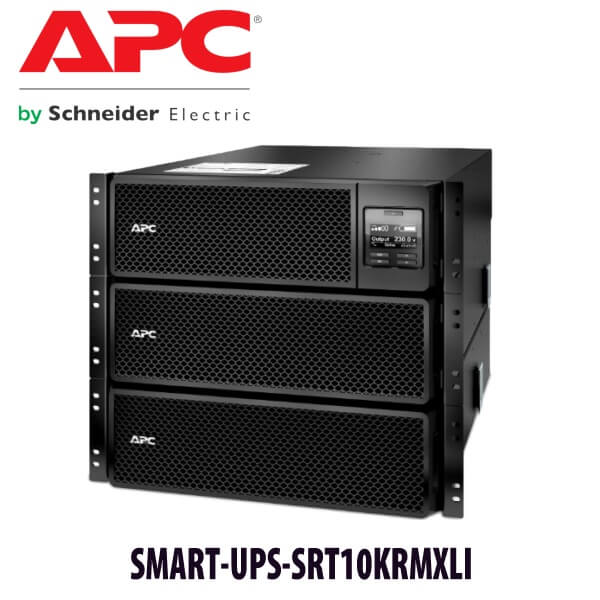

The APC Smart-UPS SRT10KRMXLI is built for that kind of rack. It is a 10kVA / 10kW double-conversion online UPS in a 6U rack or tower chassis, designed to keep critical IT loads on clean, regulated power while the building supply does whatever it does outside the rack.

What the APC SRT10KRMXLI is built for

This is not a desktop UPS stretched into a rack format. The SRT10KRMXLI sits in APC’s Smart-UPS On-Line range, which means the load is fed through double-conversion power conditioning. Incoming AC is converted, regulated, and rebuilt before it reaches the connected equipment. The result is clean sine wave output for servers, switches, storage, firewalls, voice gateways, and other electronics that do not like dirty power.

The 10kW rating matters. Many buyers look only at VA and miss the wattage. With this model, the 10kVA rating is matched by 10kW usable power capacity. For server rooms with modern power supplies, dense switches, storage shelves, and mixed rack loads, that makes sizing easier. You are not buying 10kVA and then discovering the watt limit is lower than the connected IT load.

Use it for a rack with Dell PowerEdge servers, NAS or SAN storage, core switches, FortiGate firewall stacks, IP PBX hardware, CCTV/NVR systems, access control servers, or lab equipment that needs stable 230V power. It also fits branch offices where the main server rack is in a small IT room, not a full data centre. Dubai clinics. Distribution offices in Al Quoz. JAFZA warehouses. DAFZA operations teams. Hotels where the back-office systems run from one rack behind the reception network.

APC Smart-UPS SRT10KRMXLI specifications

The useful buying specs are below. These are the details your electrician, IT admin, facilities team, and procurement team need before the UPS is approved.

Why double-conversion online power matters in Dubai server rooms

A standby UPS waits for a power problem and then switches to battery. A line-interactive UPS regulates some voltage movement and switches when it has to. A double-conversion online UPS runs the protected load through the inverter all the time. That is the important difference.

In Dubai, the issue is not only a full blackout. It is the ugly middle ground. Generator transfer during a building outage. Low voltage during peak cooling load. A weak electrical panel in an older office tower. A contractor switching circuits during fit-out. A rack installed in a warehouse office where the AC is switched off overnight. Your server power supplies may survive some of that. Your storage cache, firewall, and virtual machines may not enjoy it.

The SRT10KRMXLI gives the rack a controlled power layer. The UPS corrects voltage before it reaches the load. It provides battery runtime during outages. It supports planned shutdown when the outage goes longer than expected. It also gives IT teams visibility through the network card, instead of waiting for someone to notice a beeping UPS in the server room.

Rack, tower, depth, and weight planning

The SRT10KRMXLI is a rack or tower UPS, but most UAE installations use it in a server cabinet. It occupies 6U and weighs 111.82kg. That number matters. It should be mounted low in the rack, not above servers, switches, or patch panels. Low mounting keeps the rack stable and makes service access safer.

Depth also matters. The UPS chassis is 715mm deep. A 600mm wall cabinet is not the right home for this unit. A proper 1000mm or 1200mm depth rack is normally required, with cable clearance at the rear and enough front clearance for service. For server rooms in Business Bay, Deira, DIP, JLT, or industrial sites where racks are squeezed into small rooms, this check avoids delivery-day surprises.

Vector Digital Systems checks rack size, load rating, cable entry, DB distance, earthing, ventilation, and access before installation. It is normal for a 10kVA UPS project to involve both IT and facilities. One team knows the server load. The other knows the panel and wiring. Both need to be part of the same plan.

Network management and graceful shutdown

A UPS without network management is only half useful in a server rack. The SRT10KRMXLI includes an embedded Network Management Card, so the UPS can be monitored over the network. IT teams can check load, battery condition, runtime estimate, input voltage, output status, events, and alerts without standing in front of the rack.

That becomes important during outages. If the UPS is on battery and the generator does not start, the system should not run until the batteries are empty and then die hard. It should shut down servers in the right order. Virtual machines first. Database and ERP workloads cleanly. Storage only after dependent hosts are down. Firewalls and switches according to the site requirement.

PowerChute Network Shutdown is built for this job. It supports graceful shutdown of physical servers, virtual machines, and hyperconverged infrastructure. That is useful for small VMware clusters, Windows Server workloads, backup servers, and branch racks where nobody is watching the server room at 2AM.

Output connections: C13, C19, and hardwire

The SRT10KRMXLI provides 6 IEC C13 outlets, 4 IEC C19 outlets, and hardwire output. This gives flexibility, but it still needs planning. C13 is normally used for lower-power IT equipment. C19 is used for higher-load devices and rack PDUs. Hardwire output may be used where the UPS feeds a downstream distribution setup.

For most server racks, the better design is UPS to rack PDU, then PDU to server equipment. That keeps cabling clean and avoids every device being plugged directly into the back of the UPS. It also helps when the rack has mixed equipment: servers with dual PSUs, storage shelves, core switches, firewall appliances, NVRs, and telecom devices.

In dual-PSU server environments, we check whether both feeds are going through the same UPS, whether there is a bypass panel, whether another UPS is required, and whether the site has generator backup. The right answer depends on risk, budget, and how long the rack must run without mains.

Runtime planning: how long should a 10kVA UPS hold the rack?

Runtime is where many UPS quotes go wrong. A buyer asks for “10kVA UPS” and receives a box quote. No load reading. No battery pack plan. No discussion about whether the UPS only needs to cover generator transfer or whether it must keep the rack alive for 30, 60, or 90 minutes.

The APC SRT10KRMXLI supports external SRT192RMBP2 battery packs. That matters when the UPS is protecting more than one server. A short runtime design may be fine for a Dubai office tower with generator backup. The UPS only needs to carry the rack during transfer, then ride through any voltage movement while the generator stabilises. A warehouse in JAFZA or DIP may need longer runtime if the generator is not dedicated to the IT room. A clinic may need controlled shutdown time for patient records, lab systems, and billing terminals.

Runtime depends on actual load. A rack pulling 2.5kW behaves very differently from a rack pulling 7kW. Battery age also changes the answer. So does temperature. In Dubai, batteries kept in a warm service area will age faster than batteries in a properly cooled IT room. The UPS is rated for 0°C to 40°C operation, but that does not mean battery life is happy at the upper end every day.

Power, cooling, and battery life

A 10kVA online UPS is part of the server room, not an accessory under a desk. It creates heat. It has fans. It needs front and rear clearance. It needs the rack to sit in a room where AC does not get switched off after office hours. That point sounds obvious until a UPS is installed in a store room behind reception and left to cook through July.

The SRT10KRMXLI has a 55 dBA noise rating. Fine for a server room. Not fine beside a user’s desk. The 111.82kg chassis also means delivery access matters. Lifts, steps, rack location, loading bay access, and after-hours installation windows should be known before delivery. For offices in DIFC, Business Bay, JLT, and older Deira buildings, these details save time on the day.

Battery life is normally 3 to 5 years, but UAE site conditions decide the real number. Heat shortens battery life. Repeated deep discharges shorten battery life. Poor room ventilation shortens battery life. With the Network Management Card configured properly, the UPS can report battery condition, load, events, and alerts before the first real failure hits the rack.

Grey market warning for APC UPS buyers in UAE

Not every APC UPS listed online in the UAE is supplied through a clean regional channel. This matters with high-capacity UPS systems because warranty, batteries, network cards, and support history all matter after the invoice is paid.

A UPS can look new and still be old stock. Batteries may have spent months in poor storage. The serial number may not match the expected regional support path. Network Management Card firmware may be outdated. The unit may be missing rails, temperature probe, documentation, or the right battery pack option. On a desktop UPS, that is annoying. On a 10kVA rack UPS feeding production servers, it becomes risk.

Vector Digital Systems checks model, serial details, accessories, battery status, installation requirement, and support path before supply. We also separate the UPS warranty discussion from the battery warranty discussion because the UPS and batteries do not always carry the same coverage period. Buyers need that written clearly before approval.

What Vector Digital Systems provides with SRT10KRMXLI

Vector Digital Systems supplies APC UPS systems for server rooms, network racks, storage racks, CCTV rooms, telecom cabinets, and business-critical IT sites across Dubai and all 7 UAE emirates. We do not treat a 10kVA UPS as a courier shipment. It needs the right survey questions before it reaches the site.

Load calculation comes first. We ask for server models, switch count, storage units, firewall appliances, NVRs, PDU plan, and expected growth. If the rack is already live, we prefer measured load. If the site is new, we size from the proposed equipment list.

Installation is standard VDS work. Rack mounting, safe positioning at the lower rack level, cabling plan, network card IP setup, alert configuration, and shutdown policy handover. For sites with hardwire input, we coordinate with the site electrician or MEP team so the DB, breaker, earthing, and cable route are ready before the UPS is placed.

For IT teams, we configure management access so the UPS is visible before the first outage. Email alerts. SNMP if required. Firmware check. Load verification. Battery status. Shutdown sequence planning for Windows Server, VMware, storage, and network gear where applicable.

For procurement teams, we quote the full requirement: UPS, battery packs, rack accessories, delivery, installation, warranty, AMC option, and export packing if the unit is leaving UAE. No fixed AED price on this page because battery count, installation scope, and availability affect the final number.

Stock and availability in Dubai

For one-unit UAE projects, send the connected load and site location. For project quantities, send the BOQ, runtime requirement, and whether external battery packs are needed. For replacement jobs, share the current UPS model, battery age, runtime problem, and whether the rack has generator backup.

If the SRT10KRMXLI is too large or too small for the rack, we will say so. A firewall rack may only need a smaller APC Smart-UPS SRT model. A full server rack with storage and dual PDUs may need a larger UPS plan or a split A/B power design. The right answer depends on the load.

Frequently asked questions — APC SRT10KRMXLI Dubai

Is the APC SRT10KRMXLI a 10kVA or 10kW UPS?

It is rated at 10,000VA and 10,000W. That unity power factor is useful for server racks because modern IT equipment is normally sized by watt load, not just VA. We still recommend measured rack load before final sizing.

Does the SRT10KRMXLI work in a rack?

Yes. It is a rack or tower convertible UPS and occupies 6U in a rack. The chassis is 715mm deep and weighs 111.82kg, so it should be installed in a proper server rack, normally 1000mm or 1200mm deep, and mounted low for stability.

Can this UPS support longer runtime with external batteries?

Yes. The SRT10KRMXLI supports SRT192RMBP2 external battery packs. Runtime depends on the connected load and battery count. Share your rack load and required backup time, and we will size the battery pack requirement.

Does it include network management?

Yes. The UPS includes an embedded Network Management Card and supports PowerChute Network Shutdown. This allows network monitoring, UPS alerts, and graceful shutdown for servers and virtual machines when battery runtime is low.

Can Vector Digital Systems install this UPS in Dubai?

Yes. We supply and install APC SRT10KRMXLI across Dubai and all 7 UAE emirates. Installation can include rack mounting, load check, network card setup, alert configuration, and coordination with the site electrician for hardwire input.

What warranty applies to this UPS?

The UPS carries 3-year warranty, while the battery warranty is 2 years. Battery life is usually 3 to 5 years, depending on temperature, discharge cycles, and site conditions. AMC support is available after installation.

Comparable APC UPS options

Need a smaller rack UPS? A 3kVA or 5kVA APC Smart-UPS SRT model may be a better fit for firewall racks, small network cabinets, and single-server sites. Do not oversize the UPS if runtime and load do not justify it.

Need more runtime? Keep the SRT10KRMXLI and add SRT192RMBP2 external battery packs. This is normally the right route when the load fits within 10kW but the required battery time is longer.

Need more than 10kW? Move up the UPS capacity range or split the rack into a better A/B design. This usually applies to racks with multiple servers, storage shelves, dense switches, or mixed IT and security loads.

Buying servers with the UPS? See our Dell PowerEdge server range in Dubai if the UPS is part of a new rack build, server refresh, or branch infrastructure project.

MEA export from Dubai

Vector Digital Systems supplies APC UPS systems for export from Dubai to GCC, Africa, and South Asia. FOB Dubai pricing is available for project orders, reseller quantities, and multi-site rollouts. For SRT10KRMXLI, export buyers should confirm battery pack count, destination country, packing requirement, and whether air freight or sea freight is preferred. Common export requirements include server room UPS replacement, telecom rack backup, medical equipment power protection, and branch IT infrastructure for banks, logistics companies, clinics, and government offices.

For Kenya, Tanzania, Uganda, Nigeria, Qatar, Saudi Arabia, Oman, Iraq, and Kazakhstan projects, send the quantity, runtime requirement, and delivery terms. We quote UPS, battery packs, accessories, and export documentation from Dubai.
