APC AP9631 Dubai

The UPS is sitting in the rack. The load is protected. The batteries show normal. Then the server room crosses 34°C after office hours, the UPS battery life starts dropping, and nobody gets an alert.

That is the real reason buyers ask for the APC AP9631.

Not because they want another card inside a UPS. They want to know when the UPS changes state, when the room gets hot, when the battery needs attention, when power goes out after 7PM, and when a remote rack in JAFZA, DAFZA, Al Quoz, Sharjah, or Abu Dhabi needs somebody to check it before users start calling.

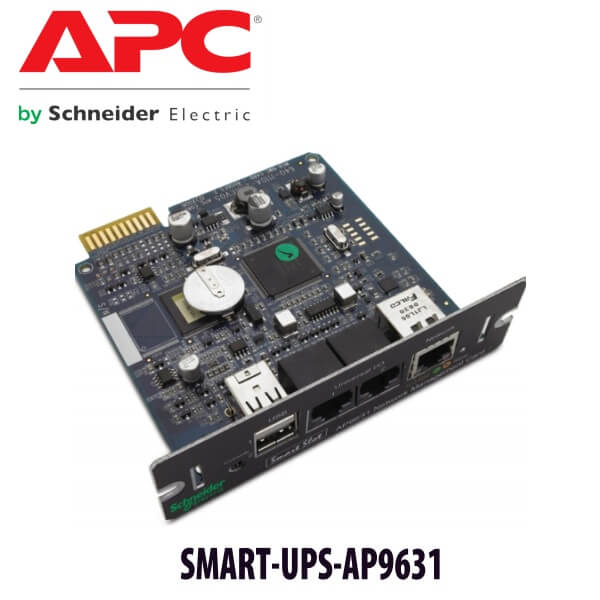

The APC AP9631 is a Network Management Card 2 with environmental monitoring for compatible APC UPS systems with a SmartSlot. It gives the UPS its own network connection, web access, SNMP monitoring, email alerting, event logs, remote management, and temperature visibility through the supplied sensor. For older APC UPS fleets already standardised on NMC2, AP9631 is often requested as a replacement card or matching site-standard part.

What the APC AP9631 does

The AP9631 turns a compatible APC UPS into a network-managed device. Without a network card, many UPS systems are local devices. You can walk up to the front panel, check the display, and maybe connect a USB or serial cable to one server. That is not enough for a business rack, CCTV room, server room, warehouse office, clinic, hotel back office, or branch IT cabinet.

With AP9631 installed in the UPS SmartSlot, the UPS can sit on the network with its own IP address. Your IT team can log in, check load level, battery status, input voltage, event history, and alarm state. Monitoring software can poll it through SNMP. Email alerts can go out when the UPS goes on battery, when a battery replacement is needed, or when environmental readings cross the configured threshold.

That last part matters in Dubai. UPS batteries do not fail only because of age. Heat is a common reason. A small server room connected to Etisalat Business or du Enterprise internet might look fine at 10AM when the AC is running. At 11PM, after the office AC schedule changes, the room can climb fast. The UPS may keep running, but the batteries are being cooked. AP9631 gives you temperature visibility before the UPS becomes the expensive warning sign.

For IT managers, sysadmins, and procurement teams, this card is a control point. Not a luxury accessory. It is how the UPS becomes visible to the network team.

Who should buy AP9631 in UAE

AP9631 makes sense when you already have APC UPS units with SmartSlot support and your site standard still uses Network Management Card 2. Many UAE businesses bought APC Smart-UPS and Symmetra-class systems years ago, configured monitoring once, and kept the same alerting setup across multiple rooms. When one card fails, or one UPS is added to the same older monitoring environment, the procurement request often says AP9631.

It also makes sense when a site has existing shutdown procedures, SNMP polling, IP address templates, or older internal documentation built around NMC2. In that situation, changing to a newer card without checking compatibility can create extra work. Firmware behaviour, web interface changes, TLS settings, monitoring templates, and internal SOPs may need adjustment.

For new APC UPS projects, the discussion is different. AP9641 should be checked first because it is the newer Network Management Card 3 path with environmental monitoring. If the UPS model supports AP9641 and there is no reason to stay on NMC2, the newer card may be the better quote. That is why Vector Digital Systems asks for the UPS model before confirming AP9631.

Send the UPS model number and, if available, the UPS serial number or front-panel photo. We will check whether AP9631 is suitable, whether AP9641 is the better option, and whether the UPS even has a SmartSlot. Not every UPS accepts this card.

APC AP9631 specifications

Specification	Detail
Brand	APC by Schneider Electric
Model	AP9631
Product Type	UPS Network Management Card 2 with Environmental Monitoring
Generation	NMC2 — previous-generation network management card
Replacement Path	AP9641 NMC3 with Environmental Monitoring for many new deployments — datasheet check required for exact UPS compatibility
UPS Slot	APC SmartSlot required
Provided Equipment	CD with software, temperature sensor, user manual
Environmental Monitoring	Temperature monitoring included through supplied sensor; humidity support / additional sensor options require datasheet check
Network Interface	Ethernet network management — exact port speed to be verified against datasheet before publishing
Management	Web access, SNMP monitoring, email alerts, event logs, remote UPS management — protocol/version list requires firmware check
Dimensions	3.8 cm height × 12.1 cm width × 11.4 cm depth
Net Weight	0.09 kg
Operating Temperature	0–45°C
Operating Humidity	0–95% relative humidity
Warranty	2 years repair or replace — UAE invoice and stock status to be confirmed

Why environmental monitoring matters in Dubai UPS rooms

UPS batteries are sensitive to heat. A rack UPS in an office IT room may be installed correctly, wired correctly, and still age quickly if the room sits above its normal cooling range for long periods. This is common in small offices, warehouse mezzanine rooms, CCTV closets, hotel back offices, and retail network rooms where the AC schedule is controlled by facilities, not IT.

In Dubai, the building may be fine during working hours. Then the AC shifts to night mode. The network cabinet sits near a glass wall, a warehouse shutter, or a ceiling void. The UPS continues running, but the batteries are under stress. AP9631 helps because temperature becomes a logged condition, not a guess made after a battery failure.

For a business running a small server, firewall, storage box, access control controller, NVR, PBX, or Etisalat/du router on UPS power, that visibility matters. The UPS is not only protecting against power cuts. It is protecting the small set of systems the business only notices when they stop.

AP9631 setup and configuration

Supplying the card is only the first part. The value comes from configuration. Vector Digital Systems can install the card, assign the network settings, set the admin access, configure alert recipients, connect the temperature sensor, test alert behaviour, and document the IP address and credentials for the IT team.

For sites using SNMP monitoring, we can coordinate with the monitoring team so the UPS is added to the correct system. For smaller businesses, email alerts may be enough. The UPS should send a message when it goes on battery, when the battery needs replacement, when the load is too high, or when environmental readings cross the configured threshold.

A UPS card installed but not configured is just hardware sitting in a slot. The job is complete only when the right person gets the right alert before downtime starts.

AP9631 vs AP9641 — which one should you quote?

This is the question procurement teams should ask before approving AP9631.

AP9631 is the Network Management Card 2 with environmental monitoring. AP9641 is the newer Network Management Card 3 with environmental monitoring. If you are replacing a failed AP9631 inside an existing APC UPS, AP9631 may be requested because the site wants the same card generation, same behaviour, same documentation, and less change for the IT team.

If you are buying a new UPS, adding monitoring for the first time, or standardising a new Dubai office, AP9641 should be checked first. The newer card may be the correct part if the UPS supports it. The answer depends on the UPS model, monitoring requirement, firmware policy, and whether the business has existing NMC2 templates.

Vector Digital Systems can quote both paths after checking the UPS model. No guessing. No wrong card shipped because the purchase request had an old part number copied from a previous invoice.

Grey market and used-card warning

AP9631 is an older card, so the UAE market can include mixed stock: old sealed units, pulled cards, refurbished pieces, and listings with unclear condition. This matters. A UPS network card is not a passive bracket. It has firmware, security settings, credentials, event behaviour, and monitoring access.

A used card may arrive with old configuration still inside it. Static IP. Unknown password. Old SNMP community strings. Outdated firmware. A card pulled from a different region or an old installation may need reset, firmware check, and full reconfiguration before it can be used safely on a business network.

For Dubai buyers, the risk is not only whether the card powers on. The risk is whether it can be configured, monitored, secured, and supported. That is why we ask whether you need supply only, supply with configuration, or supply with installation and handover.

What Vector Digital Systems provides

Vector Digital Systems supplies APC UPS monitoring accessories for offices, IT rooms, server racks, network cabinets, CCTV rooms, clinics, hotels, warehouses, and branch sites across the UAE. We do not treat AP9631 as a simple boxed accessory when the buyer needs it working on the network.

We can check the UPS model, confirm SmartSlot support, advise AP9631 or AP9641, supply the card, install it inside the UPS, assign network settings, configure email alerts, test the temperature sensor, and hand over the settings to your IT team.

Installation is available across all 7 UAE emirates: Dubai, Abu Dhabi, Sharjah, Ajman, Ras Al Khaimah, Fujairah, and Umm Al Quwain. For sites in JAFZA, DAFZA, DMCC, Business Bay, Al Quoz, Dubai Investment Park, Mussafah, and Sharjah industrial areas, we can coordinate with your IT or facilities team for rack access and downtime windows.

For multi-site businesses, we can standardise UPS monitoring across locations so every UPS uses a clean naming format, alert recipients, IP plan, and escalation process. That matters when a company has one main office, two warehouses, and a branch rack nobody visits unless something breaks.

Typical UAE use cases

Small server room in a Dubai office. The UPS supports a server, firewall, switch, and storage device. AP9631 gives the IT team remote visibility, alerts, and temperature monitoring instead of relying on someone to notice the UPS display.

Network rack for Etisalat or du connectivity. The UPS protects routers, switches, and security appliances. If input power drops or the battery is weak, the network team gets an alert before the site goes silent.

CCTV and access control room. NVRs, PoE switches, and access controllers need power backup. Temperature monitoring helps because CCTV rooms are often small, closed, and badly ventilated.

Warehouse or free-zone branch office. JAFZA, DAFZA, DIP, and Sharjah industrial sites often have remote racks with limited IT presence. AP9631 lets the main IT team see UPS events without driving to site.

Existing APC UPS fleet. AP9631 is useful when the company already uses NMC2 cards and wants the same management behaviour across multiple UPS units.

Frequently asked questions — APC AP9631 Dubai

Is AP9631 still the current APC network card?

No. AP9631 is a previous-generation Network Management Card 2. For many new deployments, AP9641 NMC3 with environmental monitoring should be checked first. AP9631 is mainly requested for existing APC UPS fleets, replacement cards, or sites standardised on NMC2.

Does AP9631 work with every APC UPS?

No. AP9631 requires a compatible APC UPS with a SmartSlot. Smaller UPS models may not support it. Send the UPS model number before ordering so compatibility can be checked.

What does the environmental monitoring part include?

The AP9631 package is listed with a temperature sensor. This helps monitor server rooms, network closets, CCTV racks, and UPS areas where heat can shorten battery life. Humidity and additional sensor options need datasheet and accessory check before quoting.

Can Vector Digital Systems install and configure AP9631?

Yes. Vector Digital Systems can install the card, configure IP settings, set alert emails, connect the temperature sensor, test UPS alerts, and hand over the settings. Installation is available across Dubai and all 7 UAE emirates.

Should I buy AP9631 or AP9641?

If you are replacing a failed AP9631 or matching an older NMC2 fleet, AP9631 may be the right request. If this is a new UPS monitoring project, AP9641 should be checked first. The final answer depends on your UPS model and monitoring requirement.

Is AP9631 available in Dubai?

Availability can vary because AP9631 is previous-generation. Vector Digital Systems can check Dubai availability, confirm condition, and quote AP9631 or AP9641 depending on your UPS model.

Comparable APC network management cards

AP9630: Network Management Card 2 without the same environmental monitoring positioning as AP9631. Suitable only where environmental monitoring is not required and compatibility is confirmed.

AP9631: Network Management Card 2 with environmental monitoring. Correct for existing NMC2 fleets, replacement requirements, and older APC UPS monitoring standards.

AP9640: Network Management Card 3 without environmental monitoring focus. Check when new UPS monitoring is needed but temperature sensor support is not required.

AP9641: Network Management Card 3 with environmental monitoring. Often the better starting point for new UPS projects, subject to UPS compatibility.

MEA export from Dubai

Vector Digital Systems can supply APC UPS accessories for export projects from Dubai to GCC, Africa, and South Asia. AP9631 availability depends on stock condition and quantity because it is previous-generation. For new projects in Kenya, Uganda, Tanzania, Saudi Arabia, Qatar, Oman, Bahrain, or Nigeria, AP9641 may be quoted instead after compatibility check.

FOB Dubai pricing is available for resellers and project buyers. Send the UPS model, required quantity, destination country, and whether installation is local or handled by your own team.
