Grandstream Intercom & Door Systems Dubai — The Front Door Joins the Phone System
The delivery at the door while reception is at lunch. The announcement that has to reach four floors at once. The warehouse gate that should open for a card, not a key.
The GDS3710 watches your entrance in 180 degrees, shows the visitor on your receptionist's desk phone, and opens for a card, a PIN, or a tap on your mobile from anywhere. GSC paging speakers make the announcement from any phone to any zone — replacing the separate PA system entirely. Both become extensions on the phone system you already have.
Vector Digital Systems is an authorized Grandstream distributor in Dubai, putting doors and loudspeakers on phone systems since 2009.
- GDS3725–3727 new-gen video doors — 4 MP, AI analytics, from stock
- GDS3710 video door — 180°, RFID, ONVIF, from stock
- GDS3712 & GDS3705 — hemispheric & audio doors
- GSC3510 two-way intercom — 4.2 m mic pickup
- GSC3505 SIP speaker — Bluetooth + WiFi
- Multicast paging, sensor automation & lock integration
The Door and the Loudspeaker Become Phone Extensions
Most buildings run three systems where one would do: the phone system for desks, a separate intercom for the door, and a separate PA system for announcements. Grandstream's facility devices erase the second and third entirely. The door intercom is a SIP extension — it rings the desk phone like a colleague. The paging speaker is a SIP extension — it answers an announcement like any other phone. One network cable each, one dashboard, one supplier, one number to call when anything needs attention.
What that buys you beyond tidiness: no separate intercom cabling to pull, no amplifier room to maintain, no third contractor to coordinate. The door and the loudspeaker live where your phones live — on the Grandstream UCM6300 PBX, powered over the same GWN network that carries your WiFi and switches.
Which Unit for Which Door — Mapped Honestly
| Model | What it is | The door it belongs on |
|---|---|---|
| GDS3725 / GDS3726 | The new-generation video door — 4 MP camera with 120 dB WDR, AI behaviour analysis, white-light night illumination, RFID/NFC/QR/Bluetooth entry for up to 5,000 cards, SD-card recording to 256 GB, IP66 metal housing (IK10) | The main entrance and high-traffic doors — the current flagship |
| GDS3727 | The compact new generation — same 4 MP video and AI analytics, but with dual-band WiFi 6 and BLE 5.0 built in, plastic IK07 housing, one doorbell button | Offices and apartments where wireless installation wins — no network cable needed |
| GDS3710 | The proven video door — 1080p, 180° hemispheric view, built-in RFID, alarm channels for locks and sirens, ONVIF, weatherproof vandal-resistant metal | Any door where wide-angle coverage matters |
| GDS3712 | Hemispheric IP video intercom — same no-blind-spot coverage, ONVIF and HTTP API for third-party integration | Entrances that must integrate with an existing VMS or access platform |
| GDS3705 | Audio-only door — RFID + keypad, dual mics, HD loudspeaker | Service doors, parking gates, apartment lobbies — half the video unit's price |
| GSC3560 / GSC3565 | The outdoor help point — IP66/IK10 metal, dual mics with a 10 W speaker, PoE+, tamper alarm, solid-state relay for high-security locks; GSC3565 adds a 4 MP camera and QR-code visitor access | Gates, parking areas, campus walkways, warehouse yards — anywhere the door has no wall around it |
Shared across the family: SIP calls to any desk phone, video phone or the Wave app; RFID card reader for keyless entry; alarm-in and alarm-out channels that drive electric locks, sirens and light switches; Wiegand in/out for standard access-control panels; and HTTP event reporting — every RFID tap, PIN entry, call and alarm posted to your server, so you always know who opened which door and when.
And the current firmware turns the door station into the building's access platform: OSDP over RS-485 for the access-control panels consultants specify, Apartment Building Mode — cross-building calling with per-apartment virtual numbers, so one tower entrance serves every flat without a rewired lobby — ONVIF unlock and video that drops the door camera straight into your VMS, and Home Assistant integration for the villa owner who wants the doorbell to light the porch and ping his phone, no cloud in between.
The Visitor at the Door, Answered From Anywhere
It is 1:05 PM and the courier is at the door with a package. Reception is at lunch. The doorbell rings — and the GXV video phone in accounts shows the courier's face on its screen. He answers, confirms, and releases the door with one touch — on a Grandstream GXV video phone. The owner, in a meeting across town, sees the same event on his Wave app — same video, same door release, from anywhere with internet.
And the quiet part nobody else mentions: every one of those events logs itself. The RFID tap at 8:12, the PIN entry at 13:05, the door release at 13:06, the alarm at 22:40 — each one posts to your server over HTTP. Your building keeps its own diary of every door, and you never had to buy an access-control server to get it.
The Gate at 2 AM — When the Door Has No Wall Around It
A door station assumes a building around it. The truck at the warehouse gate at 2 AM, the delivery driver at the villa compound barrier, the worker at the far end of the school fence — none of them are standing in a lobby. They are standing in August heat, in dust, possibly in rain, and the intercom that serves them has to survive the same. The GSC3560 and GSC3565 are built for exactly that spot: metal casing rated IP66 against weather and IK10 against vandals, operating from -40°C to +70°C — the Gulf summer is inside its spec sheet, not at its edge.
One button, and the call lands on any desk phone or the Wave app. The guard answers, talks, and releases the gate — the built-in solid-state relay drives the lock directly and shrugs off the magnetic-tamper trick that defeats cheap relays. Power comes from the same network cable (PoE+), with a 12–48 V DC option where cable runs get creative. Wall, pole or flush mount — the gate post you already have is usually enough.
GSC3560 — the talker
- Audio-only, with AI noise suppression that pulls a voice out of truck idle and yard clang
- Dual microphones with 6-metre pickup, 10 W speaker — heard across the loading bay
- SIP, HTTP API, SecureAccess app unlocking; Home Assistant compatible
GSC3565 — the watcher
- Adds a 4 MP camera — 1080p at 30 fps, 127° wide view, HDR, AI motion detection
- QR-code visitor access: issue a code, the guest scans, the gate opens — no cards to hand out
- IK10 rating extends over the lens; snapshot upload, intrusion and loitering alarms
One thing stated plainly, because you may read it elsewhere: Grandstream's documentation describes distress-keyword detection — the intercom recognising a shouted "Help" — as in development. It is a roadmap item, not a shipping feature. What ships today is the rugged call point above; when the AI lands in released firmware, your units get it by upgrade, and we will tell you the day it is real.
Two Speakers, Two Jobs — Announce and Converse
GSC3510 — the intercom point
- Two-way: an MMAD microphone array that hears clearly from 4.2 metres
- Classrooms, hospital wards, service counters — hands-free from across the room
- 8W HD speaker, full-duplex audio, PoE powered
GSC3505 — the announcement point
- One-way SIP speaker with Bluetooth and dual-band WiFi
- Plays announcements and background music between them
- Common areas, retail floors, corridors, prayer and assembly spaces
Both run on 16 SIP accounts with call whitelist and blacklist — so a paging speaker in a public corridor rejects every call that isn't from your system. Both mount on walls or ceilings, powered by the network cable. And both carry the 2-pin sensor input that lets the building announce for itself: a door sensor triggers a call to security, a motion sensor plays a safety message, a panic button on the wall dials reception directly.
Your PA System, Without the Amplifier Room
A traditional PA system is an amplifier, a rack, a wall of knobs and a separate cabling job. Multicast paging replaces it with the phone system you already have: up to ten listening zones, each with its own priority level from 1 to 10, and Paging Barge — an urgent announcement that interrupts whatever call the speaker is carrying. A head teacher addresses every classroom at once. A clinic calls a code to the right ward, not the whole hospital. A warehouse announces shift change to the floor without touching the offices.
Schedule it or dial it live: the school bell on a timetable, the emergency broadcast on a priority key, the closing-time message at 10 PM sharp. All from any phone, to any corner of the building, on the system you already own.
When the Building Answers Before Anyone Asks
The 2-pin multi-purpose input on GSC speakers links to any sensor — and the building starts reacting on its own. A freezer room door left open past ninety seconds calls the duty phone. A motion sensor in a restricted zone plays a recorded warning the moment someone enters. A panic button mounted at the cash counter dials security directly. No one watches a screen; the building announces for itself, and every trigger can also log to your server the way the doors do.
Seven Buildings, Seven Doors — One System
| Site | The facility design that fits it |
|---|---|
| Offices & headquarters | Video door at reception, answered on desk phones and Wave apps, every open logged |
| Apartments & residential towers | Audio door at the lobby, PIN for residents, visitor calls routed to the flat |
| Warehouses & logistics | Gate intercom for drivers, paging zones by rack, sensor alerts on restricted doors |
| Schools & universities | Bell schedules on multicast, classroom intercom points, emergency broadcast on priority |
| Clinics & hospitals | Ward paging with code calls, hands-free intercom at nurse stations |
| Retail & showrooms | Back-door video for deliveries, closing announcements, background audio between them |
| Staff accommodation | Main-gate intercom, prayer and assembly announcements, panic points at counters |
Grandstream Intercom & Door Systems in Dubai — the Questions We Get Every Week

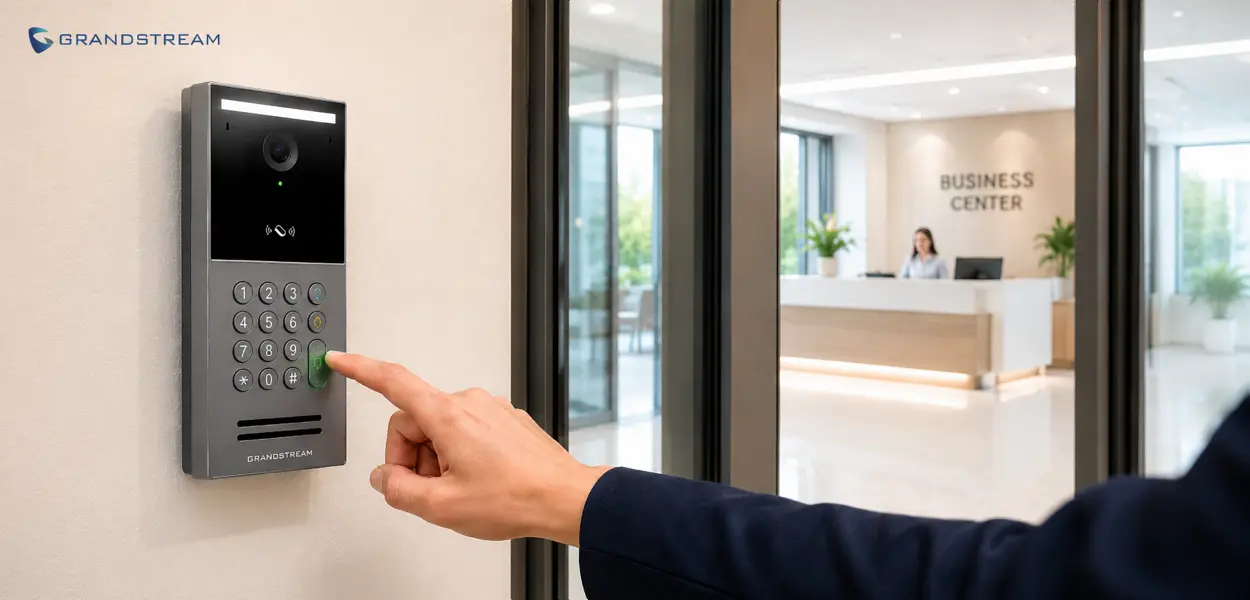

What is the Grandstream GDS3710?
The GDS3710 is a video door system: a weatherproof, vandal-resistant metal unit for your entrance with a 1080p camera covering a 180-degree hemispheric view, a built-in RFID card reader for keyless entry, alarm channels that drive electric locks and sirens, and full SIP support — so visitors ring the doorbell and your team answers on any desk phone, video phone or mobile app, sees who is there, speaks, and opens the door from anywhere. The newer GDS3720 series adds 4 MP imaging, AI behaviour analysis, and — on the GDS3727 — built-in WiFi 6 for cable-free installation.
Does the GDS3710 record video, or is it only an intercom?
Both. It is ONVIF Profile S compliant, which means it also works as a surveillance camera — streaming 1080p video to your existing NVR or video management system while it does its intercom job. One device on the wall does the work of two: the door intercom for your phone system and a permanent security camera for your recorder.
Can reception answer the door with video on a desk phone?
Yes — that is the standard flow we install. The visitor presses the doorbell, and the GXV video phone on the reception desk rings with live video from the entrance. Reception sees who is there, speaks, and releases the door with one touch. If reception steps out, the call follows to the owner's Wave app — same video, same door release, from anywhere with internet.
Can I answer and open the door from my phone when I'm not in the office?
Yes — the Wave app carries the door to your pocket. You see the visitor on live video, talk to them, and open the door with a tap from a meeting, the airport, or another country. The GDS unit drives the electric lock through its alarm channels, so no one has to walk to the door — and every open is logged.
Does the GDS work with non-Grandstream phone systems?
Yes — GDS door systems are standard SIP devices and register on 3CX, Yeastar, Avaya and hosted platforms, with auto-provisioning available on 3CX as well as Grandstream UCM. The video feed, RFID and alarm channels work the same regardless of which PBX you run.
How do RFID cards and PIN codes work on the door system?
Each card or fob is enrolled once, then opens the door with a tap — the GDS3710 ships with one card and one fob, and we enroll your staff's cards at installation. PIN codes work the same way on the keypad for staff without cards. Every tap and every PIN entry is an event the system can log to your server, so you always know who opened which door and when.
What is multicast paging, and what does it replace?
Multicast paging broadcasts voice announcements from any phone to groups of speakers across the building — by zone, with 10 priority levels, and Paging Barge so an urgent announcement interrupts an active call. It replaces the separate PA system entirely: bell schedules in schools, code calls in clinics, shift announcements in warehouses, closing-time messages in retail — all from the phone system you already have, with no amplifier room.
GSC3510 or GSC3505 — which speaker do I need?
The GSC3510 if you need two-way talk-back: it has an MMAD microphone array that picks up clear voice from 4.2 metres, so it works as an intercom point in classrooms, wards and service counters, not just a speaker. The GSC3505 if you need announcements and background audio in one — a one-way SIP speaker with Bluetooth and WiFi that also plays music between announcements. Many sites run both: 3505 in common areas, 3510 where conversation matters.
Can a paging speaker replace our PA system?
In most buildings, yes. A PA system is an amplifier, a rack and a wall of knobs; GSC paging speakers are SIP extensions on the phone system you already have — each powered by the network cable, each addressable by zone and priority, all managed from the same dashboard as your phones. Schools replace the bell system, clinics the code-call system, warehouses the shift horn. The separate amplifier room retires.
Can door or motion sensors trigger calls or announcements automatically?
Yes — the 2-pin multi-purpose input on GSC speakers links to any sensor. A door sensor can trigger a phone call to security when a door stays open; a motion sensor can play a recorded safety announcement when someone enters a restricted zone; a wall-mounted panic button can dial reception directly. The building starts announcing for itself, without anyone watching a screen.
Is the GDS3710 weatherproof for outdoor gates?
Yes — the GDS3710's metal housing is weatherproof and vandal-resistant, built for outdoor entrances, parking gates and exposed walls. For gates that are purely vehicle access, the GDS3705 audio-only unit is the simpler answer; for any door where seeing the visitor matters, the GDS3710's 180-degree video covers the whole approach with no blind spots.
Which areas in the UAE does Vector Digital Systems cover for intercom and paging systems?
Vector Digital Systems supplies and installs Grandstream intercom, door and paging systems across the United Arab Emirates — all seven emirates: Dubai, Abu Dhabi, Sharjah, Ajman, Fujairah, Ras Al Khaimah, and Umm Al Quwain — as well as Al Ain. In Dubai we cover the main business districts and communities including Business Bay, Downtown Dubai, Dubai International Financial Centre (DIFC), Dubai Marina, Jumeirah Lakes Towers (JLT), Sheikh Zayed Road, Deira, Bur Dubai, Al Quoz, Al Barsha, Barsha Heights, Al Garhoud, Al Jaddaf, Oud Metha, Ras Al Khor Industrial Area, Al Nahda, Mirdif, Jumeirah, International City, Discovery Gardens, Jumeirah Village Circle (JVC), Arabian Ranches, Motor City, Dubai Internet City, Dubai Media City, Dubai Production City, Dubai Outsource City, Dubai Silicon Oasis, Dubai Healthcare City, Dubai Maritime City, Dubai Festival City, Dubai World Trade Centre, Dubai Investment Park, Dubai South, Jebel Ali and Jebel Ali Free Zone (JAFZA). In Abu Dhabi we serve the city plus Khalifa City, Mohammed Bin Zayed City, Musaffah, Industrial City of Abu Dhabi (ICAD), Yas Island, Saadiyat Island and Al Reem Island. Sharjah coverage includes Sharjah Industrial Area, SAIF Zone, and Al Nahda, Sharjah; we also serve Ajman Free Zone (AFZ), Ajman Industrial Area, RAK Free Trade Zone, and the Port of Fujairah. Site surveys and same-day on-site response across Dubai, with remote configuration support UAE-wide as of 2026.
Do you export Grandstream intercom and paging equipment from Dubai?
Yes — we export GDS door systems and GSC paging speakers from Dubai to Turkmenistan, Uzbekistan, Armenia, Georgia, Bangladesh, Pakistan, Afghanistan, Azerbaijan, Kazakhstan, Kyrgyzstan, Tajikistan, Qatar, Oman, Iraq, Jordan, Lebanon, Yemen, Syria, Turkey, Saudi Arabia, Mauritius, Morocco, Mozambique, Rwanda, Senegal, South Africa, South Sudan, Sudan, Tanzania, Tunisia, Zambia, Zimbabwe, Algeria, Burkina Faso, Côte d'Ivoire, Malawi, Burundi, Djibouti, Togo, Benin, Gabon, Chad, Seychelles, Angola, Uganda, Kenya, Nigeria, Cameroon, Egypt, Ethiopia, Ghana, and Mauritania. Single doors or full-site quantities, genuine stock with manufacturer warranty, export documentation with every shipment, and trade pricing for security installers and integrators buying in volume.
How many doors and speakers can one system handle?
As many as your building has — each GDS door and GSC speaker is a network device with its own address, so the system grows by adding units, not capacity. A single entrance with two speakers, or forty doors and three hundred speakers across a campus — the same phone system runs all of them from one dashboard, with zones and priorities set per building.
Can you connect the door intercom to our existing alarm or access control?
Yes — that is what the alarm-in and alarm-out channels are for. The GDS3710 triggers existing electric locks, sirens and light switches through its alarm outputs, and accepts alarm inputs from your existing sensors and panels. On the management side, Wiegand in/out connects it to standard access-control systems — so the new door talks to the security you already own, not just to us.
