Description

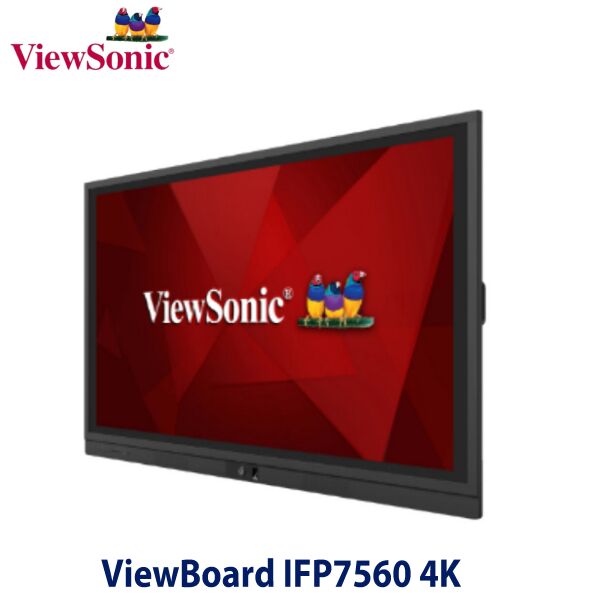

ViewSonic ViewBoard IFP7560 4K Interactive Display Dubai
The Viewsonic ViewBoard® IFP7560 is a 75” 4K (3840 x 2160) digital whiteboard engineered with InGlass™ technology to give a user-friendly, intuitive, and accurate touchscreen experience that is not only devoid of lag but also allows for use of multiple colors with varying thicknesses. It is a perfect platform for users from remote locations to collaborate, share content and write to each other courtesy of the ViewBoard® IFP6560’s 20-point touch display that comes installed with annotation vBoard, ViewBoard® Cast for content sharing, and Zoom. It boasts a Quad-Core processor on top of the wide range of connectivity options among them several ports for HDMI, VGA, RS232, RJ45, and USB. This makes the Viewsonic ViewBoard® IFP7560 a go-to solution for multimedia use without having to connect it to a desktop computer or laptop.
The onboard Fingerprint recognition algorithm enhances the security of content while making it easy to log into Windows or myViewBoard™ to enable your whiteboard work with your cloud. It has an optional Intel certified OPS (Open Pluggable Specification) as well as SDM (Smart Display Module) for users who may want to change the Operating System on their devices to Windows. The Viewsonic ViewBoard® IFP7560 integrates seamlessly with Google-based environments, Windows accessories, as well as Office365. It not only supports Linux PC touchback remote control but is also equipped with Mac multi-touch gesture mirroring. The device is VESA-compatible, which means it can be mounted on the wall or on a trolley cart for enhanced flexibility required in conference halls and classrooms.
ViewSonic ViewBoard IFP7560 4K Interactive Display Features :
- 4K Resolution that offers Eye-Care Technology: the Viewsonic ViewBoard®’s Ultra High Definition resolution on a 3840 by 2160 display gives futuristic visuals, breathtaking videos, and vibrant, large as life images. The 4K Display Port input is also primed to accept content from external sources. Furthermore, it is built with Flicker-Free technology and a Blue Light Filter that help cut down on eye strain to allow you comfortable viewing even for extended periods.
- Guaranteed Security: The Viewsonic ViewBoard® IFP7560 comes onboarded with a certified FIPS-201 Windows Hello fingerprint reader for convenient signing in and tighter security.
- InGlass™ and 20-Point Touch Technologies: InGlass™ FlatFrog is modernistic technology that offers extremely accurate lag-free experience while using the ViewBoard® IFP7560 touchscreen, both for single and multiple users working simultaneously. This works exemplarily well regardless of whether the user is using fingers or a stylus to interact with the display. Furthermore, the 20-Point Touch technology aboard the ViewBoard® IFP7560 makes it possible for multiple users to scribble on the slim display at the same time, which enhances group engagement and collaboration.
- ViewBoard® Cast Content Sharing Software: this is a content sharing app that makes it possible to stream 1080p content from a laptop, tablet, or smartphone both wirelessly or cabled onto the ViewBoard®. Thanks to ViewBoard Cast, users are able to manage content, split screens, preview and broadcast content via the ViewBoard® screen and reach each participant. This software works seamlessly with all operating systems, from Windows, Mac, Chrome, iOS and Android.
- Dynamic Sound: The ViewBoard® IFP7560 comes built with dual, front-facing speakers designed to offer users clear, dynamic sound that fills the room thus immersive conferencing experience.
- Inbuilt Arm Quad Core CPU with 16GB Storage: The device is equipped with a cutting-edge quad-core processor running on the Android Operating System, which gives it the power to process commands faster and respond to touch at lighting speed. It has an internal memory of 16GB of onboard for ample storage of multimedia content.
- Dual Expansion Slots: For extra computing power, the ViewBoard® IFP7560 comes with inbuilt dual expansion PC slots that can be used with Intel Unite® Open Pluggable Specification as well as Smart Display Module. While in both OPS and SDM modes, users have the freedom to change the Operating System to Windows and ViewSonic OPS VPC12-WPO.
- Intelligent Eye Protection: The front ambient light sensor is smart, therefore can detect and automatically adjust brightness levels as the light intensity in the environment changes. This can also be witnessed as the display dims when a user moves closer, protecting their eyes from extreme panel brightness. The display goes back to bright as the user moves away.
Why the ViewBoard IFP7560?
- An impressive 75″ 4K Interactive Flat Panel
- 4K Resolution with Eye-Care Technology
- InGlass™ Technology with enhanced accuracy
- FIPS201-Certified fingerprint reader
- 20-Point Multi-Touch
- Dual Expansion PC Slots
- Built-in ARM Quad-core CPU with 16GB Storage
ViewSonic ViewBoard IFP7560 4K Interactive Display Specifications :
| Display | Panel Size: 75″
Type/Tech: TFT LCD Module with DLED Backlight Display Area (mm): 1650.24(H)X928.26(V) mm (74.5” diagonal) Aspect Ratio: 16:9 Native Resolution: UHD 3840×2160 (Pixels) Colors: 16.7M (8bit) Brightness: 350 nits (typ.) Contrast Ratio: 4000:1 Typ. Response Time: 8ms Viewing Angles: H = 178, V = 178 typ. Backlight Life: 30,000 Hours (Min) Surface Treatment: AG G2 Bezel: Slim Orientation: Landscape |
| Touch | Type/ Tech: Flatfrog InGlass technology P-series
Touch Resolution: 26394X14847 Touch Point: 20 points touch |
| Input | HDMI: 1.4a x1 (3840×2160@30Hz); 2.0 x2 (3840×2160@60Hz)
RGB / VGA: x1 DisplayPort: x1 (3840×2160@30Hz) Audio: x1 (PC Audio in) RS232: x1 OPS: x1 PC Slot (Intel OPS Standard); x1 SDM |
| Output | RGB / VGA: Refer to timing table
HDMI: x1 (480p/1080p@60hz) Audio: x1 (Earphone out) SPDIF: x1 RS232: x1 |
| Earphone | Intel Unite® Certified OPS SLot
Intel Certified SDM Slot |
| LAN | RJ45: x1 |
| USB | Type A: USB 2.0 x3 (including 2 USB port in front); USB 3.0 x2
Type B: x2, for touch |
| Speakers | 10 Wx2 |
| Camera Plate on top for Screw-In Webcam Installation | Yes (Supports external Logitech Meet-up) |
| Compatibility | RGB PC/HDMI PC: Refer to timing table
HDMI: 3840×2160 |
| Embedded Operating System | Android 5.0.1
|
| USB Supported File Format | Picture – BMP, JPG, JEPG, PNG |
| Video – Codec: MPEG 1/2, MPEG 4, H.263, H.264, HEVC/H.265, MVC, AVS, AVS+, WMV3, VCI, Motion JPEG, VP8, VP9
Container: MPEG PROGRAM STREAM, MPEG TRANSPORT STREAM, MP4, 3GPP, AVI, MKV, FLV, ASF, WMV, WEBM |
|
| Bundle Software | Basic Annotation Software: vBoard
Pro Annotation Software: myViewboard for Windows (Pre-install in VPC12-WPO-3) Wireless Presentation with Touch Feedback: Viewboard Cast: Yes Screen Split: ViewSplit (Windows based): Yes (download from ViewSonic website) Zoom: yes ViewSonic Launcher: Embedded |
| All-in-one USB port (combine Windows/Android USB port; no need to distinguish them anymore) | |
| Front USB SmartPort™ to all channels | |
| One Click to Cloud Drive: Integrate into side tool bar | |
| Simple LAN sharing between IFP and slot-in device: Yes | |
| Power | Voltage: 100V-240V,50/60Hz (AC)
Consumption: Operation: 297W (typ.) – without OPS/SDM 357W (typ.) -with OPS only 327W (typ.) – with SDM only 397W (typ.) – with OPS/SDM ≤ 0.5 W (“Off”) *Max. power consumption from OPS & SDM won’t over 90W. |
| Ergonomics | Wall Mount (VESA®): 800 x 400 |
| Operating Conditions | Temperature (º C): 0°C to 40°C
Humidity: 20% ~ 80% RH non-condensing |
| Dimensions (W X H X D) | Physical (inch / mm): 70.45×4.26×43.09 in / 1789.54×108.1×1094.5 mm
Packaging (inch / mm): 76.57 x 11.02 x 48.25 in/1945 x 280 x 1230 mm |
| Weight | Net (lb / kg): 136.69lb / 62kg
Gross (lb / kg): 177.03lb / 80.3kg |
| Regulations | FCC, CE, CB, RoHS, WEEE, ES7.1 |
| Compatible Slot-In PC | VPC12-WPO-2 (Intel i5-6300U with vPro+Win10 Pro 64 bit) |
What’s in the Box :
- HDMI cable (1.5 meters)
- Power cable (3 meters) x 4 (A+E+M+U)
- Remote control with AA battery
- USB cable (1.8 meters)
- Touch pen x 2
- Quick Start Guide & Compliance statement
- Webcam Plate
- Wall mount Screw x 4
