Description

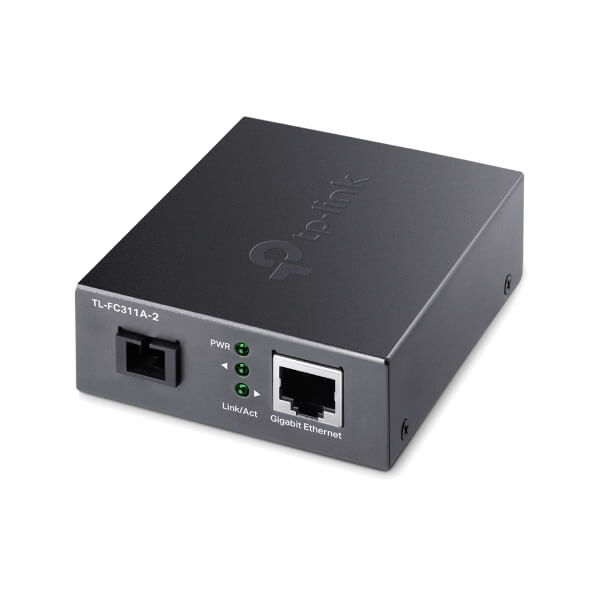

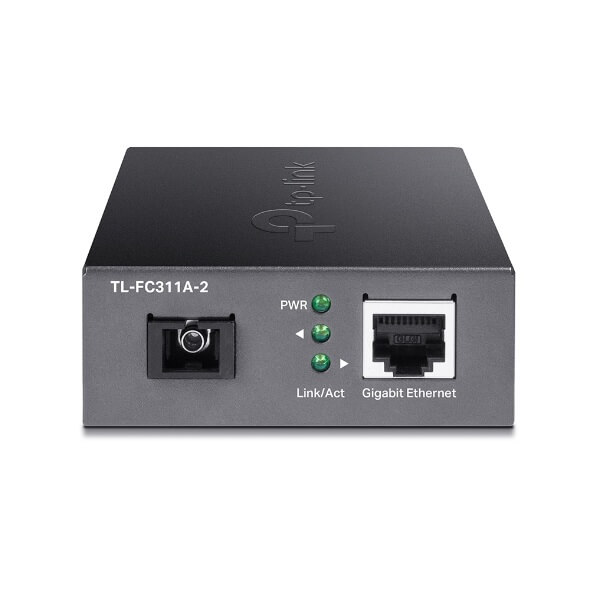

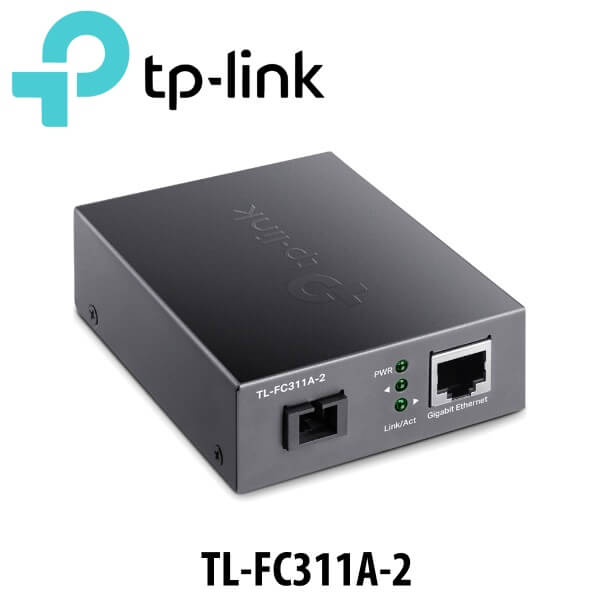

Tplink TL-FC311A2 Gigabit Media Converter Dubai
With the Tplink TL-FC311A2 Dubai Gigabit WDM Media Converter, you can convert between Gigabit Ethernet RJ45 electrical signals and optical signals through a Gigabit SC fiber port. Designed to support long-distance video surveillance and other data transmissions, the TL-FC311A-2 has a range of up to 1.2 miles over a 9/125µm single-mode fiber cable while using up to 328′ long Cat 5/5e Ethernet cables with the RJ45 port. The Tplink TL-FC311A2 Dubai transmits at a frequency wavelength of 1550nm and receives data at 1310nm, which complements the TP-Link TL-FC311B-2 WDM Media Converter. Half- and full-duplex modes are automatically negotiated.
Features
- Ethernet 1000Base-SC, Ethernet 1000Base-T, WDM Cabling
- Supports Gigabit Ethernet Networking
- Data Transfer Speeds up to 1Gbps
Specifications
| NETWORK | |
|---|---|
| Standards and Protocols | IEEE 802.3i, 802.3u, 802.3ab, 802.3z |
| ENVIRONMENT | |
| Operating Temperature | 0˚C to 50˚C (32˚F to 122˚F) |
| Storage Temperature | -40˚C to 70˚C (-40˚F to 158˚F) |
| Operating Humidity | 10% to 90% RH non-condensing |
| Storage Humidity | 5% to 90% RH non-condensing |
| HARDWARE FEATURES | |
| Interface |
|
| Network Media |
|
| Power Supply | External Power Adapter : 5 V/0.6 A |
| LED | PWR, Link/Act |
| Dimensions ( W x D x H ) | 3.7×2.9×1.1 in (94.5×73.0×27.0 mm) |
| Wave Length | 1550 nm TX, 1310 nm RX |
| MEDIA CONVERTER & MODULE | |
| Fiber Type | 9/125 μm single-mode fiber (≤2 km) |
| OTHERS | |
| Package Contents |
|
