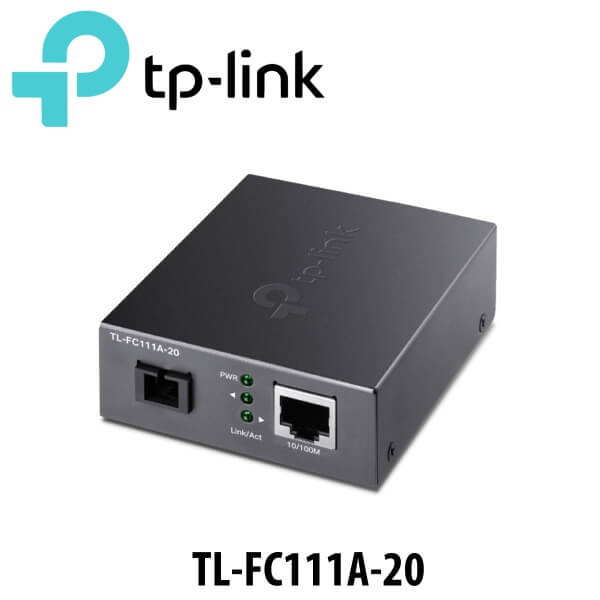

Tplink TL-FC111A20 Dubai

The Tplink TL-FC111A20 Dubai is a 100M media converter, providing a 100M RJ-45 port and a 100M SC fiber port, which can convert between electrical and optical signals.

Ask for Quote & Get Low Price

Description

Tplink TL-FC111A20 Media Converter Dubai

The Tplink TL-FC111A20 Dubai is a 100M media converter, providing a 100M RJ-45 port and a 100M SC fiber port, which can convert between electrical and optical signals. And long-distance data transmission through optical fiber can be applied to commercial scenarios such as park security monitoring and wireless networking.
Tplink TL-FC111A20 Dubai  adopts WDM (wavelength division multiplexing) technology, helping send and receive data at a distance of up to 20km (12.4 miles) over only one fiber, which saves half of the cable deployment cost for customers. TL-FC111A-20 transmits data at 1550nm wavelength and receives data at 1310nm wavelength on optical fiber. The TL-FC111A-20 works in the other end as a pair by receiving data at wavelength 1550nm and sending data at wavelength 1310nm.

Features

  • Complies with 802.3u 10/100Base-TX, 100Base-FX standards
  • Auto-negotiation of Half-Duplex/Full-Duplex transfer mode
  • 9/125 μm SMF (Single-Mode Fiber)
  • Bidirectional WDM communication on a single fiber
  • Ranges up to 20km (12.4 miles)
  • Work with TL-FC111B-20 as a pair

Technical Specs

HARDWARE FEATURES
Interface
  • 1× 100 Mbps SC Fiber Port
  • 1× 10/100 Mbps RJ45 Port (Auto MDI/MDIX)
Network Media 100BASE-Tx : 2-pair UTP/STP of Cat. 5 or above (≤100 m)
Power Supply External Power Adapter : 5 V/0.6 A
LED PWR, Link/Act
Dimensions ( W x D x H ) 94.5*73*27 mm
Wave Length 1550 nm TX, 1310 nm RX
MEDIA CONVERTER & MODULE
Standards and Protocols IEEE 802.3, IEEE 802.3i, IEEE802.3u
Basic Function
  • Auto-negotiation of half-duplex / full-duplex transfer mode
  • Full-duplex flow control (IEEE 802.3x)
  • Half-duplex flow control (Backpressure)
  • Extends fiber distance up to 20km (12.4 miles)
Ports
  • 1x 100M single SC/UPC port
  • 1x 10/100M RJ45 port (Auto MDI/MDIX)
WDM TX 1550 nm
WDM RX 1310 nm
Network Media 10BASE-T
  • UTP category 3, 4, 5 cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
Network Media 100BASE-T
  • UTP category 5, 5e cable (maximum 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
Network Media 100BASE-FX Single-mode fiber
LED Indicators PWR, Link/Act
Dimensions (W*D*H) 3.7 × 2.9 × 1.1 in.
(95 × 73 × 27 mm)
Power Supply External Power Adapter : 5 V/0.6 A
Safety & Emission FCC, CE, RoHS
Fiber Type 9/125 μm single-mode fber (≤20 km)
Environment
  • Operating Temperature : 0℃~50℃ (32℉~122℉)
  • Storage Temperature : -40℃~70℃ (-40℉~158℉)
  • Operating Humidity : 10%~90% non-condensing
  • Storage Humidity : 5%~90% non-condensing
NETWORK
Standards and Protocols IEEE802.3, IEEE802.3i, IEEE802.3u
ENVIRONMENT
Operating Temperature 0ËšC to 50ËšC (32ËšF to 122ËšF)
Storage Temperature -40ËšC to 70ËšC (-40ËšF to 158ËšF)
Operating Humidity 10% to 90% RH non-condensing
Storage Humidity 5% to 90% RH non-condensing
OTHERS
Package Contents
  • Media Converter TL-FC111A-20
  • Power Adapter
  • Installation Guide
