Tplink MC220L Dubai

Reviews

Tplink MC220L Dubai

Tplink MC220L Dubai Media Converter also supports data transfer rates of up to 1000 Mbps in Full-Duplex mode for both TX and FX ports. It is equipped with easy-to-view LED indicators which provide status to monitor network activity easily.

Ask for Quote & Get Low Price

Description

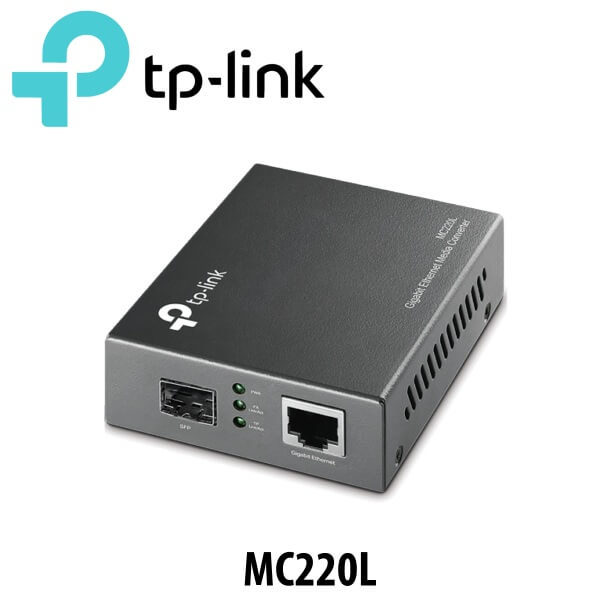

Tplink MC220L Gigabit SFP Media Converter Dubai

Convert 1000BASE-SX/LX/LH fiber to 1000Base-T copper media or vice versa with the Tplink MC220L Dubai Gigabit SFP Media Converter from TP-Link. This media converter supports the 802.3ab, 802.3z, and 802.3x network standards and extends fiber distance up to 0.31 miles for multi-mode fiber and 6.21 miles for single-mode fiber. In addition to extending the transmission distances, the Tplink MC220L Dubai Media Converter also supports data transfer rates of up to 1000 Mbps in Full-Duplex mode for both TX and FX ports. Installation is simple as this device comes equipped with a single Gigabit SFP port, a single Gigabit Ethernet port, and an external power adapter.

Features

  • Tplink MC220L Dubai works at 1000 Mbps in Full-Duplex mode for both TX and FX ports
  • Supports auto MDI/MDIX for TX port
  • The Tplink MC220L Dubai provides switch configuration of force/auto transfer mode for FX port
  • FX port supports hot-swappable
  • Extends fiber distance up to 0.31 miles for multi-mode fiber and 6.21 miles for single-mode fiber
  • Tplink MC220L is equipped with easy-to-view LED indicators which provide status to monitor network activity easily
  • External power supply

Specifications

MEDIA CONVERTER & MODULE
Standards and Protocols IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x
Basic Function
  • Full Duplex Flow Control (IEEE 802.3x)
  • Extends fiber distance up to 0.5km for multi-mode fiber or up to 10km with single-mode fiber
Ports
  • 1 x Gigabit SFP port
  • 1 x 10/100/1000M RJ45 port (Auto MDI/MDIX)
Wave Length Depends on the used SFP module
Network Media 1000BASE-X Multi-mode/Single-mode SFP module
Network Media 1000BASE-T
  • UTP category 5, 5e, 6 cable (maxium 100m)
  • EIA/TIA-568 100Ω STP (maximum 100m)
LED Indicators PWR, Link/Act
Dimensions (W*D*H) 3.7 x 2.9 x 1.1 in.
(94 x 73 x 27 mm)
Power Supply External Power Adapter (9VDC/ 0.6A)
Max Power Consumption 1.7 W
Safety & Emission FCC, CE, RoHS
Package Contents
  • • Media Converter MC220L
  • • Power Adapter
  • • Installation Guide
Environment
  • Operating Temperature : 0℃~40℃ (32℉~104℉)
  • Storage Temperature : -40℃~70℃ (-40℉~158℉)
  • Operating Humidity : 10%~90% non-condensing
  • Storage Humidity : 5%~90% non-condensing
