Tplink CPE610 Dubai

With 23dBi high-gain directional 2×2 MIMO Casse grain antenna and dedicated metal reflector, the Tplink CPE610 Dubai provides excellent beam directivity, improved latency and noise immunity.

Ask for Quote & Get Low Price

Description

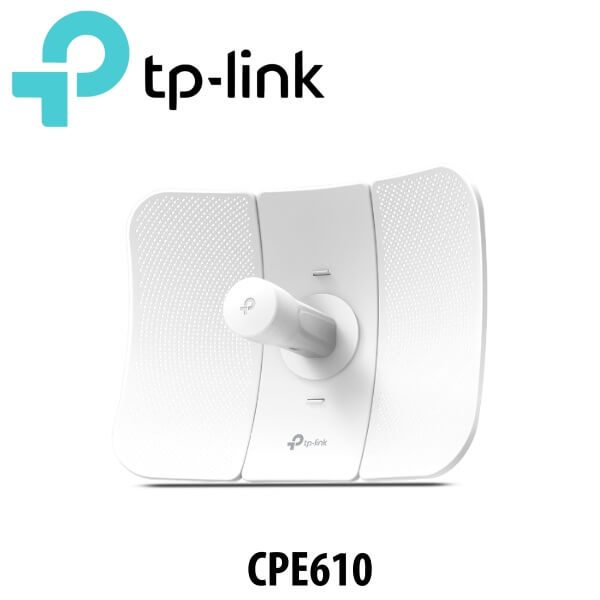

Tplink CPE610 Outdoor Radio Dubai

The Tplink CPE610 Dubai is a 5GHz 300Mbps 23dBi Outdoor CPE Access point with Dual Polarized Directional Antenna that has been designed to increase your wireless network. It comes with 2 antennas that offer up to 300Mbps of data transfer speed and 23dBi of gain. The high quality access point offers high performance at an affordable cost. It also has a frequency of 5.15-5.85 GHz and supports an operating temperature of 0 to 40 degrees Celsius and  operating humidity of 10-90% (non-condensing).

Features

2×2 MIMO MAXtream TDMA :
23dBi directional antenna and professional structural stability for long-distance outdoor Wi-Fi transmission

Professional-standard 23dBi Directional Antenna for Long-range Wireless Transmission :
With 23dBi high-gain directional 2×2 MIMO Casse grain antenna and dedicated metal reflector, the Tplink CPE610 Dubai provides excellent beam directivity, improved latency and noise immunity. Professional performance, coupled with user-friendly design, makes the 5GHz 300Mbps1 23dBi Outdoor CPE610 an ideal choice and cost effective solution for outdoor wireless networking applications.

Stable Structural Design and Flexible Installation :

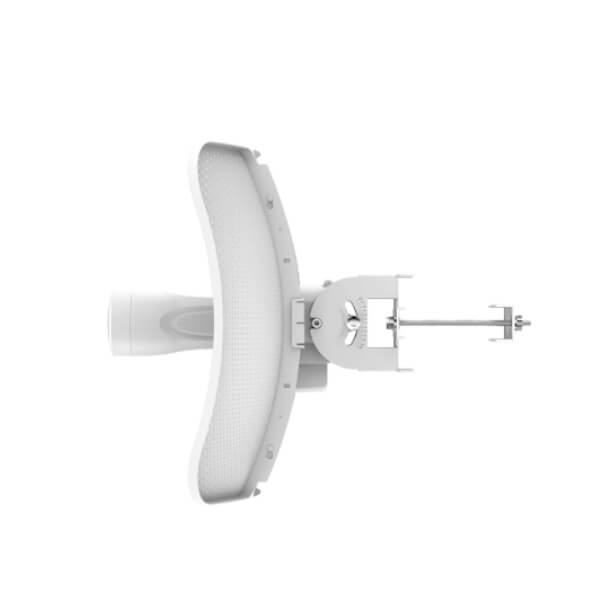

Snap-lock parts make assembly simple and convenient. Pole mount kits and the freedom of three-axis alignment facilitate flexible installation. Sturdy design of the Tplink CPE610 Dubai ensures stability in windy conditions.

Compact and Lightweight Packaging :
Small and lightweight boxes benefit shipping, logistics and retail.

Technical Specifications

Brand TP-Link
Wireless

Wireless : IEEE 802.11a/n

Configuration
  • Network : WAN : Static, Dynamic, PPPoE, L2TP, PPTP
  • LAN : Static, Dynamic, DHCP
  • Forwarding : ALG, UPnP, Virtual Server, Port Trigger
  • Security : SPI Firewall, Ping Forbidden, DoS Protection, Access Control & Static Routing
  • Bandwidth Control, IP & MAC Binding & Wireless : Pharos Maxterm TDMA Technology
  • Selectable Channel Width : 5, 10, 20, 40 MHz, Auto Channel Selection & Transmit Power Control
  • Dynamic Frequency Selection
  • WDS Enable, Disable, Security : WPA, WPA2, WPA-PSK, WPA2-PSK Encryption
  • 64, 128, 152-bit WEP Encryption & SSID Broadcast Enable, Disable
  • Multi-SSID with VLAN Tagging
  • Distance, ACK Timeout Setting & Wireless MAC Address Filter
  • Wireless Advanced & Beacon Interval, RTS Threshold, Fragmentation Threshold, DTIM Interval, AP Isolation, Short GI, Wi-Fi Multimedia
Memory

64 MB DDR2 RAM & 8 MB Flash

Enclosure

Material : Outdoor PC Stabilized Plastic & Weatherproof : IP65 Water & Dust Proof Design

System

Tools : Wireless Signal Quality Indicators, Signal Strength, Noise, Transmit CCQ, CPU, Memory, Monitors : Throughput, Stations, Interfaces, ARP, Routes, WAN, DHCP, Spectrum Analyzer, Speed Test, Ping & Traceroute

Suitable For

Outdoor

Power Supply

Passive Power over Ethernet via LAN

16-27 V DC

Colour

Power Status LEDs : Green

Input

100-240 V AC & 50-60 Hz

Package Contents

Outdoor Wireless CPE

24 V 0.5 Amp Passive POE Adapter

Pole Mounting Straps

AC Power Cord & Installation Guide

Efficiency

>84.29%

System Requirements

Windows : 98SE, NT, 2000, XP, Vista or Windows 10, Windows 8, Windows 7, MAC OS, NetWare & UNIX or Linux

Output

24 V DC, 0.5 Amp Max & +4, 5 Pins & -7, 8 Pins

Power Transmission

Max. 25 dBm

Protocol

Proprietary : TDMA Mode

Protection

15 kV ESD Protection & 6 kV Lightning Protection

Item Code

CPE610

Storage Temperature

-40 to 70°C

Operating Temperature

0 to 40°C

Speed

Wireless :

  • Upto 300 Mbps
  • Upto 144.4 Mbps
  • Upto 72.2 Mbps & Upto 36.1 Mbps
Storage Humidity

5-90% (Non-Condensing)

Warranty

3 Years Warranty

Dimensions
  • 366x280x207 mm
  • POE Adapter : 85.8×43.9×29.7 mm
Remote Management Protocol

Discovery & Remote Management via Pharos Control application, HTTP/HTTPS Web-Based Management, System Log, SNMP Agent, Ping Watch Dog, Dynamic DDNS & SSH Server

Processor

Qualcomm 560MHz CPU & MIPS 74KC

Certification
  • CE, FCC, UL, IC, GS, PSB, C-tick, SAA, S-Mark & KC-mark
  • CE, FCC, IC, RoHS & IP65
Number of Buttons

Remote Reset Button

Antenna Type

Gain : 23 dBi & Beamwidth : 9°Azimuth, 7°Elevation

Operating Humidity

10-90% (Non-Condensing)
