Ruijie RG-RAP1200F Dubai

The Ruijie Reyee RG-RAP1200F is a dual-band FE wall plate AP featuring high-performance wall plate AP. With 802.3af/at PoE support, the AP provides a LAN port at the front to facilitate the expansion of IPTV, IP phone, etc.

Ask for Quote & Get Low Price

Description

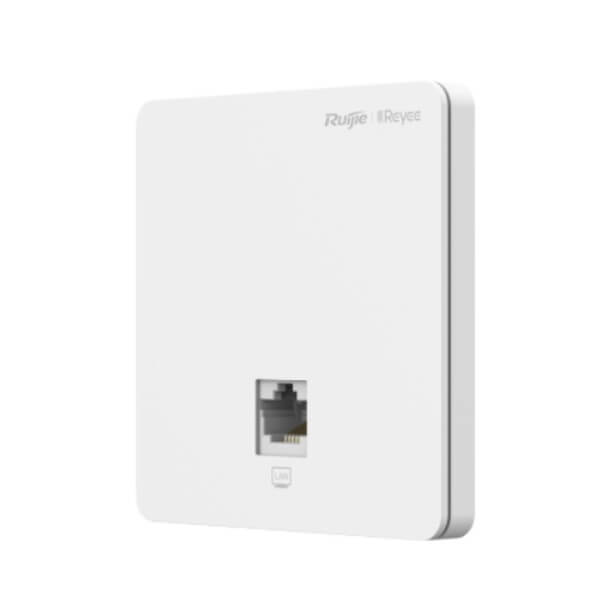

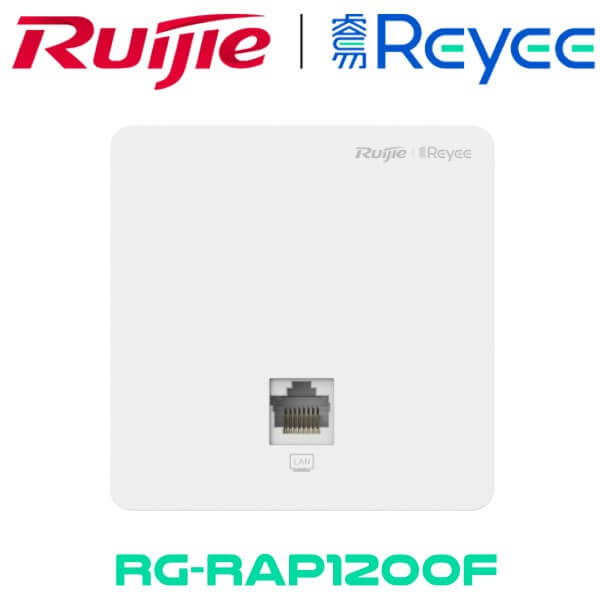

Ruijie Reyee RG-RAP1200F Access Point Dubai

The Ruijie Reyee RG-RAP1200F Dubai is a dual-band FE wall plate AP featuring high-performance wall plate AP. With 802.3af/at PoE support, the AP provides a LAN port at the front to facilitate the expansion of IPTV, IP phone, etc. Compliant with 802.11a/b/g/n/ac Wave1/Wave2 Wi-Fi protocol, the AP supports MU-MIMO dual-stream technology and offers built-in omnidirectional antennas. It can operate concurrently at 2.4GHz and 5GHz, providing high-speed wireless access of 400Mbps at 2.4GHz, 867Mbps at 5GHz and up to 1267Mbps per AP. Its compact 86mm wall plate installation design facilitates quick installation directly into a standard 86mm wall junction box, which is an ideal choice for deployment such as offices, commercial industry, hotels, service scenarios, etc.

The AP supports Ruijie’s self-organizing network feature, which means to realizes auto-discovery, auto-networking and auto-configuration between routers, switches, and wireless APs without the need for controllers or Internet access. With the Ruijie Cloud app, users can quickly complete the device deployment and configuration, remote management, operation and maintenance of the entire network, which greatly reduces the investment of equipment cost, labor cost and time cost in the process of wireless network construction.

Features

  • 11ac Wave2 technology
  • Auto-provisioning via Self-Organizing Network: Supports Ruijie’s self-developed smart networking feature, which breaks through the product limitations and realizes auto-discovery, auto-networking and auto-configuration between gateways, switches, and wireless APs without the need for controllers or Internet access;
  • Lifetime free Ruijie Cloud management: Remote fault alarm, one-click optimizing and maintenance on Ruijie Cloud App;
  • Seamless layer 3 roaming
  • Industrial Design: Robust casing, Provide better strength and safety for products;

High-speed dual-band Wi-Fi

The Ruijie Reyee RG-RAP1200F Dubai supports 2.4GHz and 5GHz dual-band communication, providing access rate of 400Mbps at 2.4GHz, 867Mbps at 5GHz and up to 1267Mbps per AP. It can provide 5GHz frequency band with less interference, wider channel, and faster speed for the terminals, allowing the users to enjoy excellent wireless experience.

Support routing and AP mode

The device supports both AP and routing mode. A wireless network can be formed with multiple APs, or it can be used as a wireless router when deployed independently. The device offers more flexible configurations, more abundant application features, and more extensive applicable scenarios.

Support Layer 3 networking

The Ruijie Reyee RG-RAP1200F device supports Layer 3 roaming for Layer 3 network. When users move across the Layer 3 networks, seamless roaming can be achieved without service interruption.

Ruijie Rg Rap1200f Dubai

Ruijie Rg Rap1200f Dubai

Stronger and more stable signals

An aluminum alloy antenna reflector is added to reflect interference signals and focus effective signals so as to provide stronger signal transmission and better receiving sensitivity. The device uses FBAR to filter out all kinds of interferences caused by the operator’s base stations, microwave ovens, Bluetooth devices, etc., so as to provide cleaner wireless signals, higher transmission rate and more stable transmission quality.

Robust casing

With the robust and flame-retardant material of the AP casing, the impact resistance is 5 times higher than that of common ABS plastic materials. The tensile and flexural strengths are increased by 30%, which is not easy to damage. Users can rest assured during usage and maintenance.

Simple installation

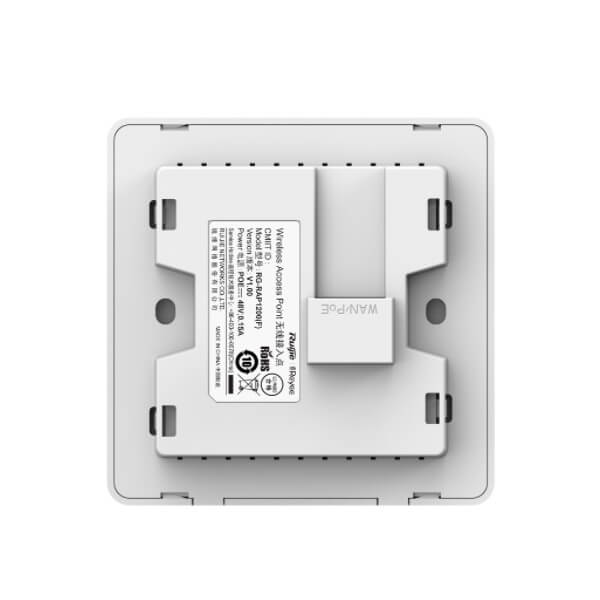

The 86mm wall plate installation design facilitates quick installation directly into a standard 86mm wall junction box, without requiring any additional mounting bracket.

Specifications

Hardware specifications
Radio Dual-stream dual-band
Protocol Concurrent 802.11b/g/n/ac
Operating Bands
  • 802.11b/g/n :2.4G ~ 2.4835GHz
  • 802.11a/n/ac : 5G:5.150~5.350GHz,5.47~5.725,5.725~5.850GHz

(Note: The operating bands vary according to different countries)

Antenna PCB antenna
Spatial Streams
  • 2.4G : 2 Spatial Streams,2×2 MIMO
  • 5G : 2 Spatial Streams,2×2 MIMO
Max Throughput
  • 2.4G : up to 400Mbps
  • 5G : up to 866.7Mbps
Modulation
  • OFDM : BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps
  • DSSS : DBPSK@1Mbps, DQPSK@2Mbps, and CCK@5.5/11Mbps
  • MIMO-OFDM : BPSK, QPSK, 16QAM, 64QAM and 256QAM
Receive Sensitivity
  • 11b :-97dBm(1Mbps) ,-92dBm(5Mbps) ,-89dBm(11Mbps)
  • 11a/g :-94dBm(6Mbps),-85dBm(24Mbps),-82dBm(36Mbps),-76.5dBm(54Mbps)
  • 11n :-93.5dBm@MCS0,-74dBm@MCS7,-74dBm@MCS15
  • 11ac :HT20:-92.5dBm(MCS0), -68.5dBm(MCS8)
  • 11ac :HT40:-89dBm(MCS0), -64dBm(MCS9)
  • 11ac :HT80:-86dBm(MCS0), -60.5dBm(MCS8)
Maximum Transmit Power 20dBm (adjustable)
Adjustable Power 1dBm
Dimensions 86*86*29.3
Weight <0.25kg
Service Ports Front:
1 10/100Mbps Ethernet port
